G-12224
Accretion

24" round surface mount

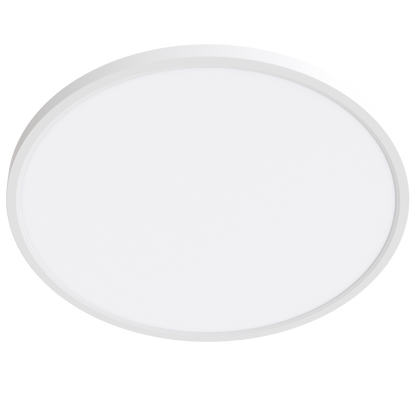

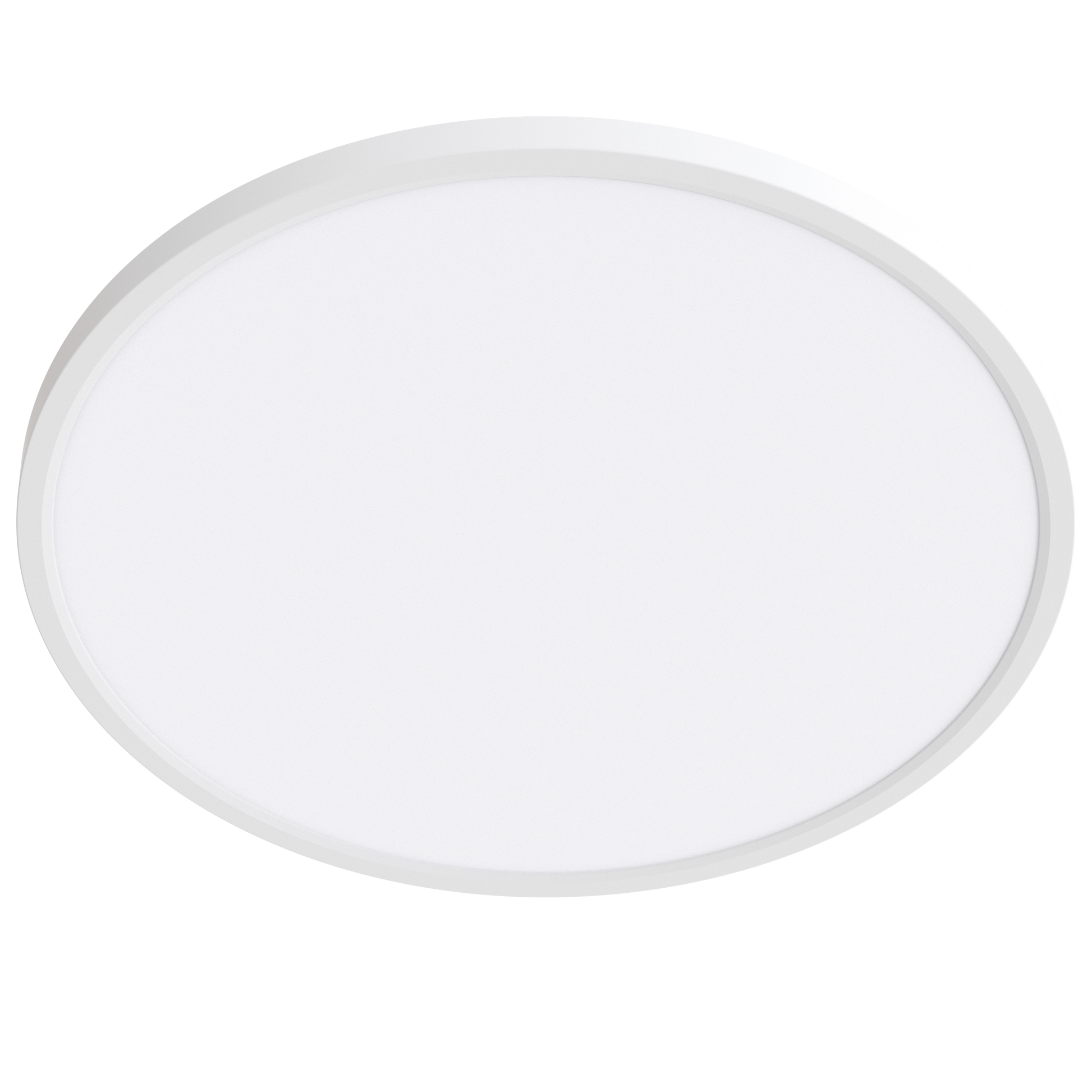

24" Round Surface Mount

30,35,41,50,65k
Dimmable
3850 Lumens
40 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-12224
Description

AC24/40W/R/LED/5CCT

shape
Round
size
24 Inch
finish
White
diffuser
Frosted
number of lights
1
OD (Outside dimensions)
23.62"
height
1.00"
mounting
Surface mount
Packaging Information
master pack
5
Barcode
990379122246
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
3850
CRI
90>
beam spread deg
120°
Electrical Specs
watt
40W
volts
120-277V
dimming type
Triac or 0-10V
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

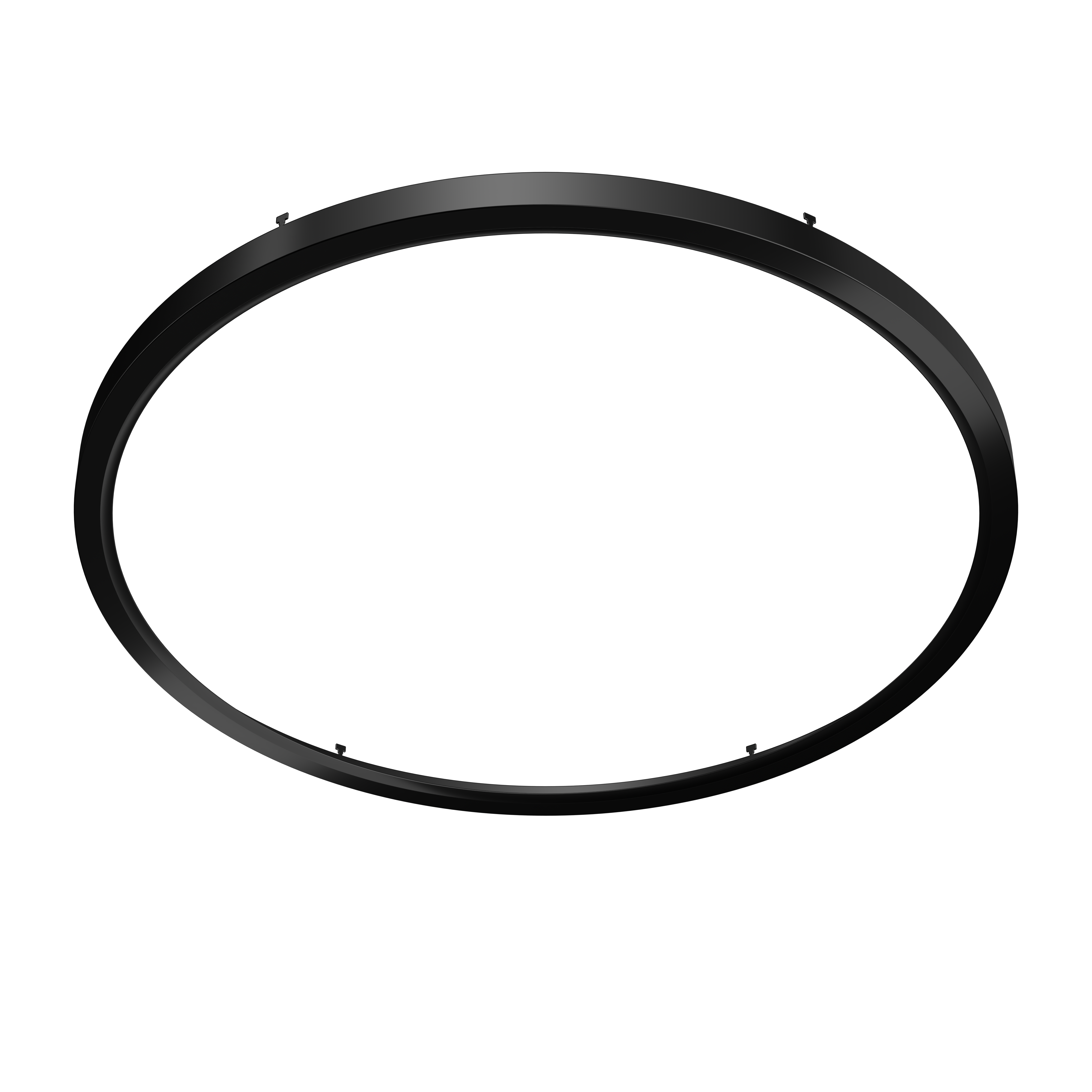

Black Cover
G-12240 Black
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
