G-23352
Ellipse

3.5" oval double head regress gimbal black

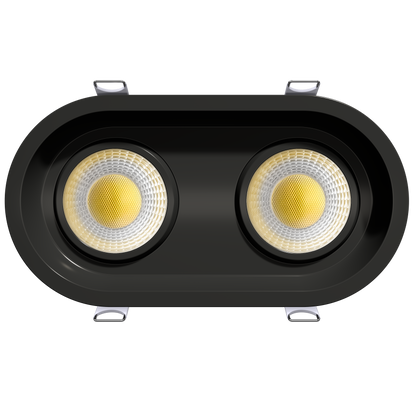

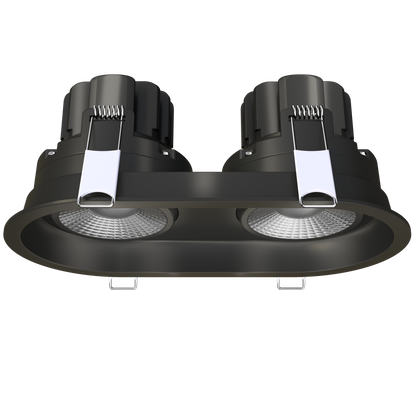

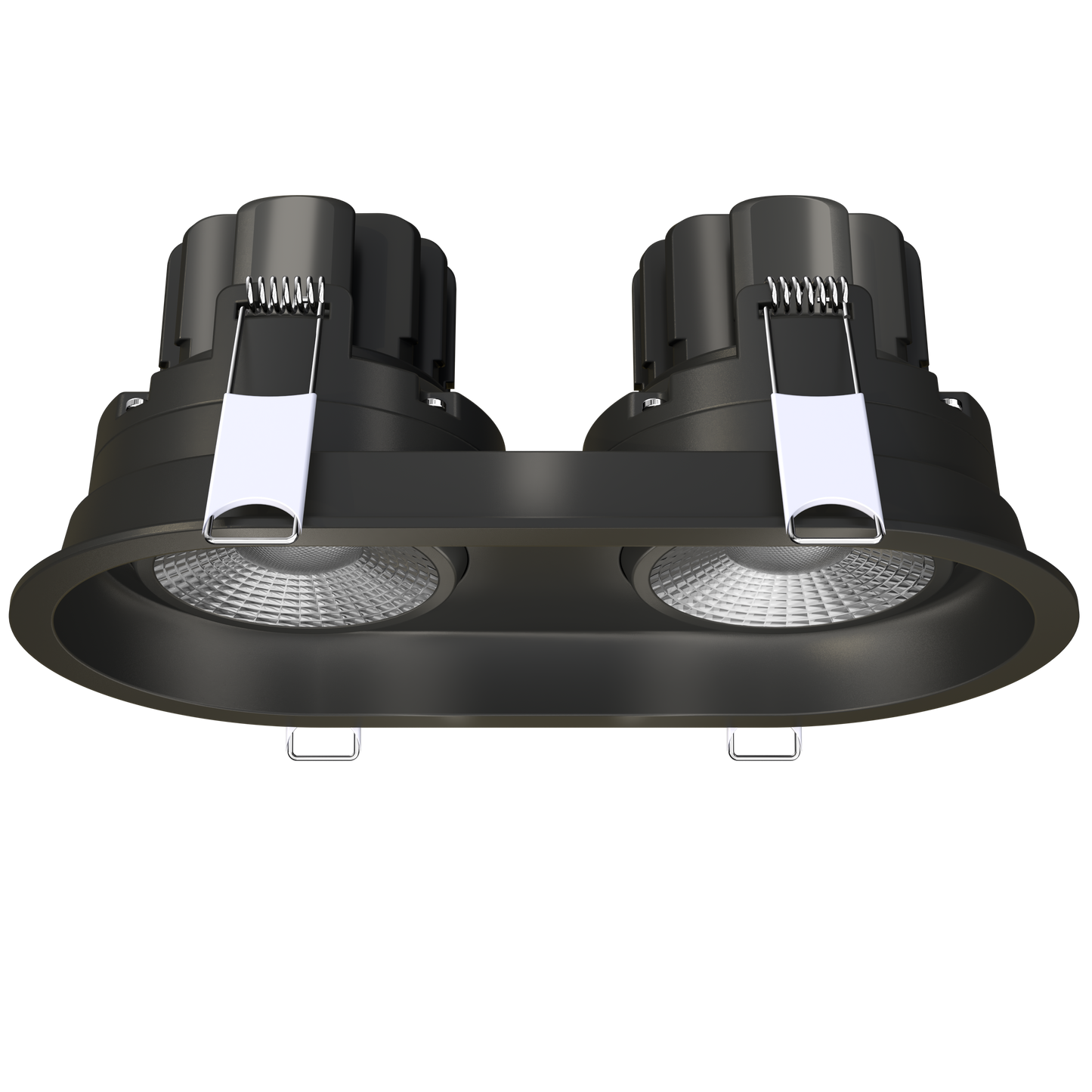

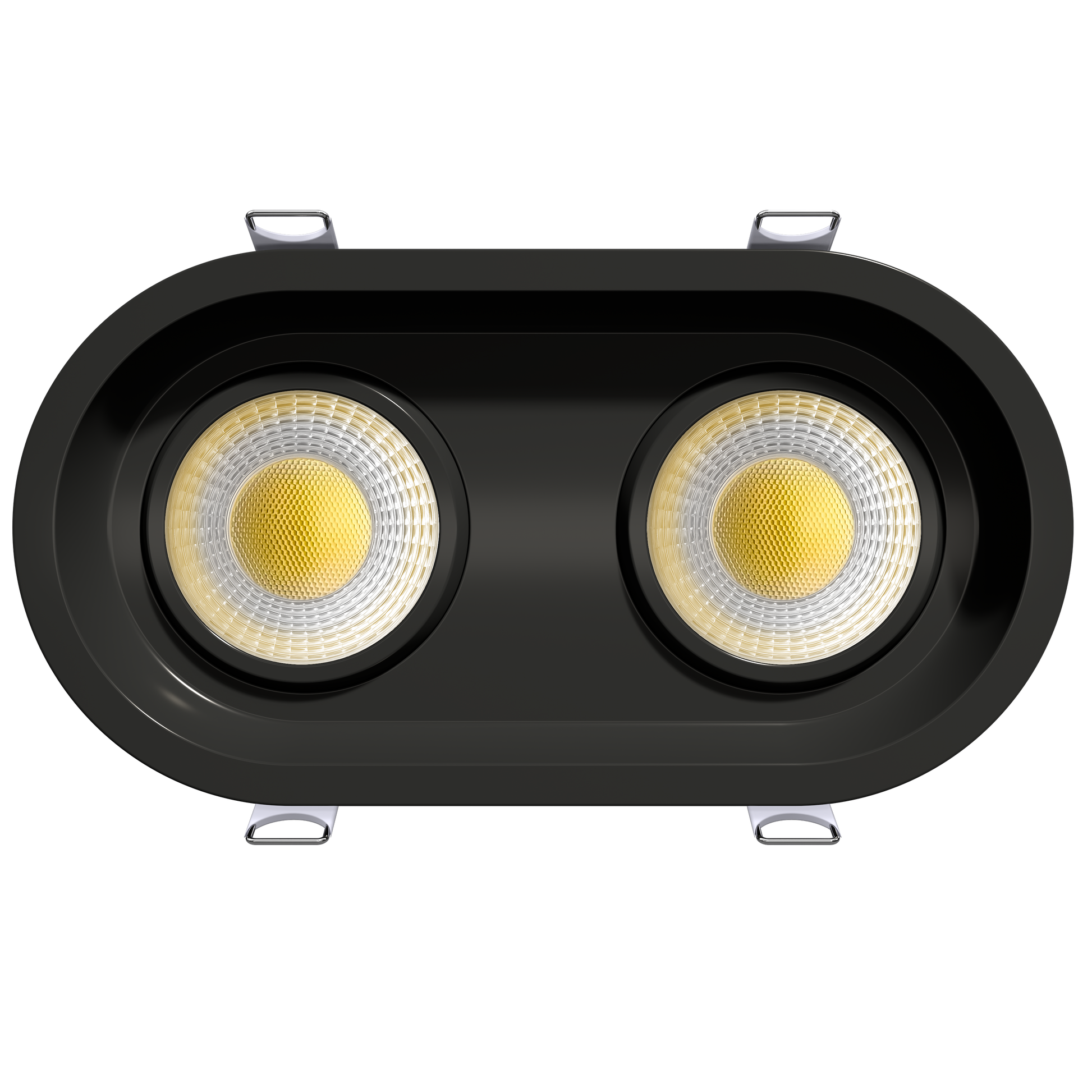

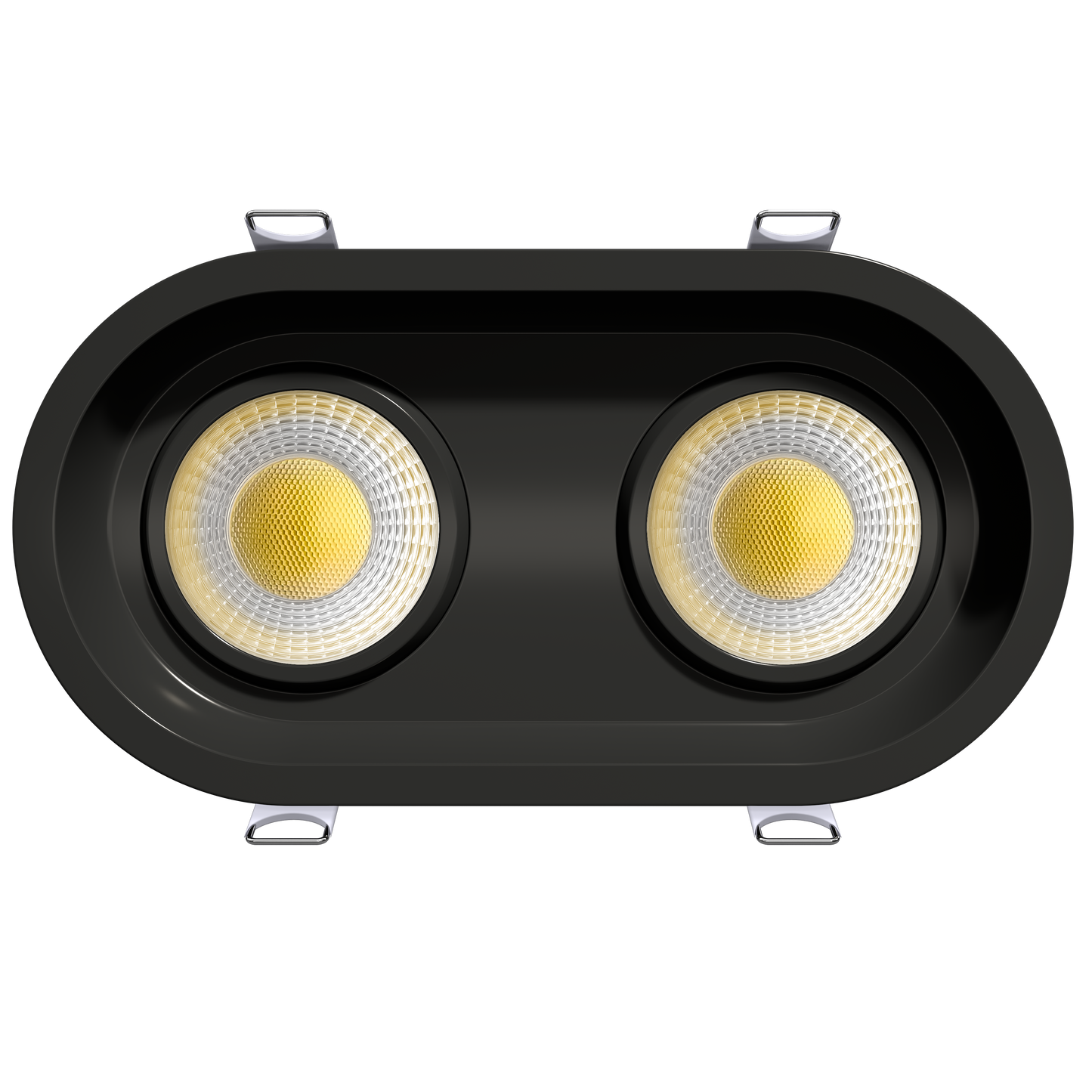

3.5" Oval Double Head Regress Gimbal Black

27,30,35,41,50k
Dimmable
2700 Lumens
28 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-23352
Description

R3.5/28W/GR/OVL/M2/LED/5CCT/BK

shape
Oval Multiple
style
Trimmed
size
3.5 Inch
finish
Black
diffuser
Clear
number of lights
2
cutout
3.70" X 7.48" Oval
OD (Outside dimensions)
4.13" X 7.87"
height
3.25”
mounting
Clip-in
Packaging Information
master pack
12
Barcode
990379233522
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1350
lumens
2700
CRI
90>
beam spread deg
60° (Default)
tilt angle
30°
Electrical Specs
watt
28W
volts
120-277V
output current
650mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec

Accessories

New construction plate
G-98811 (1 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
