G-23373
Ellipse

3.5" oval triple head regress gimbal trimless black

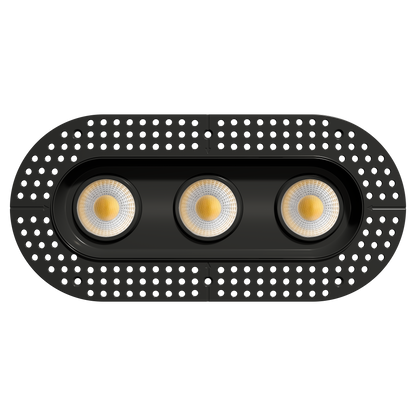

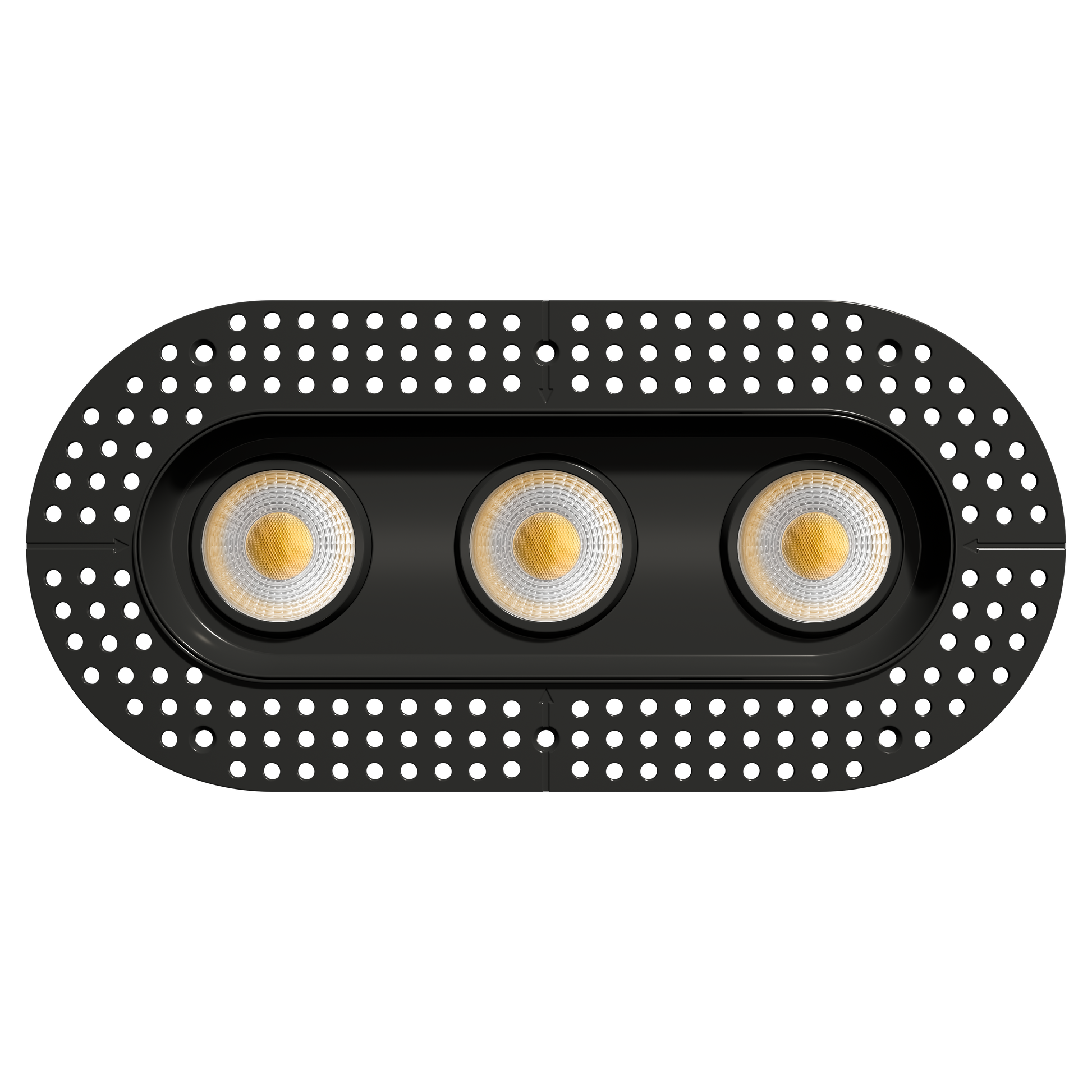

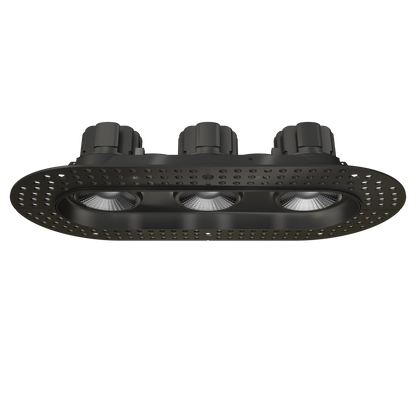

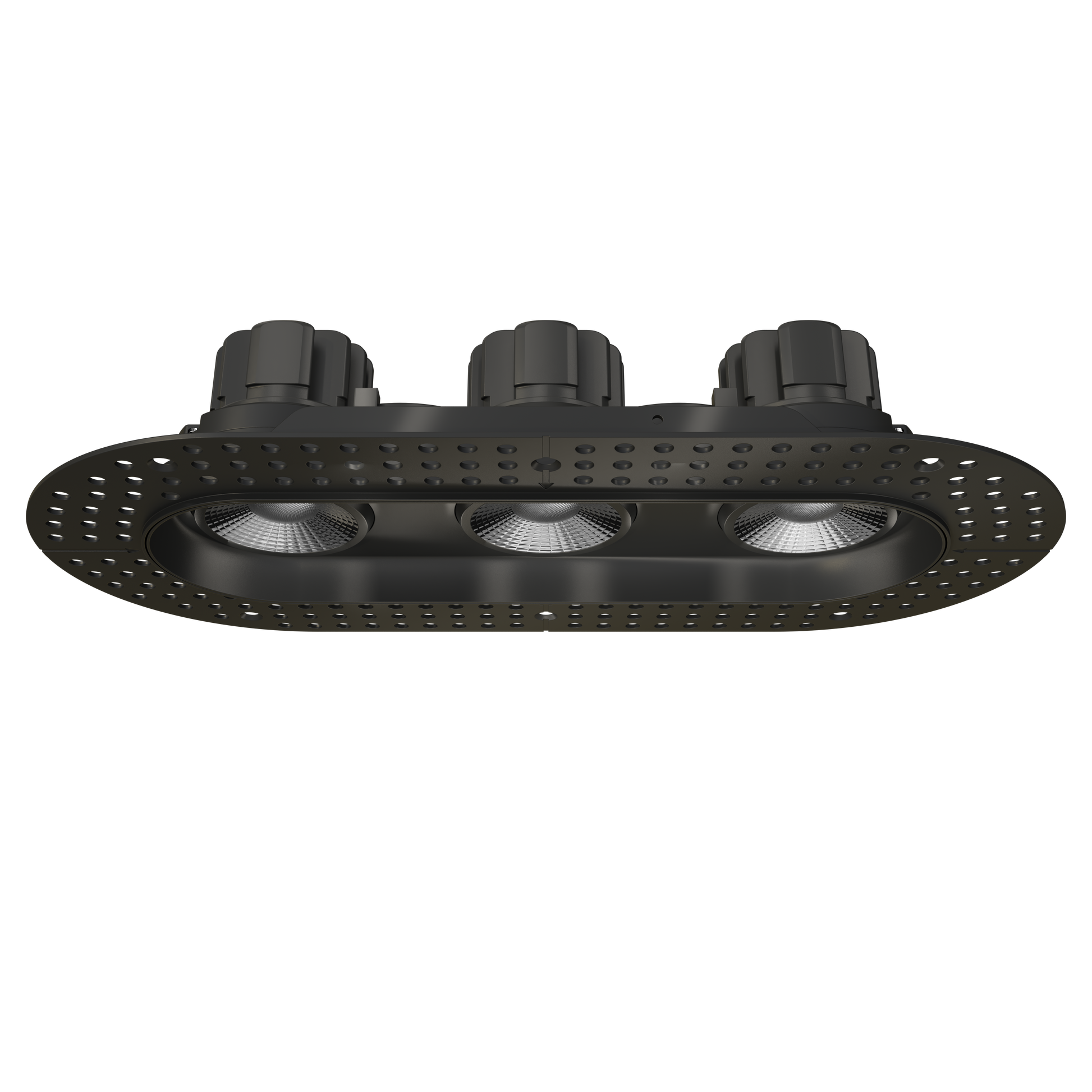

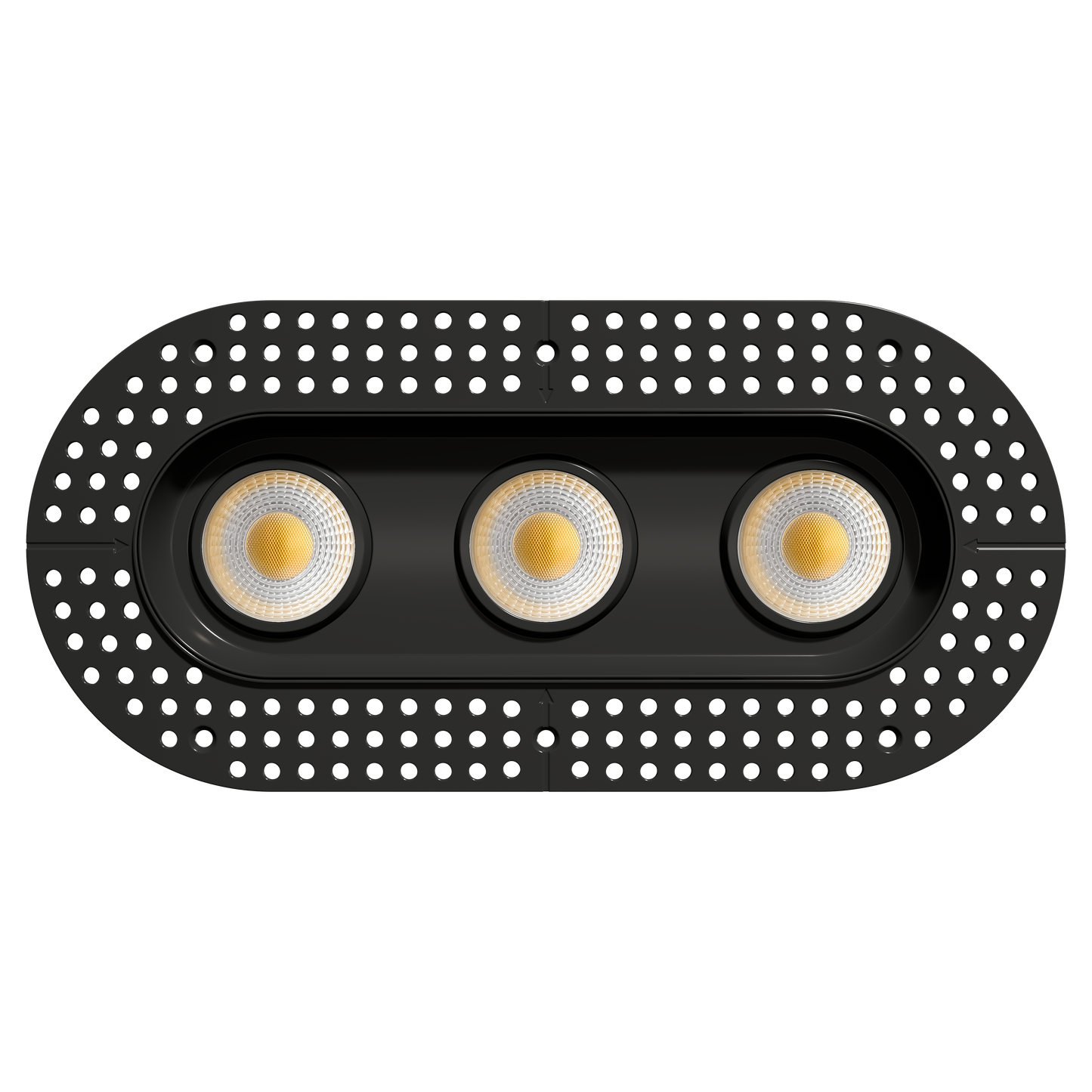

3.5" Oval Triple Head Regress Gimbal Trimless Black

27,30,35,41,50k
Dimmable
3800 Lumens
40 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-23373
Description

R3.5/40W/GR/OVL/M3/LED/5CCT/BK/TL

shape
Oval Multiple
style
Trimless
size
3.5 Inch
finish
Black
diffuser
Clear
number of lights
3
cutout
3.86" X 11.34" Oval

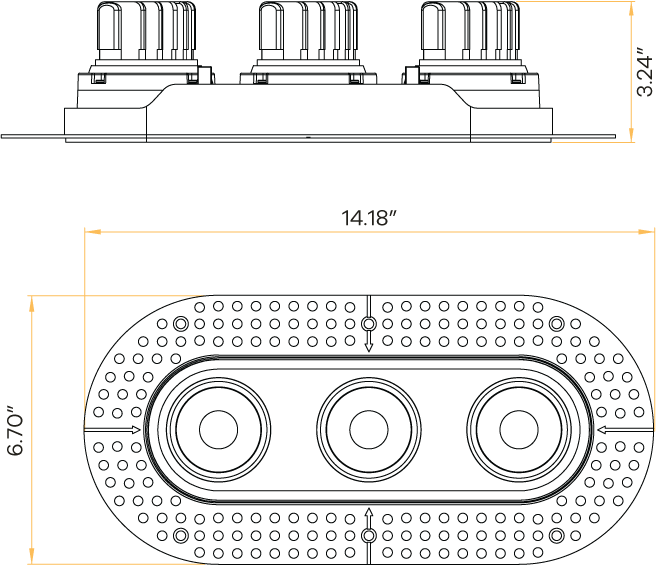

OD (Outside dimensions)
6.70" X 14.18"
height
3.25”
mounting
Mud-in
Packaging Information
master pack
6
Barcode
990379233737
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1265
lumens
3800
CRI
90>
beam spread deg
60° (Default)
tilt angle
30°
Electrical Specs
watt
40W
volts
120-277V
output current
1000mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

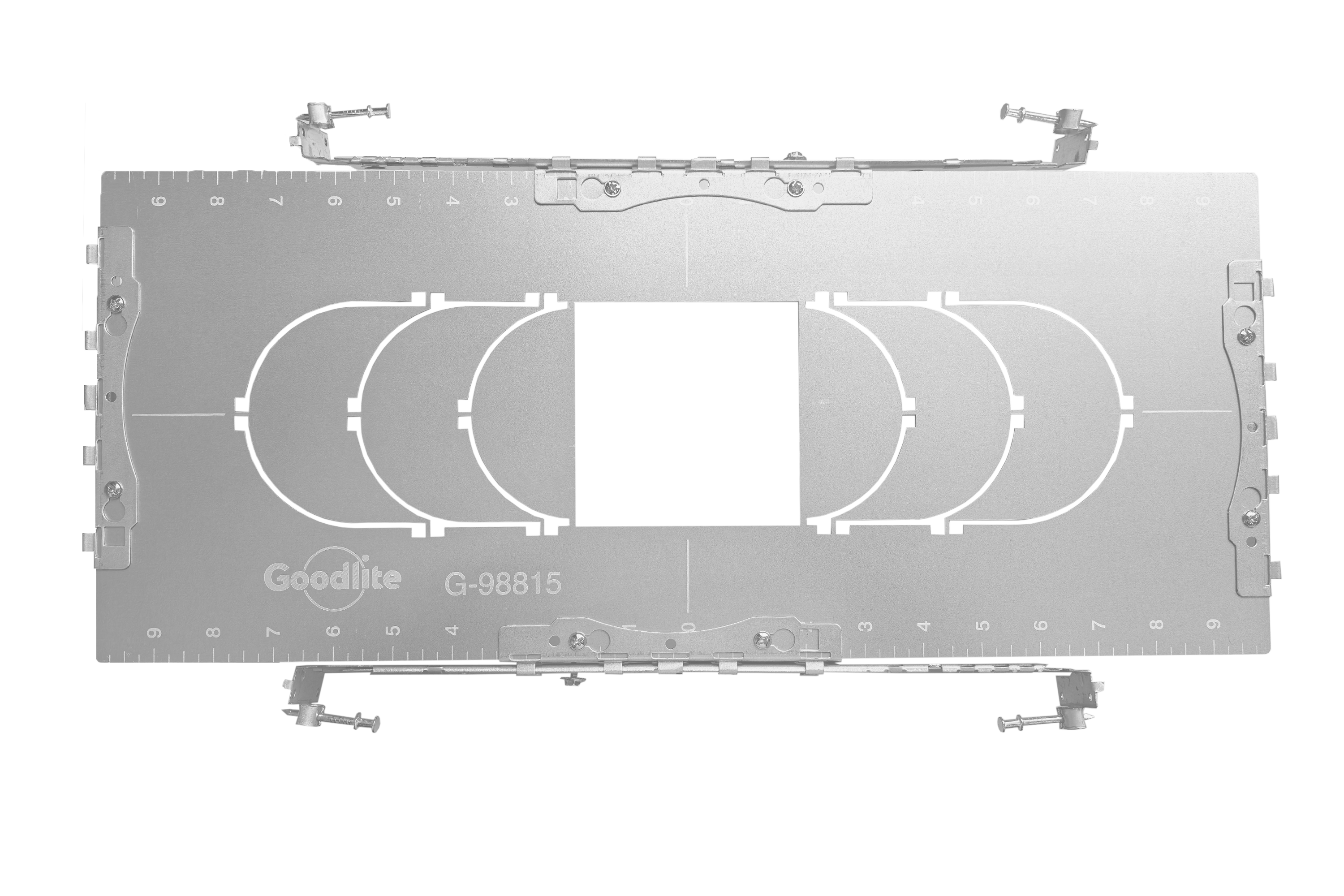

New construction plate
G-98815 (2 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
