G-23340
Ellipse

3.5" round regress narrow gimbal trimmed white

3.5" Round Regress Narrow Gimbal Trimmed White

27,30,35,41,50k
Dimmable
1350 Lumens
14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-23340
Description

R3.5/14W/GR/NT/LED/5CCT

shape
Round
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
1

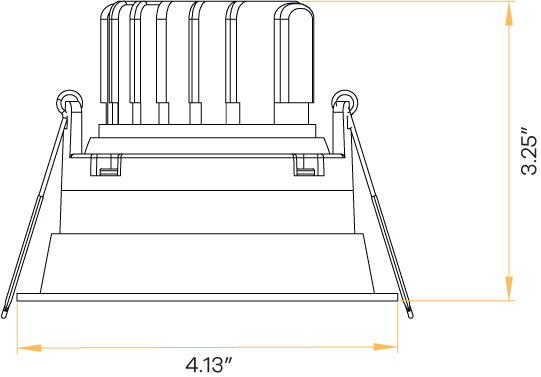

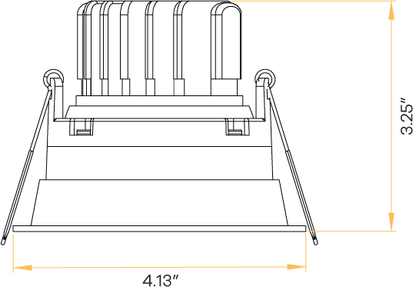

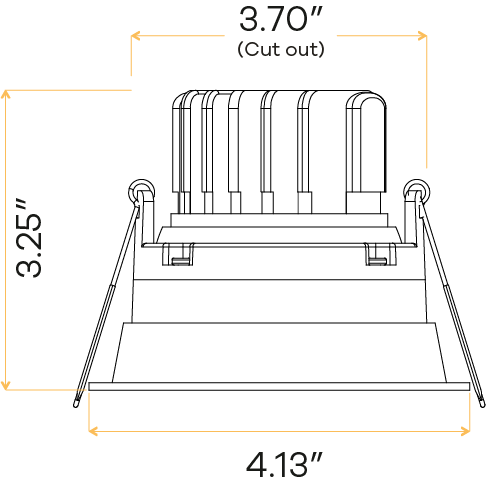

cutout
3.70”
OD (Outside dimensions)
4.13"
height
3.25”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379233409
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1350
CRI
90>
beam spread deg
60° (Default)
tilt angle
30°
Electrical Specs
watt
14W
volts
120-277V
output current
340mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec

Accessories

New construction plate
G-19979 (3 Punchouts) G-19975 (3 Punchouts) G-19981 (2 Punchouts) G-19982 (3 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt
