G-32532
Pulsar

3” double head retractable trimless multiple black

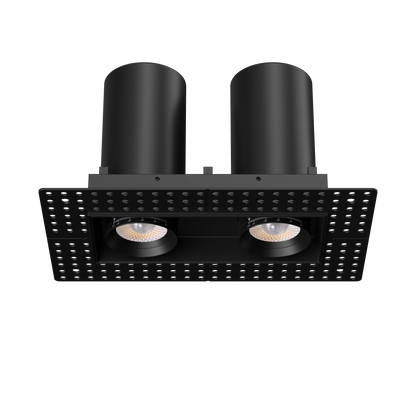

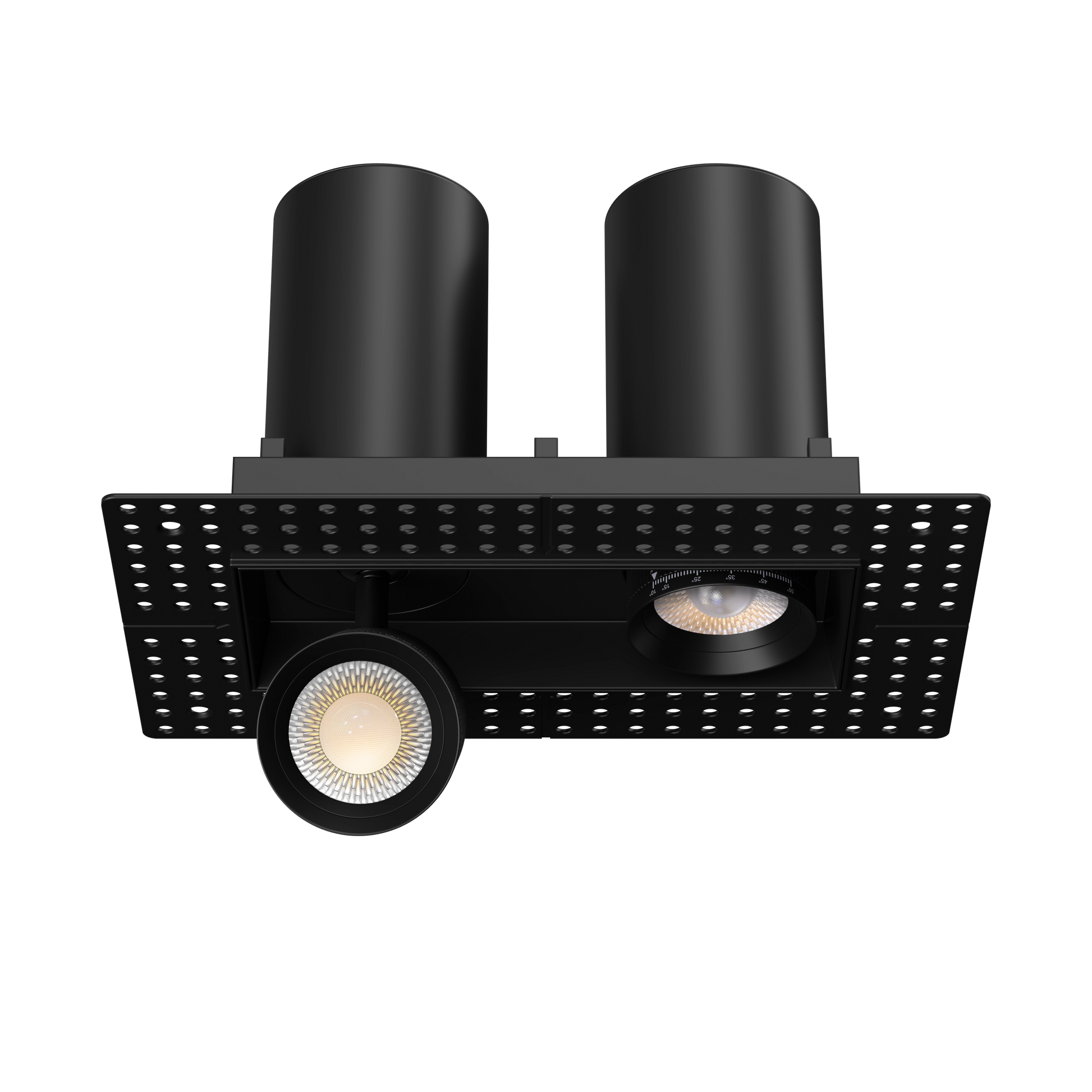

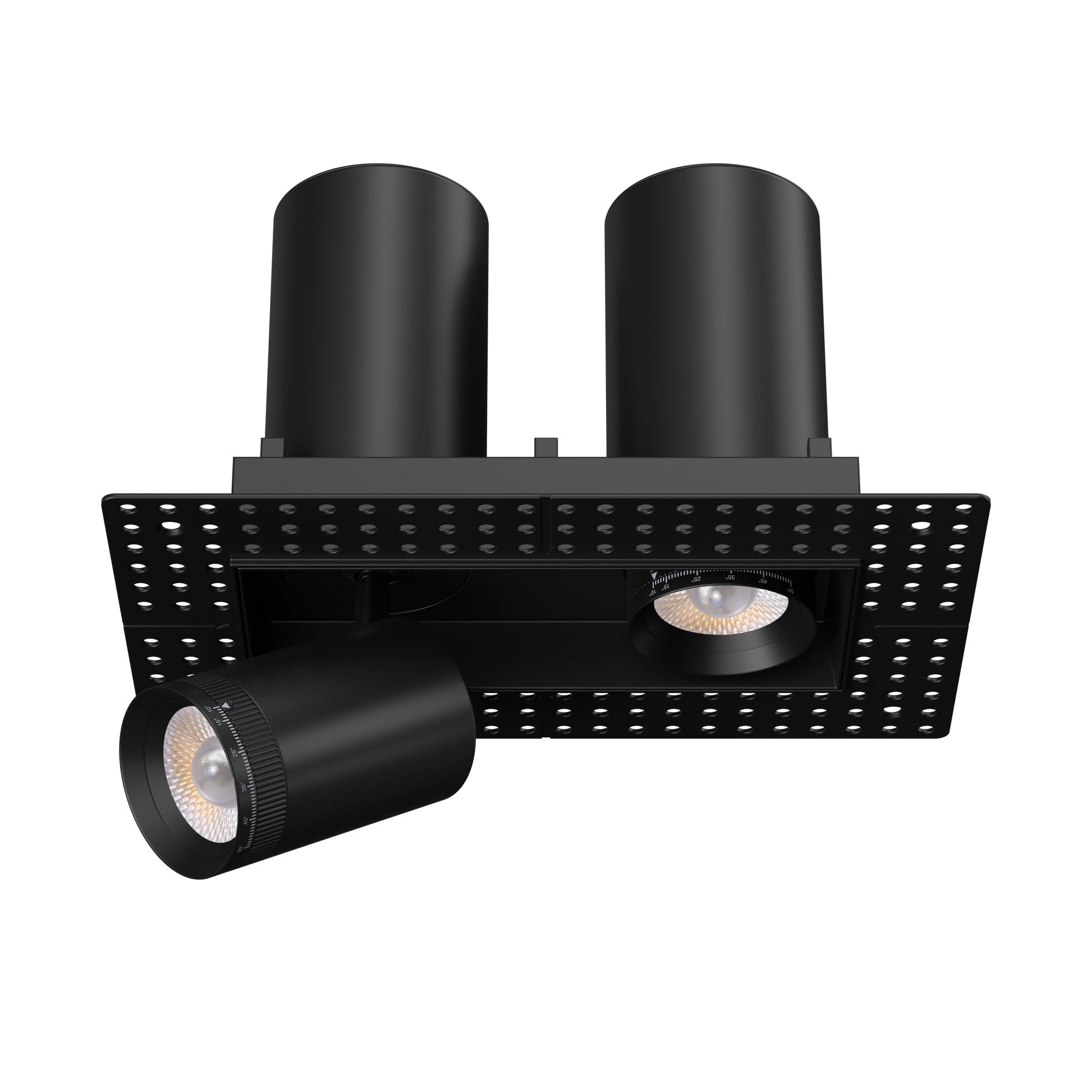

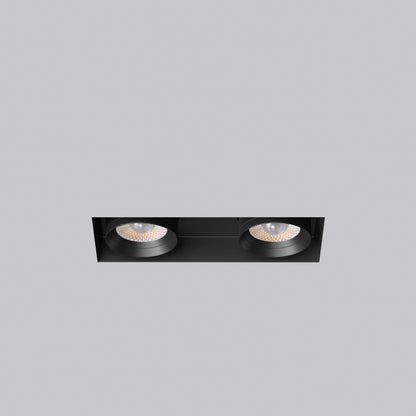

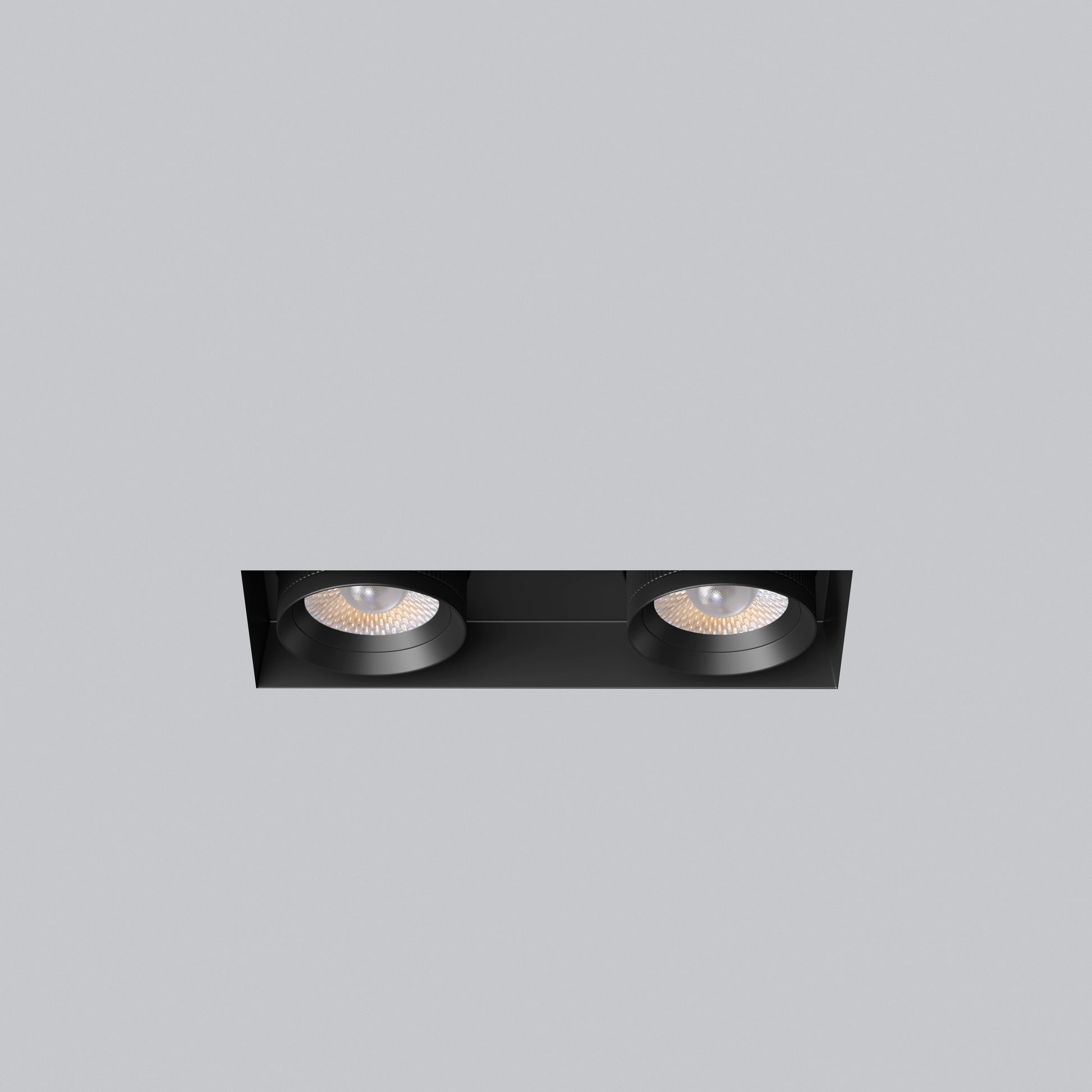

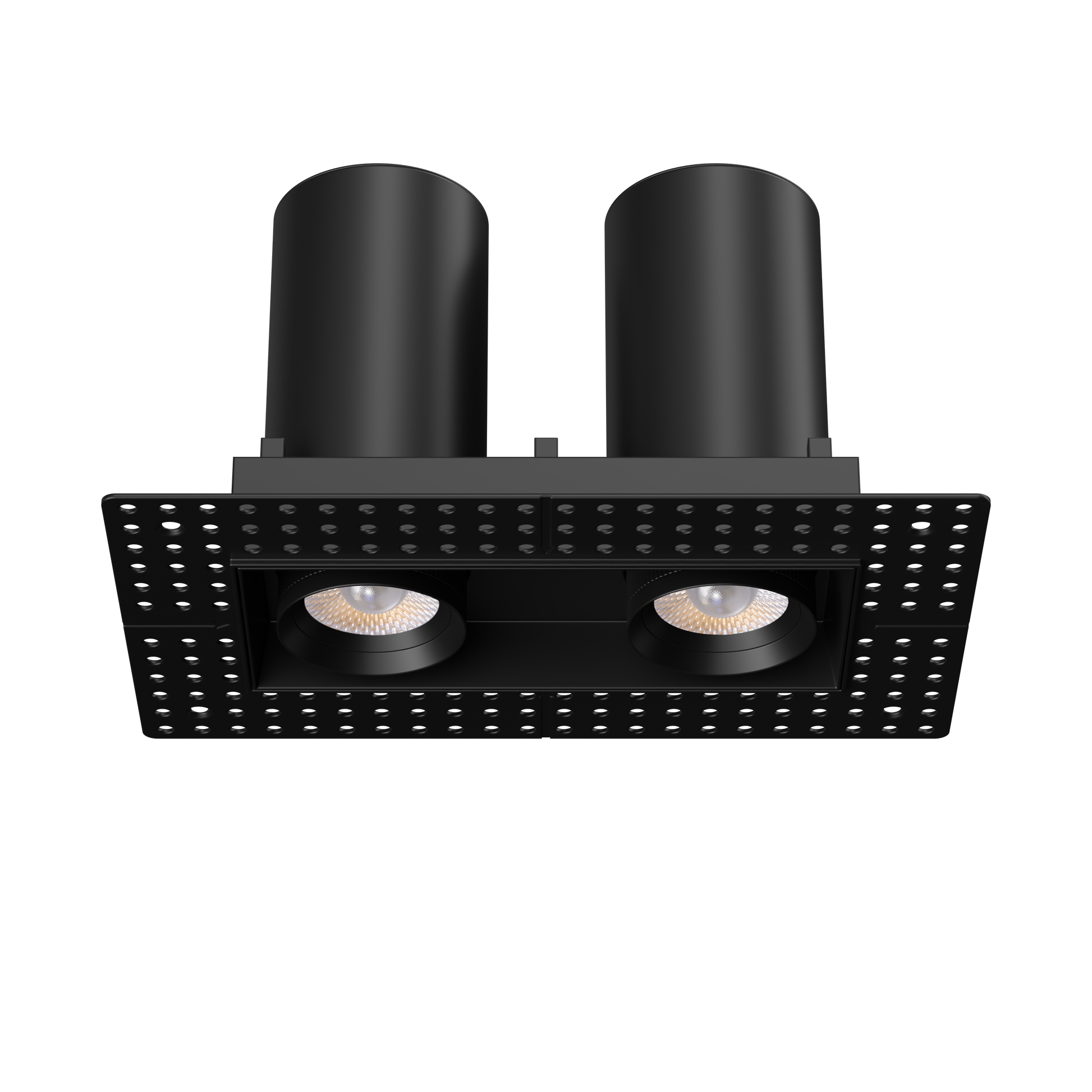

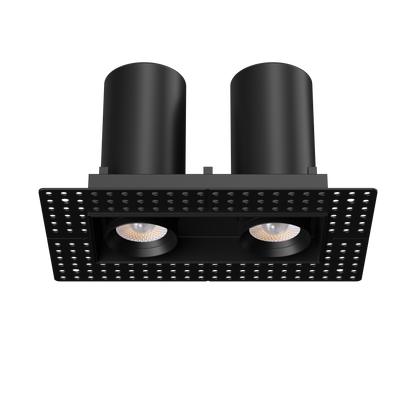

3” Double Head Retractable Trimless Multiple Black

27,30,35,41,50k
Dimmable
1900 Lumens
24 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-32532
Description
PL/3/M2/24W/5CCT/BK/TL
shape
Multiple
style
Trimless
size
3 Inch
finish
Black
diffuser
Clear
number of lights
2

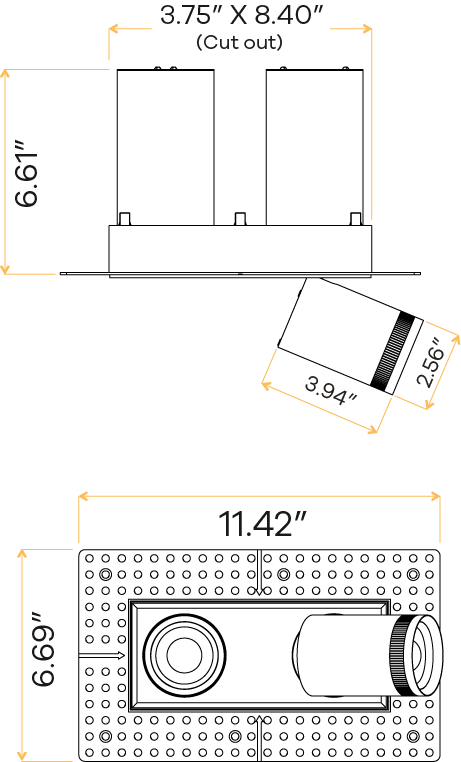

cutout
3.75" X 8.40"

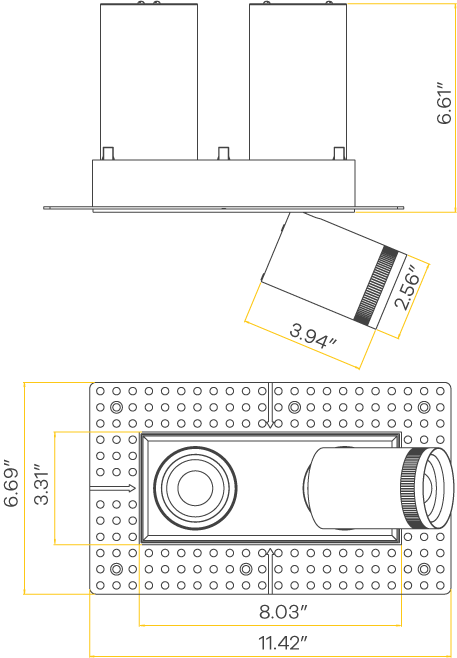

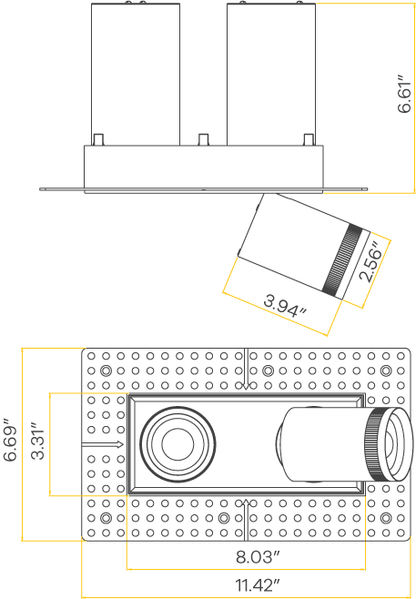

OD (Outside dimensions)
6.70" X 11.42"
height
6.61”
Packaging Information
master pack
6
Barcode
990379325326
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
950
lumens
1900
CRI
90>
beam spread deg
Adjustable 20°-55°
tilt angle
90°
rotating
360°
Electrical Specs
watt
24W
volts
120-277V
output current
530mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New construction plate
G-98816 (1 Punch outs)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
