G-23300
Ellipse

3" round regress narrow gimbal trimmed white

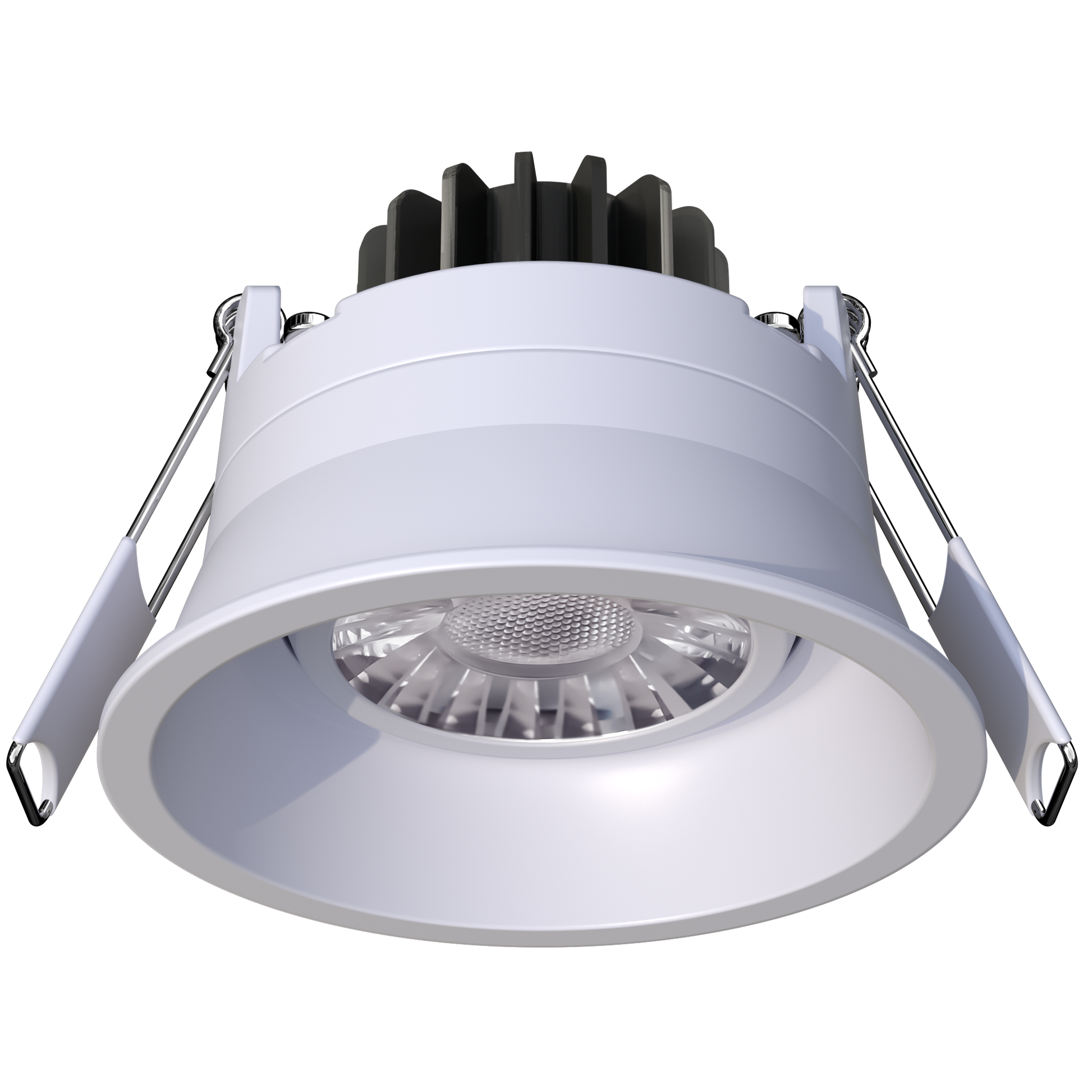

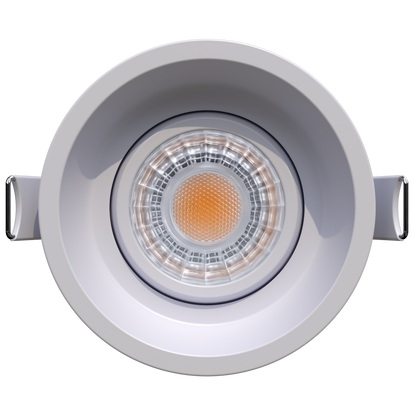

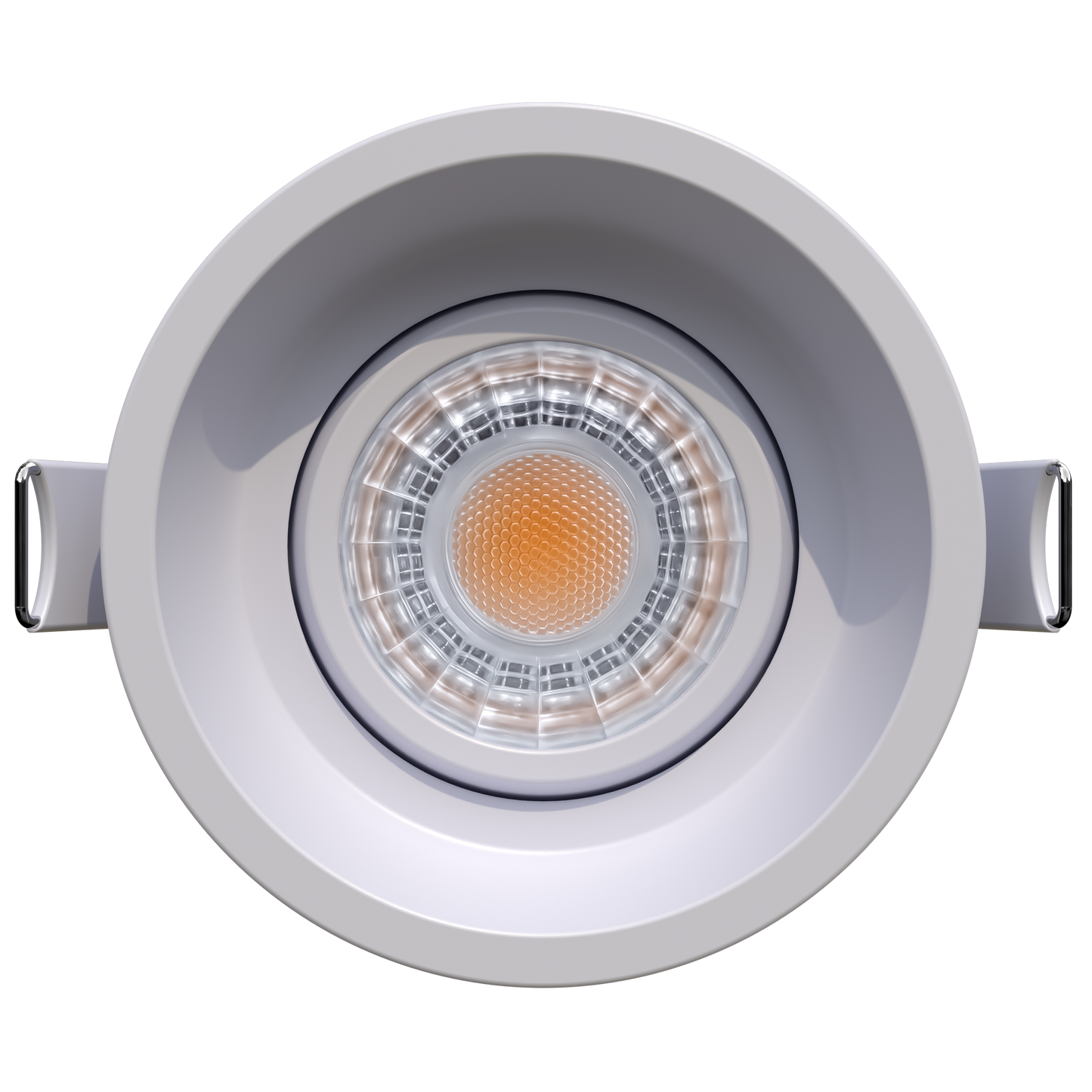

3" Round Regress Narrow Gimbal Trimmed White

27,30,35,41,50k
Dimmable
750 Lumens
8 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-23300
Description

R3/8W/GR/NT/LED/5CCT

shape
Round
style
Trimmed
size
3 Inch
finish
White
diffuser
Clear
number of lights
1

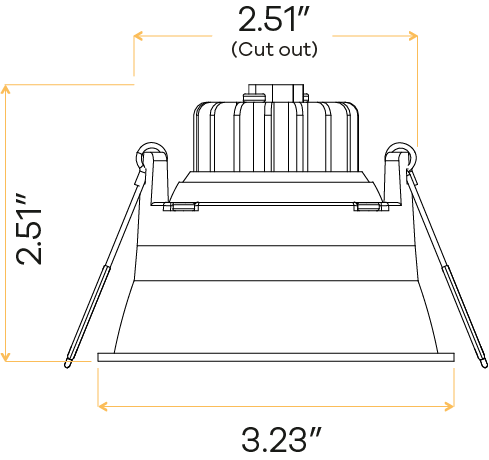

cutout
2.95”

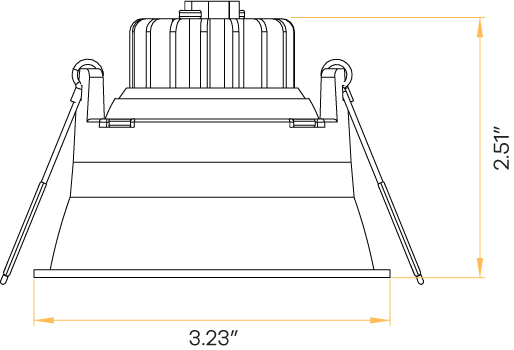

OD (Outside dimensions)
3.23"
height
2.51"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379233003
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
750
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
8W
volts
120-277V
output current
170mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec

Accessories

New construction plate
G-19969 (0 Punchouts)
Clear Lens Options
G-01420 24° Lens G-01421 40° Lens G-01422 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 8 Watt
