G-32513
Pulsar

3” triple head retractable multiple black

3” Triple Head Retractable Multiple Black

27,30,35,41,50k
Dimmable
2800 Lumens
36 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-32513
Description
PL/3/M3/36W/5CCT/BK
shape
Multiple
style
Trimmed
size
3 Inch
finish
Black
diffuser
Clear
number of lights
3

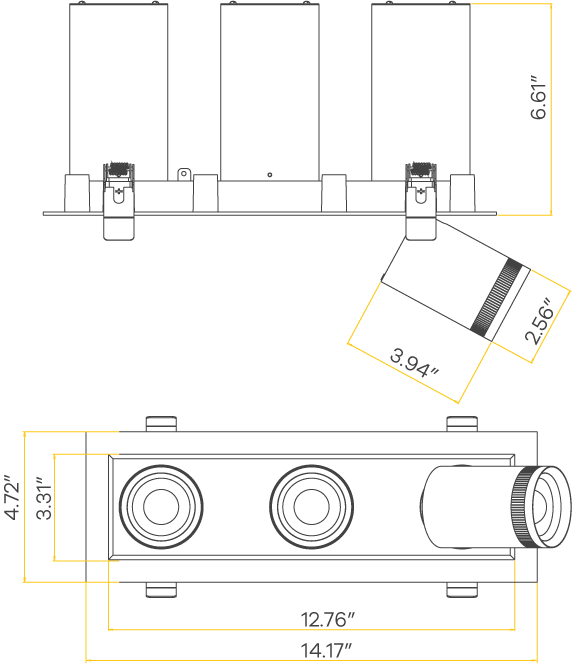

cutout
4.10” X 13.00”
OD (Outside dimensions)
4.72" X 14.17"
height
6.61”
mounting
Clip-in
Packaging Information
master pack
6
Barcode
990379325135
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
930
lumens
2800
CRI
90>
beam spread deg
Adjustable 20°-55°
tilt angle
90°
rotating
360°
Electrical Specs
watt
36W
volts
120-277V
output current
820mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New construction plate
G-98816 (2 Punch outs)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
