G-00923
Flarion

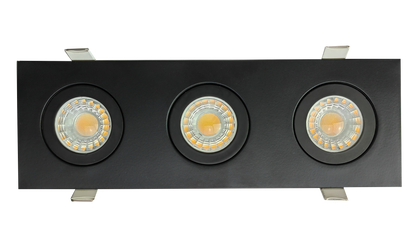

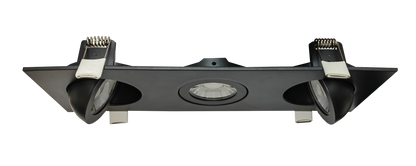

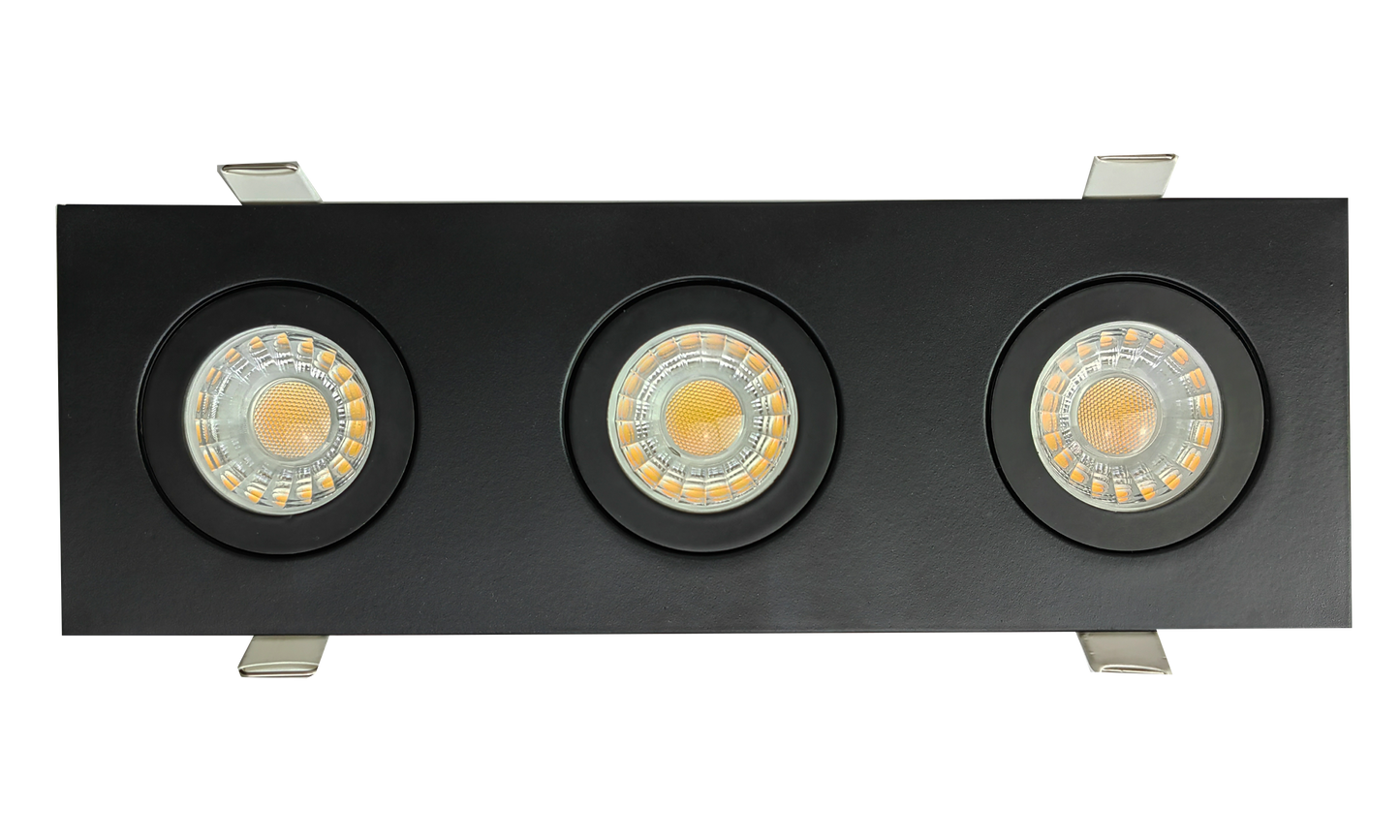

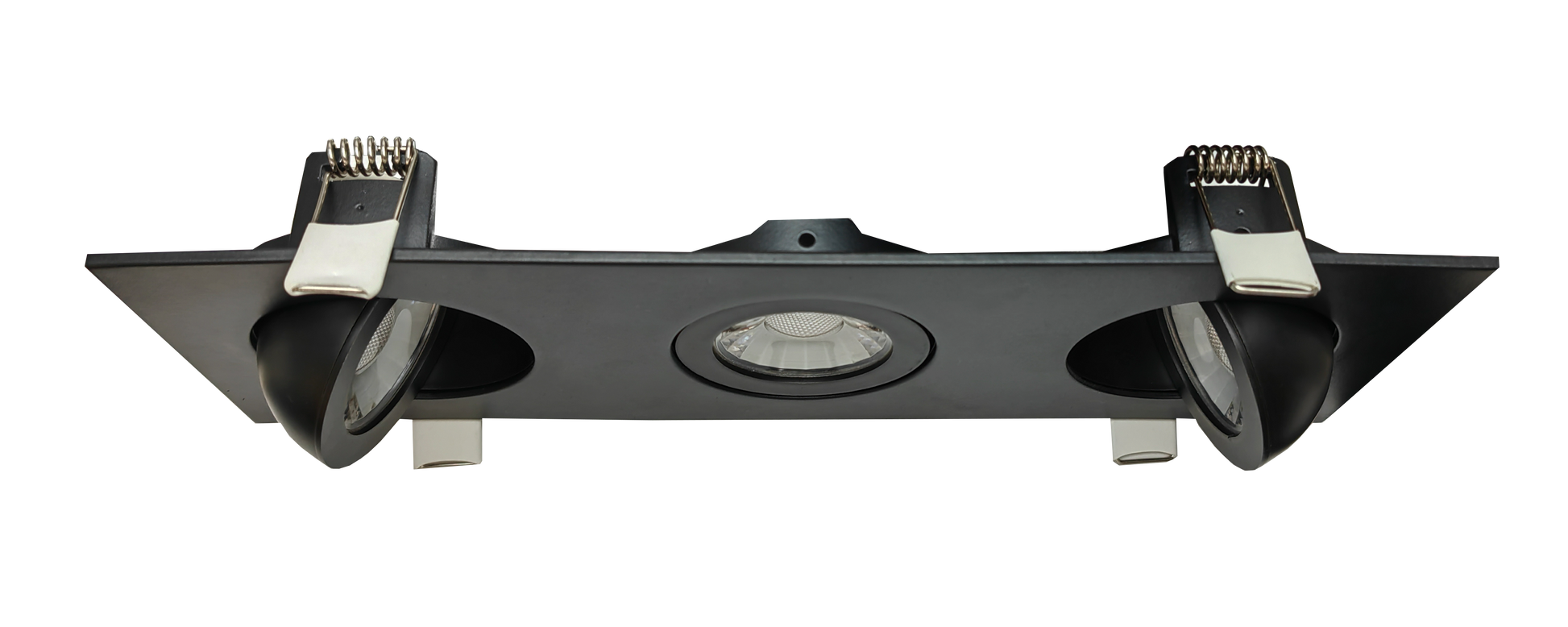

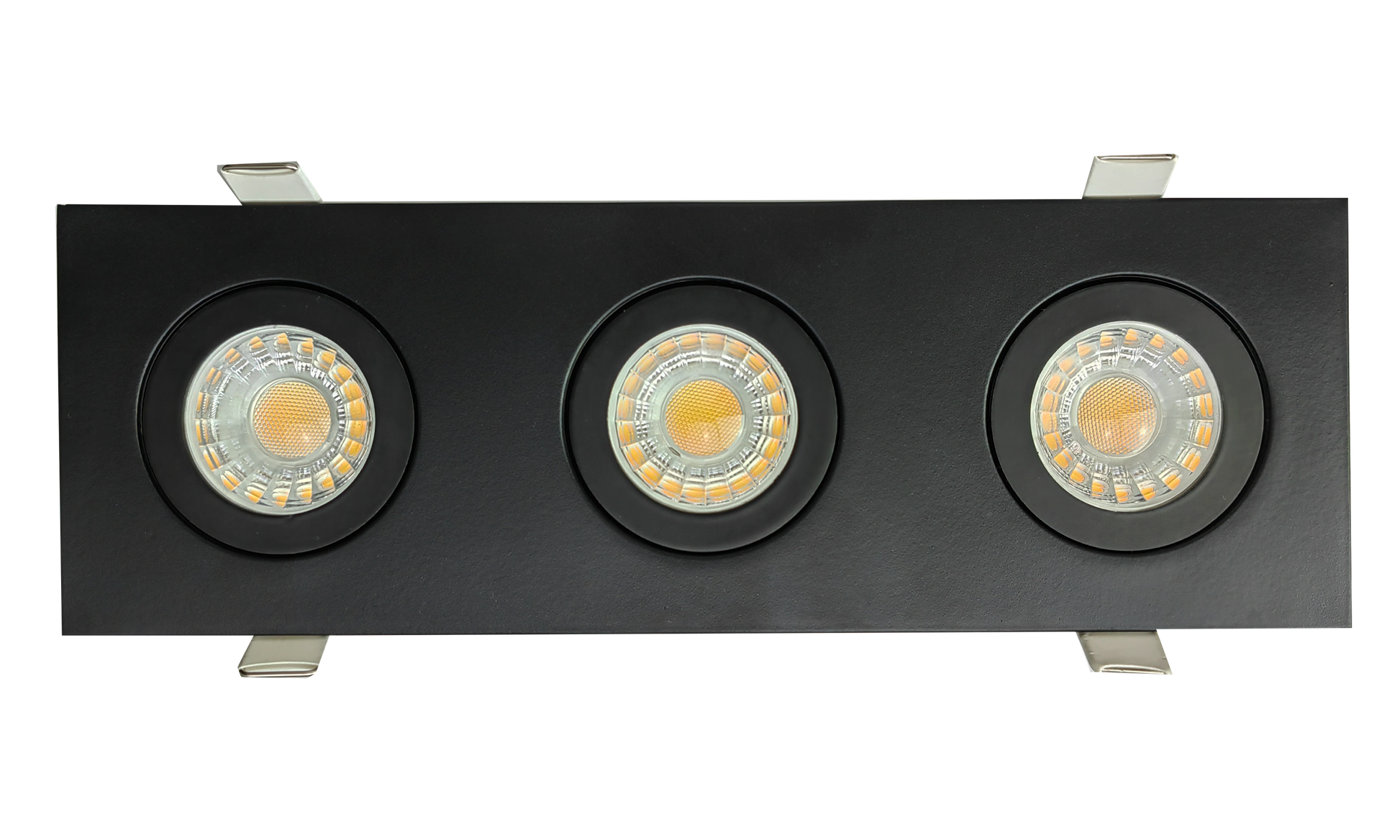

3" triple head multiple floating gimbal black

3" Triple head multiple floating gimbal Black

27,30,35,41,50k
Dimmable
2100 Lumens
23 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-00923
Description
FL/3/23W/G/M3/5CCT/BK
shape
Multiple
style
Trimmed
size
3 Inch
finish
Black
diffuser
Clear
number of lights
3

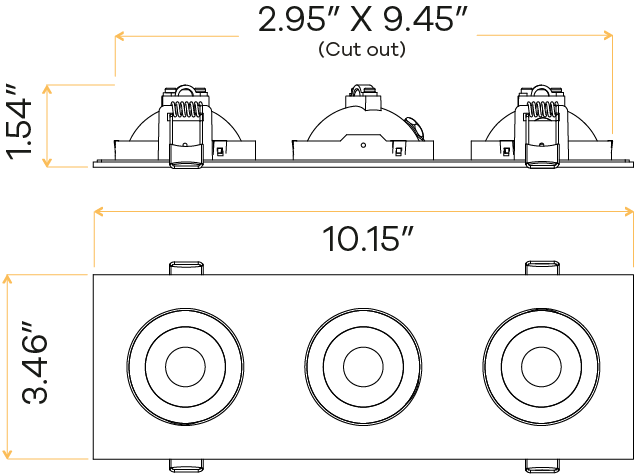

cutout
2.95” X 9.45”
OD (Outside dimensions)
3.47" X 10.16"
height
1.54”
mounting
Clip-in
Packaging Information
master pack
12
Barcode
024441009231
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
700
lumens
2100
CRI
90>
beam spread deg
40° (Default)
tilt angle
90°
rotating
360°
Electrical Specs
watt
23W
volts
120-277V
output current
520mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New construction plate
G-98821 (3 Punchouts)
Clear Lens Options
G-01420 24° Lens G-01421 40° Lens G-01422 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
