1 3
Back
G-01124
Flarion

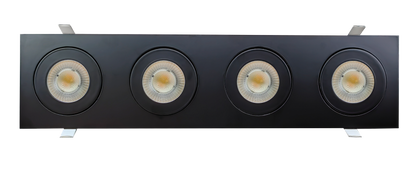

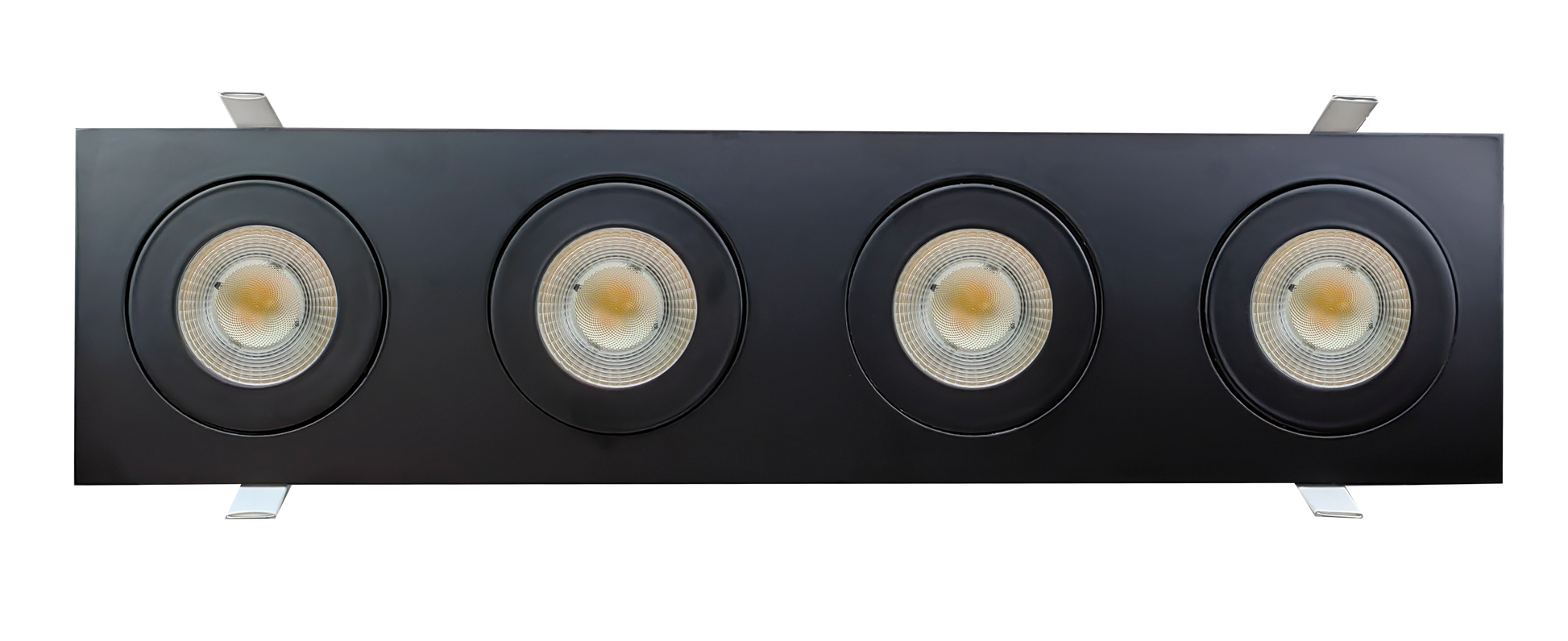

3.5" four head multiple floating gimbal black

3.5" Four head multiple floating gimbal Black

27,30,35,41,50k
Dimmable
3200 Lumens
36 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-01124
Description
FL/3.5/36W/G/M4/5CCT/BK
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
Black
diffuser
Clear
number of lights
4

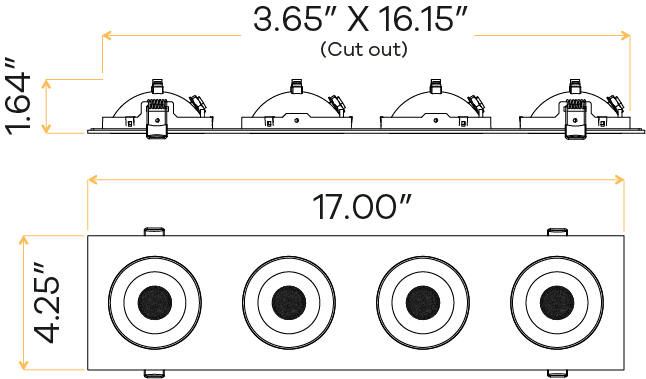

cutout
3.65” X 16.15”
OD (Outside dimensions)
4.25" X 17"
height
1.66”
mounting
Clip-in
Packaging Information
master pack
6
Barcode
024441011241
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
800
lumens
3200
CRI
90>
beam spread deg
40° (Default)

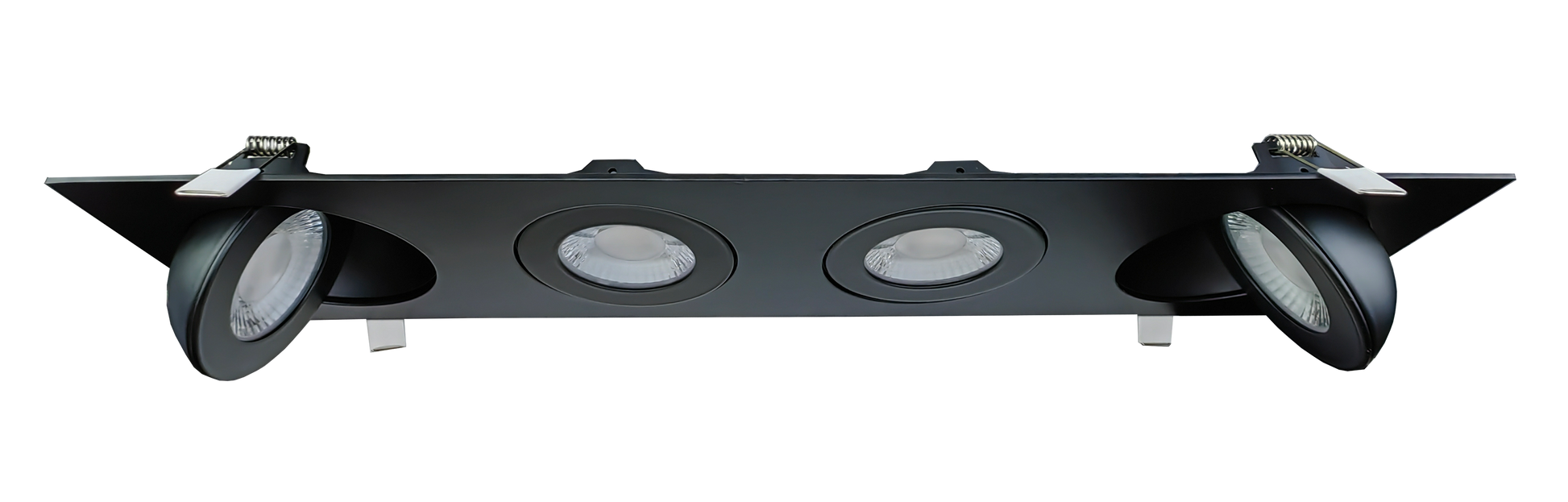

tilt angle
90°
rotating
360°
Electrical Specs
watt
36W
volts
120-277V
output current
900mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New Construction Plate
G-98822 (5 Punchouts)
Clear Lens Options
G-01425 24° G-01426 40° G-01427 60°
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
