1 3
Back
G-01320
Flarion

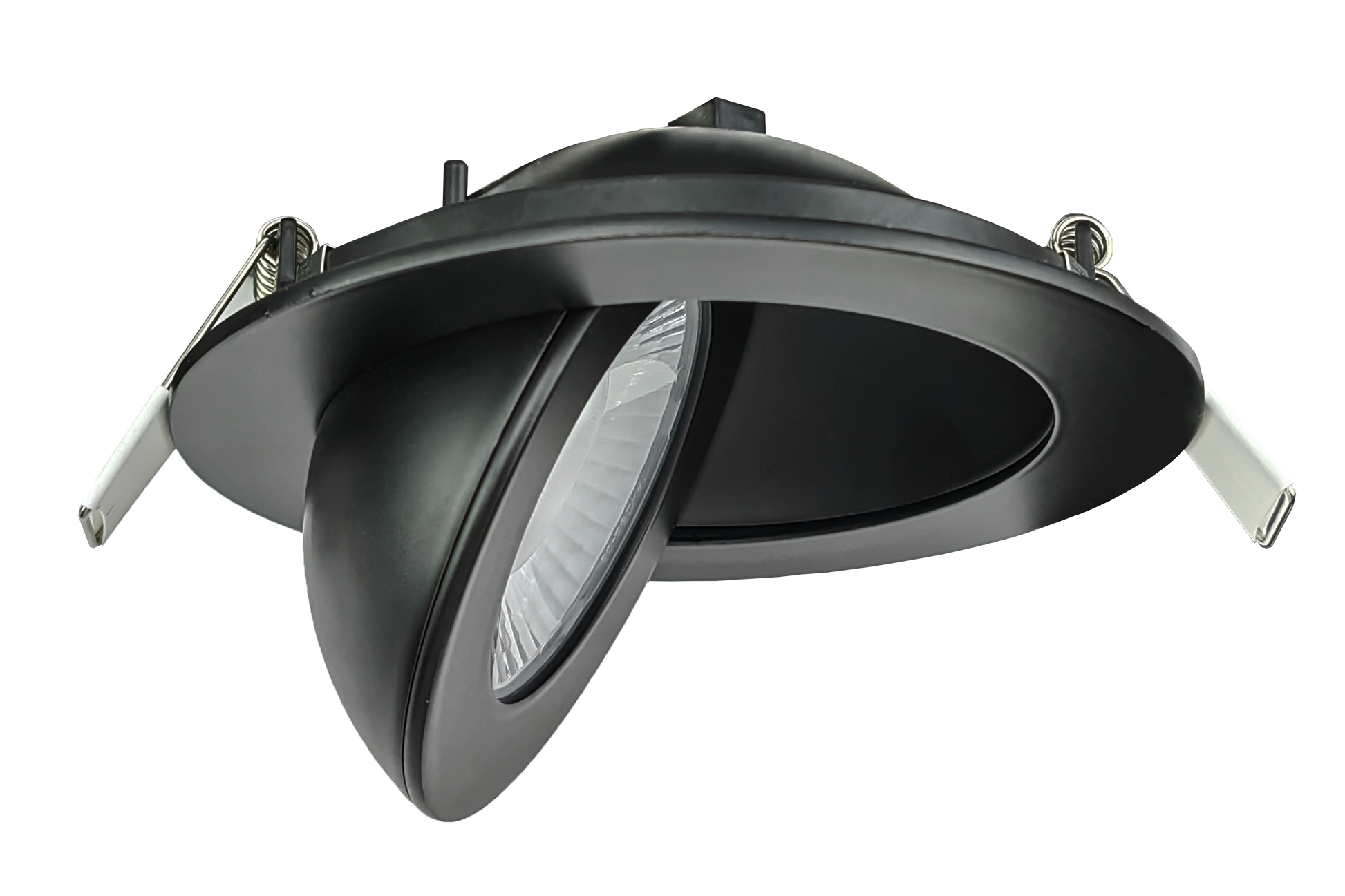

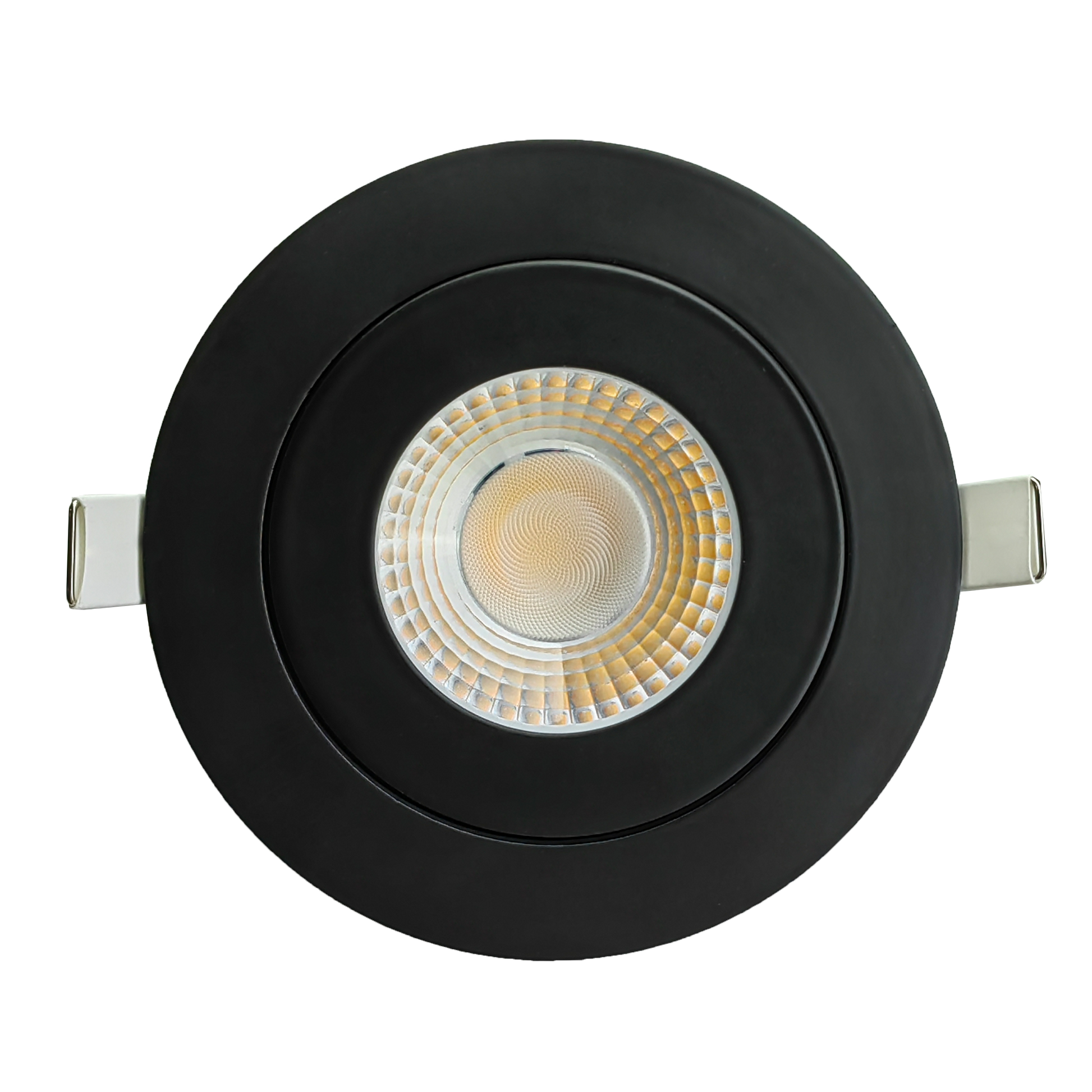

4” round floating gimbal black

4” Round Floating Gimbal Black

27,30,35,41,50k
Dimmable
1200 Lumens
13 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-01320
Description
FL/4/13W/G/5CCT/BK
shape
Round
style
Trimmed
size
4 Inch
finish
Black
diffuser
Clear
number of lights
1

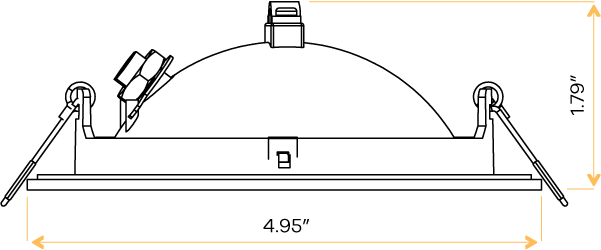

cutout
4.25”
OD (Outside dimensions)
4.92"
height
1.81”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024441013207
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1200
CRI
90>
beam spread deg
40° (Default)
tilt angle
90°
rotating
360°
Electrical Specs
watt
13W
volts
120-277V
output current
340mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New construction plate
G-98800 (6 Punchouts) G-98810 (6 Punchouts) G-19969 (1 Punchouts) G-19982 (4 Punchouts)
Clear Lens Options
G-01520 G-01521 G-01522
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95824 12 Watt
