G-01322
Flarion

4" double head multiple floating gimbal black

4" double head multiple floating gimbal Black

27,30,35,41,50k
Dimmable
2400 Lumens
26 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-01322
Description
FL/4/26W/G/M2/5CCT/BK
shape
Multiple
style
Trimmed
size
4 Inch
finish
Black
diffuser
Clear
number of lights
2
cutout
4.25” x 8.95”
OD (Outside dimensions)
4.92" x 9.84"
height
1.81”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024441013221
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1200
lumens
2400
CRI
90>
beam spread deg
40° (Default)
tilt angle
90°
rotating
360°
Electrical Specs
watt
26W
volts
120-277V
output current
650mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

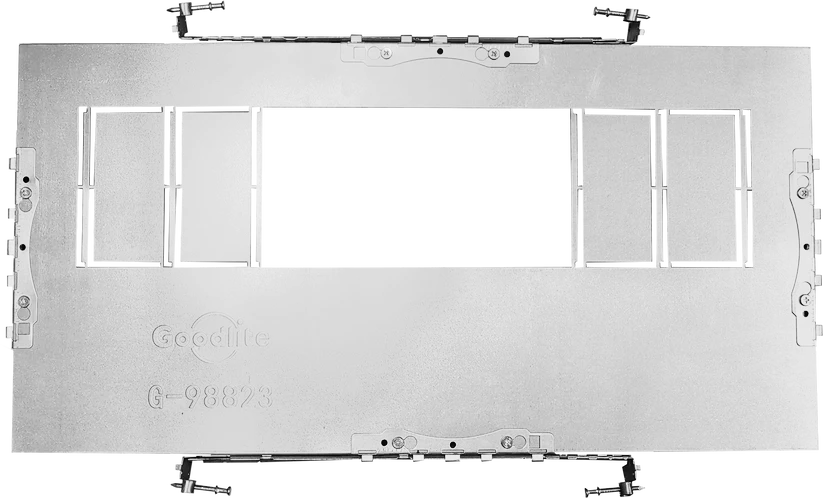

New Construction Plate
G-98823 (0 Punchouts)
Clear Lens Options
G-01425 24° G-01426 40° G-01427 60°
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
