G-05020
Jupiter

3 inch round universal cylinder (white)

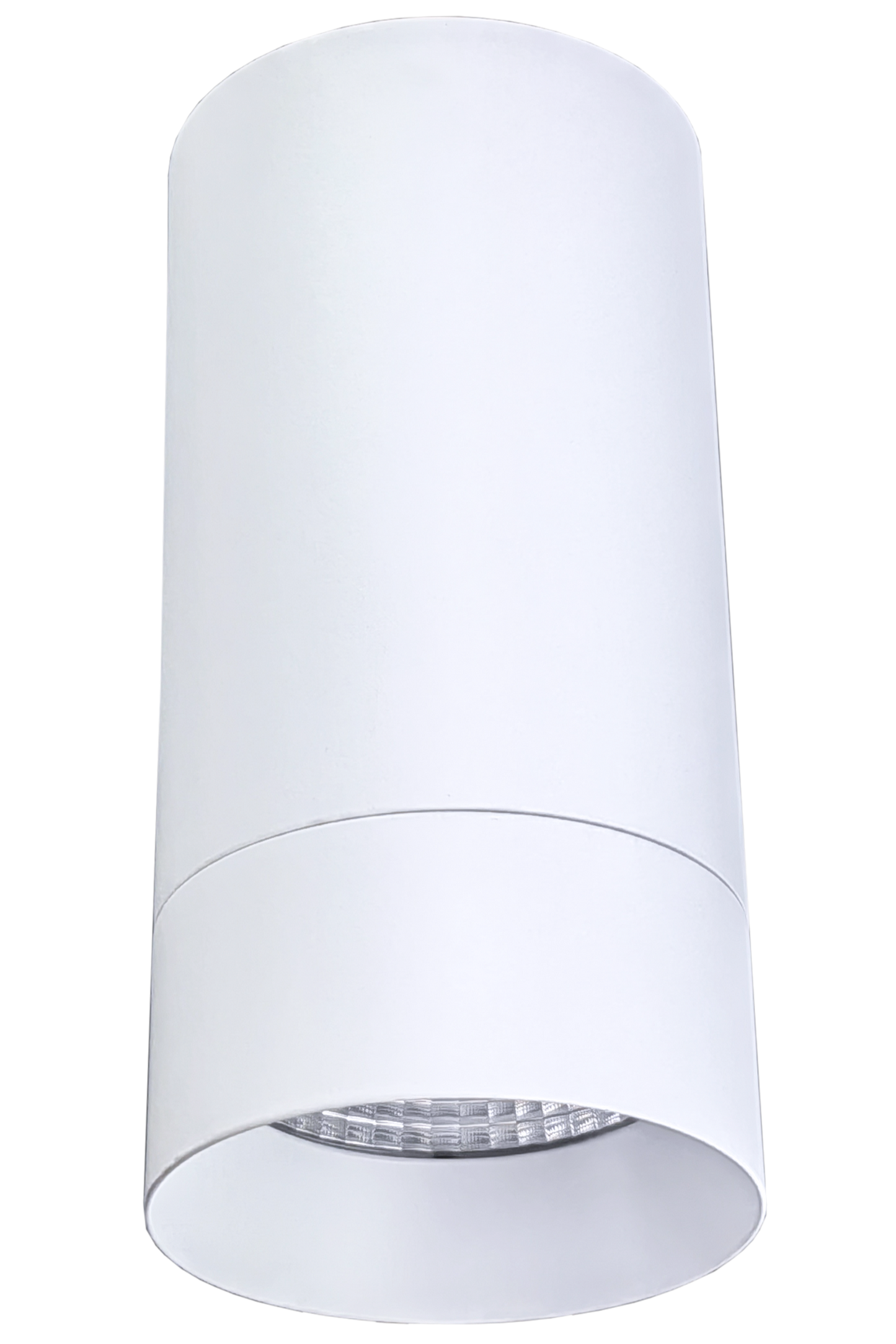

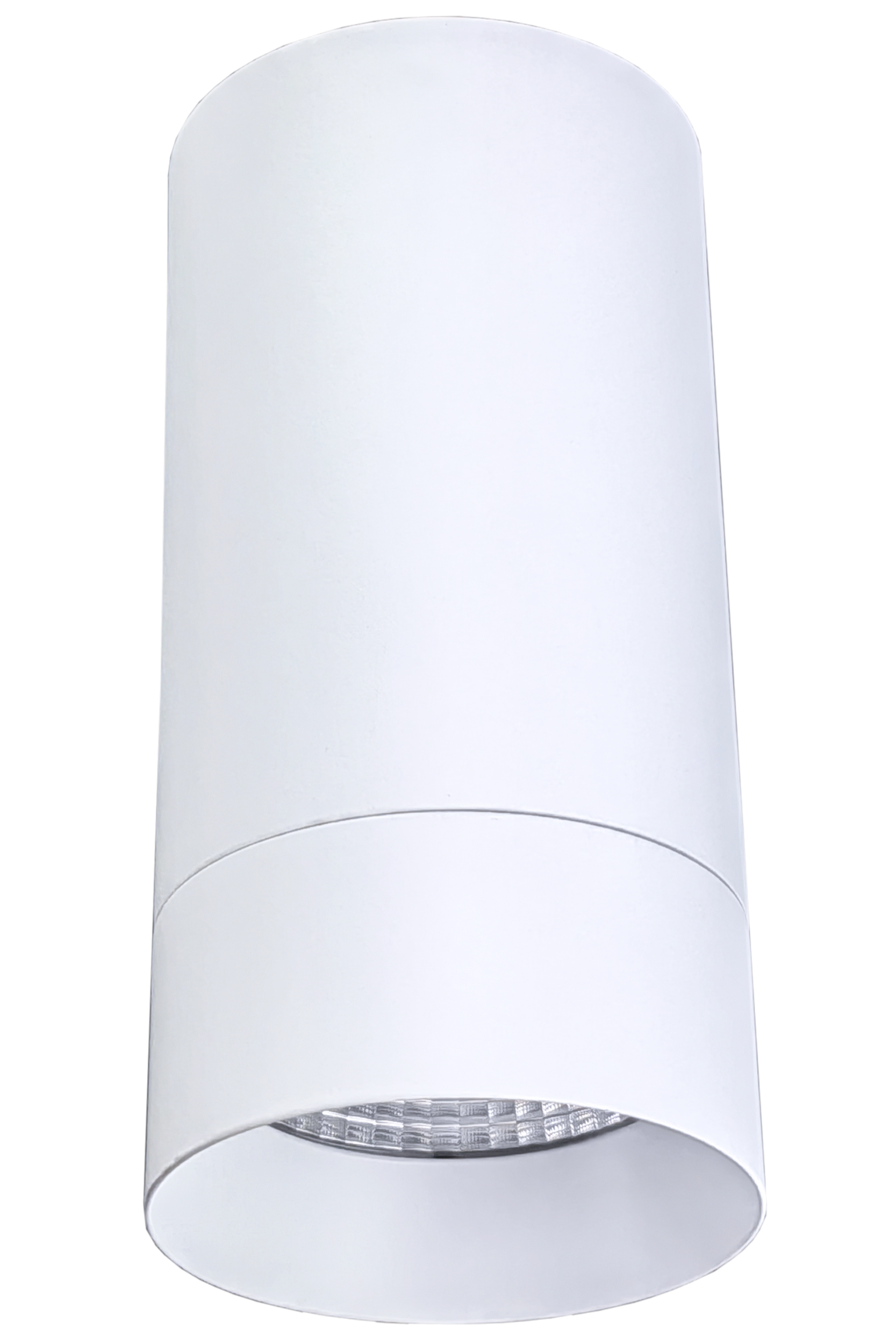

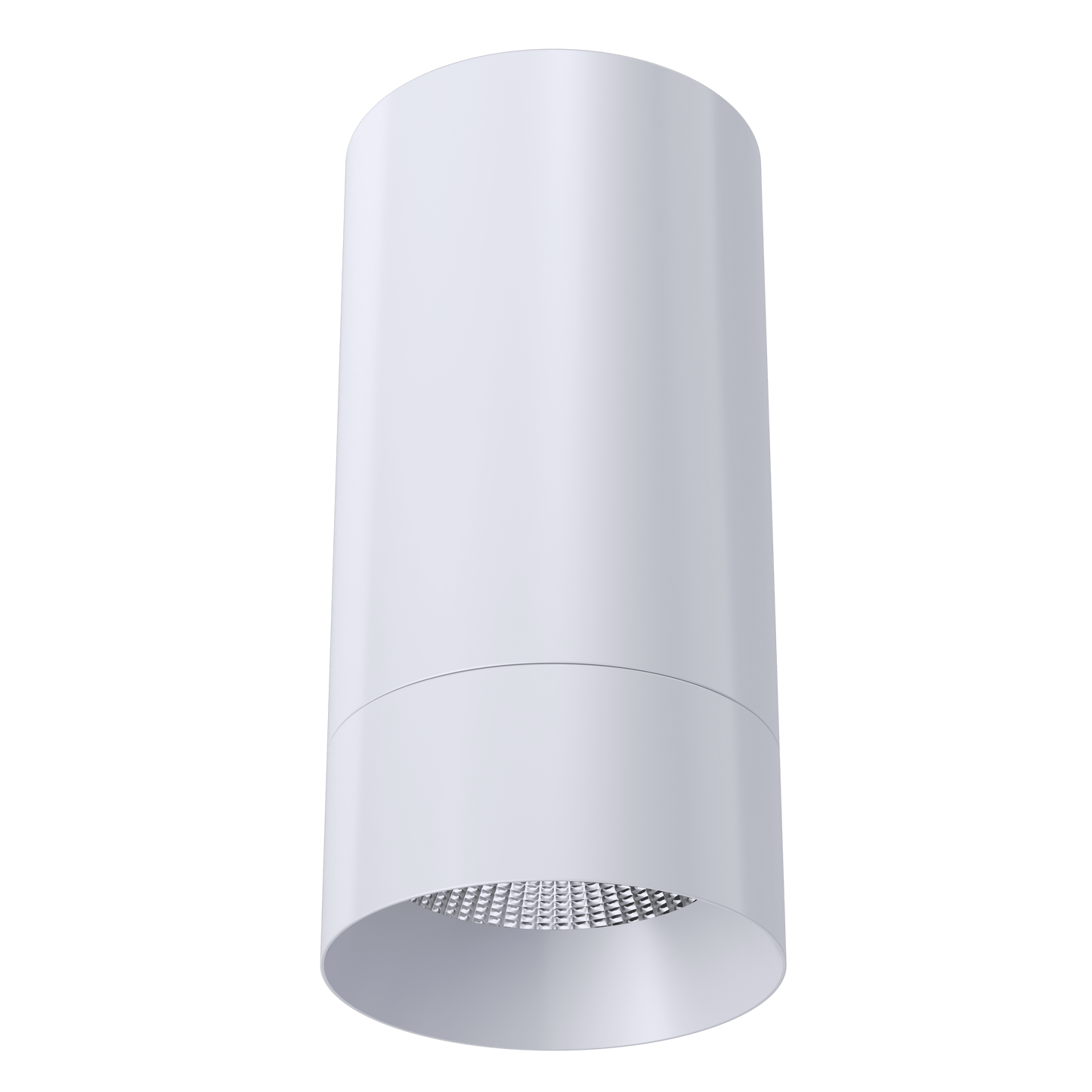

3 inch Round Universal Cylinder (White)

Cylinder:
27,30,35,41,50k
Dimmable
1800 Lumens
20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-05020
Description
CYD/3/20W/RD/LED/5CCT/WH
shape
Round
size
3 Inch
finish
White
diffuser
Clear (Default)
number of lights
1
height
6.30”
width
3.07”
mounting
Universal
Packaging Information
master pack
18
Barcode
024441050202
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1800
CRI
>90
beam spread deg
40° (Default)
Electrical Specs
watt
20W
volts
120-277V
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
