1 2

G-11120

G-11120

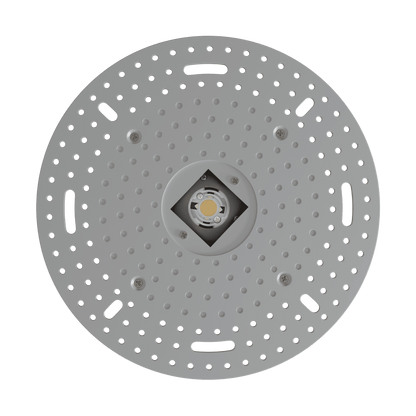

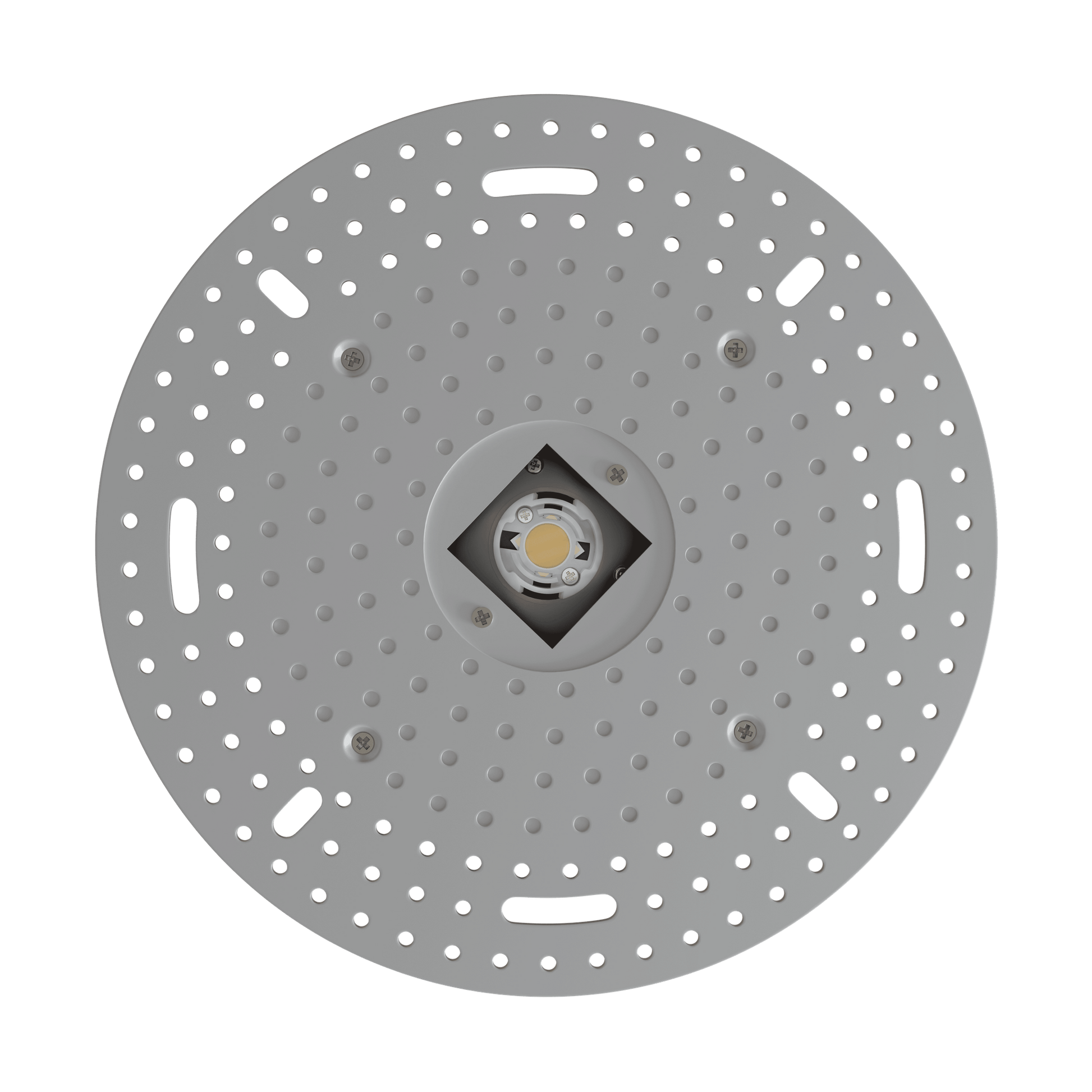

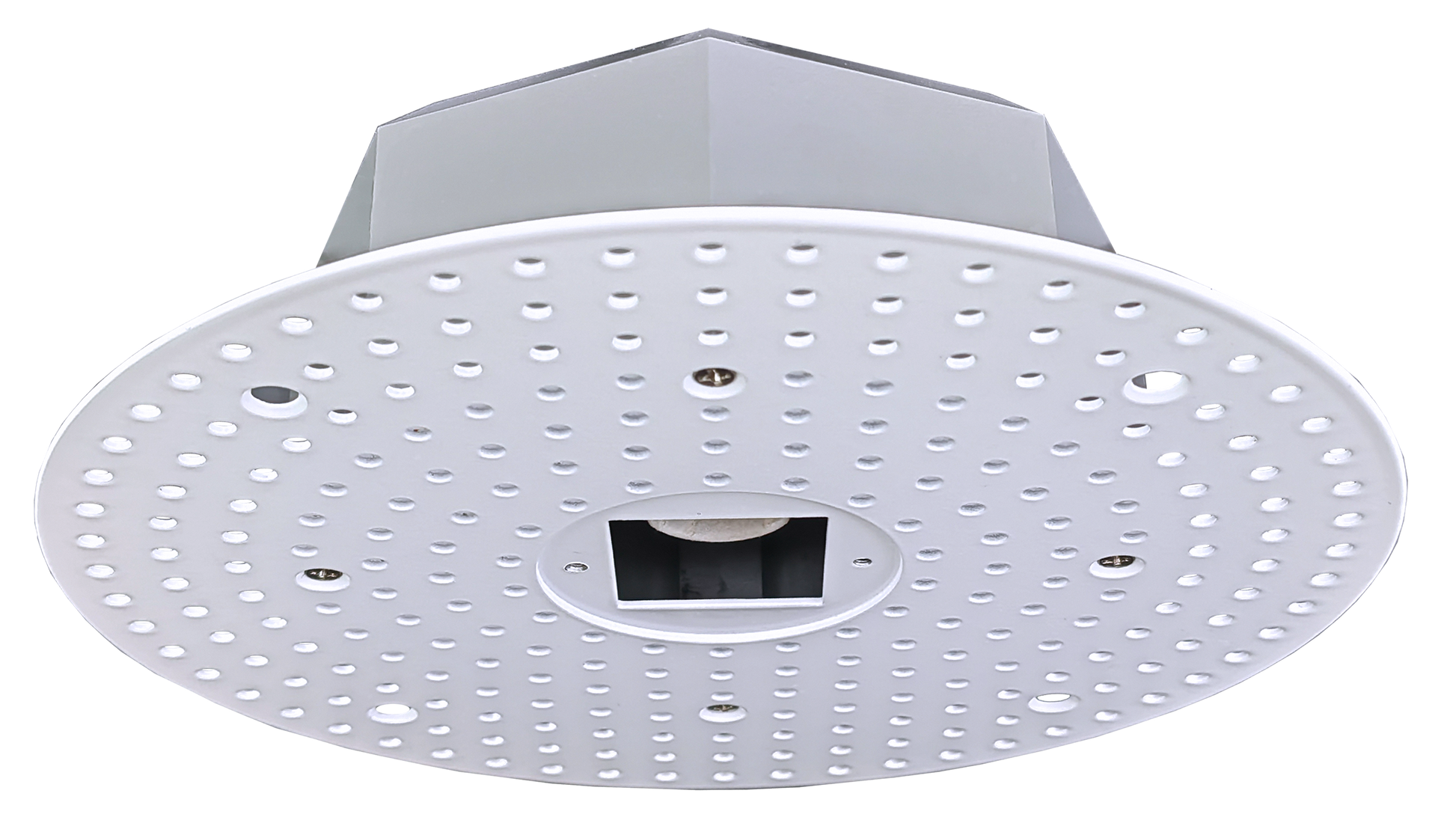

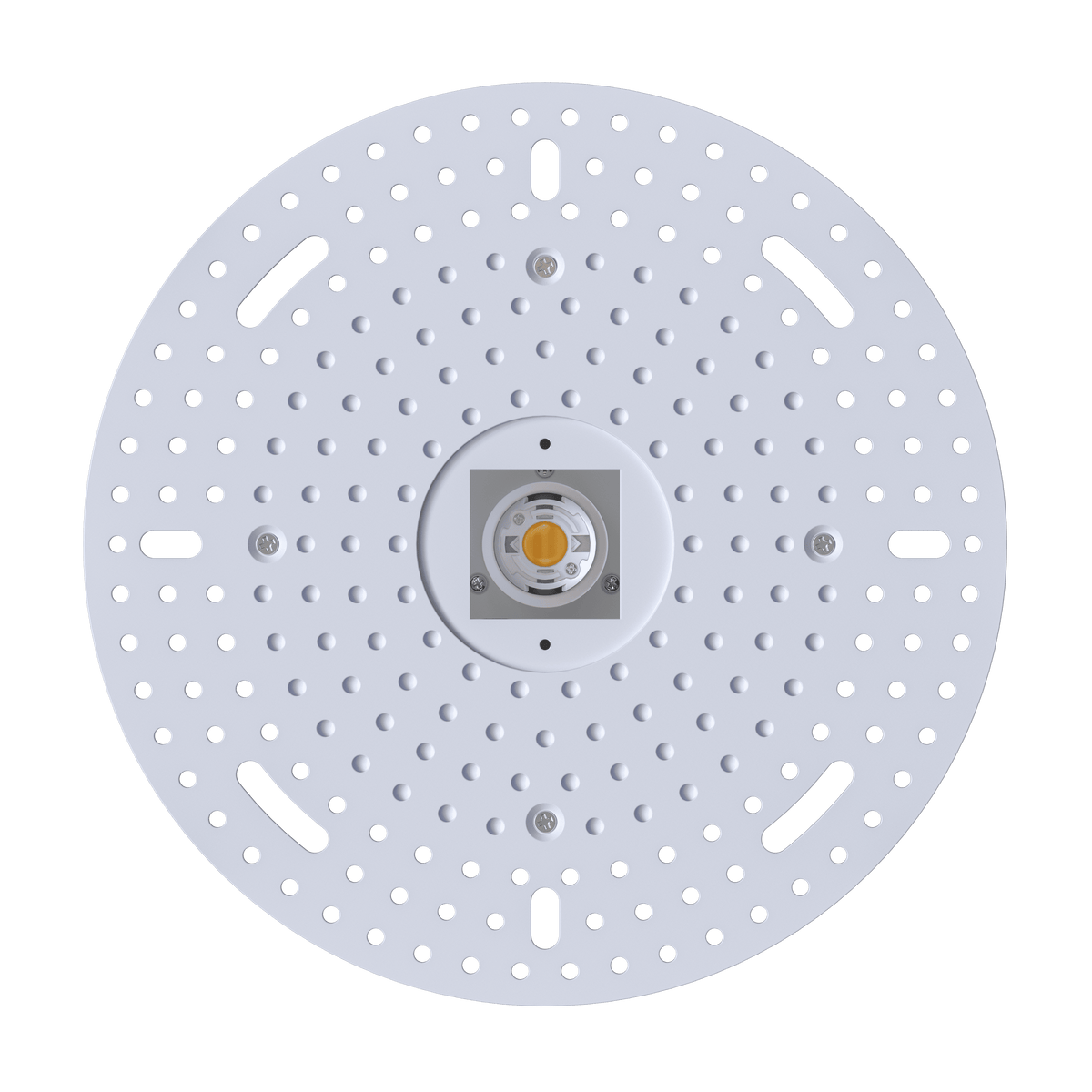

1" aperture interchangeable mud-in module

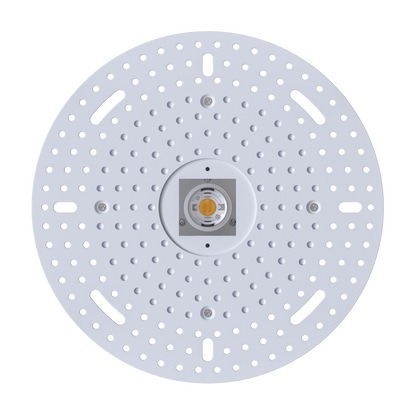

1" Aperture Interchangeable Mud-In Module

Pair Trim Kit:

27,30,35,41,50k

Dimmable

1200 Lumens

15 Watts

36 V

View full details

Pair Trim Kit

View all 34

G-11121

G-11122

G-11123

G-11124

G-11125

G-11220

G-11221

G-11222

G-11223

G-11224

G-11320

G-11321

G-11322

G-11323

G-11324

G-11420

G-11421

G-11422

G-11423

G-11424

G-11520

G-11521

G-11522

G-11523

G-11524

G-11620

G-11621

G-11622

G-11623

G-11624

G-11102

G-11103

G-11104

G-11100

Close

Pair Trim Kit

1 Inch White Round Trimmed Kit

G-11121

1 Inch Black Round Trimmed Kit

G-11122

1 Inch Bronze Round Trimmed Kit

G-11123

1 Inch Nickel Round Trimmed Kit

G-11124

1 Inch Brass Round Trimmed Kit

G-11125

1 Inch White Square Trimmed Kit

G-11220

1 Inch Black Square Trimmed Kit

G-11221

1 Inch Bronze Square Trimmed Kit

G-11222

1 Inch Nickel Square Trimmed Kit

G-11223

1 Inch Brass Square Trimmed Kit

G-11224

1 Inch White Round Trimless Kit

G-11320

1 Inch Black Round Trimless Kit

G-11321

1 Inch Bronze Round Trimless Kit

G-11322

1 Inch Nickel Round Trimless Kit

G-11323

1 Inch Brass Round Trimless Kit

G-11324

1 Inch White Square Trimless Kit

G-11420

1 Inch Black Square Trimless Kit

G-11421

1 Inch Bronze Square Trimless Kit

G-11422

1 Inch Nickel Square Trimless Kit

G-11423

1 Inch Brass Square Trimless Kit

G-11424

1 Inch White Round Drop Trim Kit

G-11520

1 Inch Black Round Drop Trim Kit

G-11521

1 Inch Bronze Round Drop Trim Kit

G-11522

1 Inch Nickel Round Drop Trim Kit

G-11523

1 Inch Brass Round Drop Trim Kit

G-11524

1 Inch White Square Drop Trim Kit

G-11620

1 Inch Black Square Drop Trim Kit

G-11621

1 Inch Bronze Square Drop Trim Kit

G-11622

1 Inch Nickel Square Drop Trim Kit

G-11623

1 Inch Brass Square Drop Trim Kit

G-11624

1 Inch Double Head Trimless Kit

G-11102

1 Inch Triple Head Trimless Kit

G-11103

1 Inch Quadruple Head Trimless Kit

G-11104

1 Inch Quadruple Head Trimless Square-Kit

G-11100

Information

General Specs

Product Code

G-11120

Description

ST/1/M/15W/LED/5CCT

size

1 Inch

number of lights

1

cutout

5.85”

OD (Outside dimensions)

8.50"

height

2.80"

mounting

Mud-in

Packaging Information

master pack

6

Barcode

024441111200

Light Specs

temp

Selectable CCT

Color (CCT)

27,30,35,41,50K

lumens

1200

CRI

>90

beam spread deg

50°

Electrical Specs

watt

15W

volts

36V

output current

350mA

plenum rated

FT6

dimming type

Triac Or 0-10V Dimming

Compliance

location rating

Wet

warranty

3 Years

IC Rated

Yes

classification

ETL, Title 24 Listed

Downloads

Product Spec

Accessories

New construction plate

G-19975 (7 Punchouts) G-19979 (7 Punchouts) G-19969 (2 Punchouts) G-19982 (6 Punchouts)

120-277V Drivers

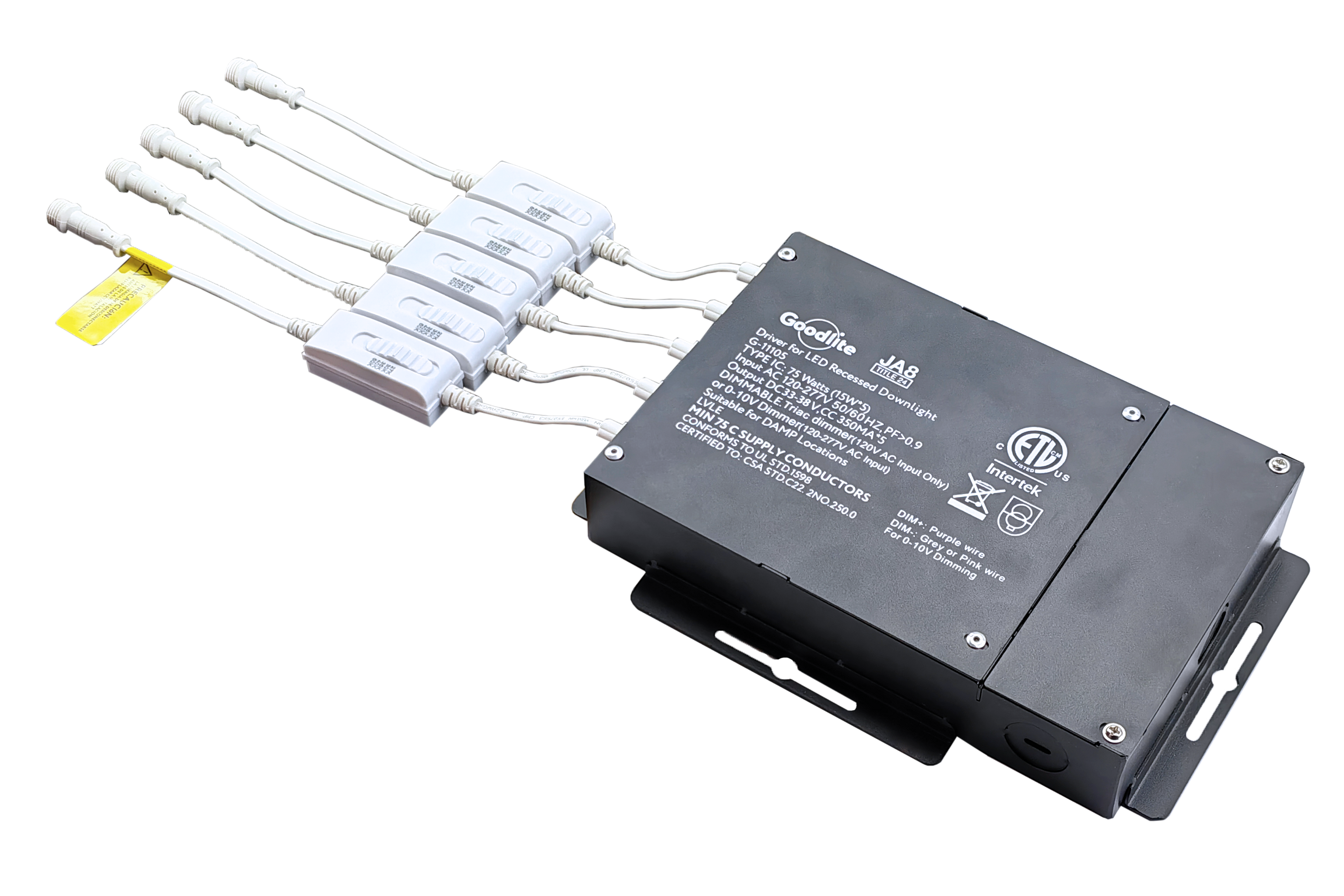

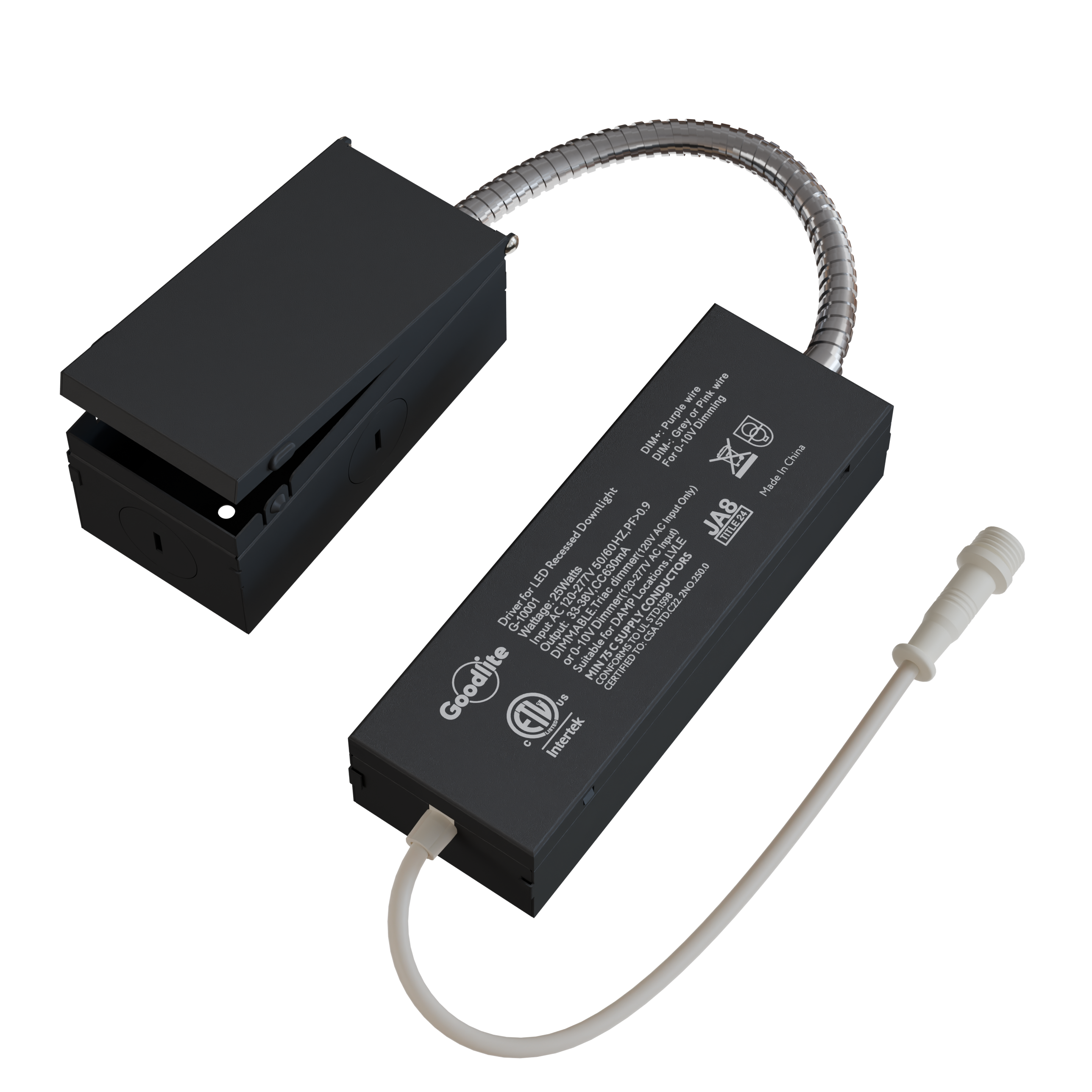

G-48302 Single Channel G-11105 5 Channel G-11110 10 Channel

Flushed Lenses

G-11822 Clear G-11820 Frosted

Frosted Lens

Diodes

G-11118 Dim To Warm G-11127 2700k G-11130 3000k G-11135 3500k G-11140 4000k G-11150 5000k G-11723 5CCT

Diode Extractor

Emergency LED Driver

G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)

Extension Cords

G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
