G-11144
Star

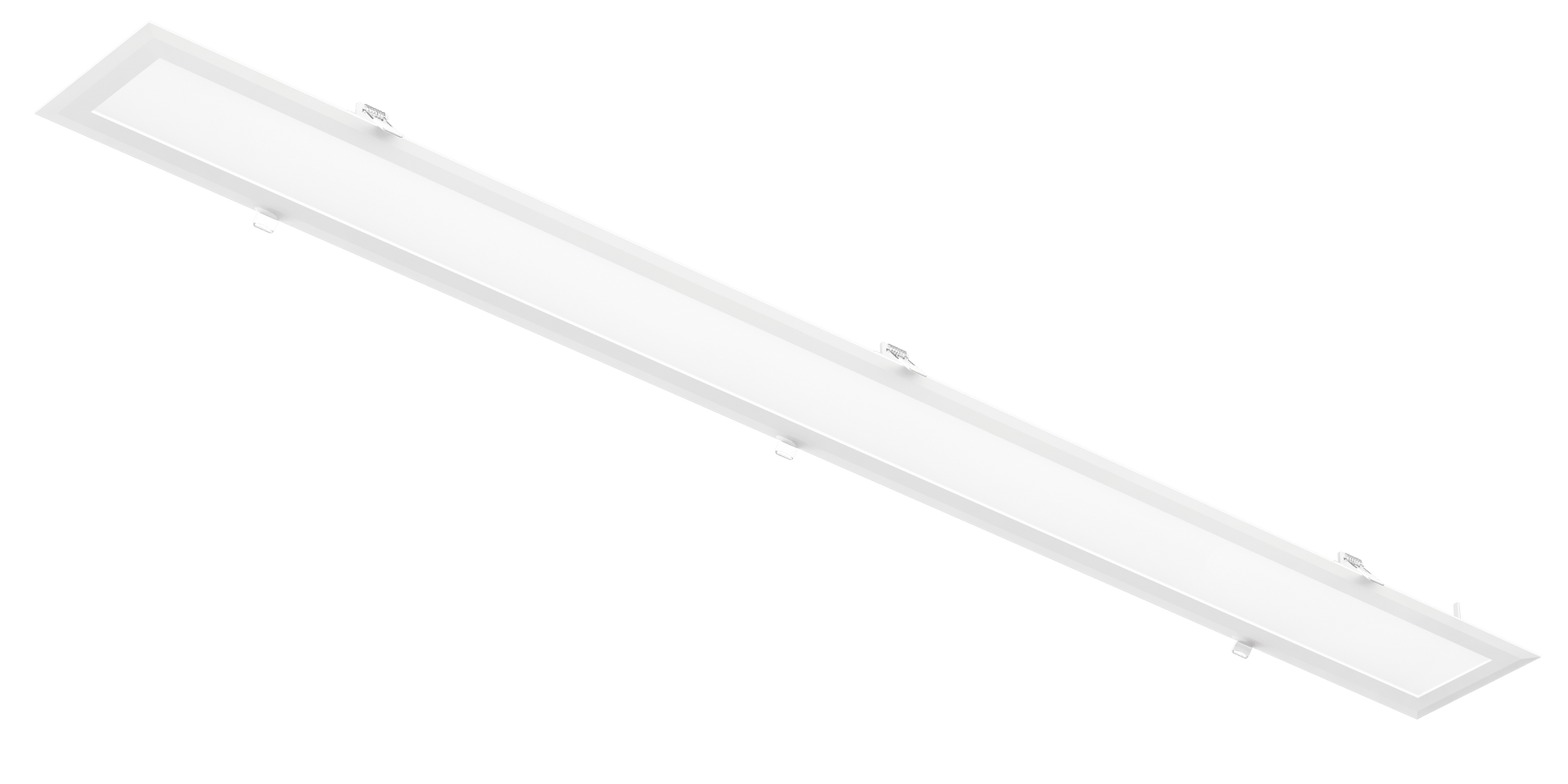

4″x4′ rectangular flushed slim

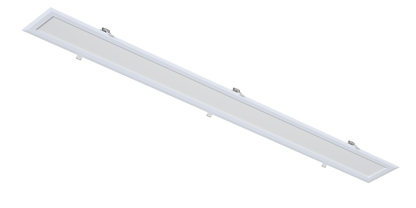

4″X4′ Rectangular Flushed Slim

27,30,35,41,50k
Dimmable
6000 Lumens
80 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-11144
Description
S/RCTNGL/4X48/80W/SQ/LED/5CCT
shape
Rectangle
style
Trimmed
size
4” X 4’
finish
White
diffuser
Frosted
number of lights
1

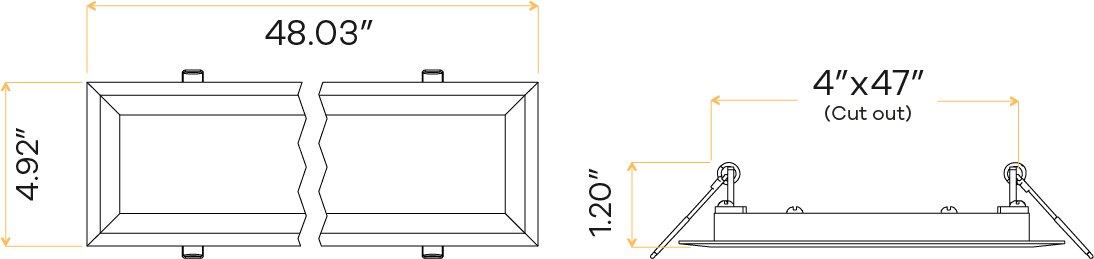

cutout
4.13” X 47.17”
OD (Outside dimensions)
4.92" X 48.03"
height
1.18"
mounting
Clip-in
Packaging Information
master pack
4
Barcode
990379111448
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
6000
CRI
90
beam spread deg
120°
Electrical Specs
watt
80W
volts
120-277V
output current
1930mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W)
