G-11161
Star

6″x1′ rectangular flushed slim

6″X1′ Rectangular Flushed Slim

27,30,35,41,50k
Dimmable
1900 Lumens
24 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-11161
Description
S/RCTNGL/6X12/24W/SQ/LED/5CCT
shape
Rectangle
style
Trimmed
size
6" X 1’
finish
White
diffuser
Frosted
number of lights
1

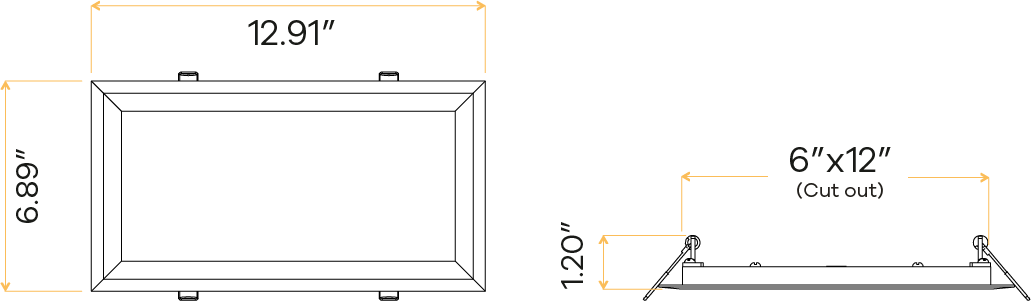

cutout
6.10” X 12.13”
OD (Outside dimensions)
6.89" X 12.91"
height
1.18"
mounting
Clip-in
Packaging Information
master pack
12
Barcode
990379111615
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1900
CRI
90
beam spread deg
120°
Electrical Specs
watt
24W
volts
120-277V
output current
530mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
