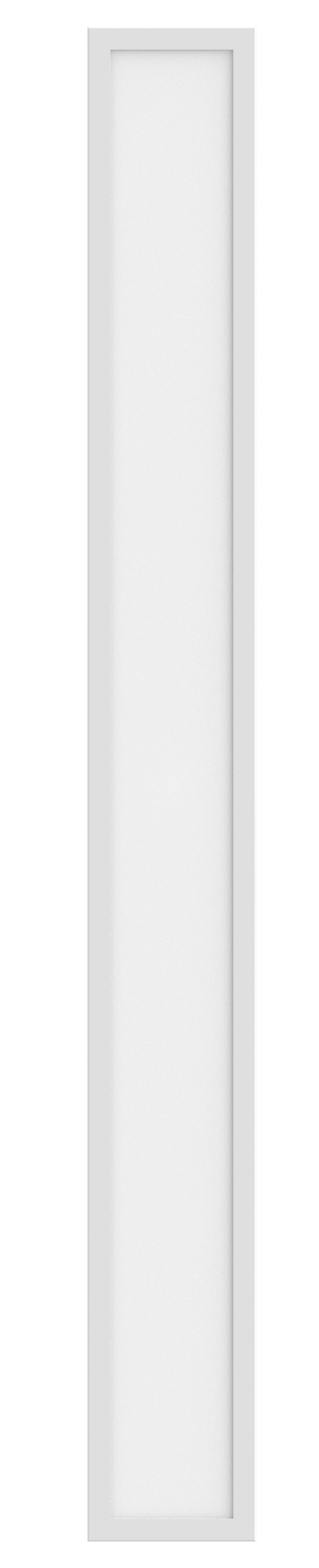

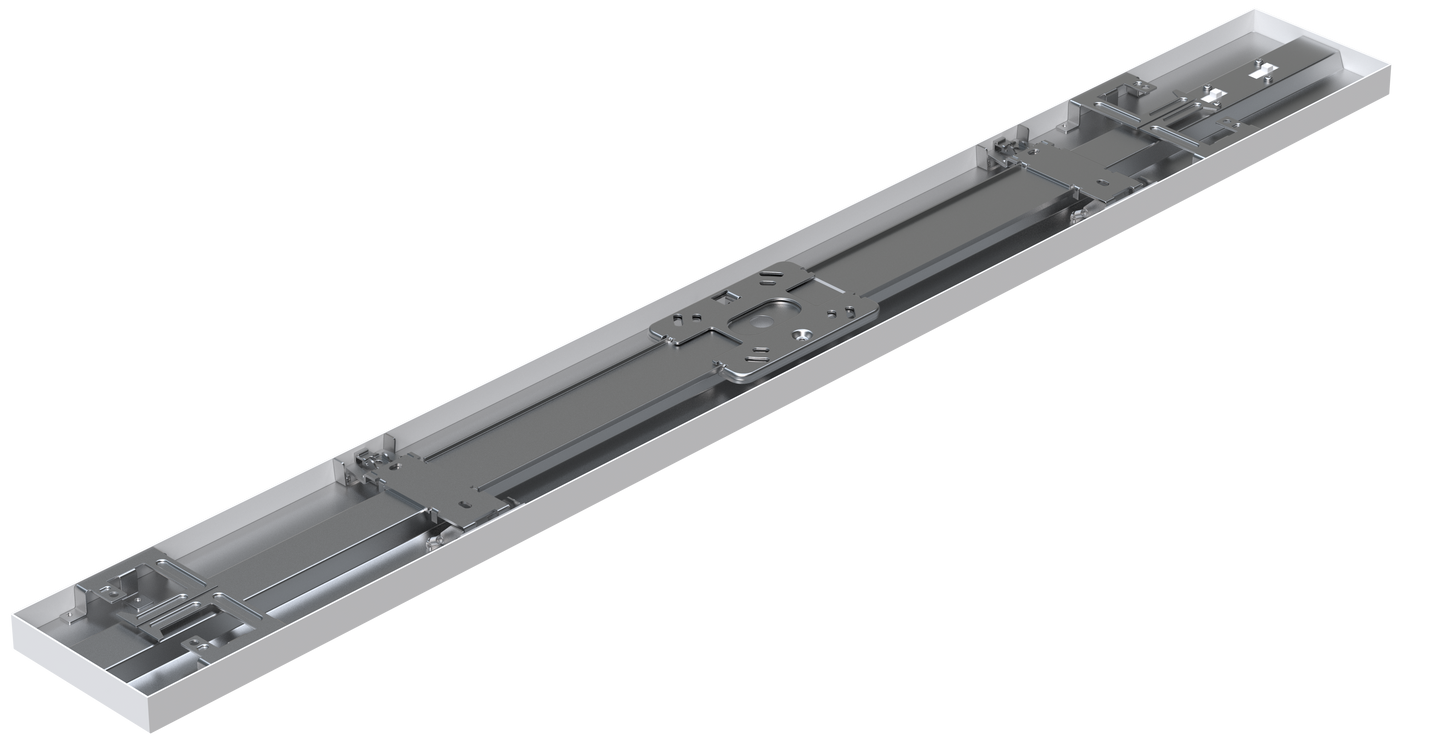

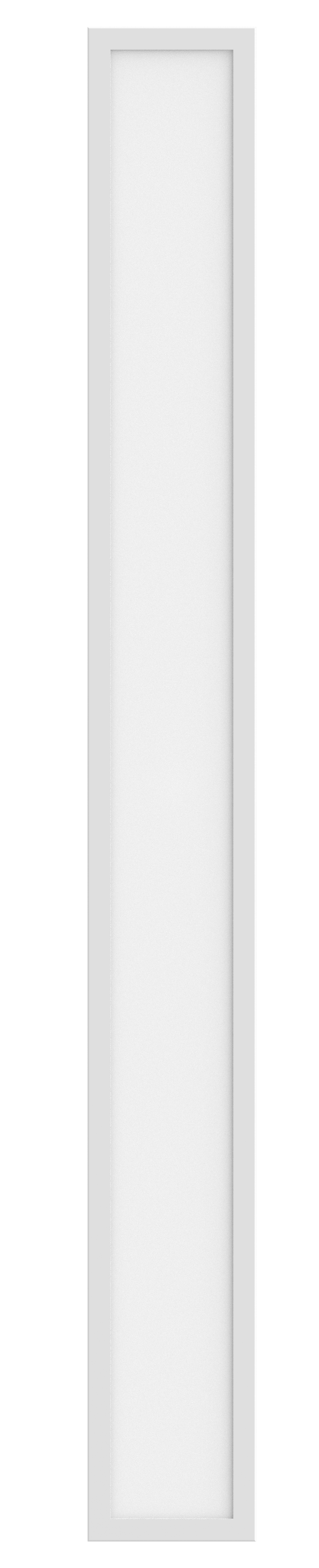

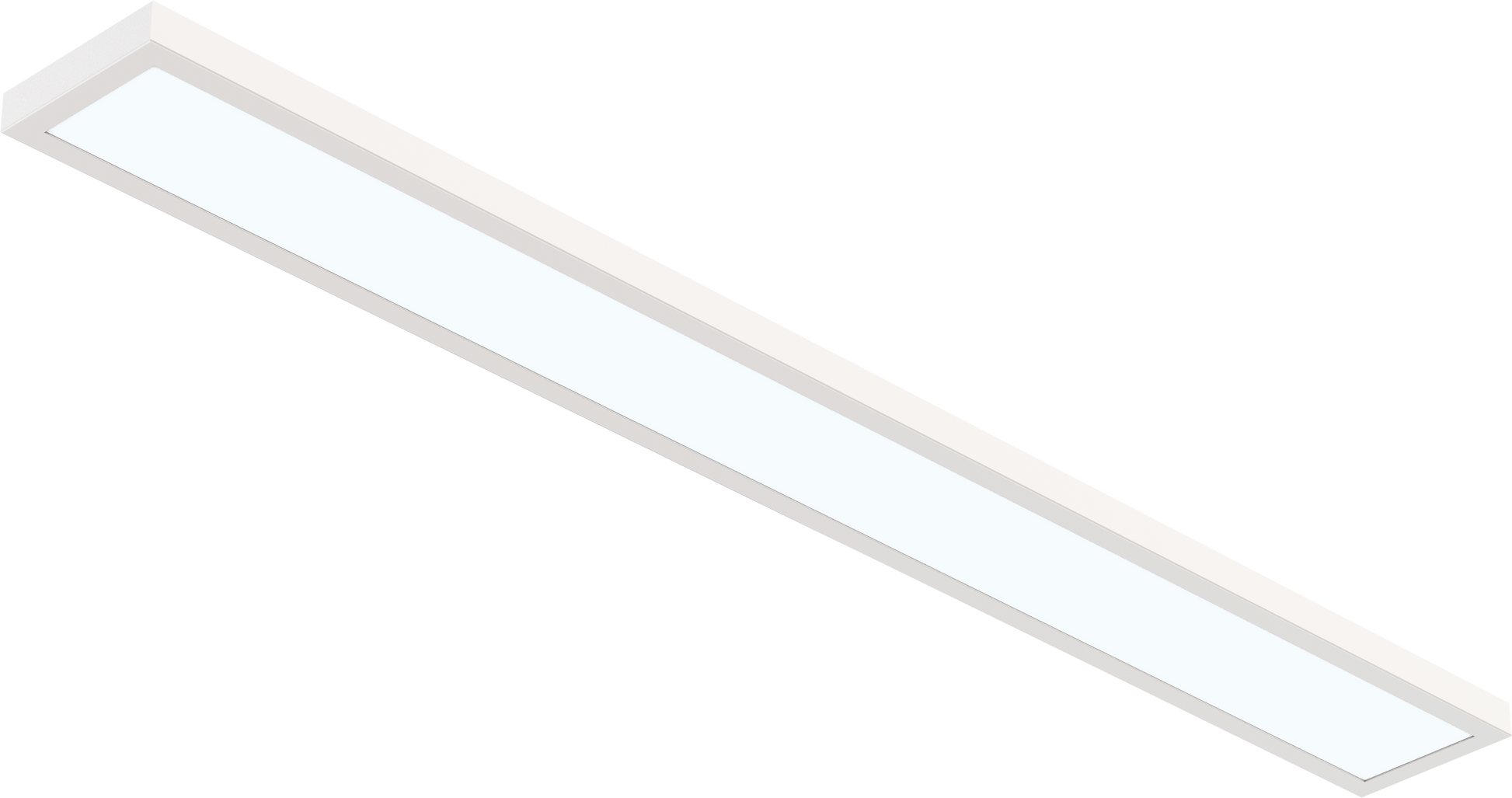

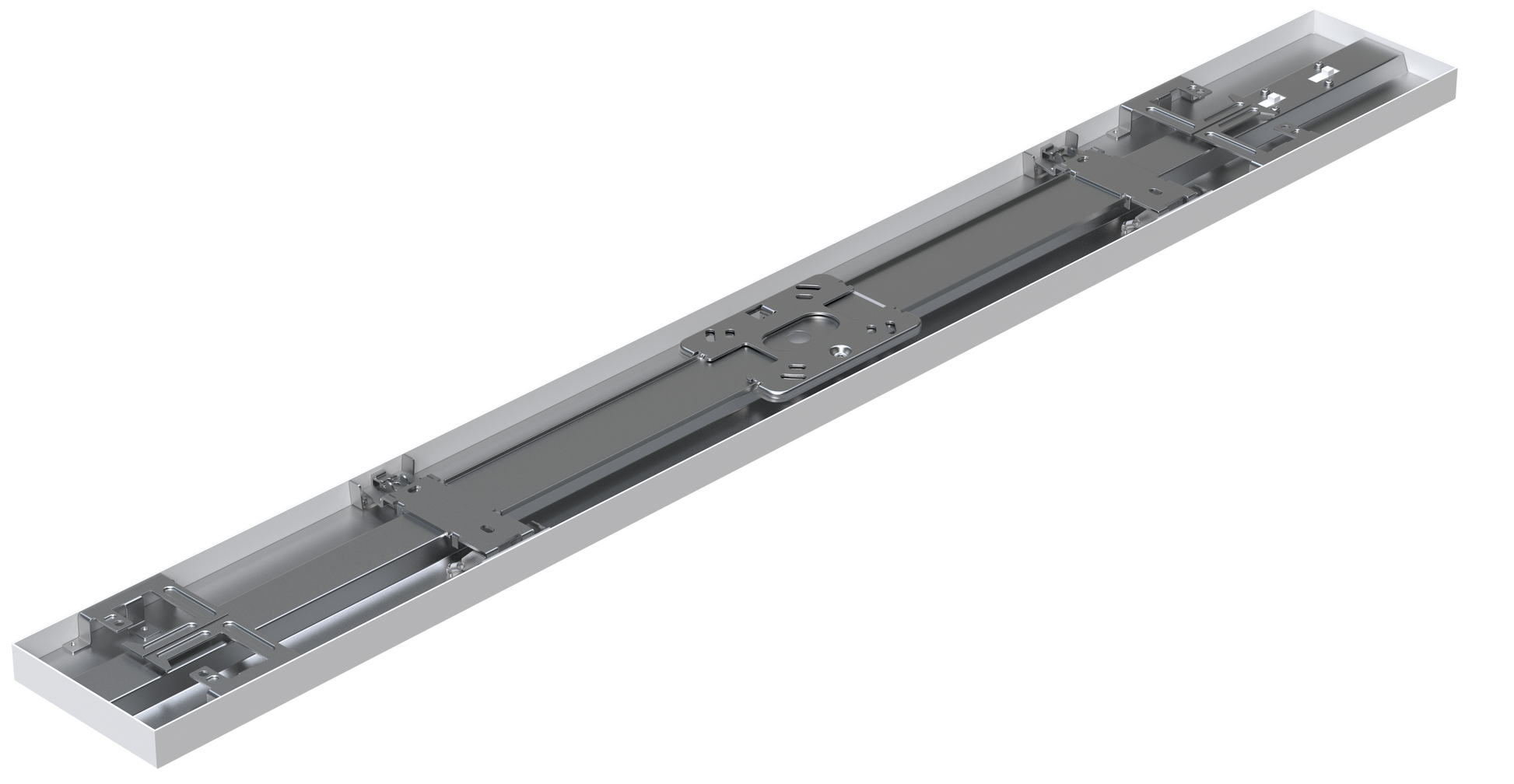

4″x3′ surface mount panel

4″X3′ Surface Mount Panel

30,35,41,50,65k
Dimmable
2200/2750/3300 Lumens
20/25/30 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-12043
Description
GL/SM/4”X3’/30W/LED/3WS/5CCT
shape
Rectangle
size
4” X 3’
finish
White
diffuser
Frosted
number of lights
1
OD (Outside dimensions)
3.94" X 35.43"
height
1.04"
mounting
Surface mount
Packaging Information
master pack
6
Barcode
990379120433
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
2200/2750/3300
CRI
80
beam spread deg
120°
Electrical Specs
watt
20/25/30W
volts
120-277V
output current
280mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
classification
ETL Listed

Downloads

Product Spec Family Sheet Instruction Sheet

Accessories

Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
