G-19839
Saturn

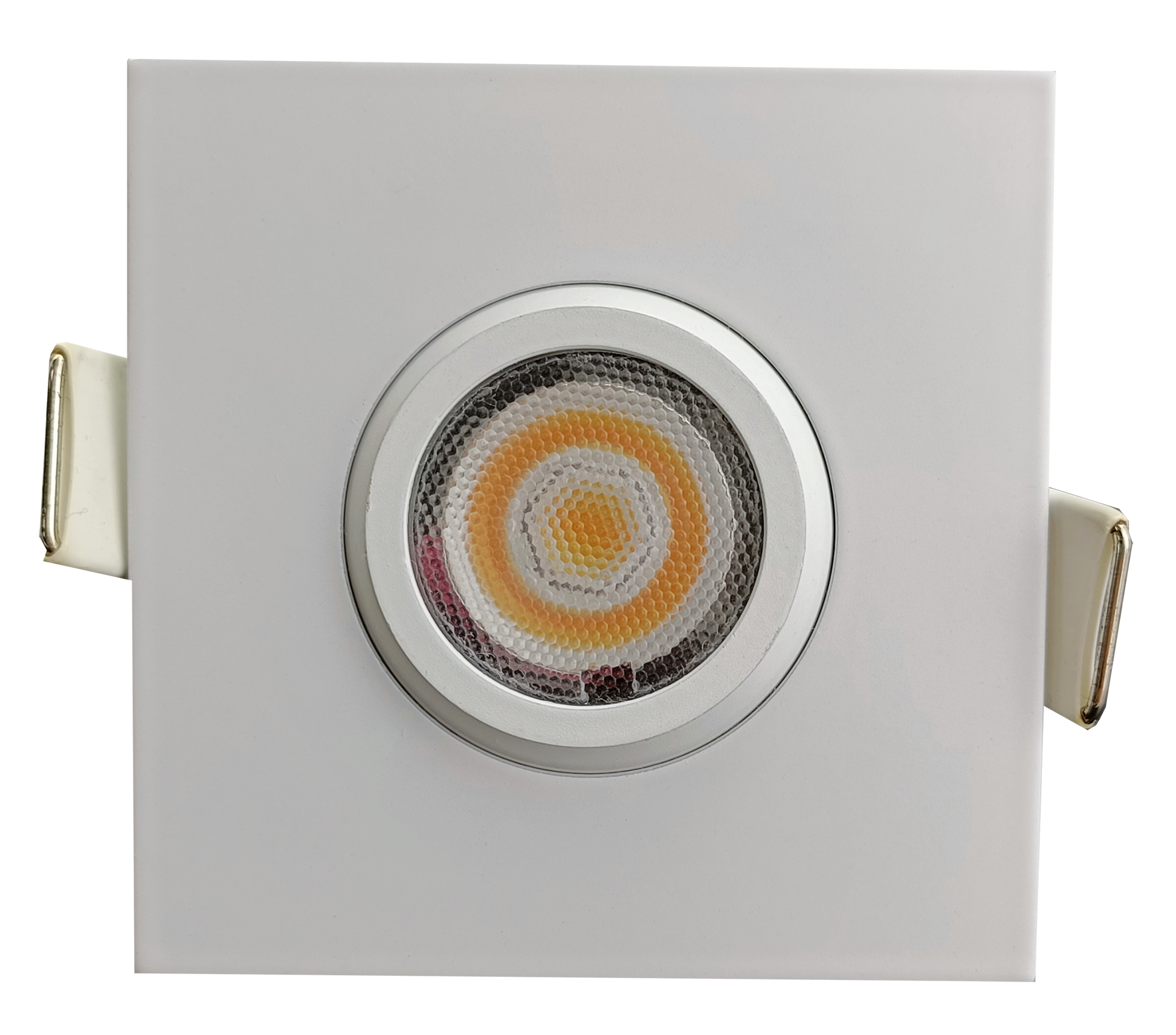

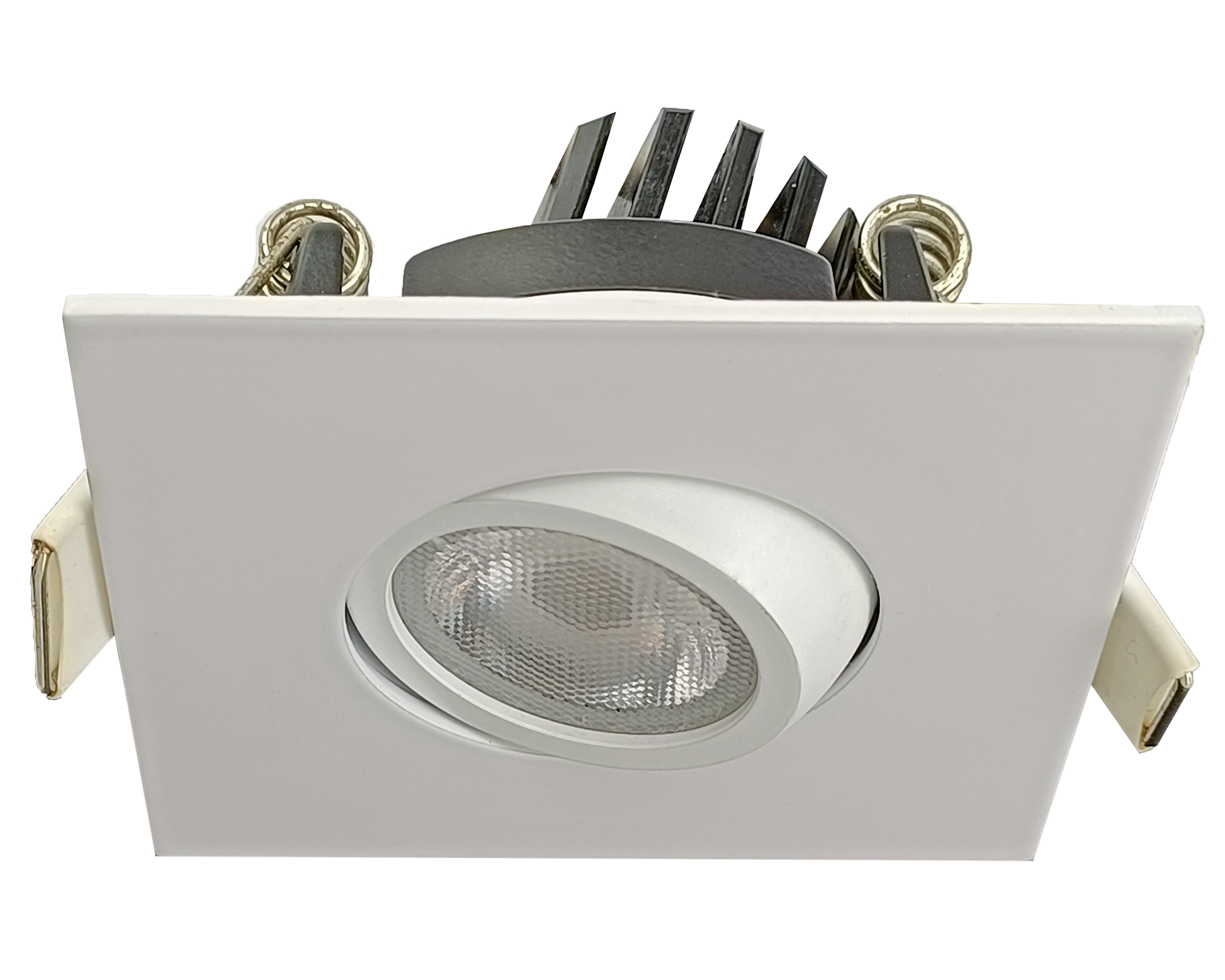

2" square flushed gimbal (white)

2" Square Flushed Gimbal (White)

27,30,35,41,50k
Dimmable
450 Lumens
5 Watts
120 V
View full details

Information

General Specs
Product Code
G-19839
Description
R2/5W/GS/LED/5CCT
shape
Square
style
Trimmed
size
2 Inch
finish
White
diffuser
Clear
number of lights
1

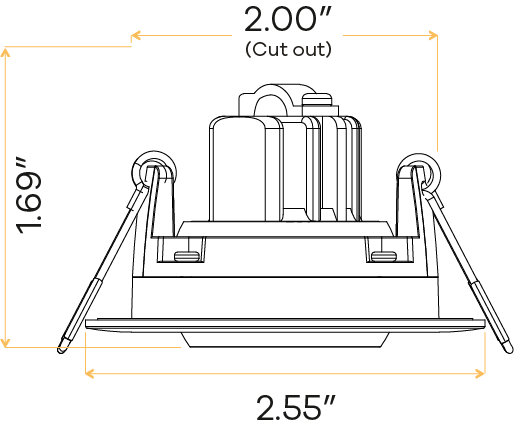

cutout
2.00"
OD (Outside dimensions)
2.55"
height
1.69"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354198390
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
450
CRI
>90
beam spread deg
40°
tilt angle
30°
rotating
360°
Electrical Specs
watt
5W
volts
120V
output current
110mA
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (2 Punchouts) G-98810 (2 Punchouts) G-19982 (1 Punchouts)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95823 5 Watt

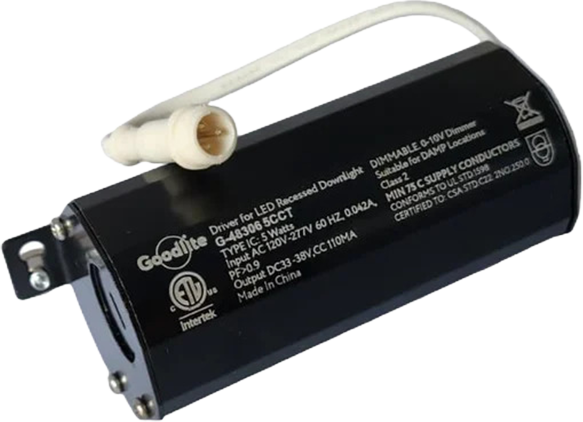

120-277V Drivers (0-10 Dimming)
G-48306
