G-19856
Saturn

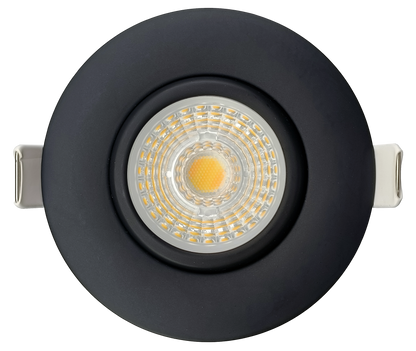

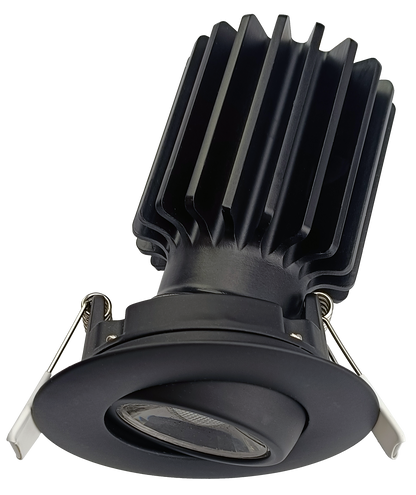

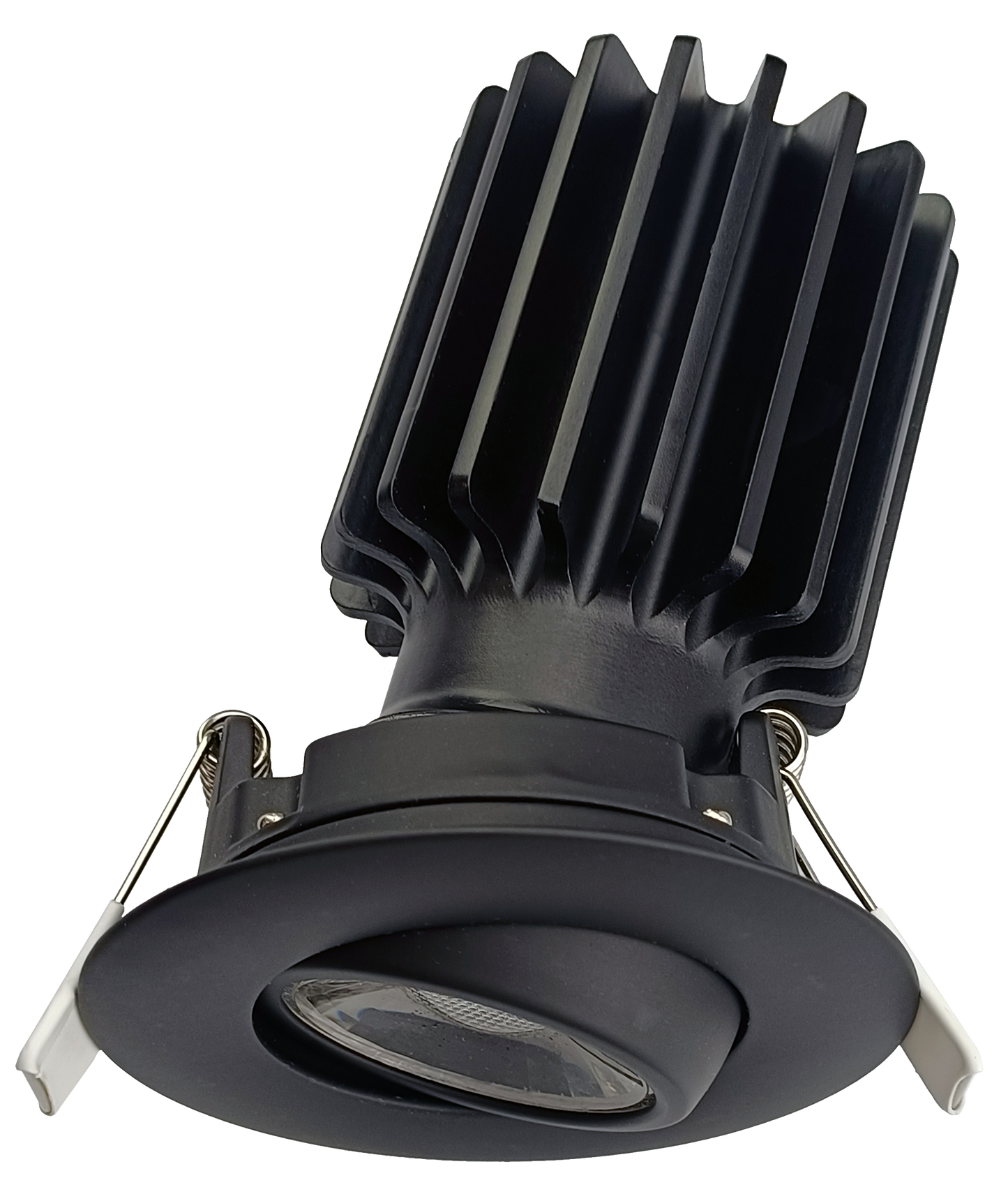

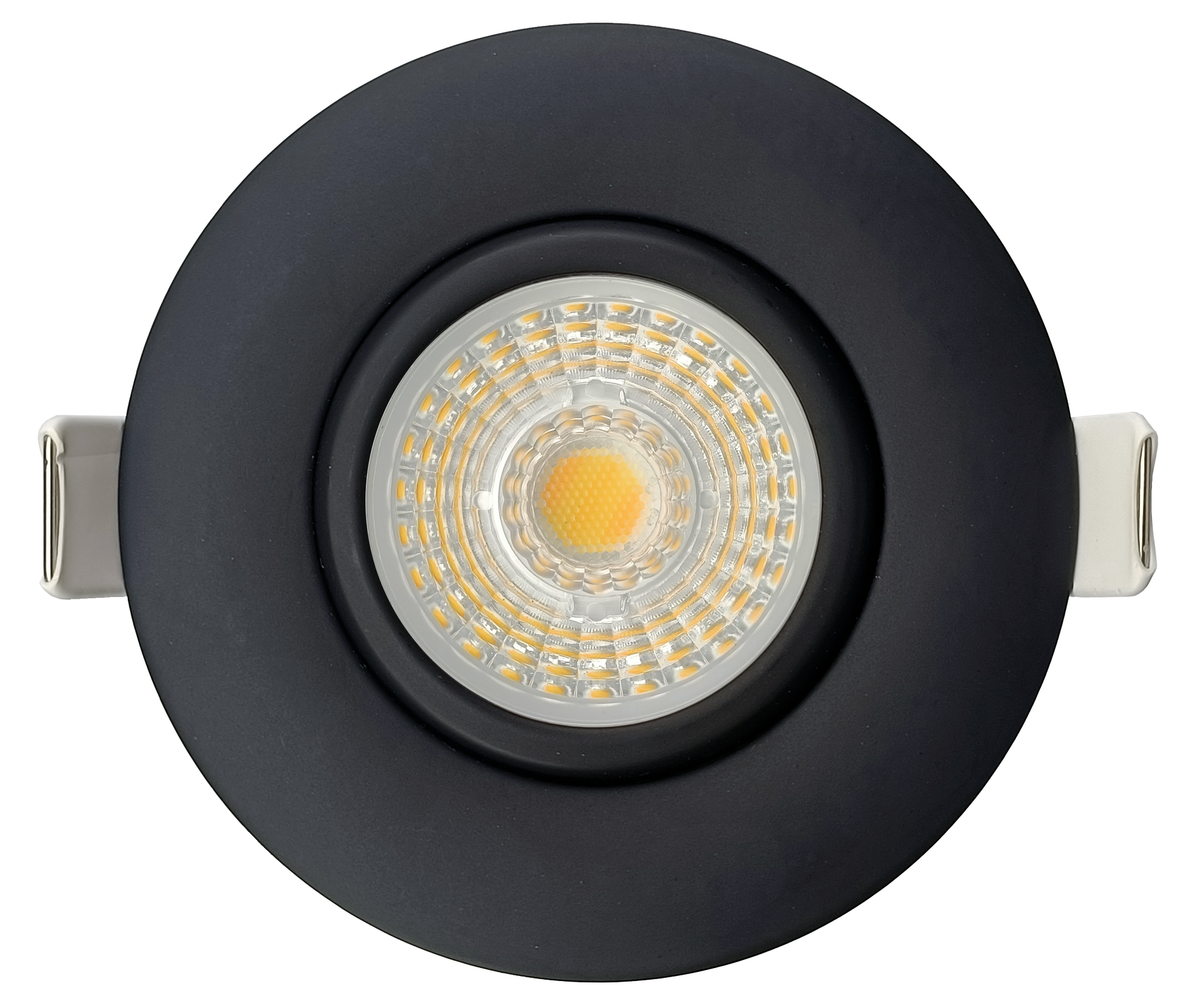

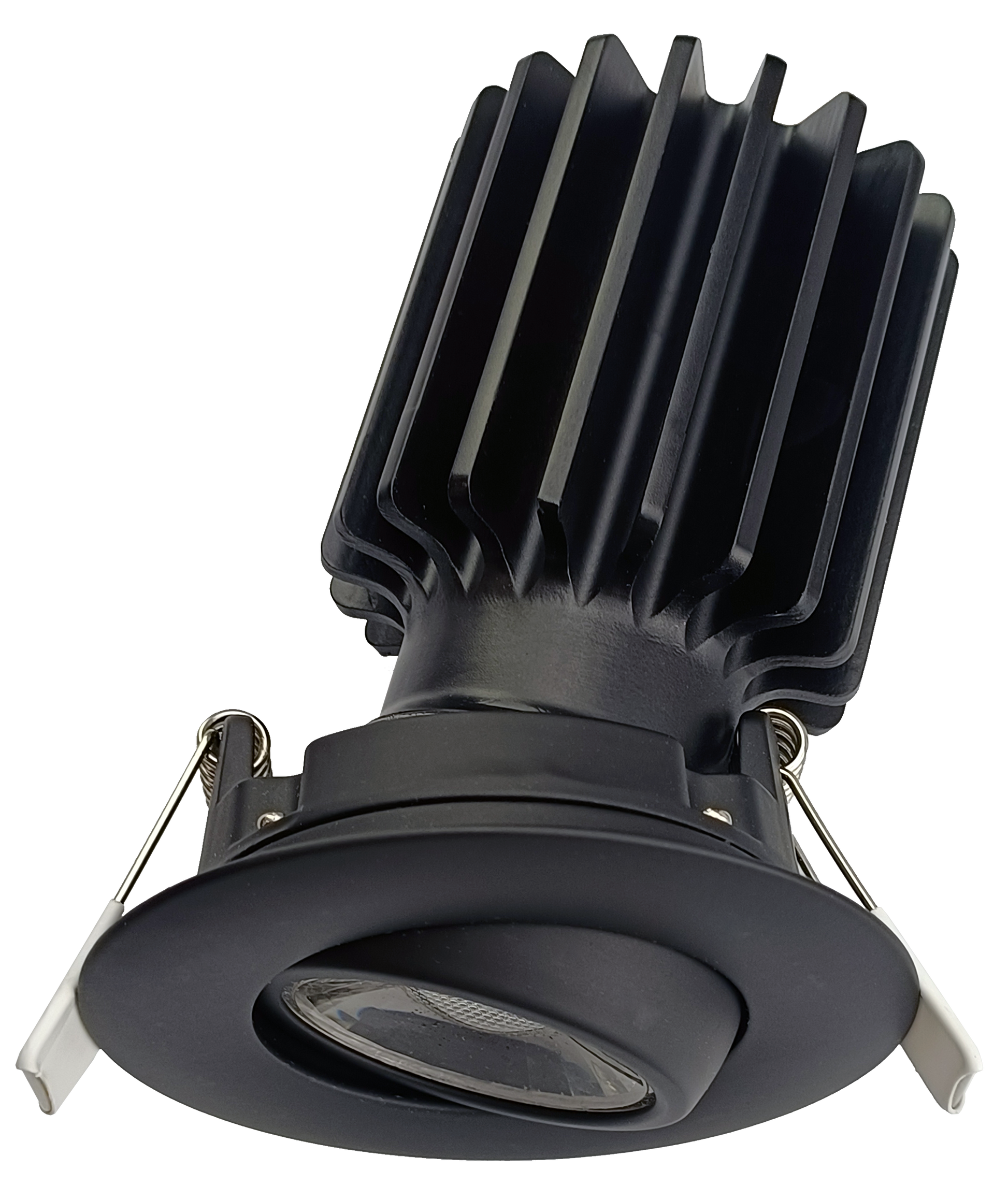

3" ho round flushed gimbal (black)

3" HO Round Flushed Gimbal (Black)

27,30,35,41,50k
Dimmable
1050 Lumens
11 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-19856
Description
R3/11W/GR/LED/B/5CCT
shape
Round
style
Trimmed
size
3 Inch
finish
Black
diffuser
Clear
number of lights
1
cutout
2.75"
OD (Outside dimensions)
3.35"
height
4.33"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354198567
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1050
CRI
>90
beam spread deg
60° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
11W
volts
120-277V
output current
250mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (3 Punchouts) G-98810 (3 Punchouts)
Clear Lens Options
G-01420 24° Lens G-01421 40° Lens G-01422 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
