G-20004
Saturn

6" round flushed gimbal (white)

6" Round Flushed Gimbal (White)

27,30,35,41,50k
Dimmable
1400 Lumens
18 Watts
120 V
View full details

Information

General Specs
Product Code
G-20004
Description
R6/18W/GR/LED/5CCT
shape
Round
style
Trimmed
size
6 Inch
finish
White
diffuser
Clear
number of lights
1

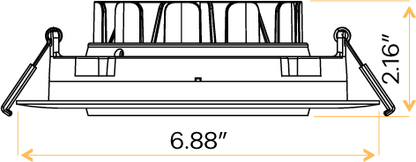

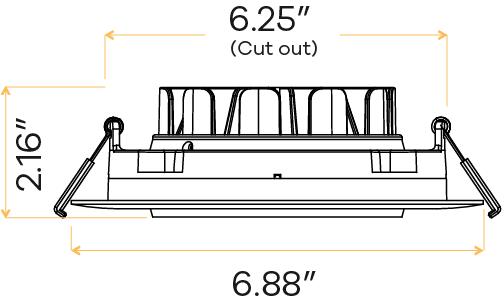

cutout
6.25"
OD (Outside dimensions)
6.88"
height
2.16"
mounting
Clip-in
Packaging Information
master pack
12
Barcode
749354200048
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400
CRI
>90
beam spread deg
40°
tilt angle
30°
rotating
360°
Electrical Specs
watt
18W
volts
120V
output current
450mA
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 G-19982 (6 Punchouts) G-19969 (2 Punchouts) G-19982 (6 Punchouts)
Emergency LED Driver
G-48410 (15W) G-48411 (30W)
Extension Cords
G-20210 (6 Ft) G-20211 (10 Ft)
