G-20091
Saturn

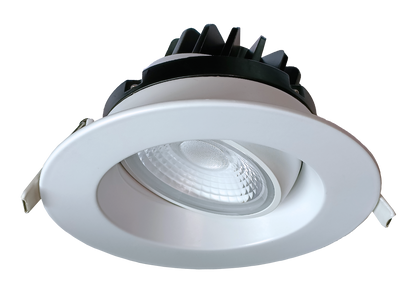

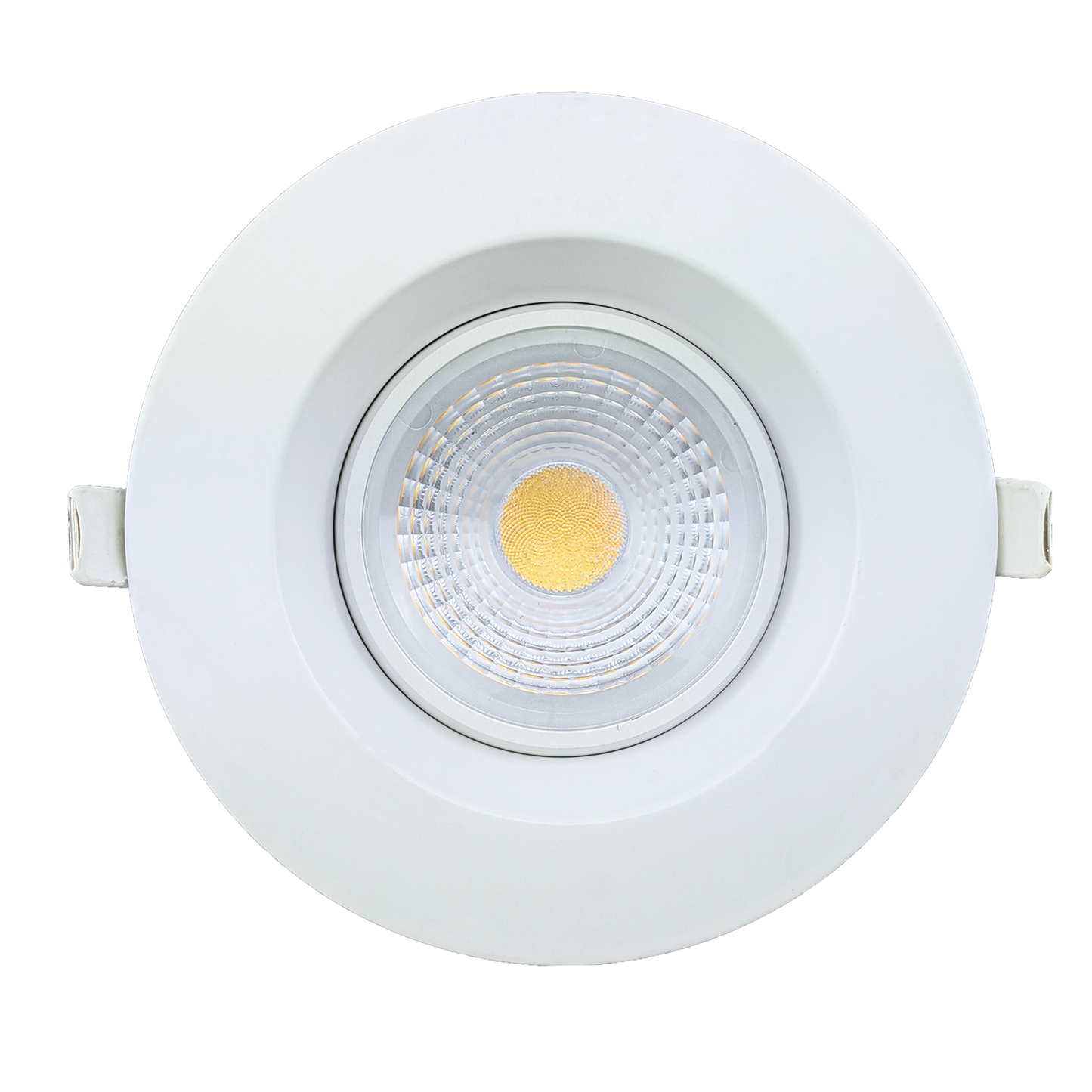

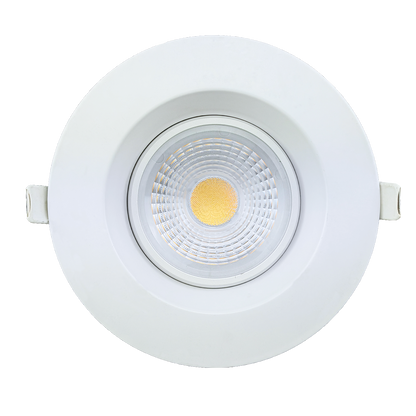

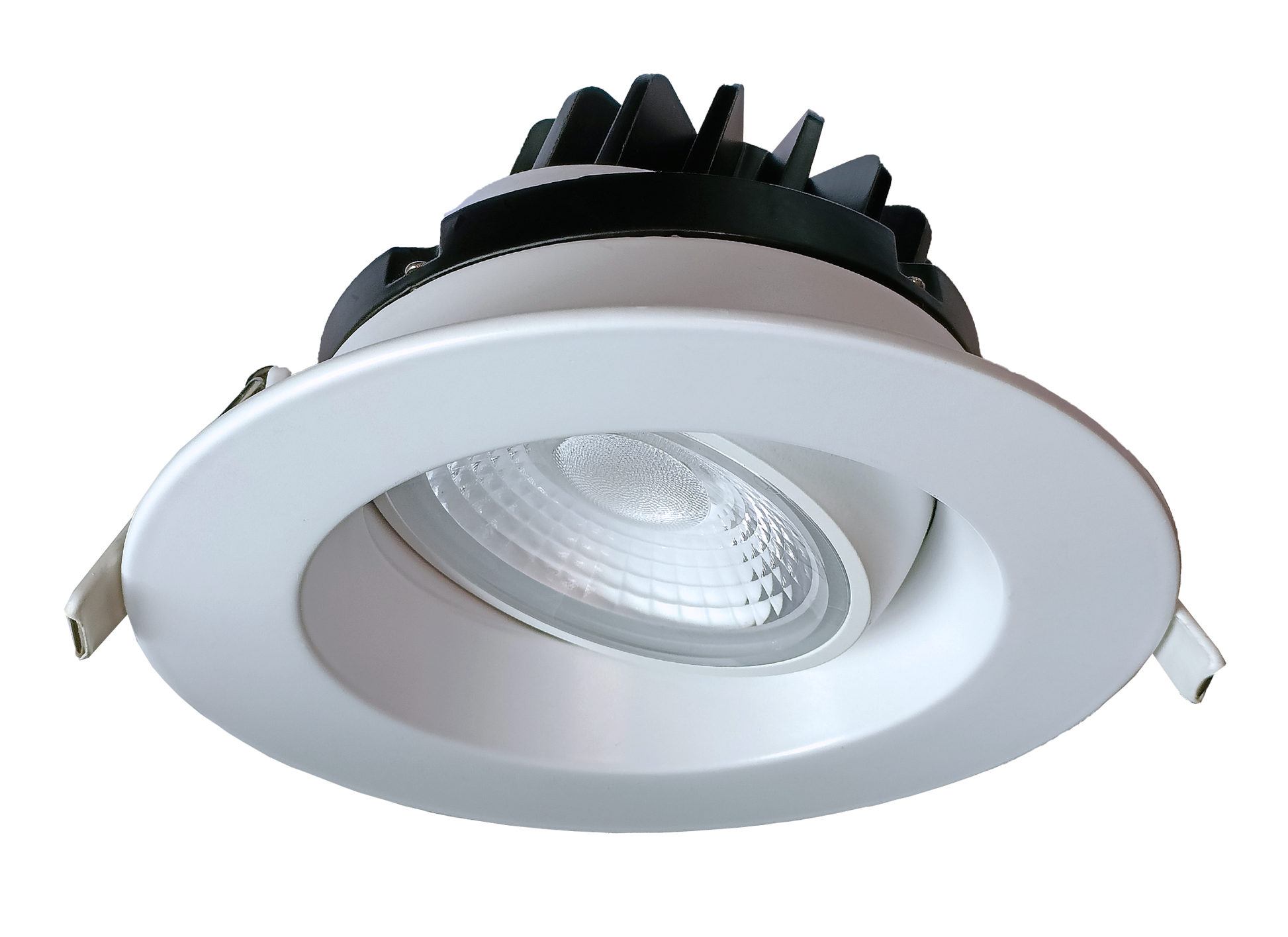

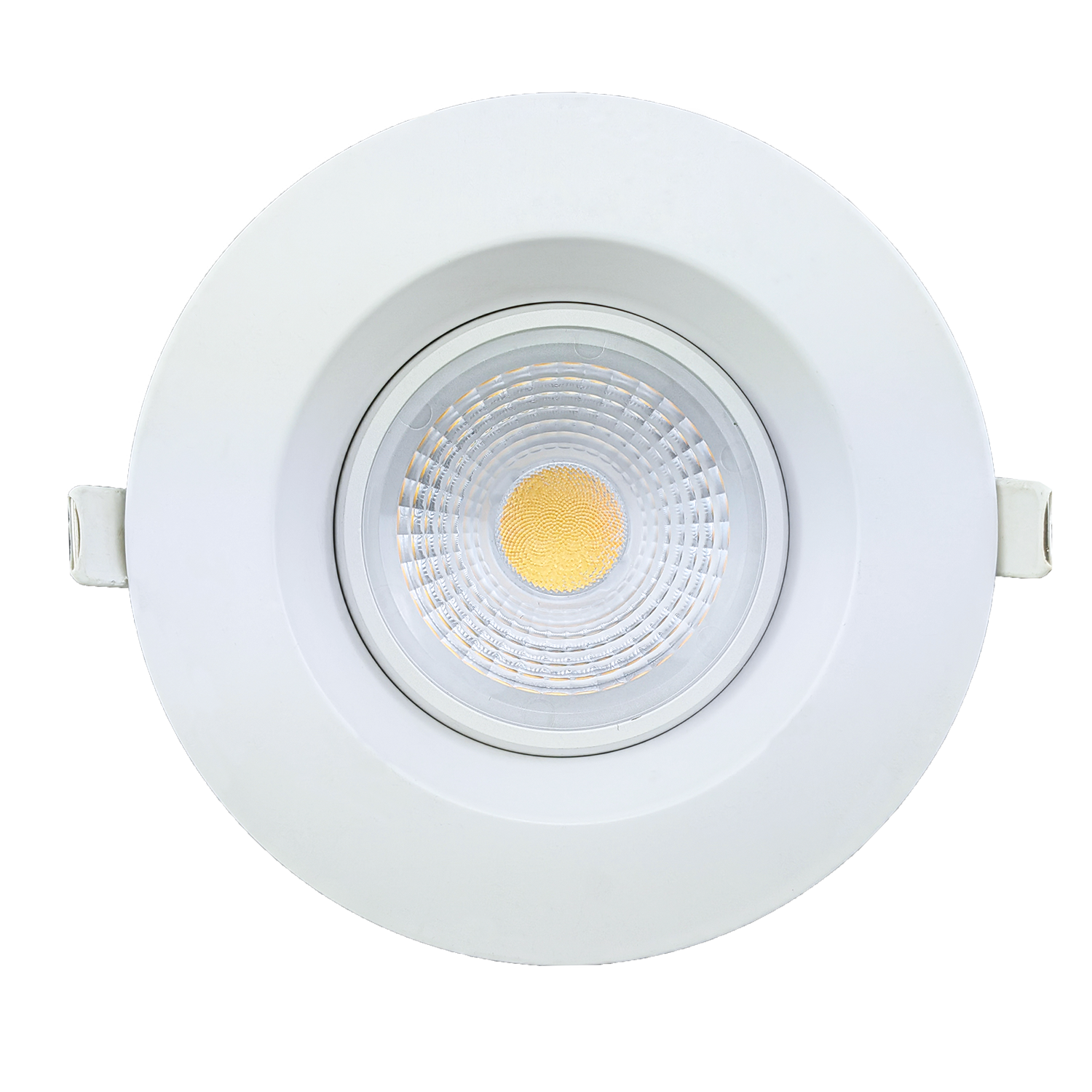

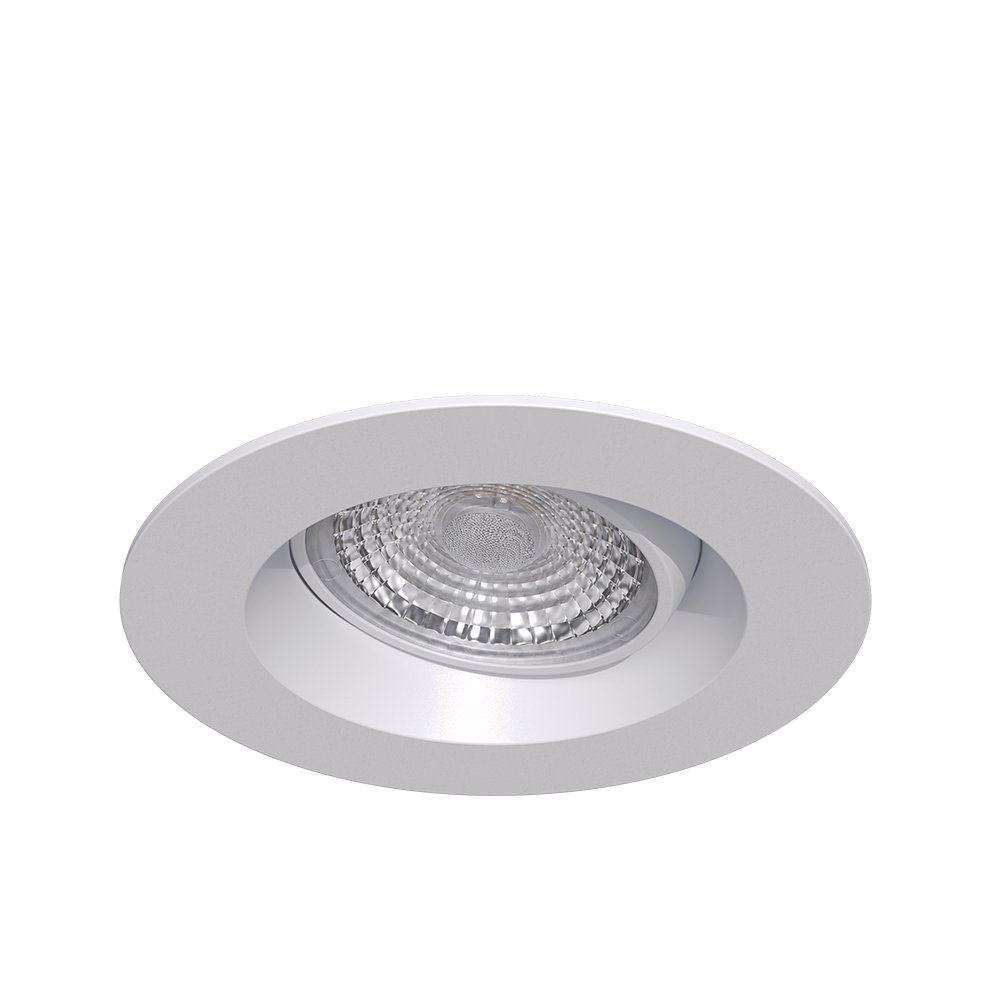

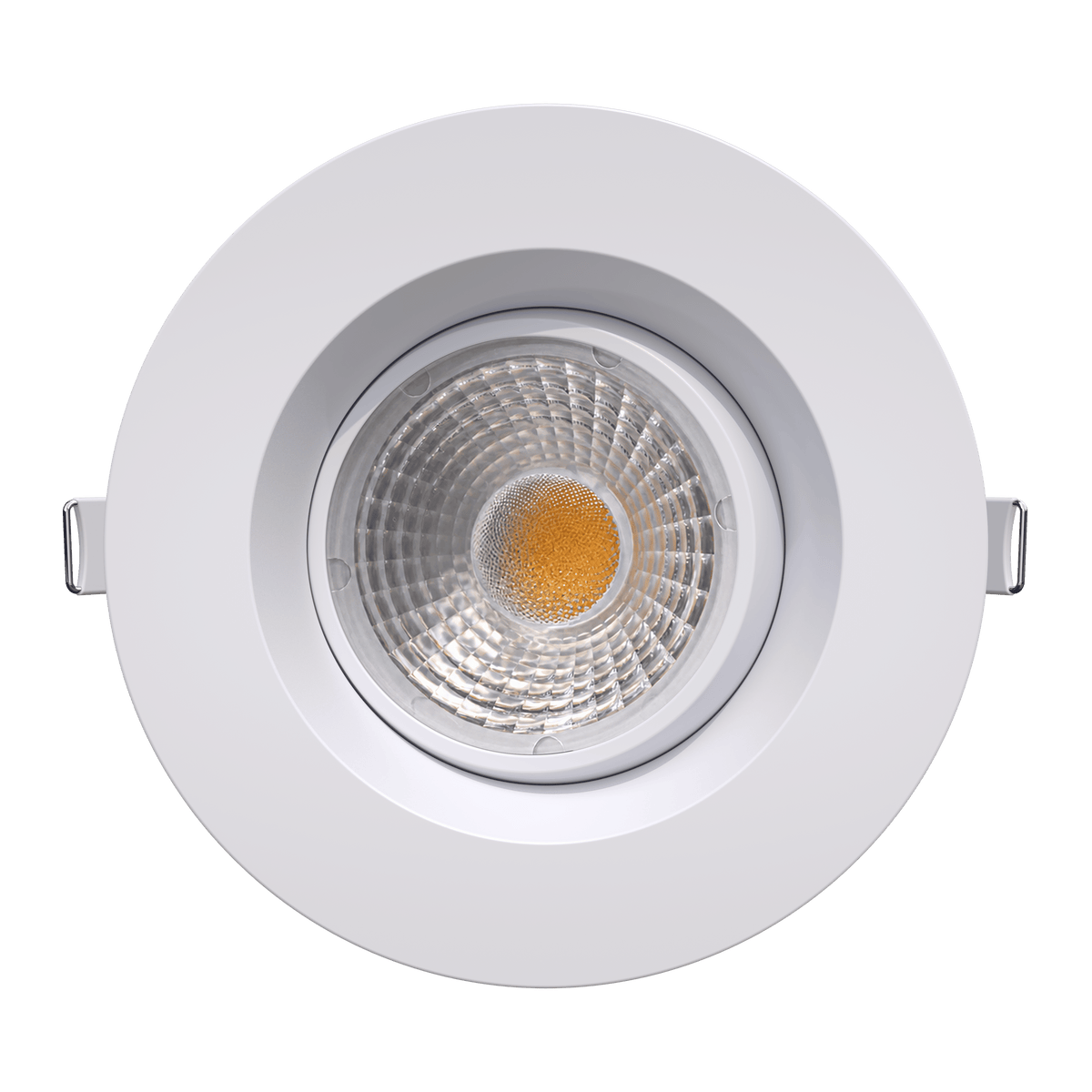

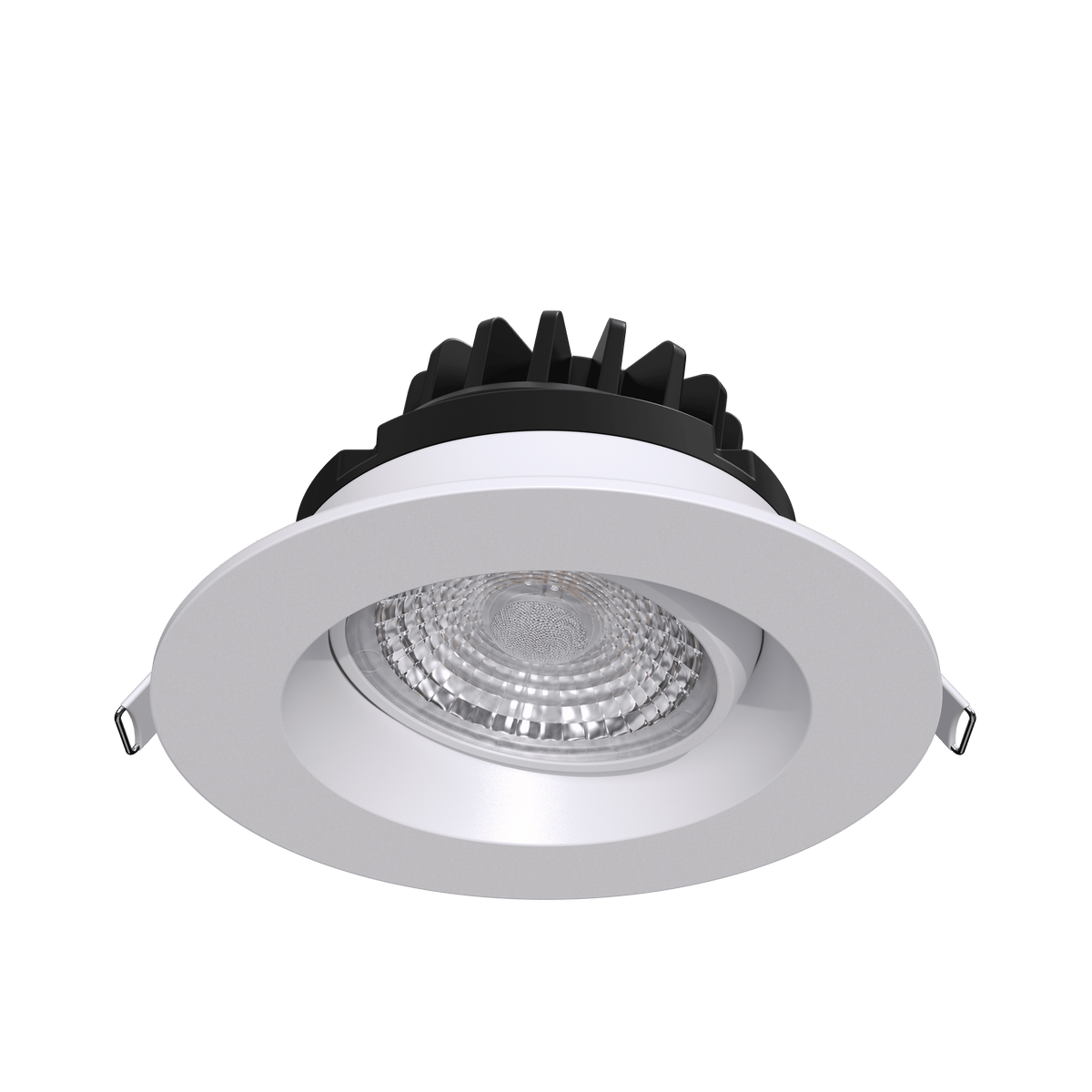

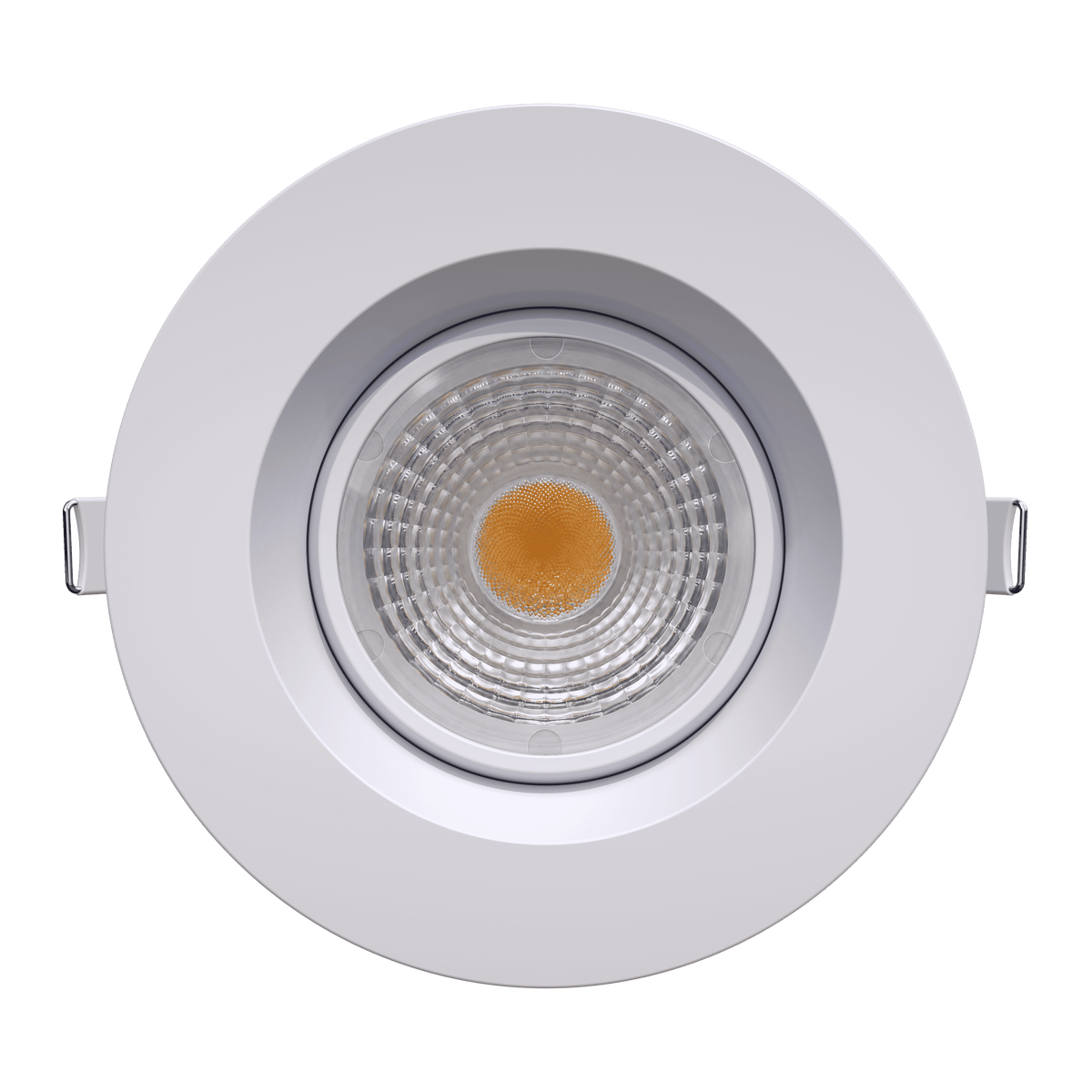

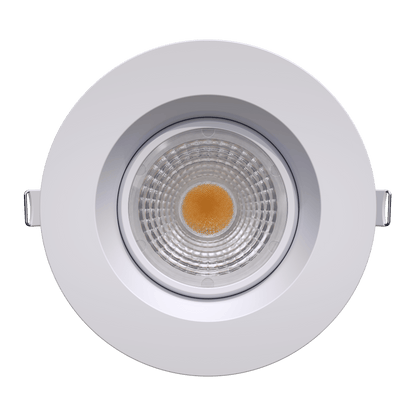

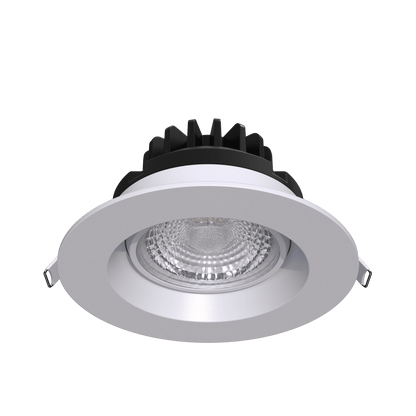

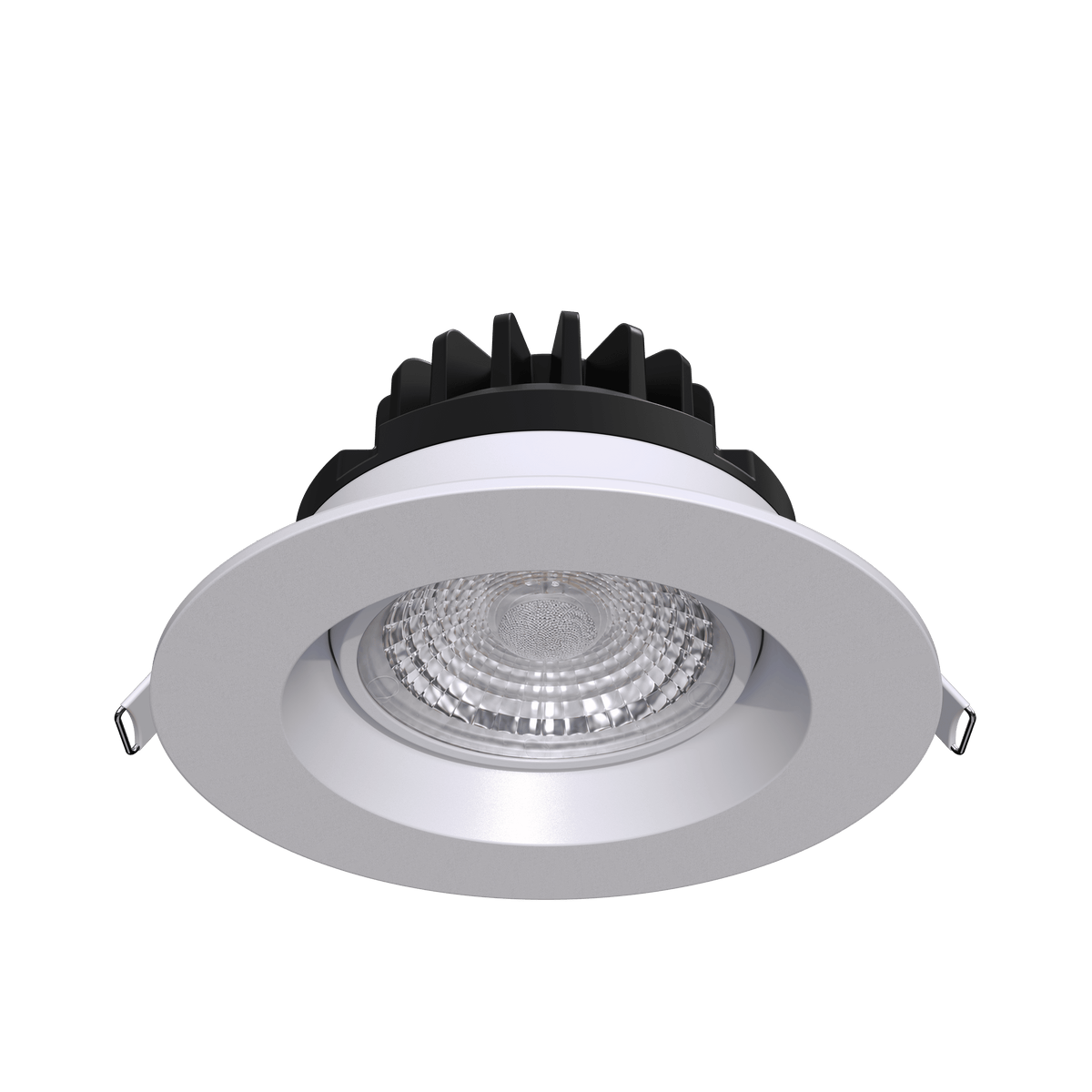

4” round regress gimbal (white)

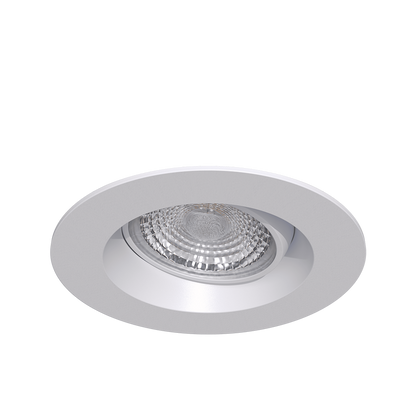

4” Round Regress Gimbal (White)

27,30,35,41,50k
Dimmable
1400 Lumens
14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20091
Description
R4/14W/GRR/LED/5CCT
shape
Round
style
Trimmed
size
4 Inch
finish
White
diffuser
Clear
number of lights
1

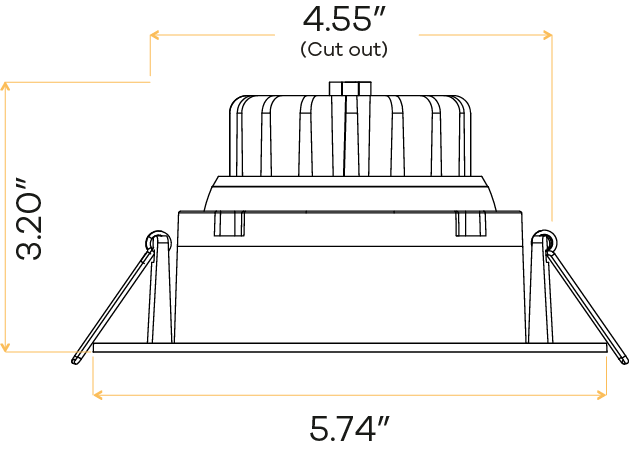

cutout
4.55"

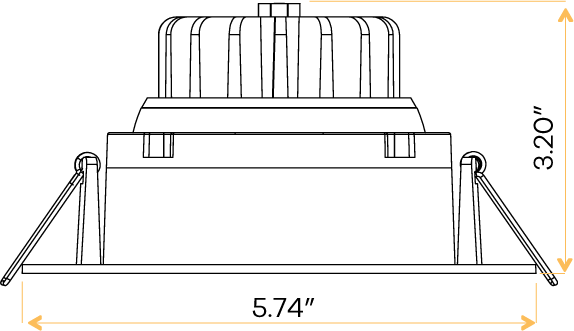

OD (Outside dimensions)
5.74"
height
3.20"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354200918
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400
CRI
90>
beam spread deg
40° (Default)
tilt angle
23°
rotating
360°
Electrical Specs
watt
14W
volts
120-277V
output current
330mA
dimming type
Triac or 0-10v
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (7 Punchouts) G-98810 (7 Punchouts) G-19982 (4 Punchouts)
Clear Lens Options
G-25631 G-25632
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95825 14 Watt

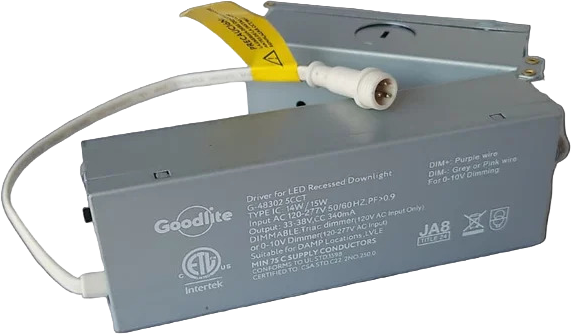

120-277V Driver
G-48302
