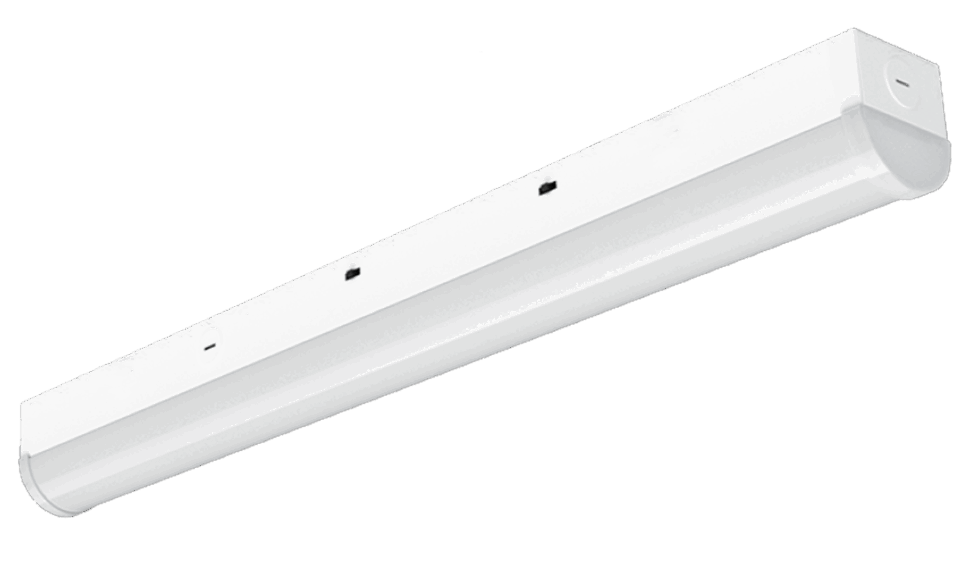

G-22302
2 ft linear fixture
2 Ft Linear Fixture
Dimmable
2900 / 2465 / 2030 / 1595 / 1160 Lumens
20/17/14/11/8 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-22302
Description
2FT/LNR/5WS/5CCT
shape
Linear
size
2 Ft
finish
White
diffuser
Frosted
number of lights
1
height
3.15"
length
24.02"
width
2.48"
mounting
Surface mount
Packaging Information
master pack
4
Barcode
990379223028
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
2900 / 2465 / 2030 / 1595 / 1160
CRI
80
beam spread deg
120°
Electrical Specs
watt
20W/17W/14W/11W/8W
volts
120-277V
output current
200mA
dimming type
0-10V Dimming
Compliance
location rating
Damp
warranty
5 Years
classification
UL, Energy star Listed
IES
