G-23505
Aster

3.5 inch 18/30w ho interchangeable module

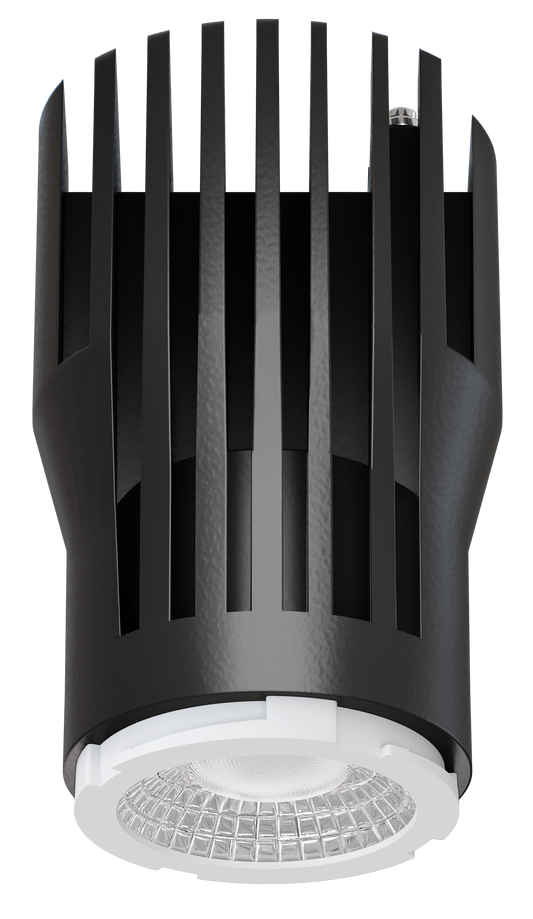

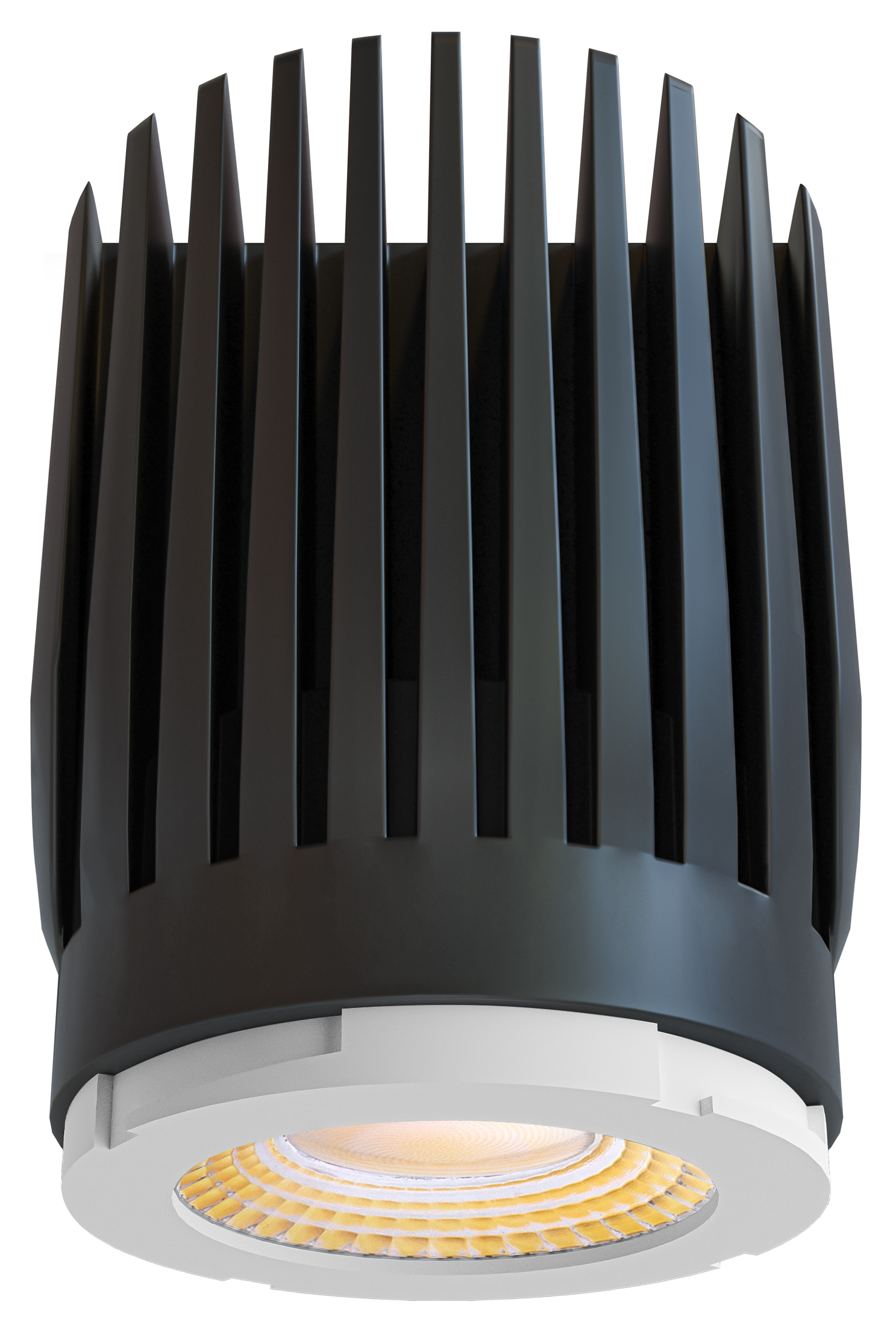

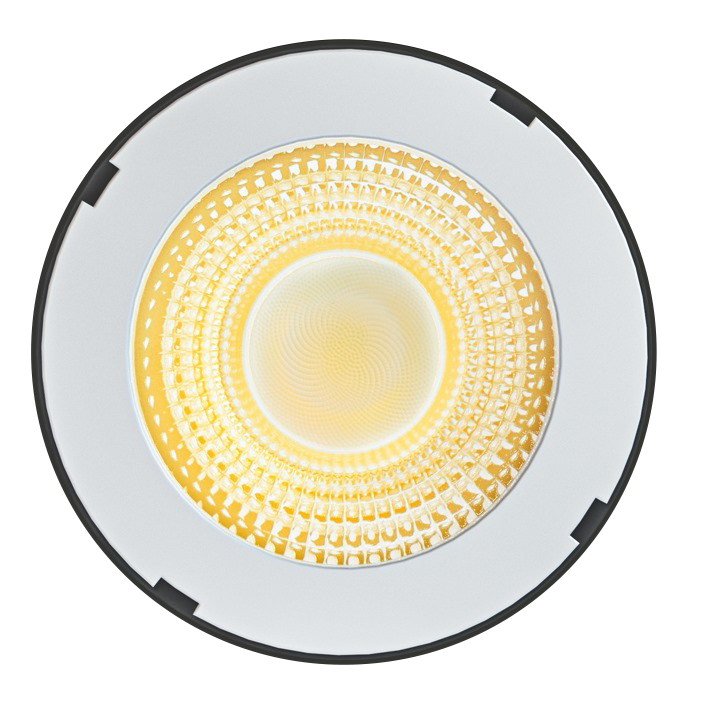

3.5 Inch 18/30W HO Interchangeable Module

Module:
27,30,35,41,50k
Dimmable
1700/2700 Lumens
18/30 Watts
120-277 V
Dim to Warm
View full details

Information

General Specs
Product Code
G-23505
Description
M3.5/18/30W/WS2/LED/5CCT
size
3.5 Inch
number of lights
1
mounting
Universal
Packaging Information
master pack
18
Barcode
990379235052
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K + DTW
Dim to Warm Colors
2600k-1800k
lumens
1700/2700
CRI
>90
beam spread deg
60° (Default)
Electrical Specs
watt
18/30W
volts
120-277V
output current
420/700 mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 18W
classification
ETL, Title24 Listed

Downloads

Product Spec IES
