G-10020
Aster

4 inch 9/15w interchangeable module

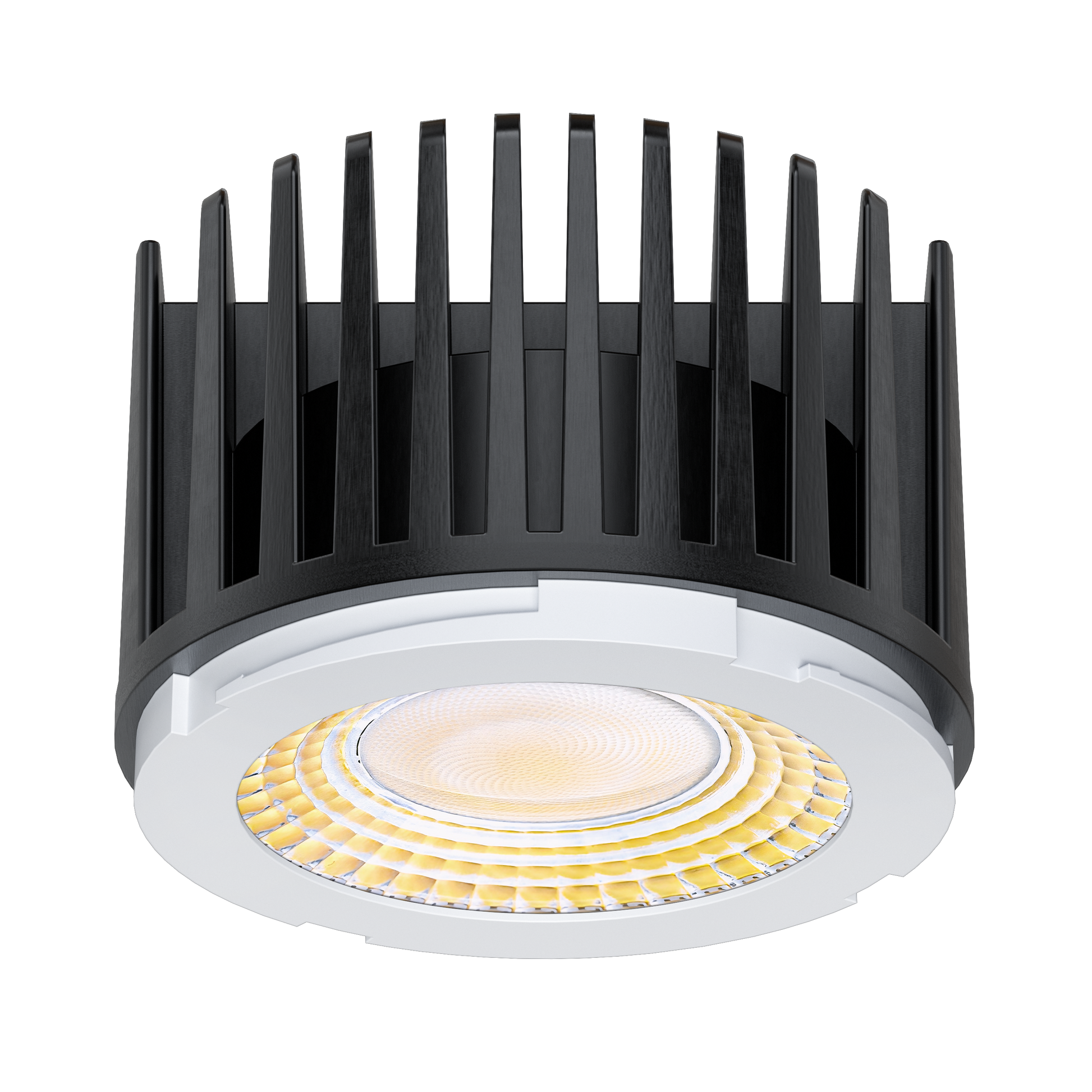

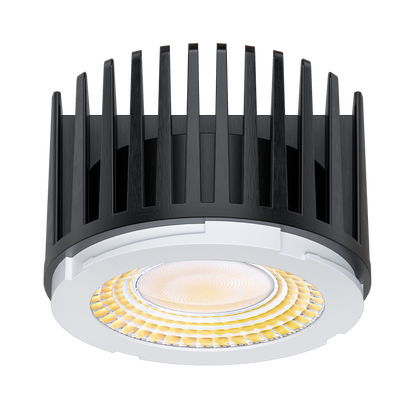

4 Inch 9/15W Interchangeable Module

Module:
27,30,35,41,50k
Dimmable
950/1550 Lumens
9/15 Watts
120-277 V
Dim to Warm
View full details

Information

General Specs
Product Code
G-10020
Description
M4/15W/WS2/LED/5CCT
size
4 Inch
diffuser
Clear (Default)
number of lights
1
mounting
Universal
Packaging Information
master pack
12
Barcode
024441100204
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K + DTW
Dim to Warm Colors
Multi Select
lumens
950/1550
CRI
90>
beam spread deg
40° (Default)
Electrical Specs
watt
9/15W
volts
120-277V
output current
350/210mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

Clear Lens Options
G-11022 24° G-11023 40° G-11024 60°
Frosted Lens
G-11020 80°
Reflector Lens Options
G-11025 30° G-11026 60°
Hex Honeycomb
G-21440
Lens Cover Options
G-21427 Solite Cover G-21428 Prismatic Cover G-21429 Beamsplit Cover
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95824 9 Watt G-95825 14 Watt
