G-22500
Aster

5 inch 50w interchangeable module

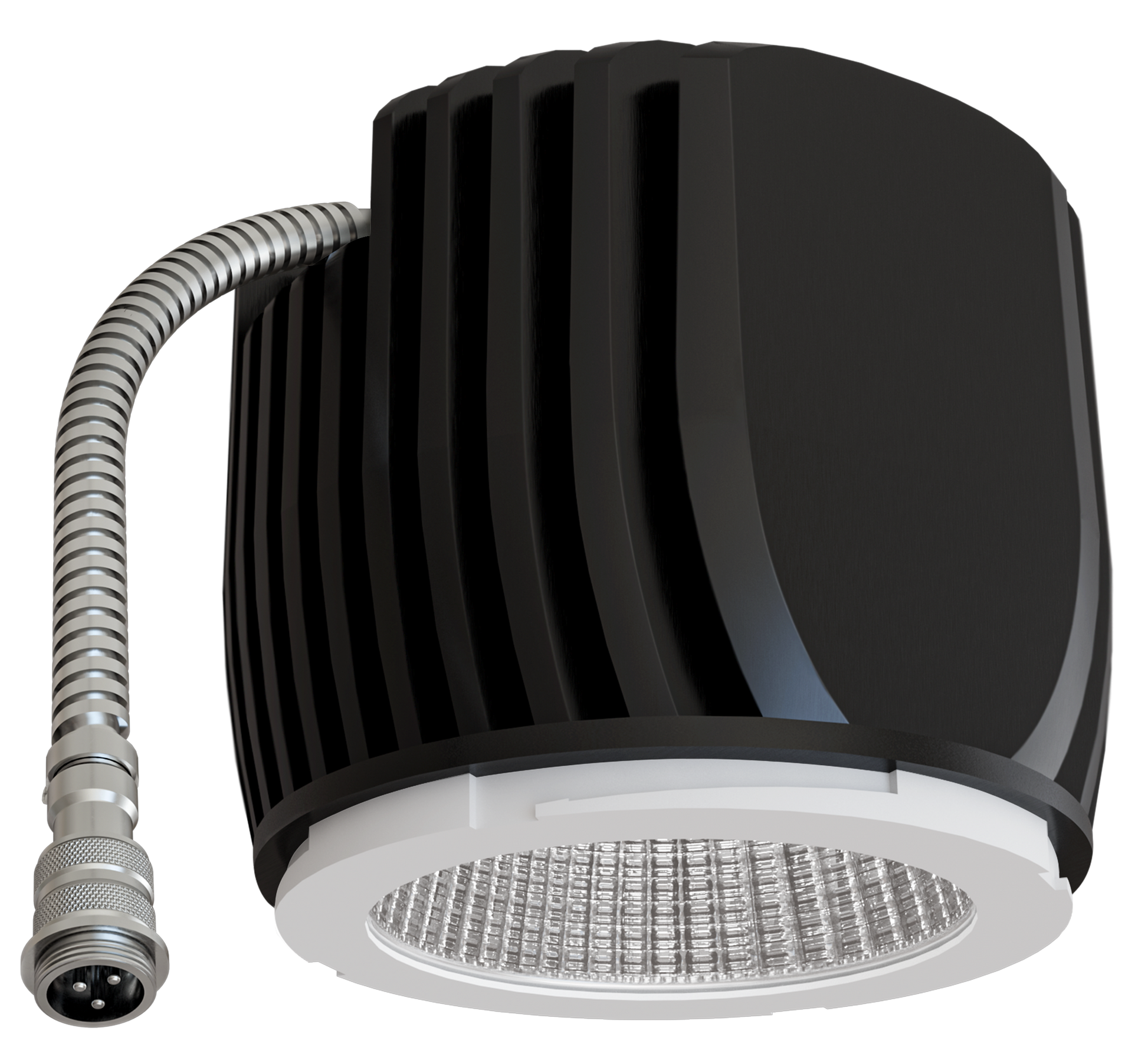

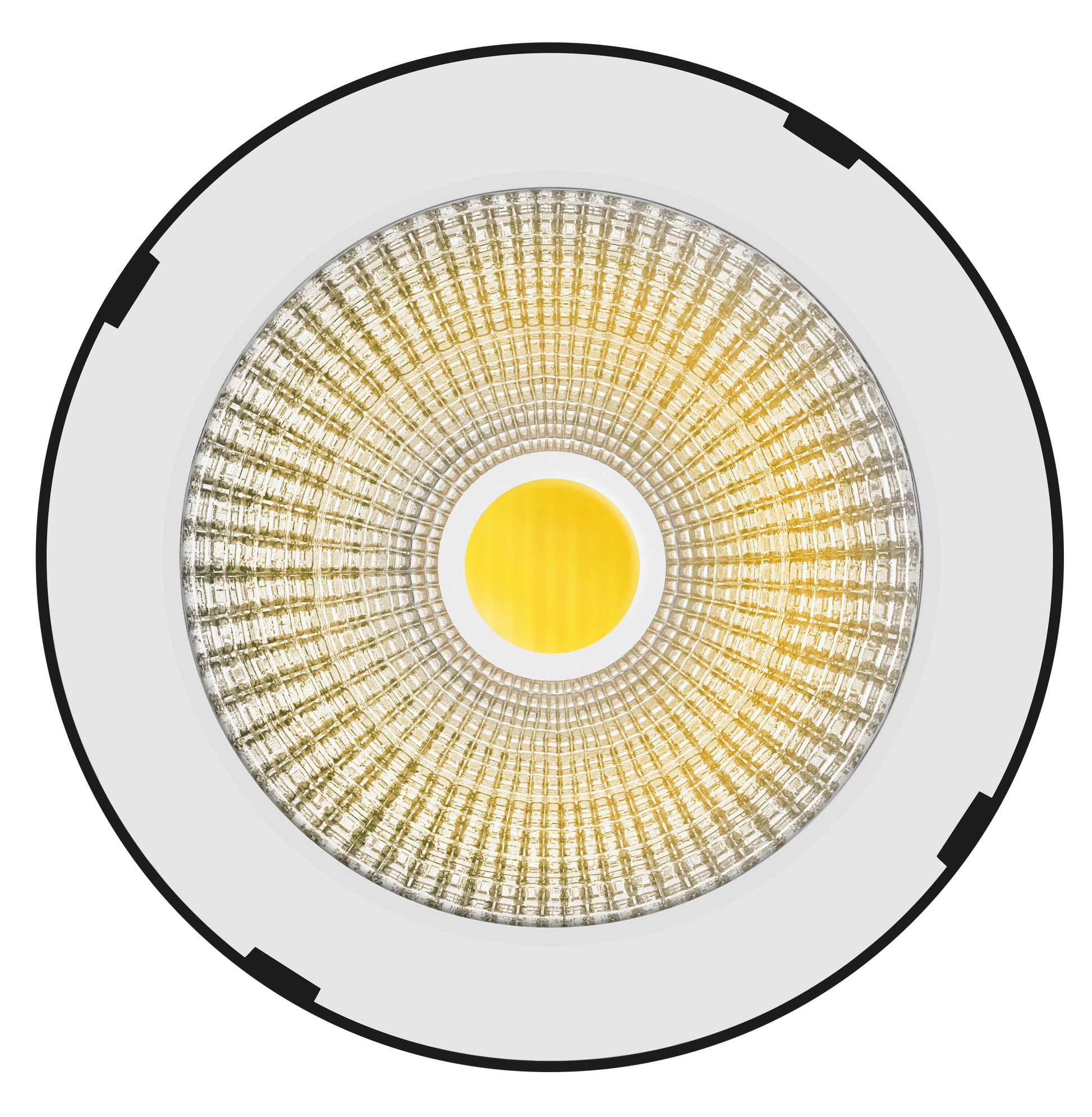

5 Inch 50W Interchangeable Module

Module:
27,30,35,41,50k
Dimmable
2200/5000 Lumens
23/50 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-22500
Description
M5/50W/WS2/LED/5CCT
size
5 Inch
diffuser
Clear (Default)
number of lights
1
mounting
Universal
Packaging Information
master pack
12
Barcode
990379225008
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
2200/5000
CRI
90>
beam spread deg
50° (Default)
Electrical Specs
watt
23/50W
volts
120-277V
output current
600/1250mA
plenum rated
Chicago
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 23W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Reflector Lens Options
G-22572 24° Lens G-22573 38° Lens
Frosted Lens
G-22570
Lens Covers
G-22580 PRISMATIC G-22581 SOLITE G-22582 BEAMSPLIT
Extension Cords
G-98628 (15 Ft) G-98629 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
