G-23500
Aster

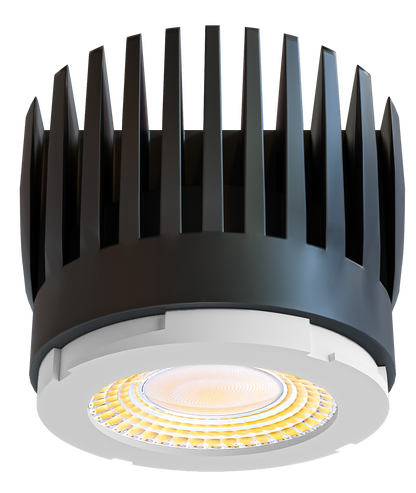

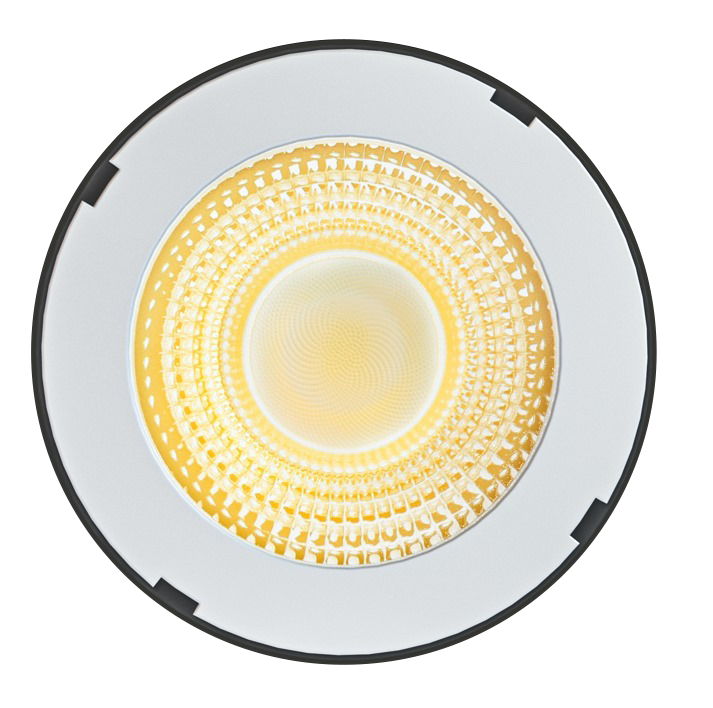

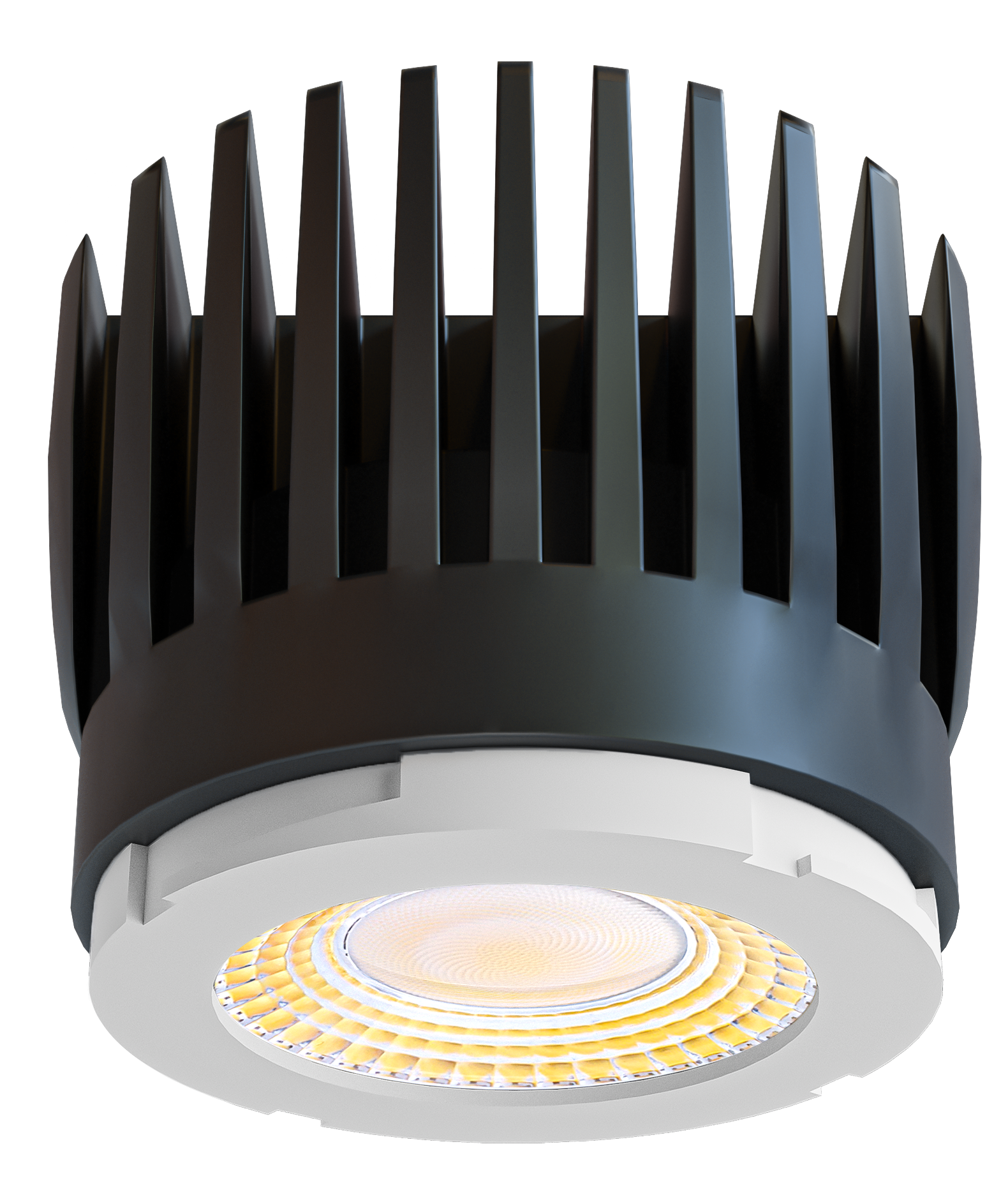

3.5 inch 9/15w interchangeable module

3.5 Inch 9/15W Interchangeable Module

Module:
27,30,35,41,50k
Dimmable
900/1400 Lumens
9/15 Watts
120-277 V
Dim to Warm
View full details

Information

General Specs
Product Code
G-23500
Description
M3.5/9/15W/WS2/LED/5CCT
size
3.5 Inch
diffuser
Clear (Default)
number of lights
1
mounting
Universal
Packaging Information
master pack
18
Barcode
990379235007
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K + DTW
Dim to Warm Colors
2600k-1800k
lumens
900/1400
CRI
>90
beam spread deg
40° (Default)
Electrical Specs
watt
9/15W
volts
120-277V
output current
210/350mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Clear Lens Options
G-23632 24° Lens G-23633 40° Lens G-23634 60° Lens
Reflector Lens Options
G-23636 38° Lens G-23637 60° Lens
Frosted Lens
G-23630
Lens Covers
G-23641 Solite Cover G-23642 Prismatic Cover G-23643 Beamsplit Cover
Hex Honeycomb
G-21750
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 9 Watt G-95825 14 Watt
