G-24020
Saturn

2" gimbal trimless (white) g2

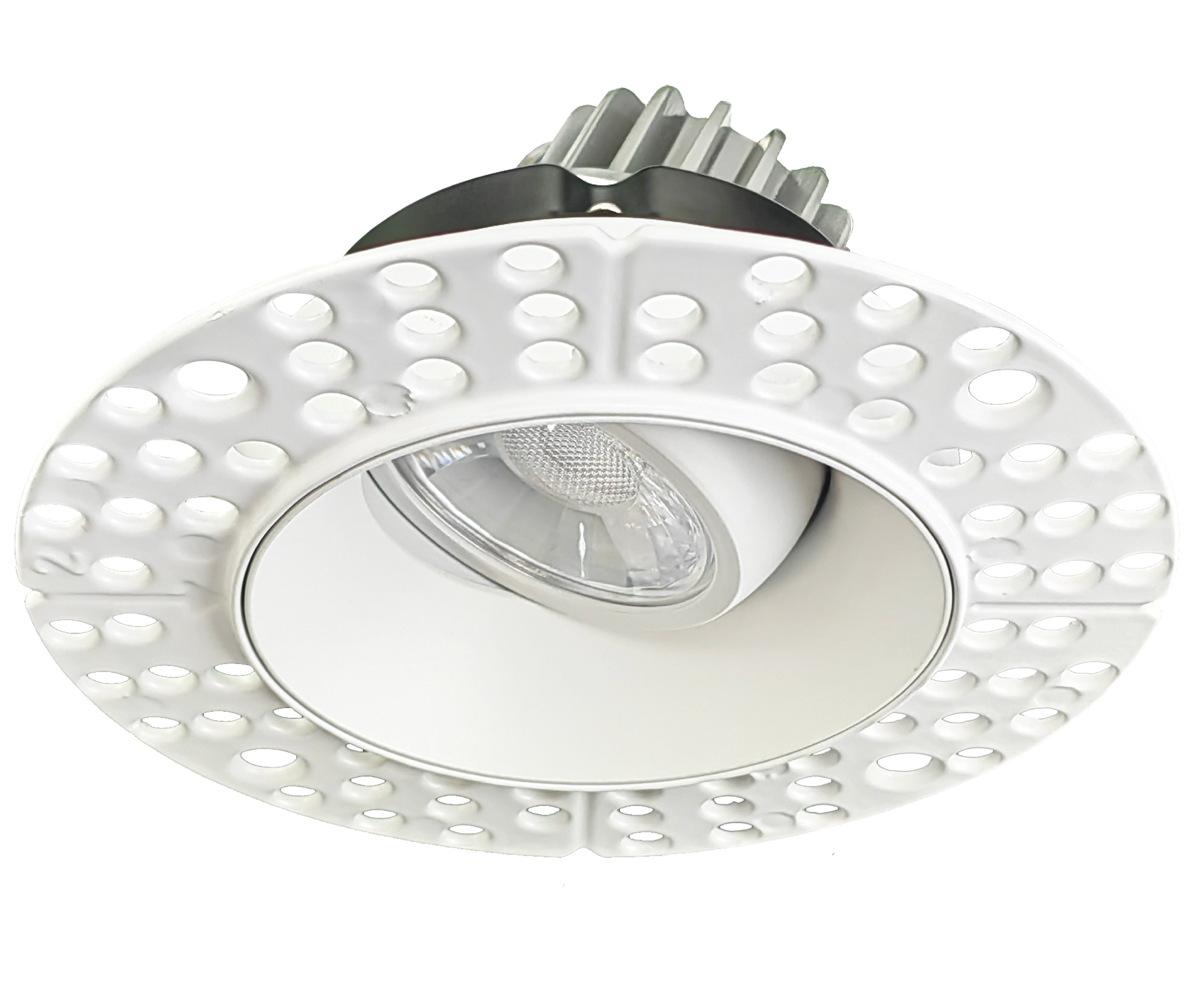

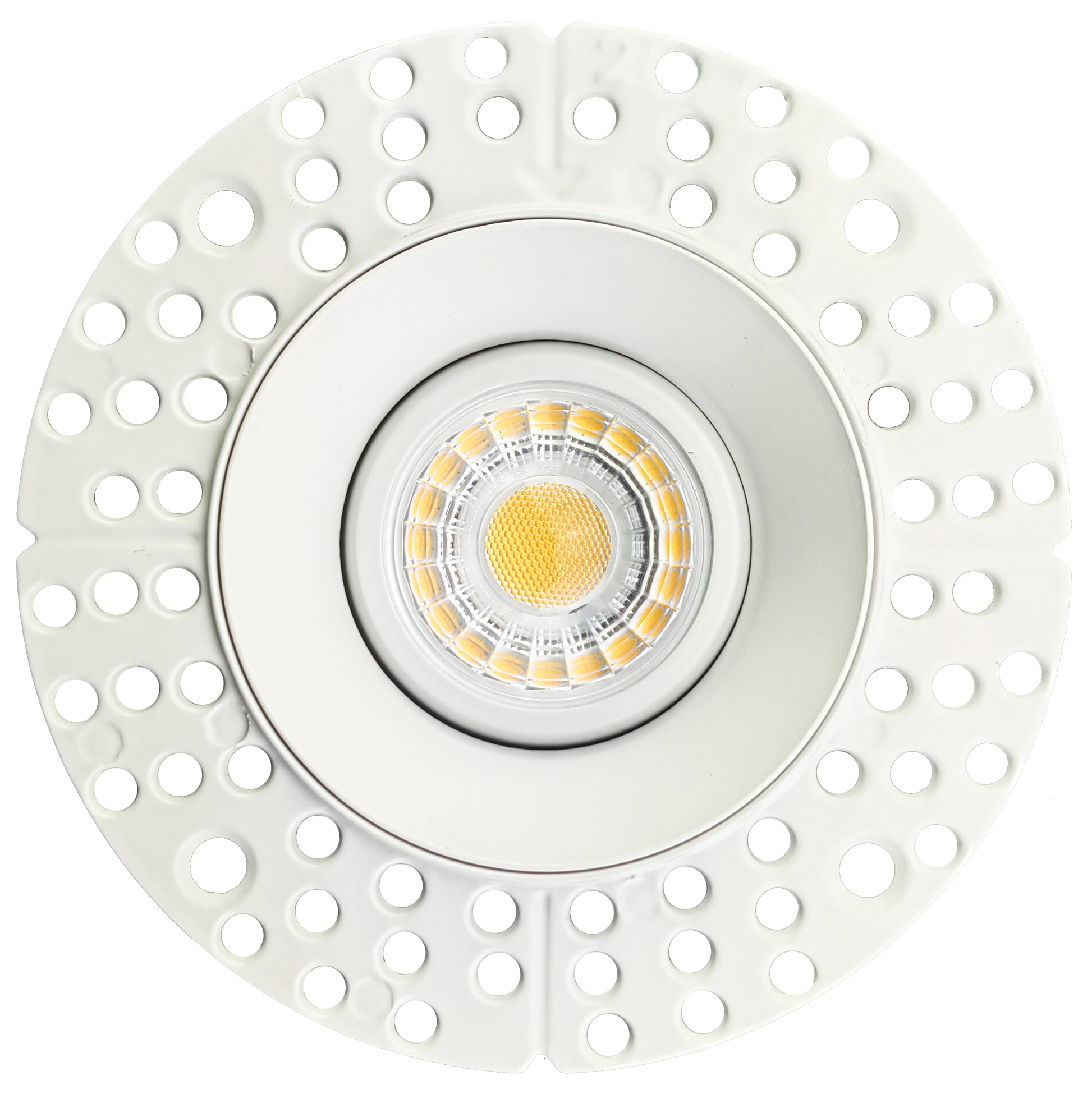

2" Gimbal Trimless (White) G2

27,30,35,41,50k
Dimmable
800 Lumens
8 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-24020
Description
R2/8W/GR/LED/TL/5CCT-G2
shape
Round
style
Trimless
size
2 Inch
finish
White
diffuser
Clear
number of lights
1

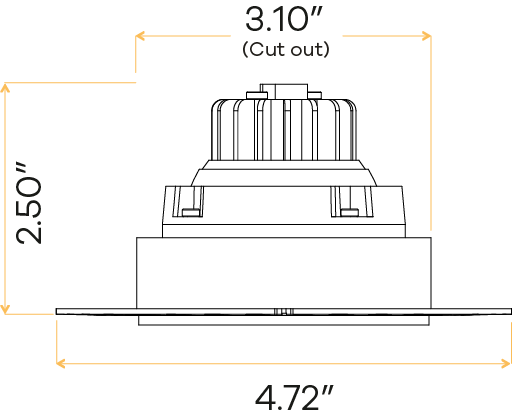

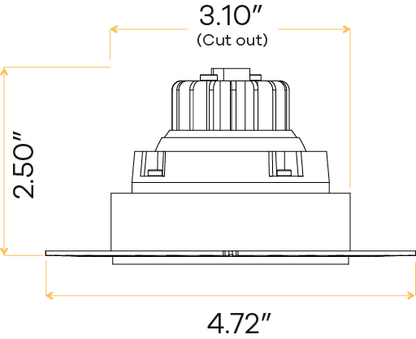

cutout
3.10"
OD (Outside dimensions)
4.72"
height
2.50"
mounting
Mud-in
Packaging Information
master pack
18
Barcode
990379240209
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
800
CRI
>90
beam spread deg
40°
tilt angle
30°
rotating
360°
Electrical Specs
watt
8W
volts
120-277V
output current
170mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (4 Punchouts) G-98810 (4 Punchouts) G-19982 (2 Punchouts)
Clear Lens Options
G-01420 24° Lens G-01421 40° Lens G-01422 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 8 Watt
