G-25120
Saturn

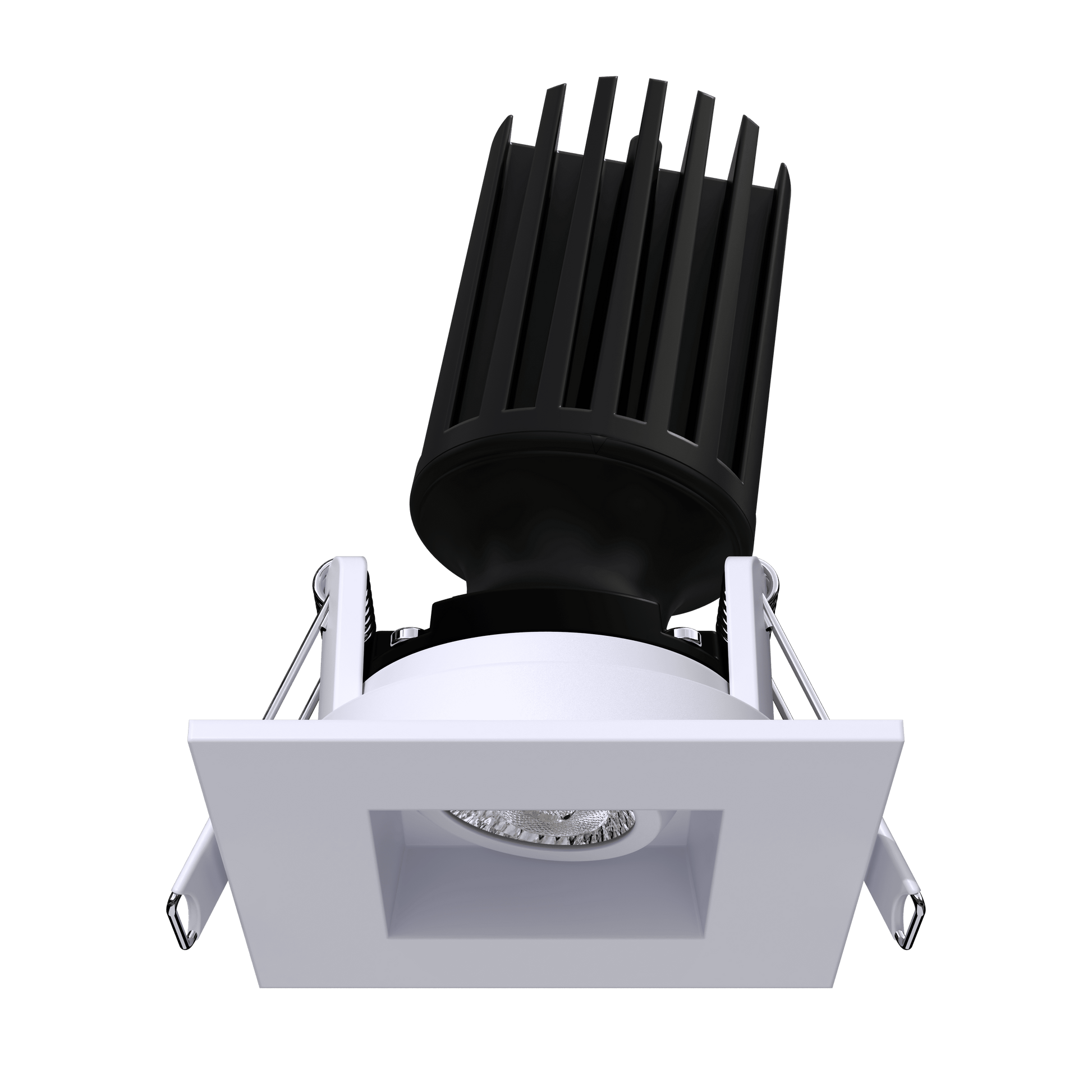

2” ho square regress gimbal (white)

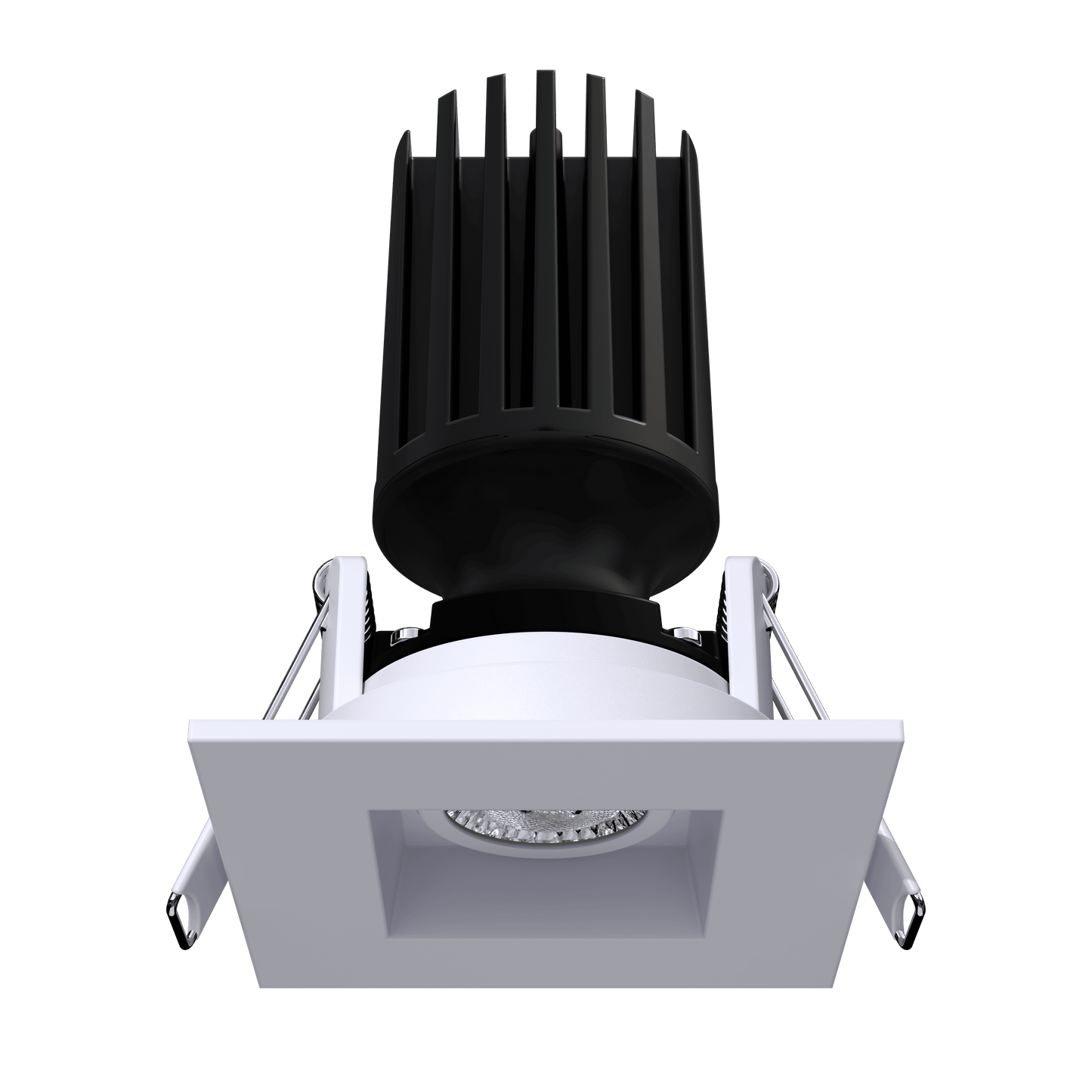

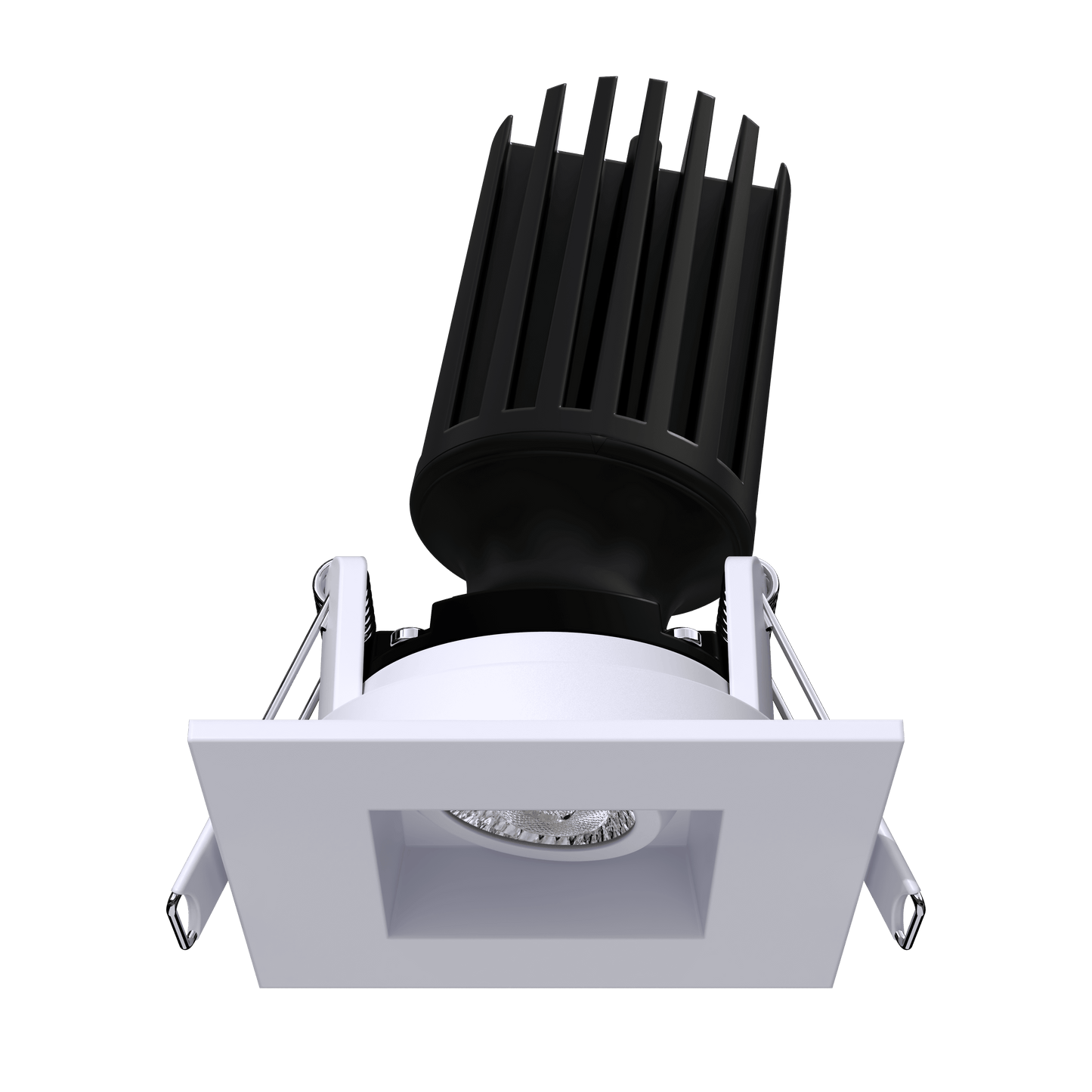

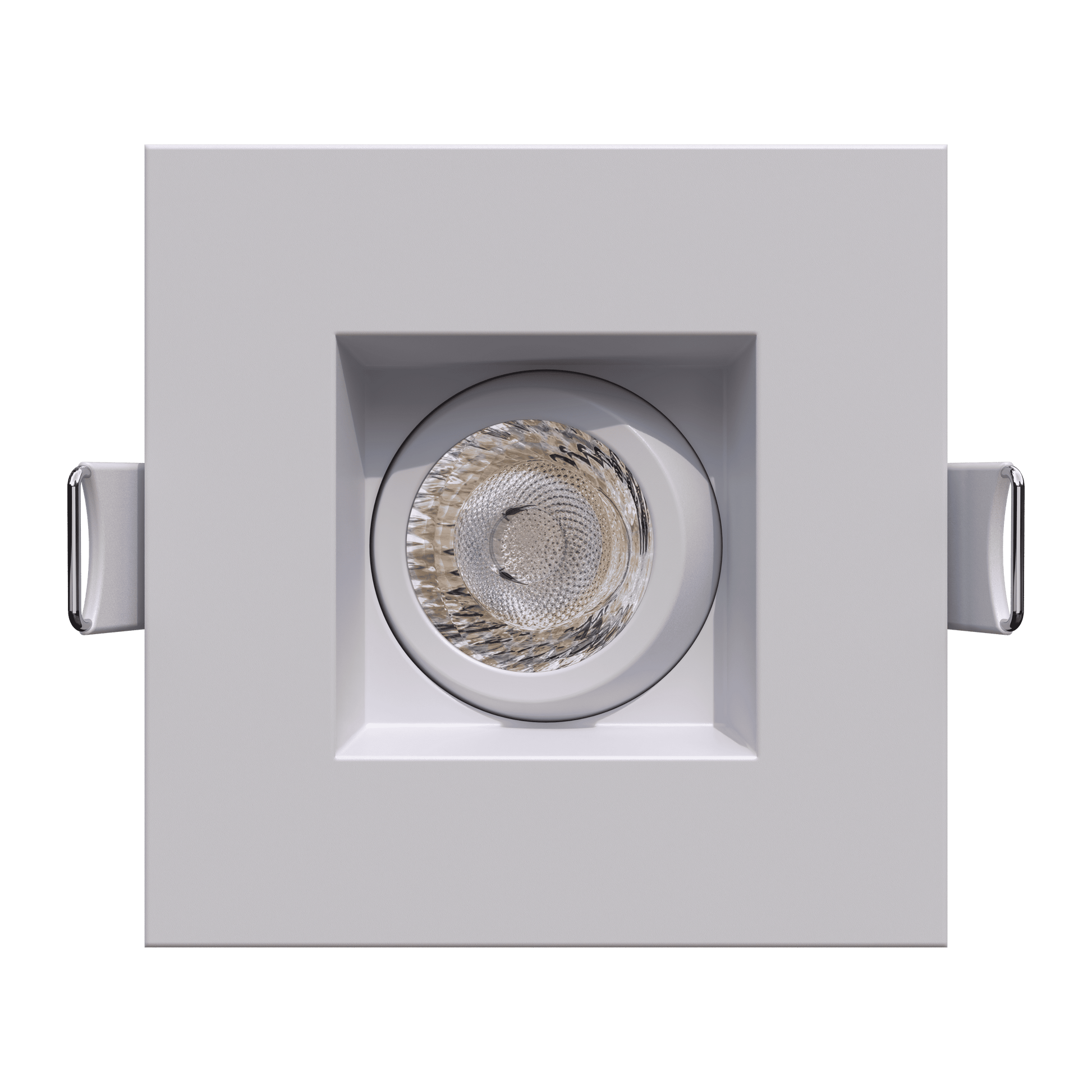

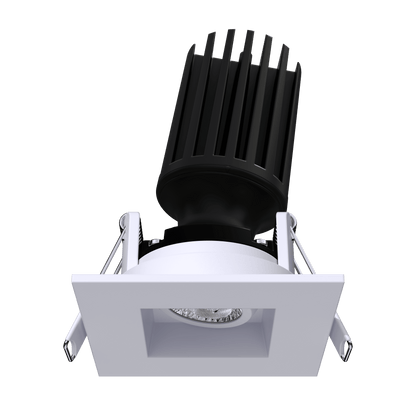

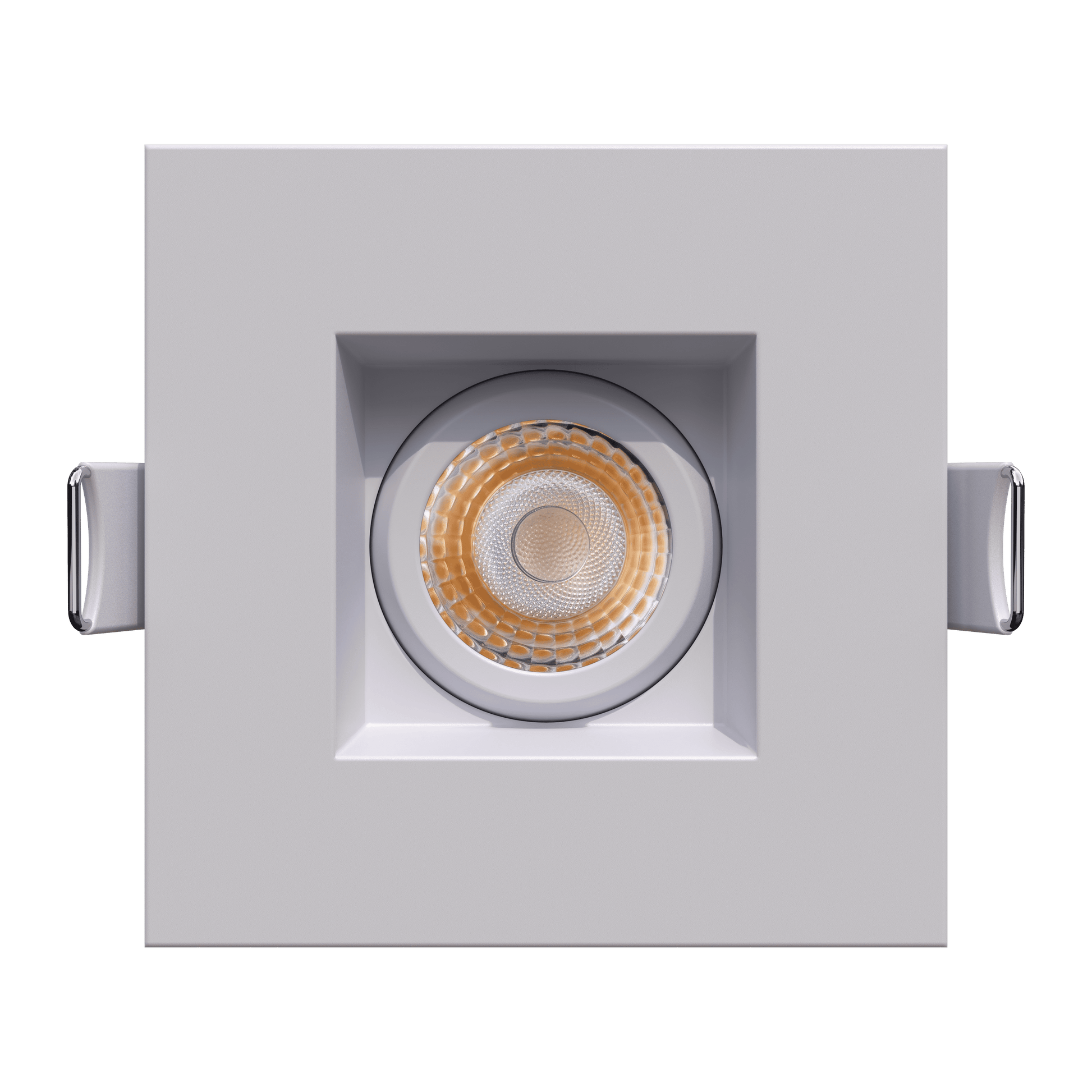

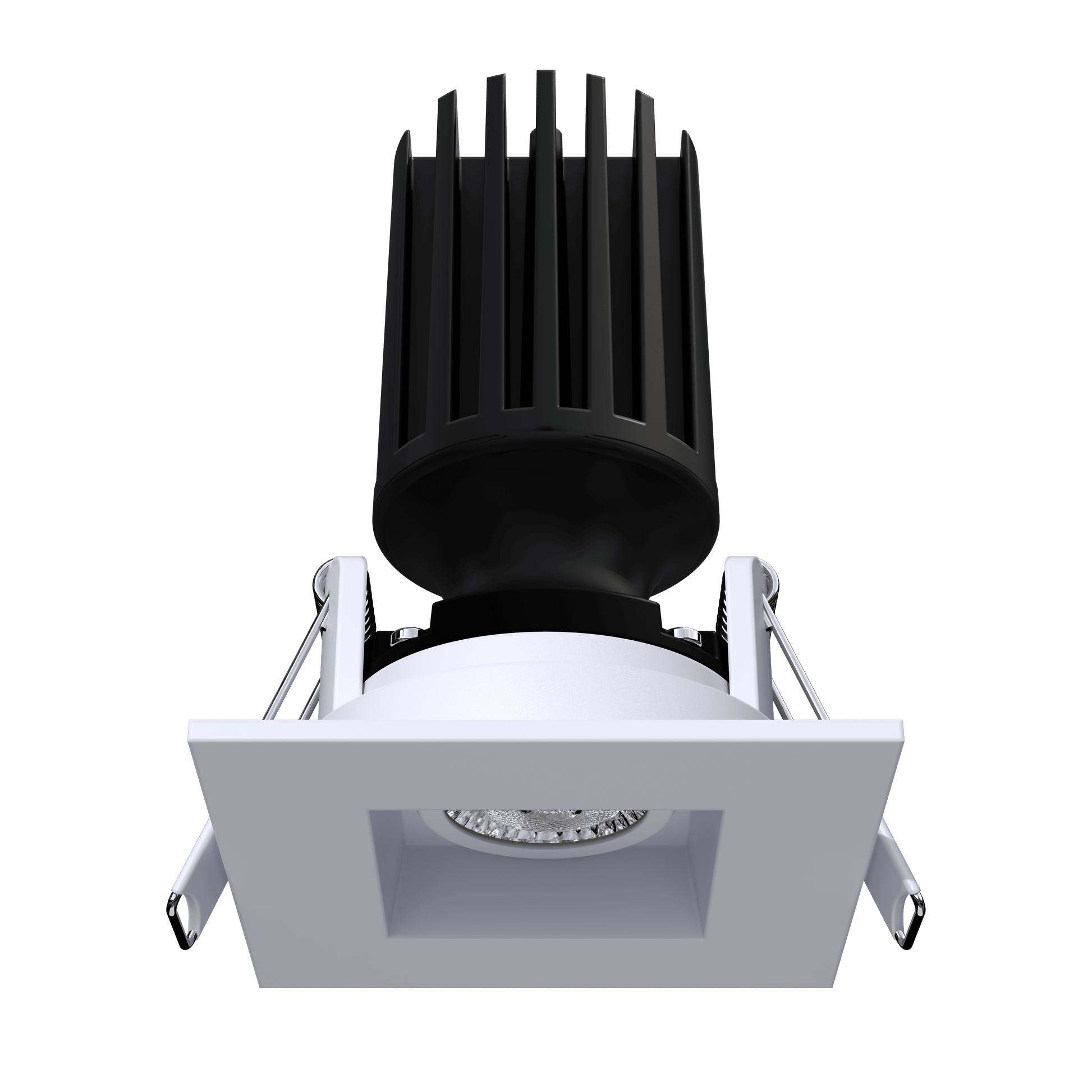

2” HO Square Regress Gimbal (White)

27,30,35,41,50k
Dimmable
700/1100 Lumens
8/14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-25120
Description
R2/14W/GSR/LED/2WS/5CCT
shape
Square
style
Trimmed
size
2 Inch
finish
White
diffuser
Clear
number of lights
1

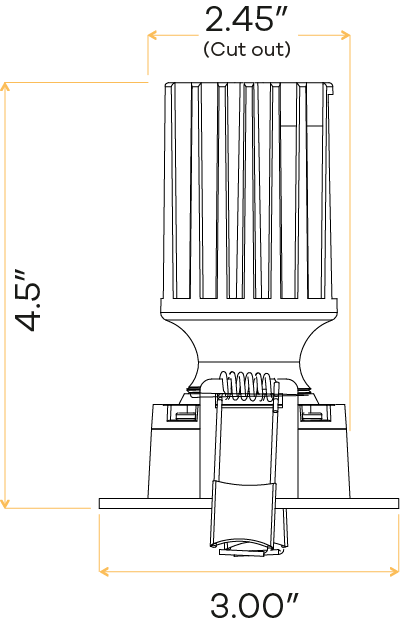

cutout
2.45"
OD (Outside dimensions)
3.00"
height
4.50"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379251205
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
700/1100
CRI
90>
beam spread deg
60° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
8W/14W
volts
120-277V
output current
190/330mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 8W
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (3 Punchouts) G-98810 (3 Punchouts) G-19982 (1 Punchouts)
Clear Lens Options
G-25600 G-25601 G-25602
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95823 8 Watt G-95825 14 Watt
