G-16000
Silent

half inch aperture interchangeable mud-in module

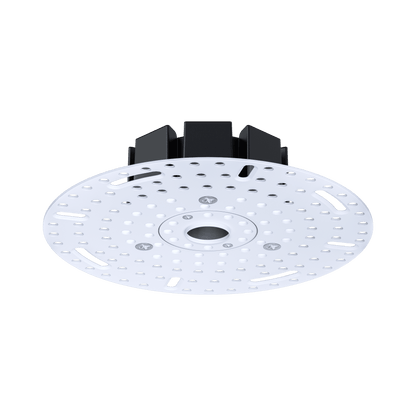

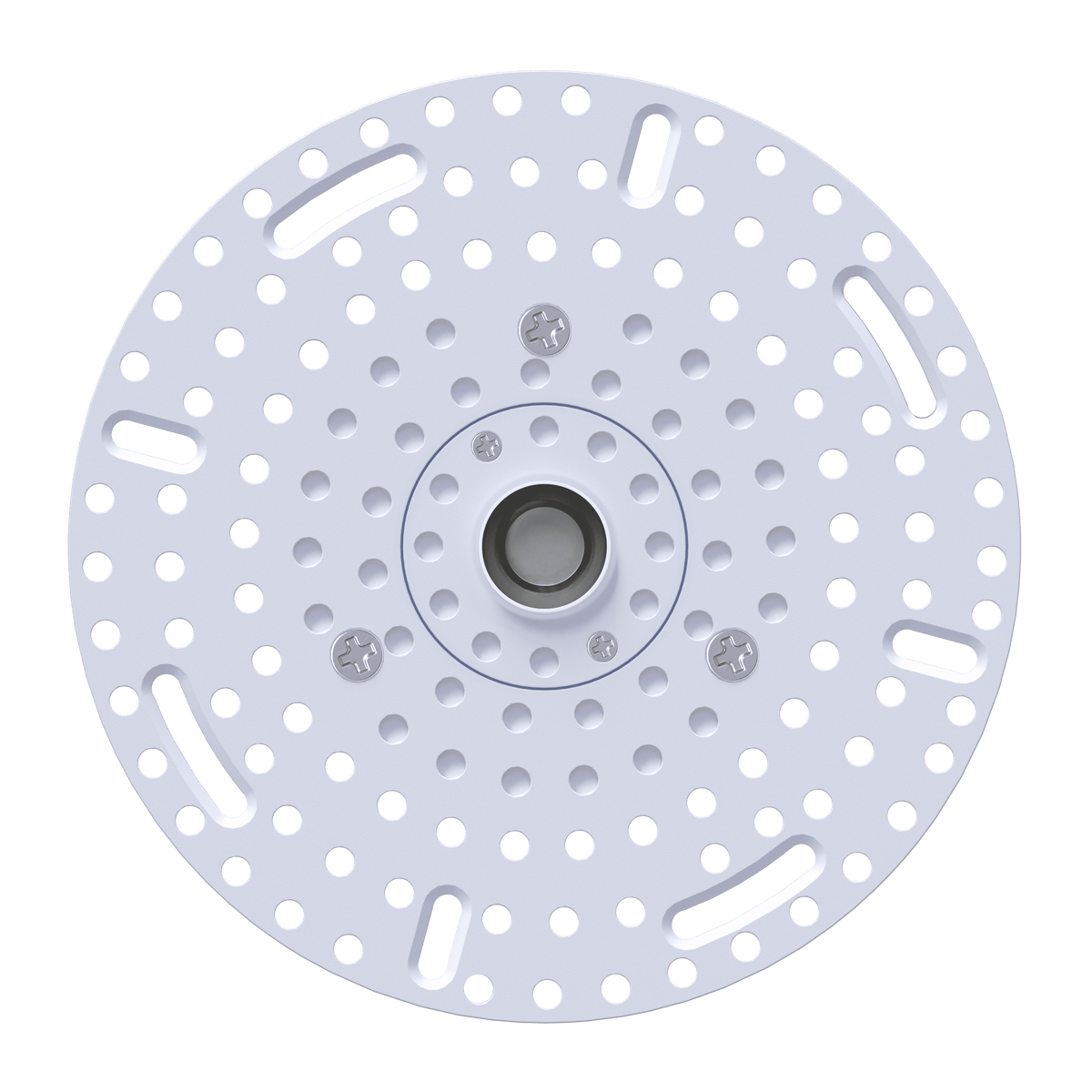

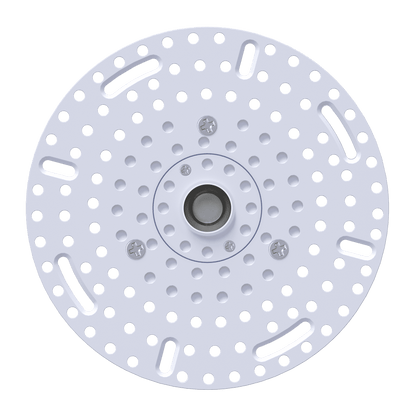

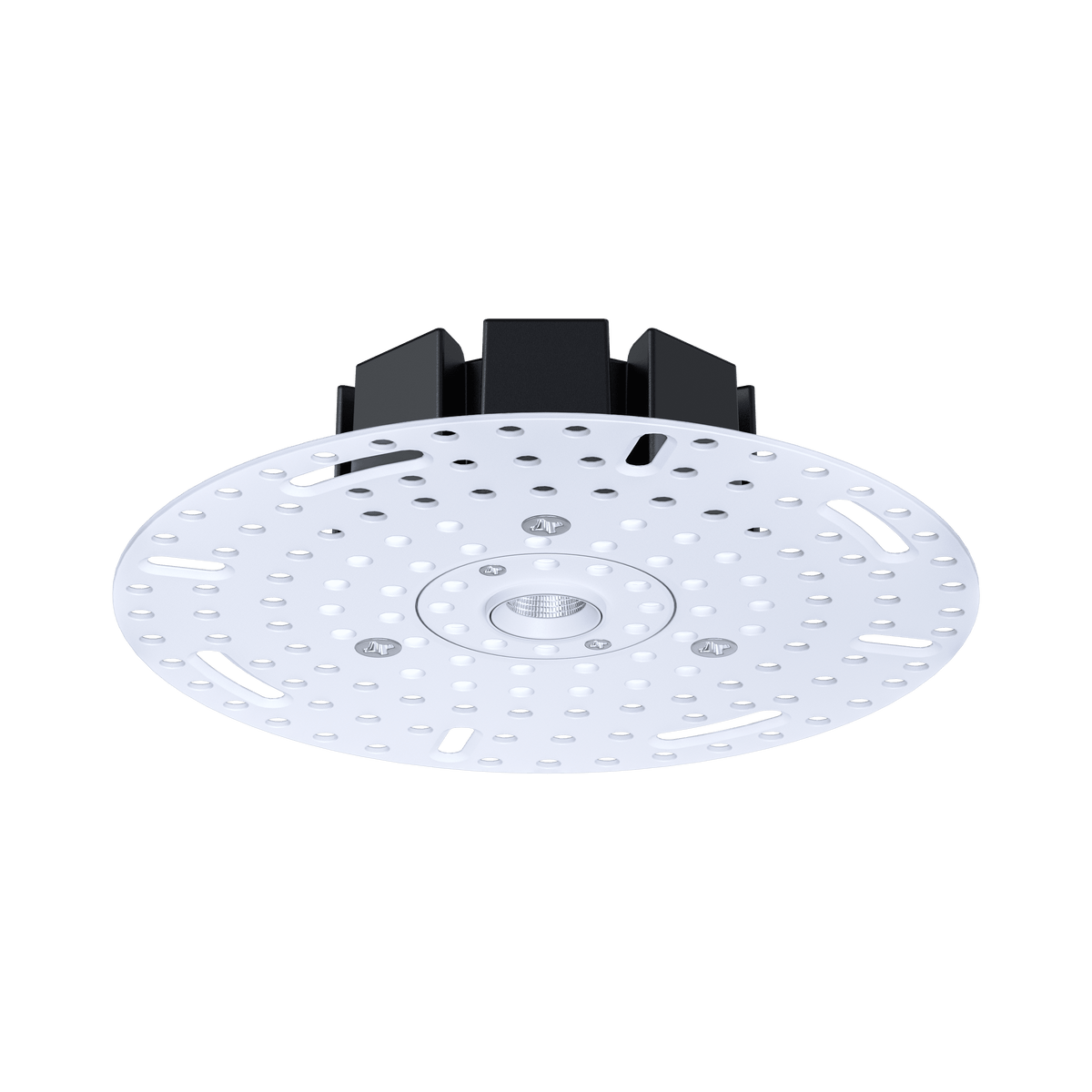

Half Inch Aperture Interchangeable Mud-In Module

Dimmable
750-1000 Lumens
13 Watts
36 V
View full details

Information

General Specs
Product Code
G-16000
Description

ST/HALF/M/13W

size
1/2 Inch
number of lights
1
cutout
3.62”
OD (Outside dimensions)
6.50"
height
1.76"
mounting
Mud-in
wire lenght
30 FT
Packaging Information
master pack
18
Barcode
990379160002
Light Specs
lumens
750-1000
CRI
90>
beam spread deg
40°
Electrical Specs
watt
13W
volts
36V
output current
330mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title 24 Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (5 Punchouts) G-98810 (5 Punchouts) G-19982 (3 Punchouts)

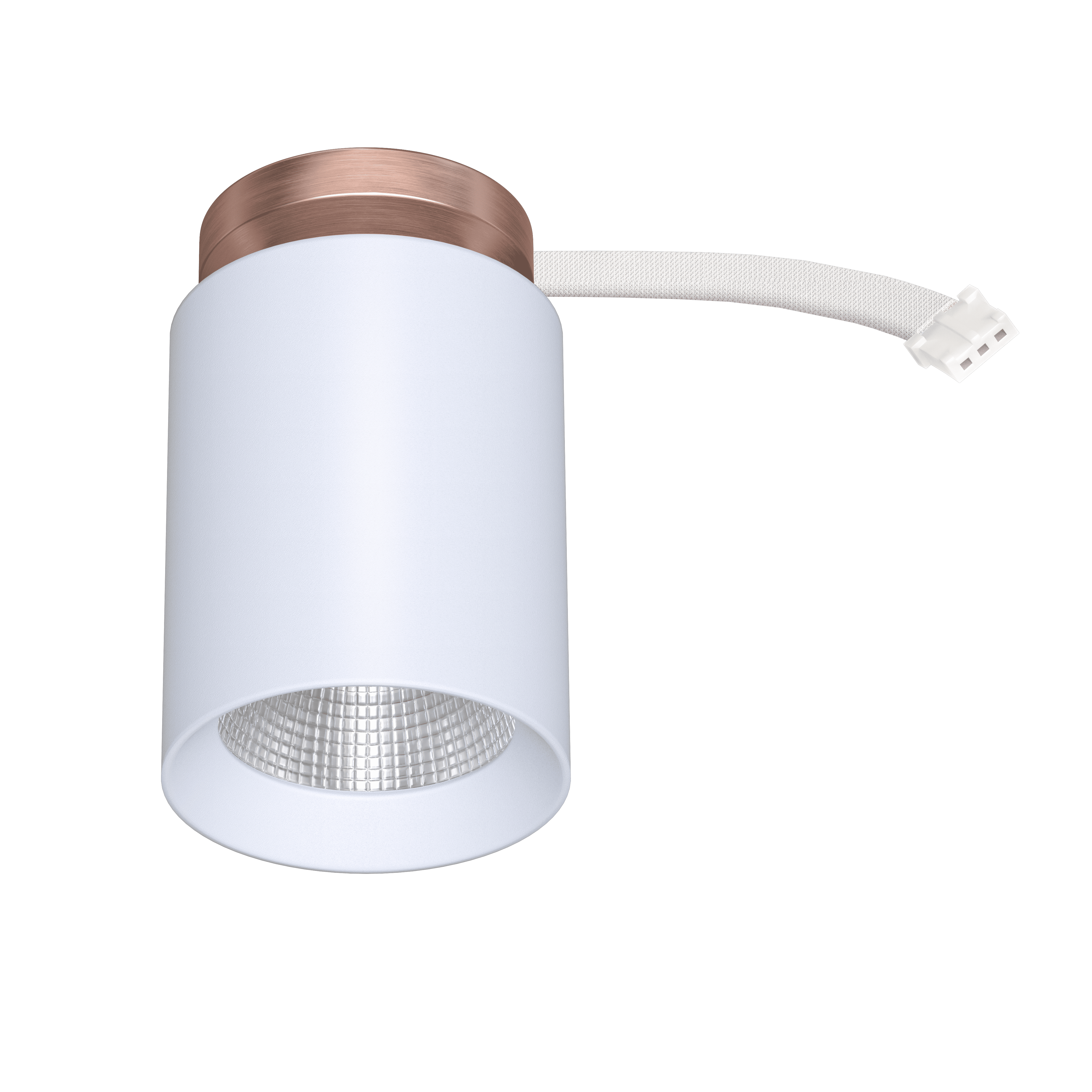

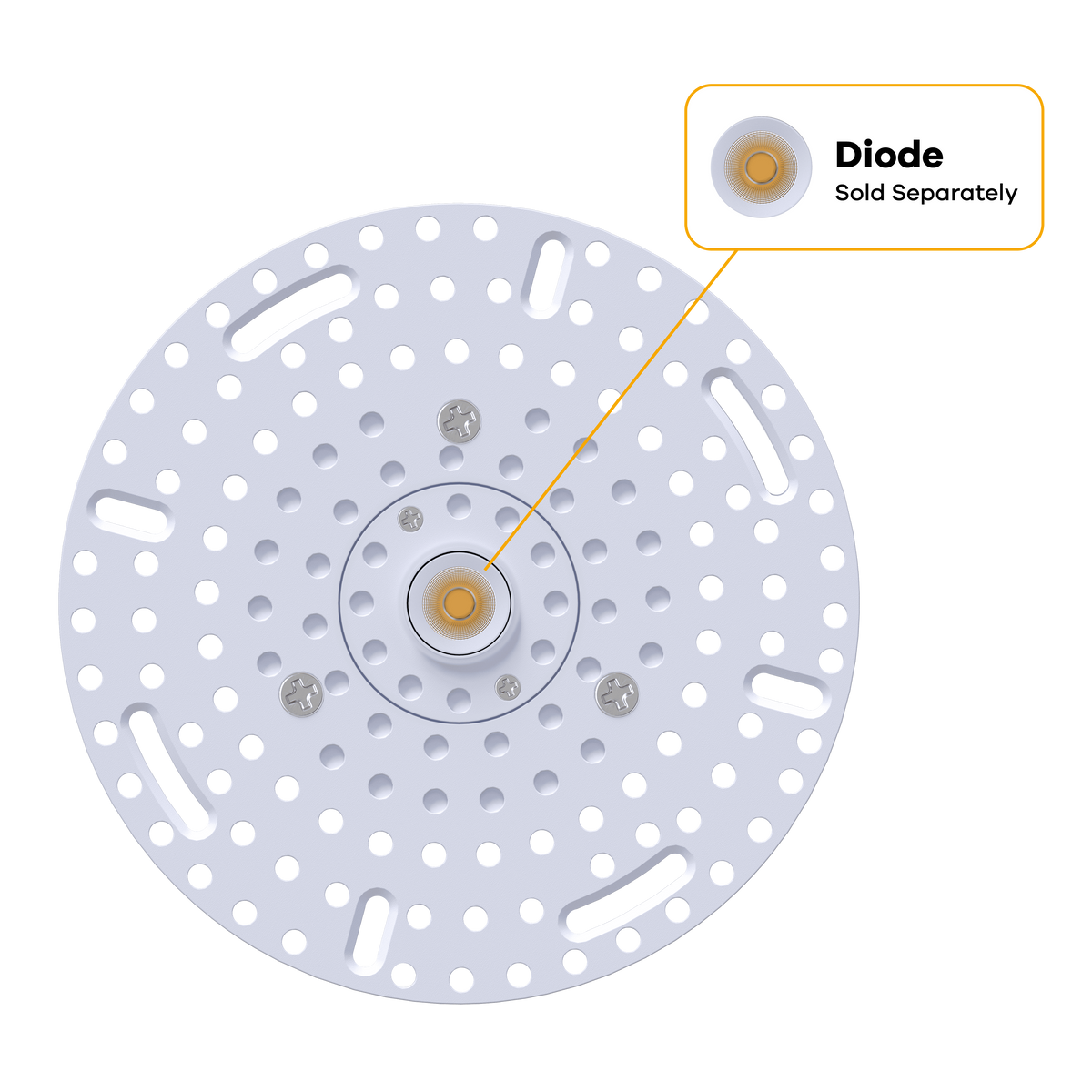

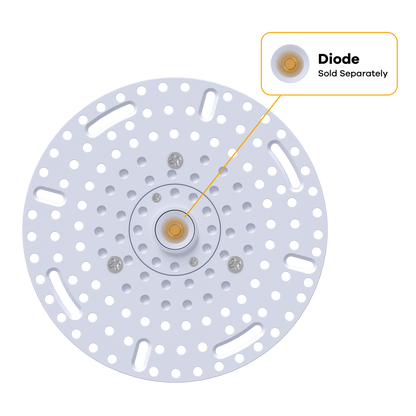

Diodes
G-16027 2700k G-16030 3000k G-16035 3500k G-16040 4100k G-16050 5000k

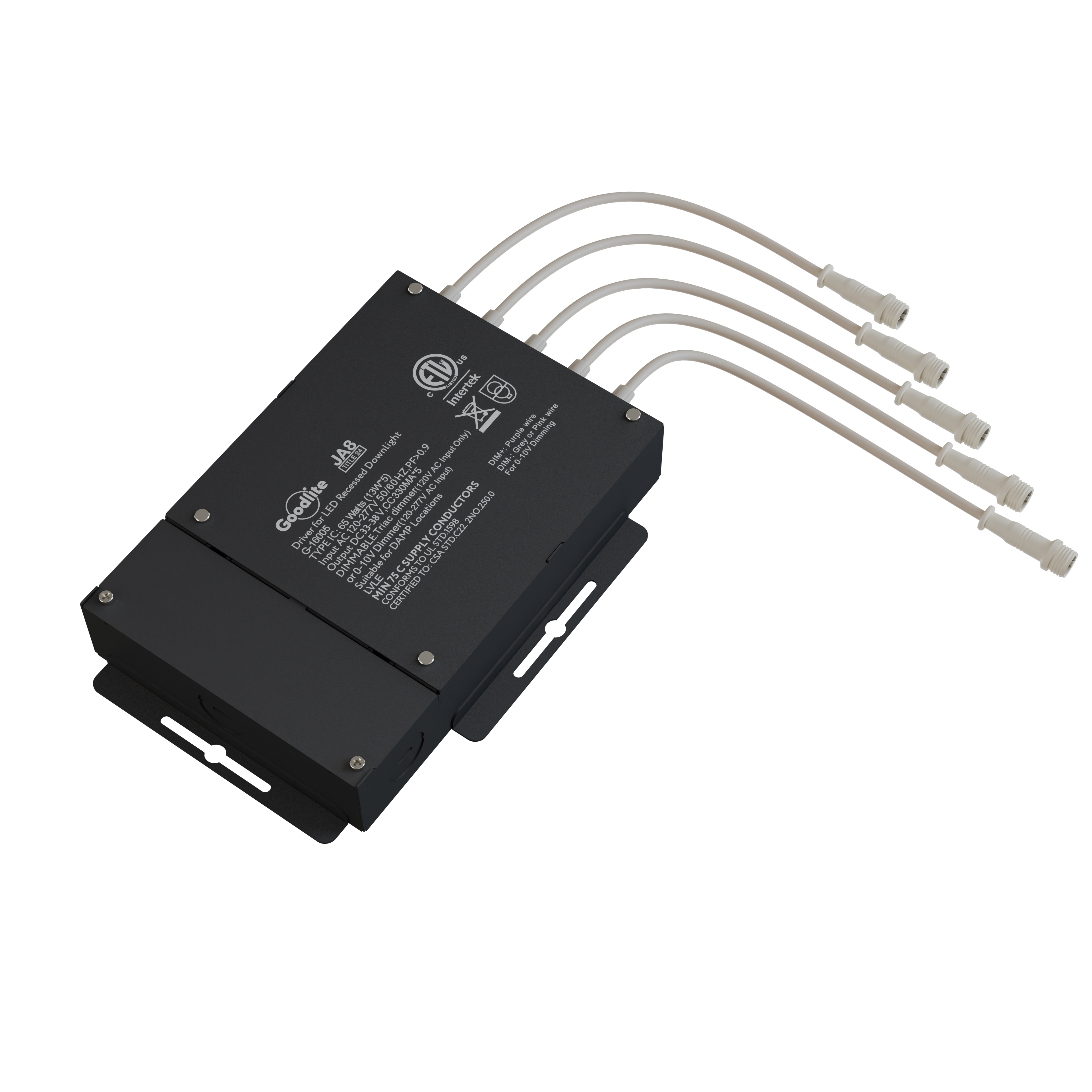

120-277V Drivers
G-16001 Single Channel G-16005 5 Channel G-16010 10 Channel
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
