G-02543
Stellar

mini brushed brass puck light 24v 35k

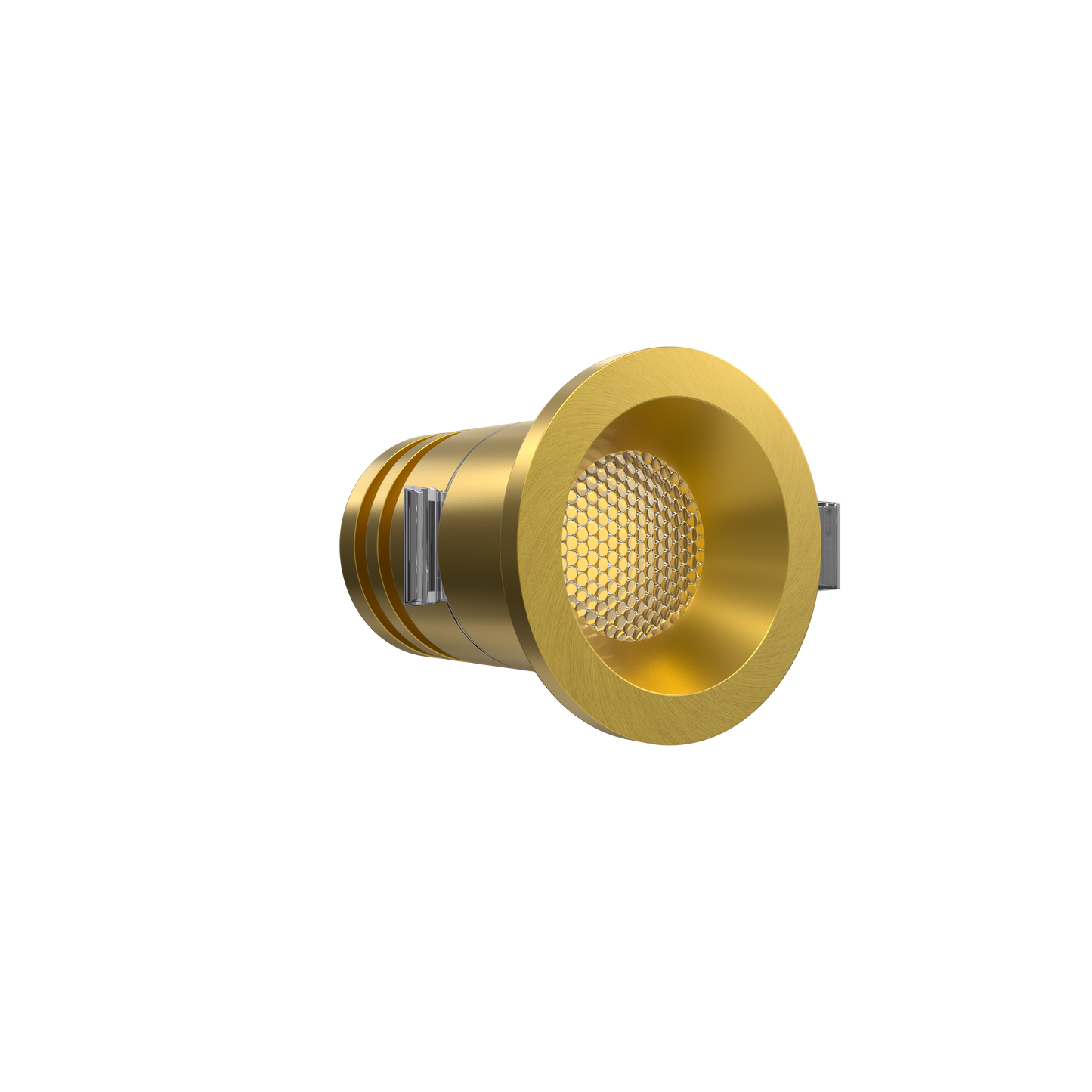

Mini Brushed Brass Puck Light 24V 35K

35k
Dimmable
100 Lumens
1 Watts
24 V
View full details

Information

General Specs
Product Code
G-02543
Description

PUCK/MN/1W/24V/35K/BB

shape
Round
style
Trimmed
finish
Brushed Brass
number of lights
1
cutout
0.69"
OD (Outside dimensions)
0.79"
depth
1.03"
mounting
Clip-in
Packaging Information
inner pack
20
master pack
100
Barcode
990379025431
Light Specs
temp
Neutral White
Color (CCT)
3500k
lumens
100
CRI
90
beam spread deg
36°
Electrical Specs
watt
1W
volts
24V
output current
37mA
Compliance
location rating
Damp, IP44
warranty
3 Years
IC Rated
Yes
classification
Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES
