G-48464
Saturn multiple

3” double head regress multiple gimbal black

3” Double Head Regress Multiple Gimbal Black

27,30,35,41,50k
Dimmable
1200 Lumens
15 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48464
Description
R3/15W/GR/M2/LED/5CCT B
shape
Multiple
style
Trimmed
size
3 Inch
finish
Black
diffuser
Clear
number of lights
2

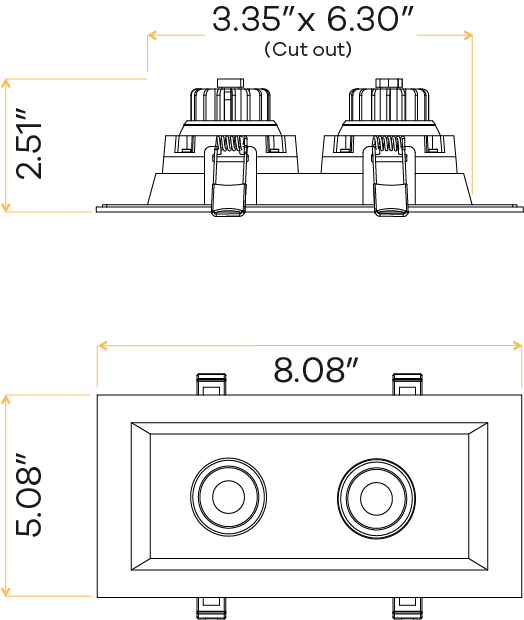

cutout
3.35" x 6.30"
OD (Outside dimensions)
5.08" x 8.08"
height
2.70"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304484648
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
600
lumens
1200
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
15W
volts
120-277V
output current
350mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-48318 (1 Punchouts)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
120-277V Driver
G-48321
