Saturn multiple

2” double head regress multiple gimbal white

2” Double Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
900 Lumens
10 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48314
Description
R2/10W/GR/M2/LED/5CCT
Shape
Multiple
Style
Trimmed
Size
2 Inch
Finish
White
Diffuser
Clear
Number of Lights
2

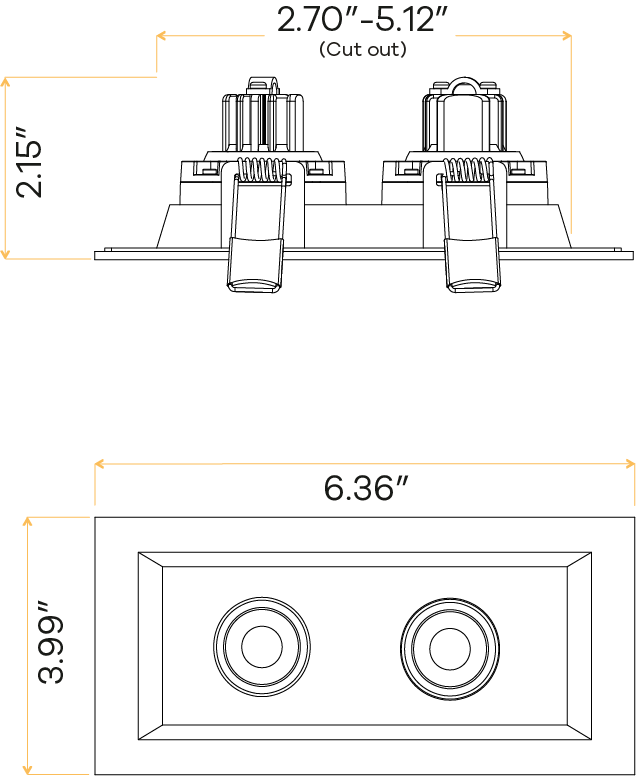

Cutout
2.70" x 5.12"

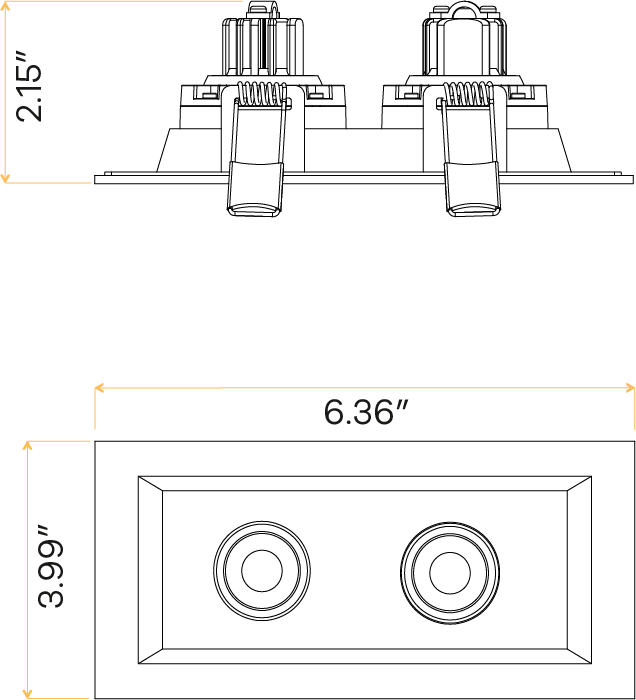

OD (Outside dimensions)
3.99" x 6.39"
Height
2.30"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
696304483146
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
Each Head Lumens
450
LUMENS
900
CRI
90>
Beam Spread Deg
40°
Tilt Angle
30°
Electrical Specs
Watt
10W
Volts
120-277V
Output Current
230mA
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet
Warranty
3 Years
IC Rated
Yes
Classification
ETL, Title24 Listed

Downloads

Product Spec IES
