G-48315
Saturn multiple

2” triple head regress multiple gimbal white

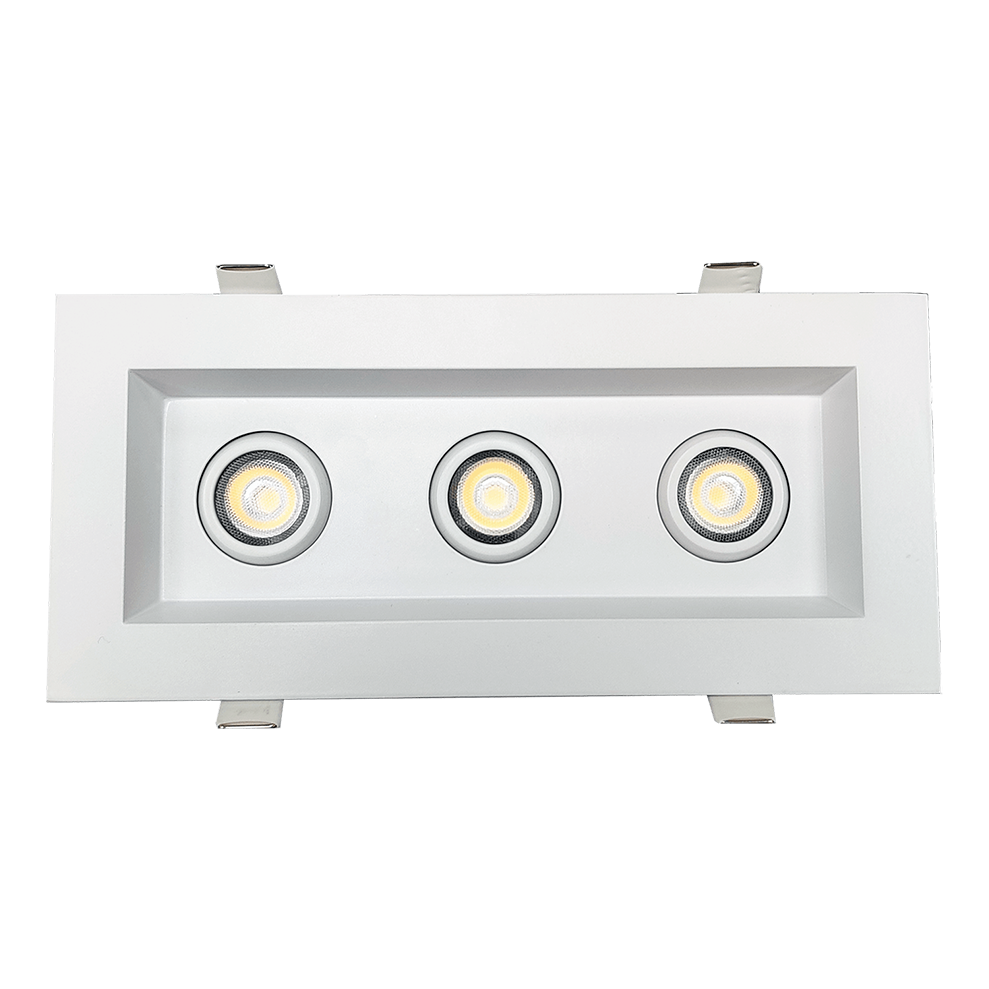

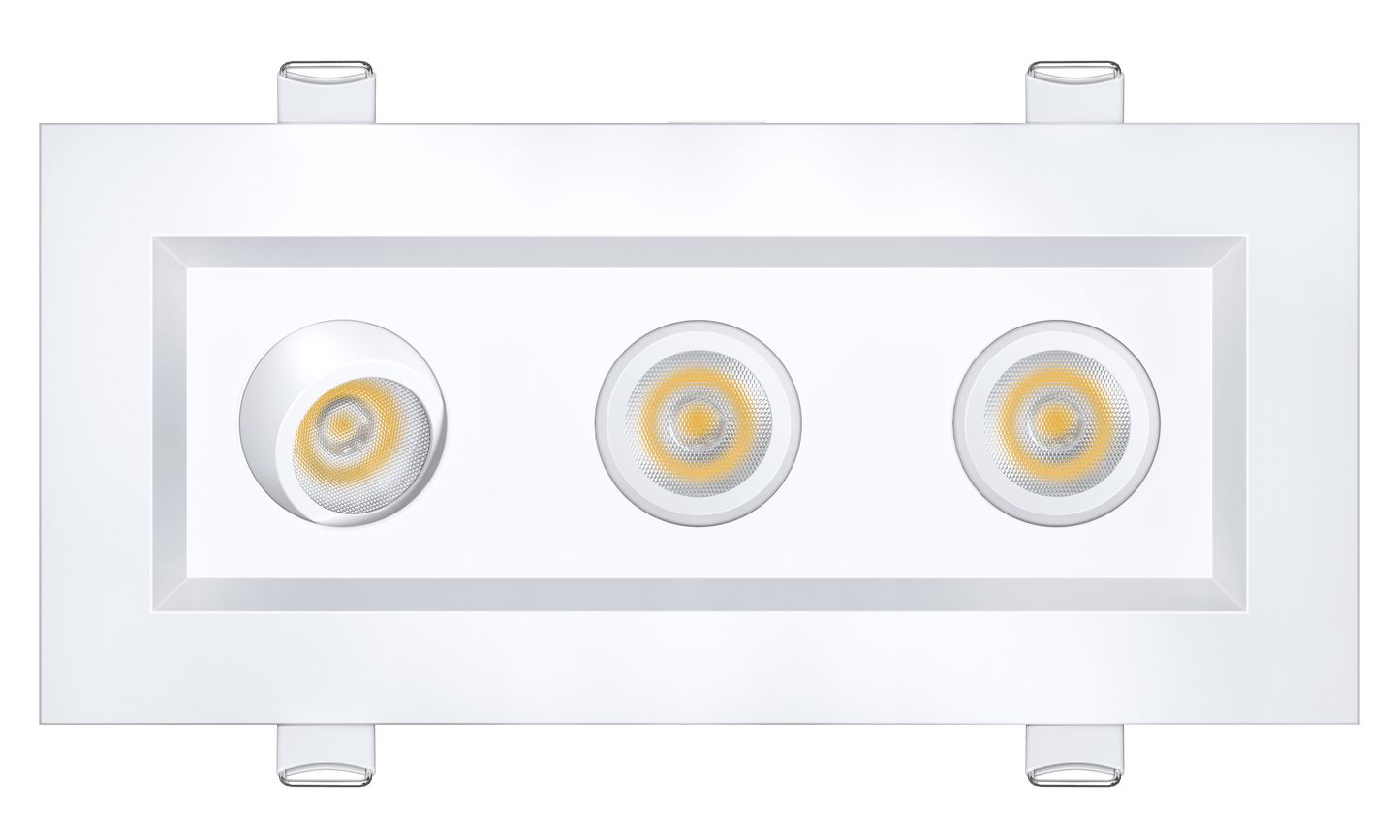

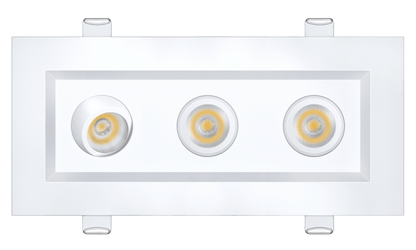

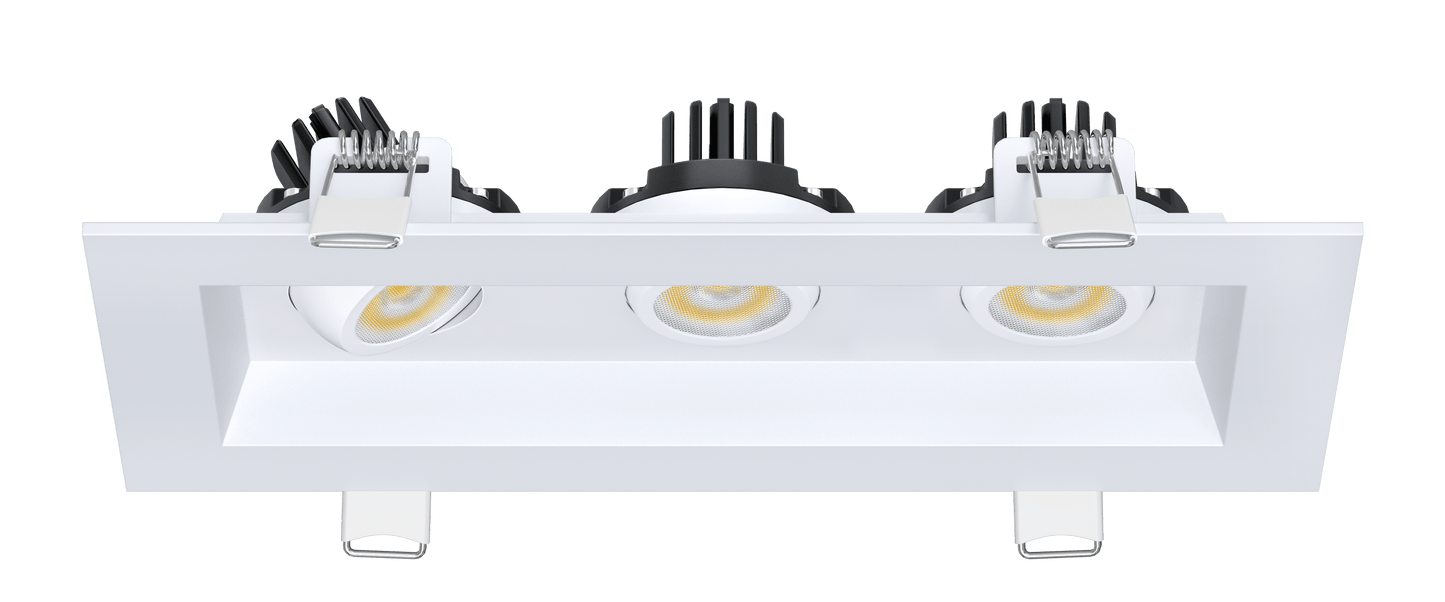

2” Triple Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
1200 Lumens
15 Watts
120 V
View full details

Information

General Specs
Product Code
G-48315
Description
R2/15W/GR/M3/LED/5CCT
shape
Multiple
style
Trimmed
size
2 Inch
finish
White
diffuser
Clear
number of lights
3

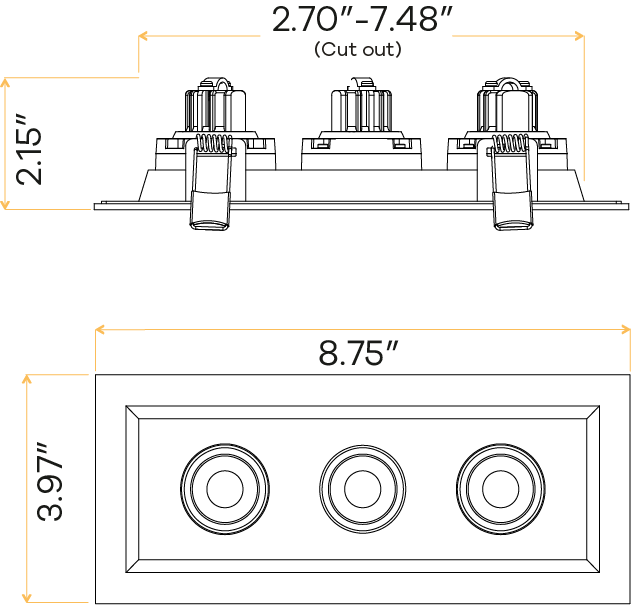

cutout
2.70" x 7.48"

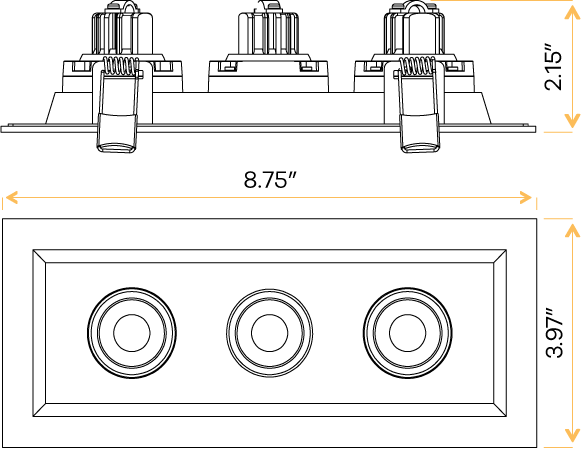

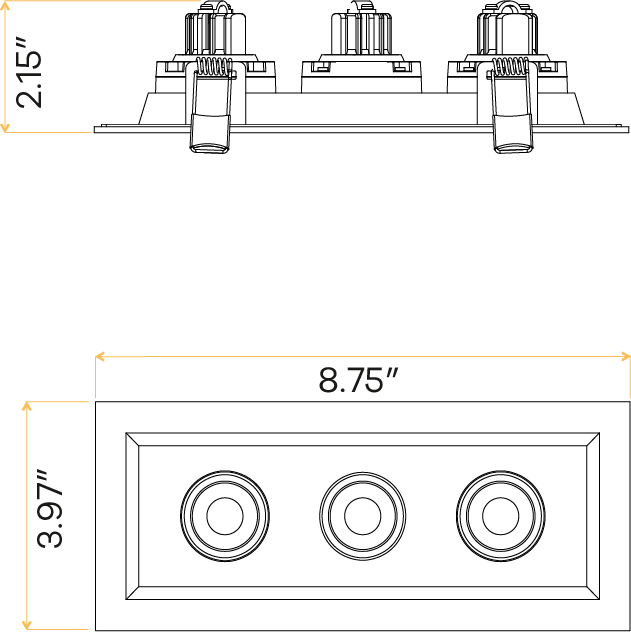

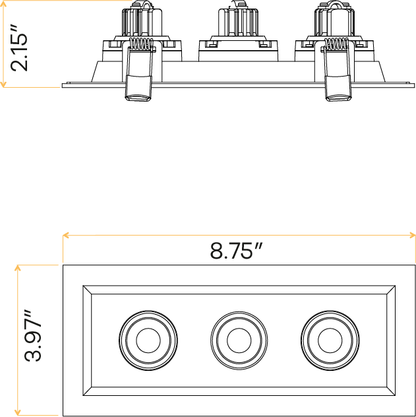

OD (Outside dimensions)
3.99" x 8.75"
height
2.30"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304483153
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
400
lumens
1200
CRI
90>
beam spread deg
40°
tilt angle
30°
Electrical Specs
watt
15W
volts
120V
output current
350mA
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-48318 (2 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
