G-48316
Saturn multiple

3” double head regress multiple gimbal white

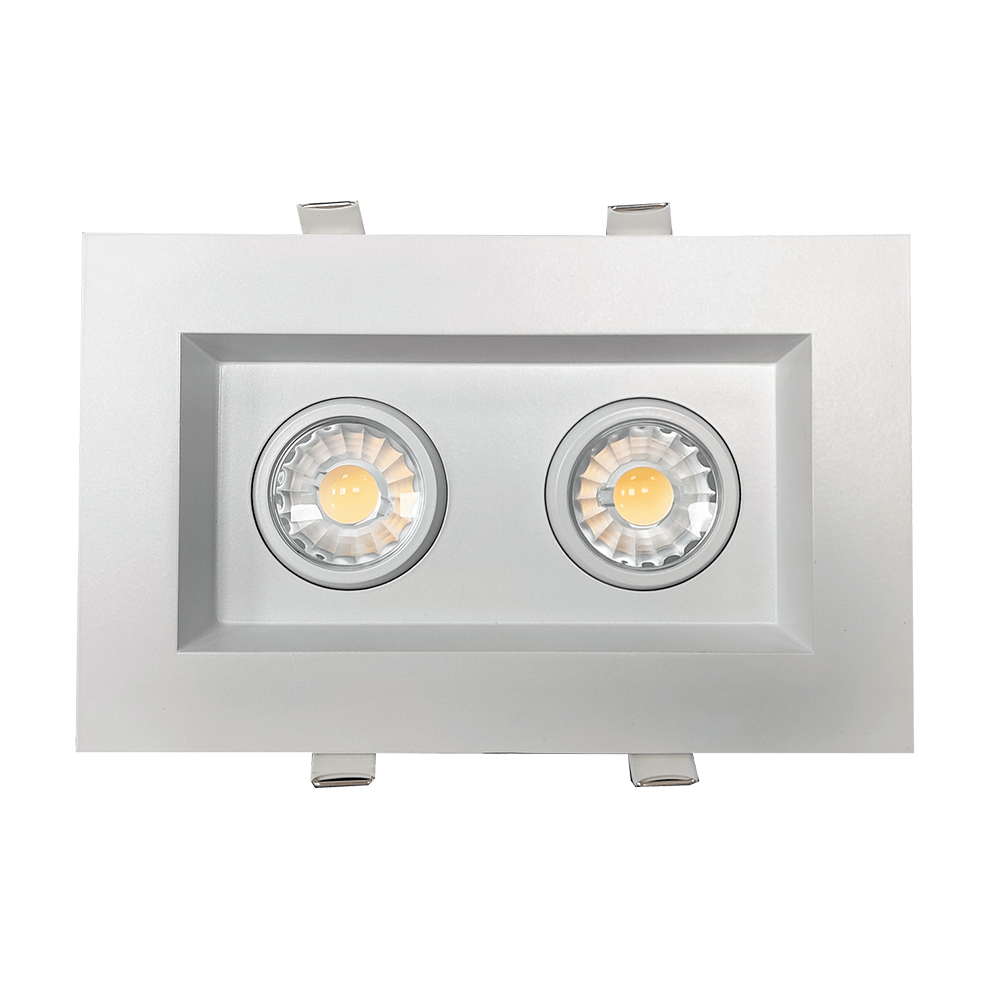

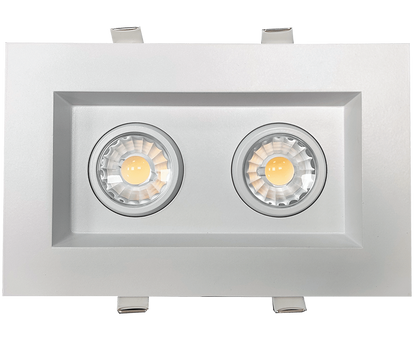

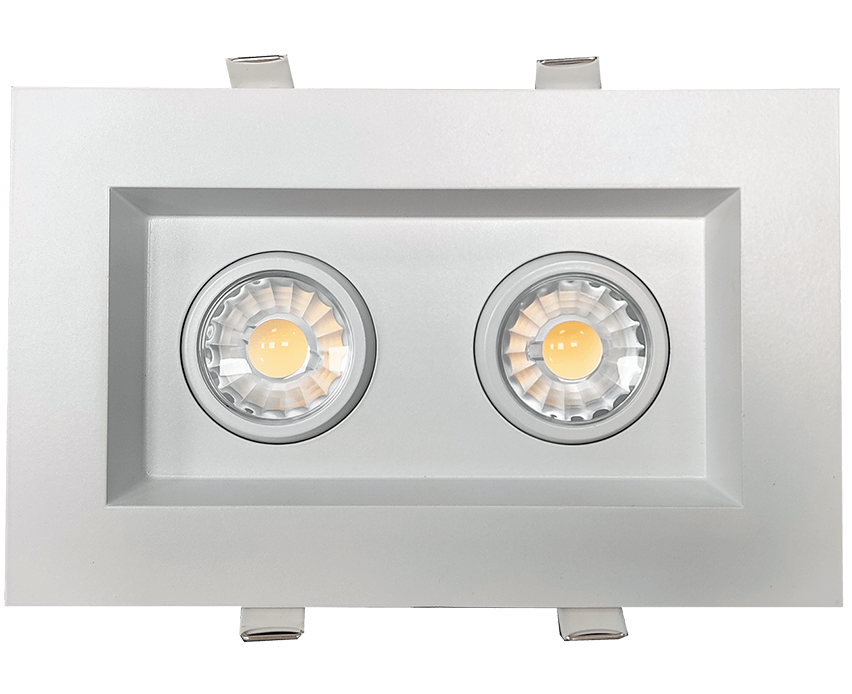

3” Double Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
1400 Lumens
15 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48316
Description
R3/15W/GR/M2/LED/5CCT
shape
Multiple
style
Trimmed
size
3 Inch
finish
White
diffuser
Clear
number of lights
2
cutout
3.35" x 6.30"

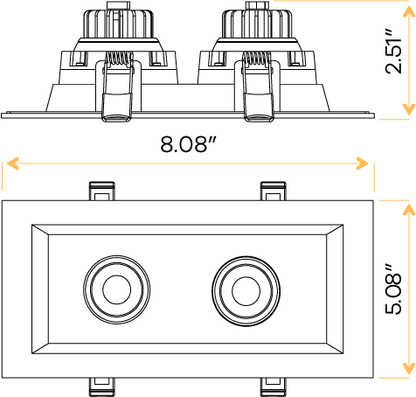

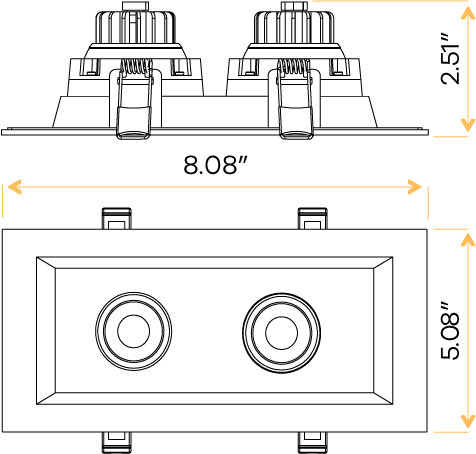

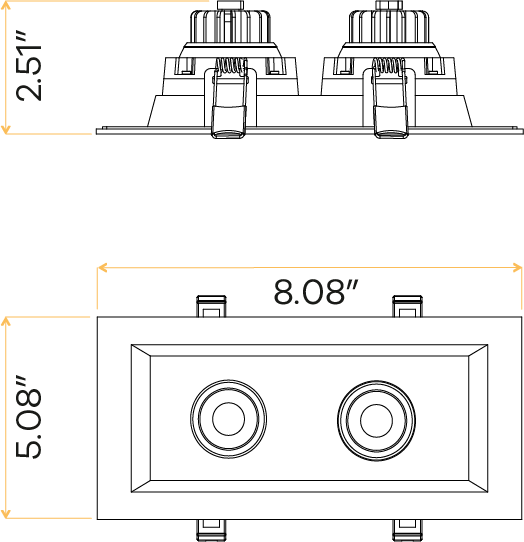

OD (Outside dimensions)
5.08" x 8.08"
height
2.70"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304483160
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
700
lumens
1400
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
15W
volts
120-277V
output current
350mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES
