G-48442
Saturn multiple

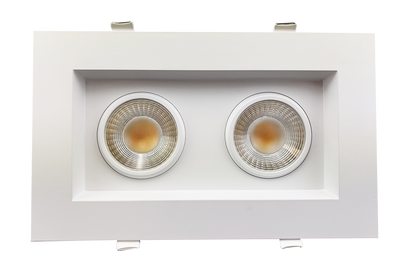

3.5” double head regress multiple gimbal white

3.5” Double Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
2800 Lumens
28 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48442
Description
R3.5/28W/GR/M2/LED/5CCT
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
2

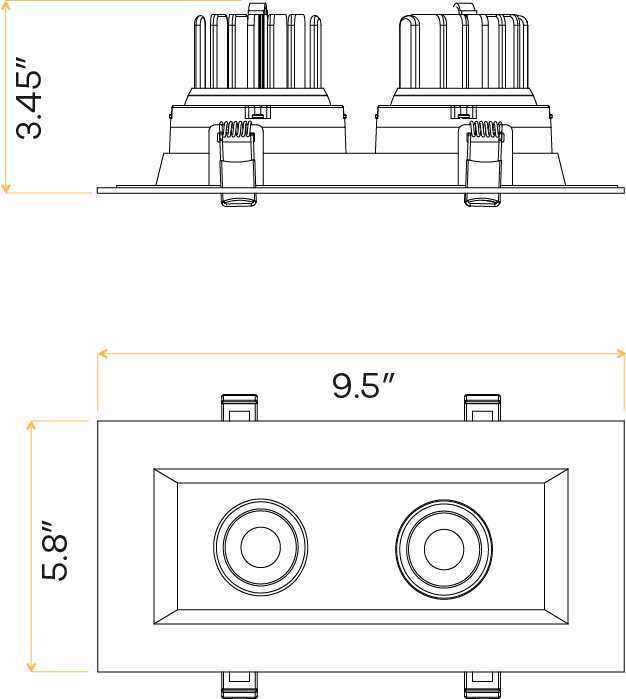

cutout
3.94” x 7.68”
OD (Outside dimensions)
5.85" - 9.60"
height
3.55”
mounting
Clip-in
Packaging Information
master pack
12
Barcode
696304484426
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1400
lumens
2800
CRI
90>
beam spread deg
40° (Default)
tilt angle
20°
Electrical Specs
watt
28W
volts
120-277V
output current
650mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-48448 (0 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
