G-48441
Saturn multiple

3.5” single head regress multiple gimbal white

3.5” Single Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
1400 Lumens
14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48441
Description
R3.5/14W/GR/M1/LED/5CCT
shape
Square
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
1

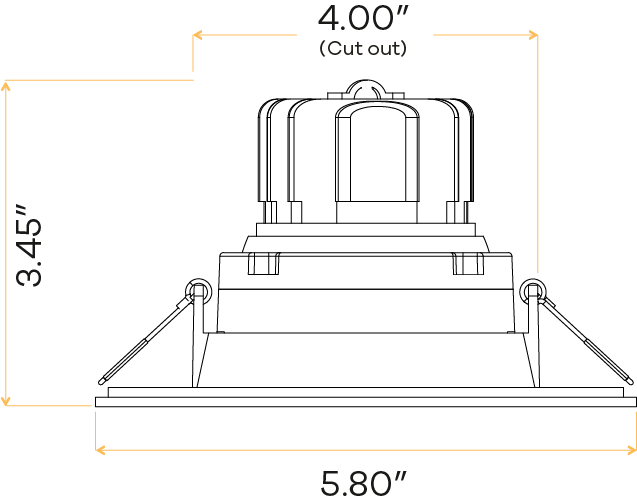

cutout
SQ 4.00" - RD 5.15"

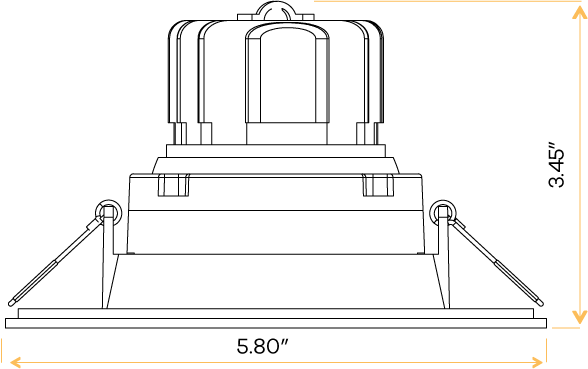

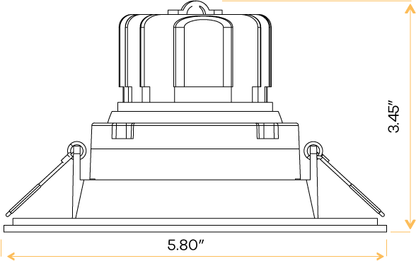

OD (Outside dimensions)
5.80"
height
3.50”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304484419
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400
CRI
90>
beam spread deg
40° (Default)
tilt angle
20°
Electrical Specs
watt
14W
volts
120-277V
output current
350mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (8 Punchouts) G-98810 (8 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt
