G-97124
Saturn multiple

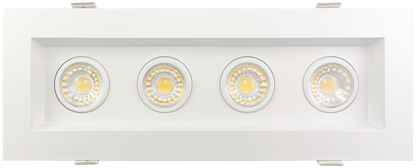

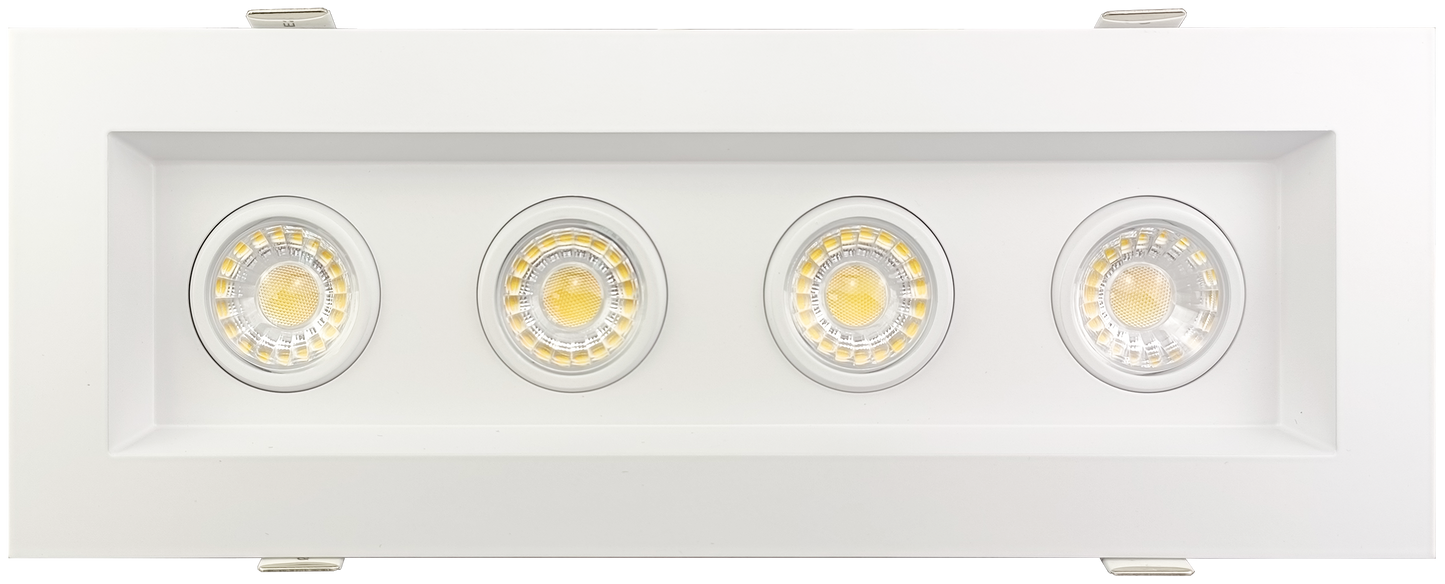

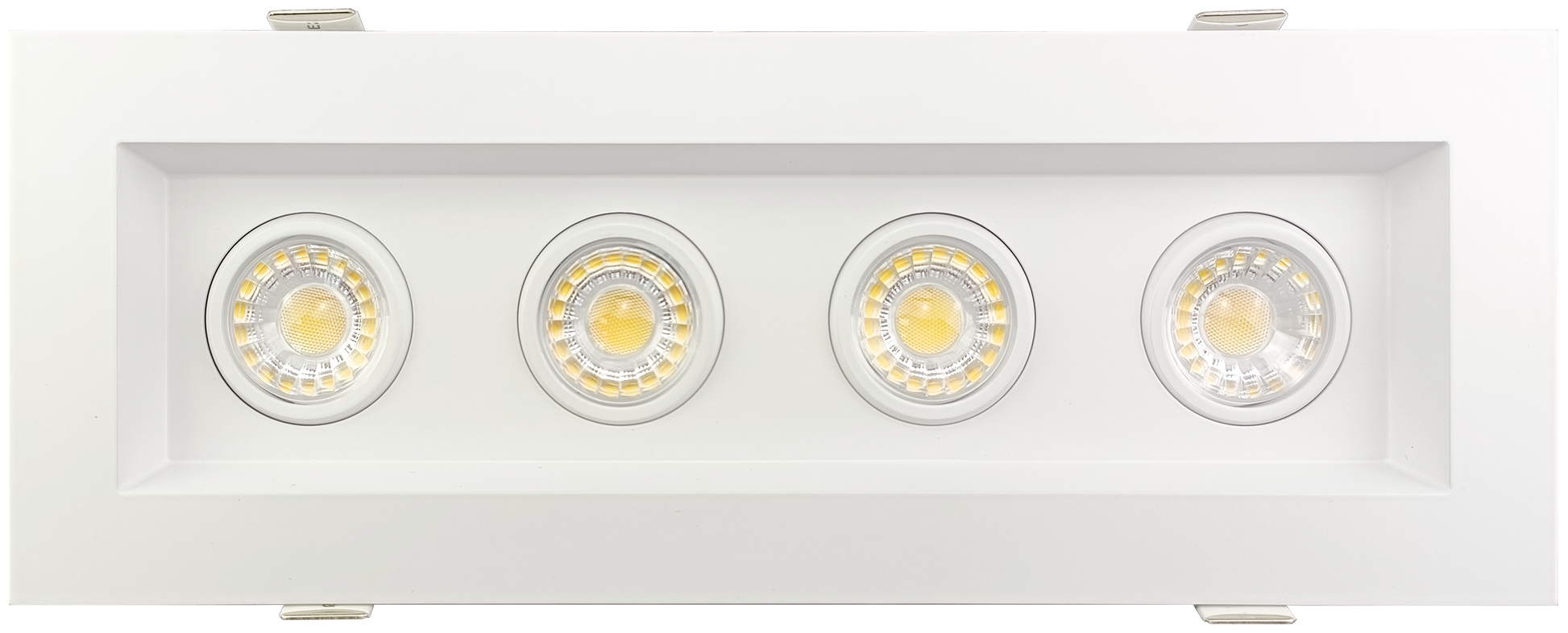

3” four head regress multiple gimbal white

3” Four Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
2800 Lumens
30 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-97124
Description
R3/30W/GR/M4/LED/5CCT
shape
Multiple
style
Trimmed
size
3 Inch
finish
White
diffuser
Clear
number of lights
4
cutout

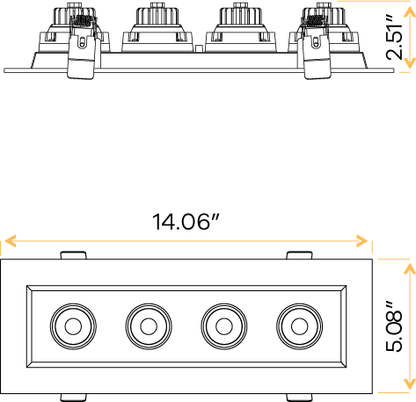

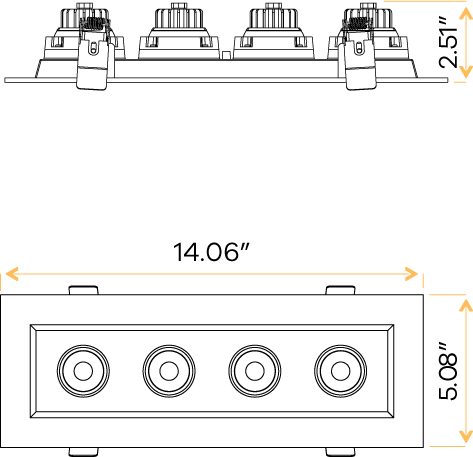

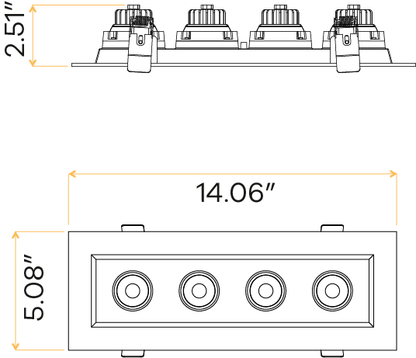

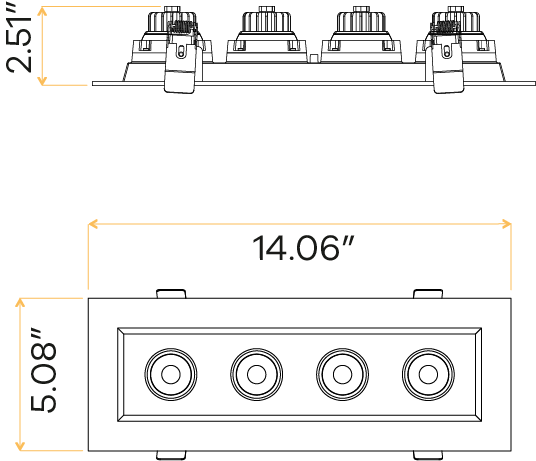

3.35" x 12.50"
OD (Outside dimensions)
5.08" x 14.07"
height
2.70"
mounting
Clip-in
Packaging Information
master pack
6
Barcode
024431971241
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
700
lumens
2800
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
30W
volts
120-277V
output current
750mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-48449 (1 Punchouts)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
