G-48317
Saturn multiple

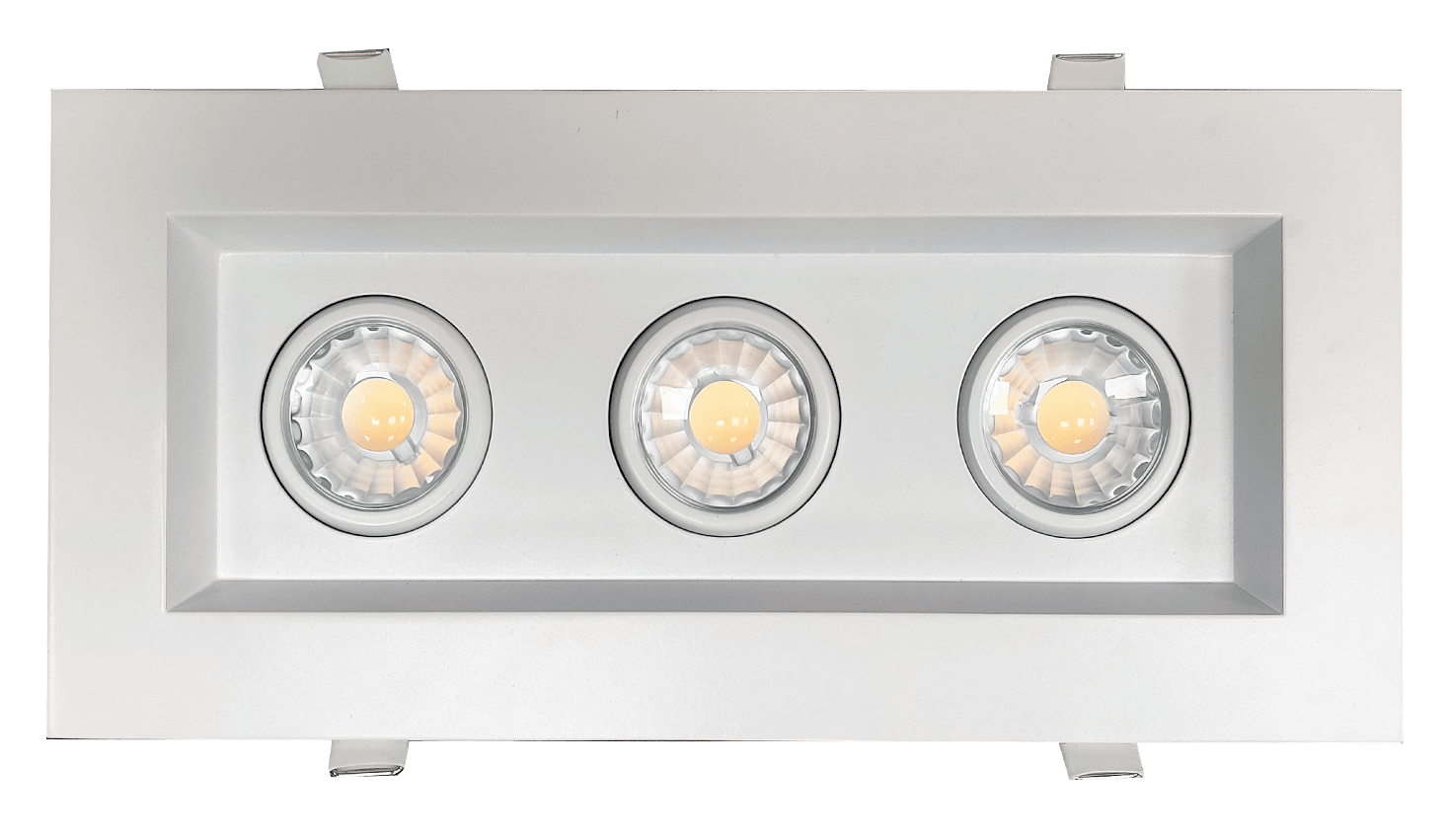

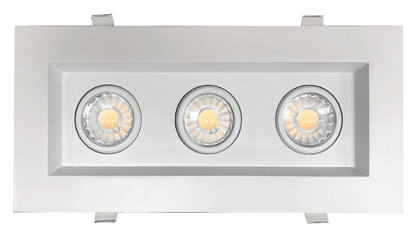

3” triple head regress multiple gimbal white

3” Triple Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
2200 Lumens
23 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48317
Description
R3/23W/GR/M3/LED/5CCT
shape
Multiple
style
Trimmed
size
3 Inch
finish
White
diffuser
Clear
number of lights
3

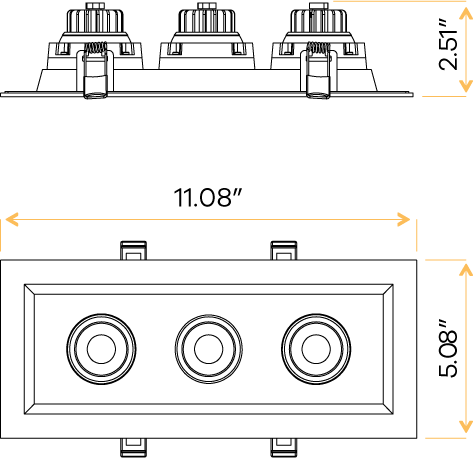

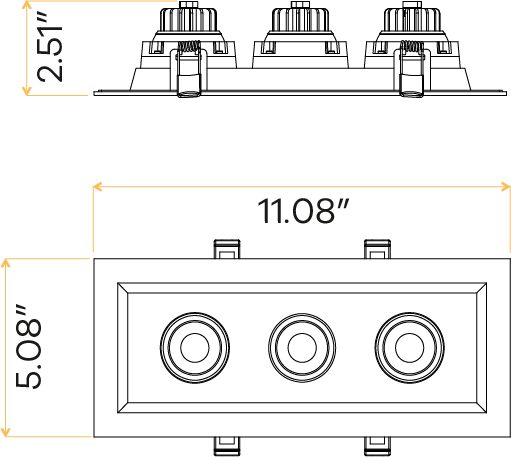

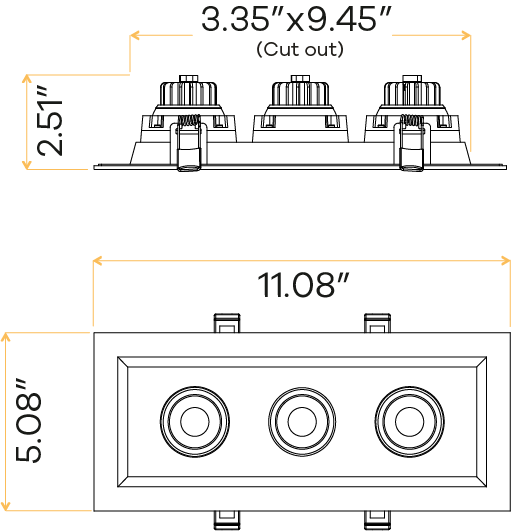

cutout
3.35" x 9.45"
OD (Outside dimensions)
5.08" x 11.08"
height
2.70"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304483177
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
725
lumens
2200
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
23W
volts
120-277V
output current
525mA
dimming type
Triac Or 0-10V
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-48318 (3 Punchouts)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
