G-97128
Saturn multiple

3.5” four head regress multiple gimbal white

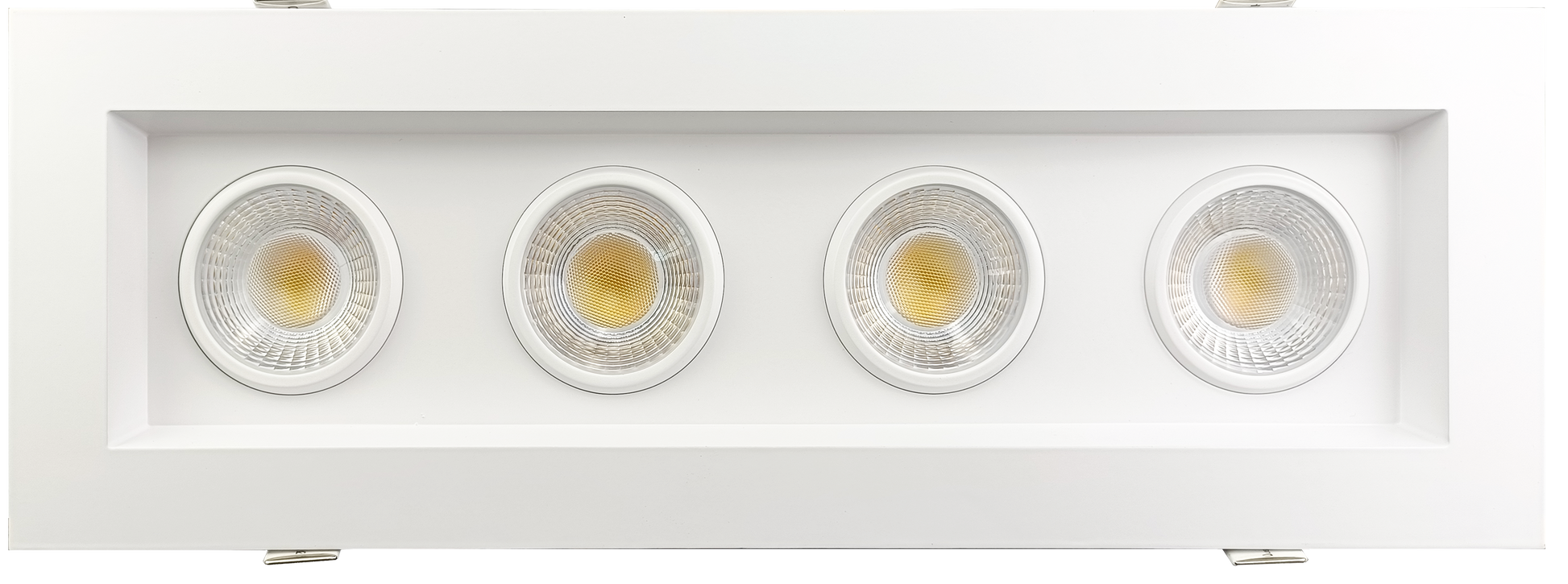

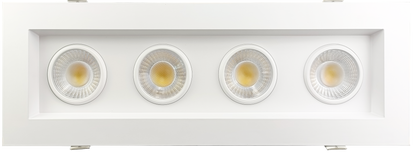

3.5” Four Head Regress Multiple Gimbal White

27,30,35,41,50k
Dimmable
4800 Lumens
52 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-97128
Description
R3.5/52W/GR/M4/LED/5CCT
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
4

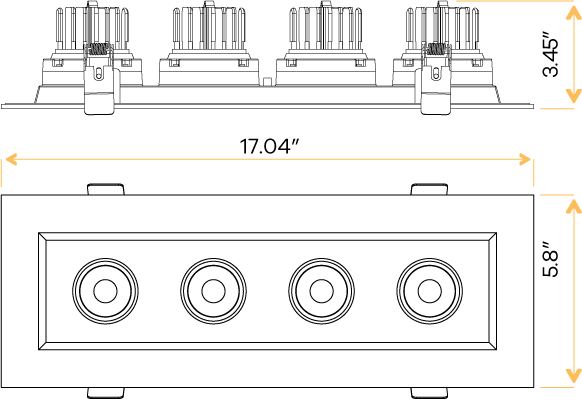

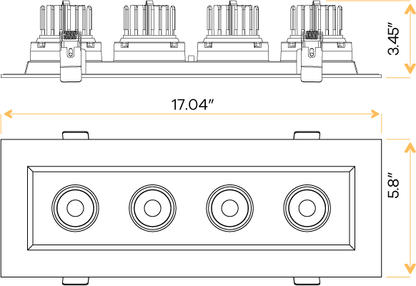

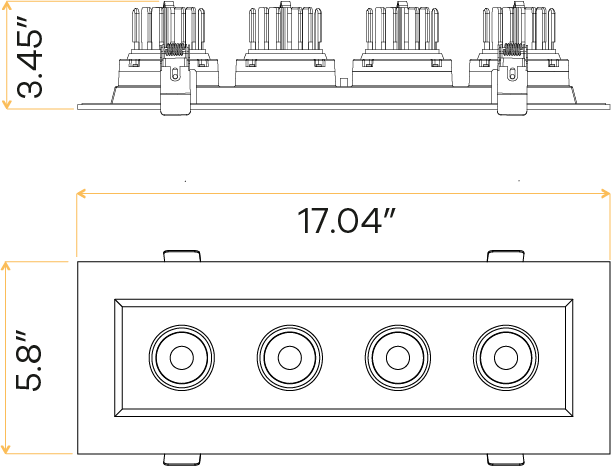

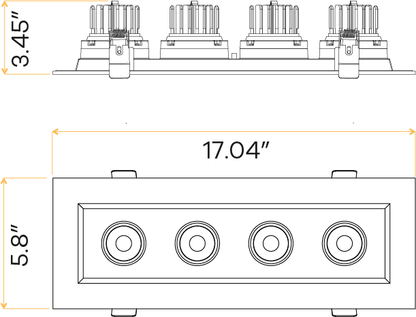

cutout
4.00” x 15.30”
OD (Outside dimensions)
5.85" - 17.05"
height
3.55”
mounting
Clip-in
Packaging Information
master pack
6
Barcode
024431971289
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1200
lumens
4800
CRI
90>
beam spread deg
40° (Default)
tilt angle
20°
Electrical Specs
watt
52W
volts
120-277V
output current
1250mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-48449 (2 Punchouts)
Clear Lens Options
G-25621 40° Lens G-25622 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
