G-23502
Aster

3.5 inch 12w beam adjustable module

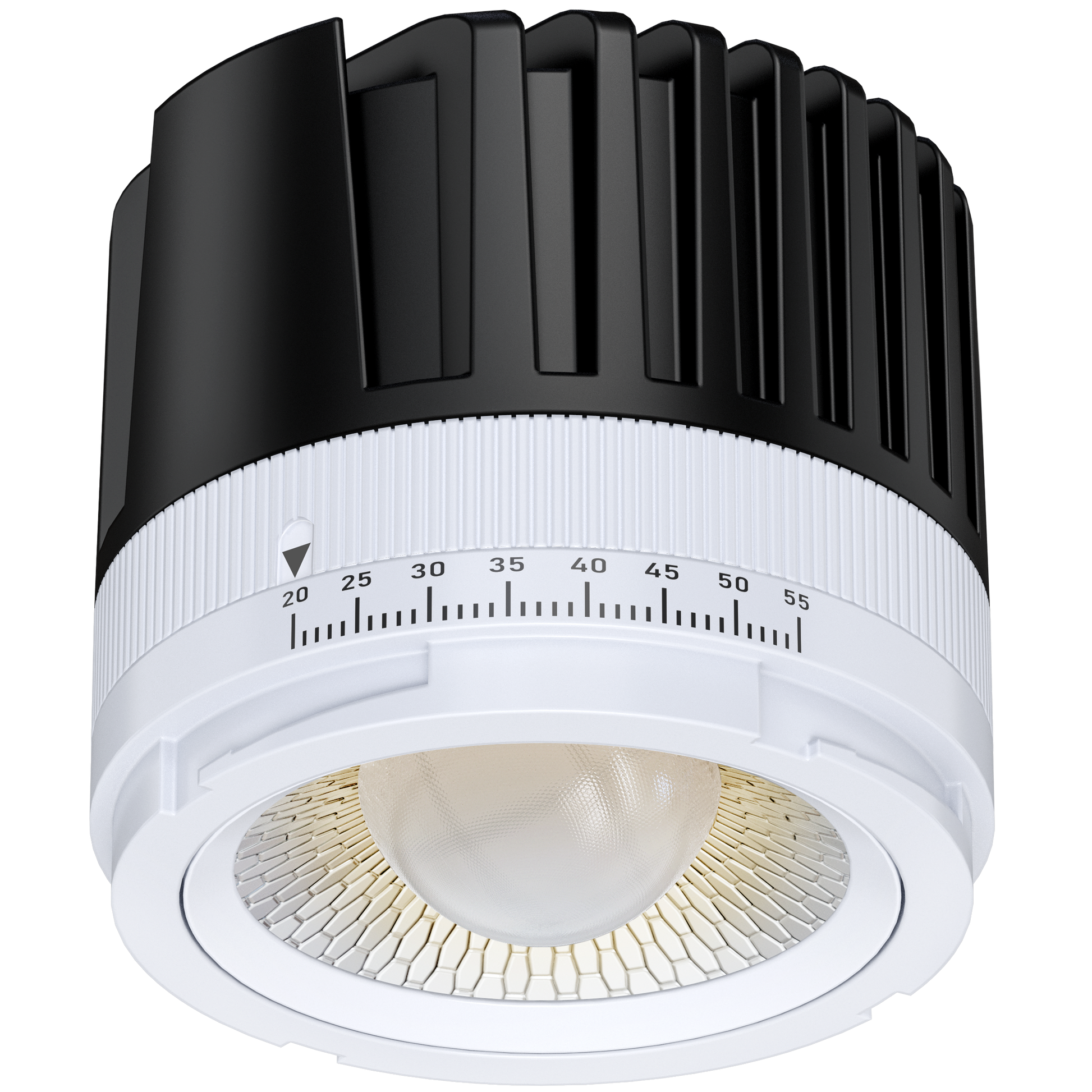

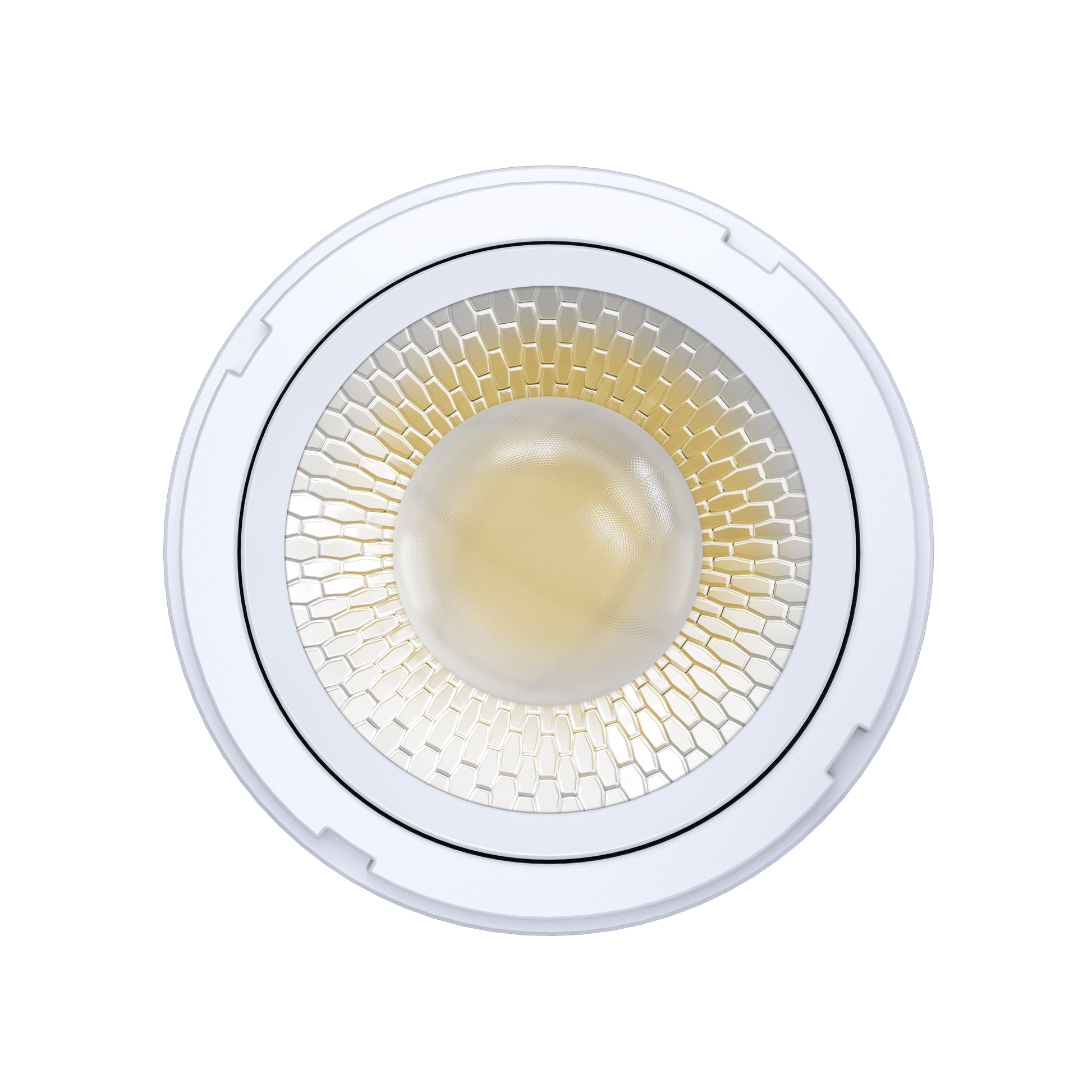

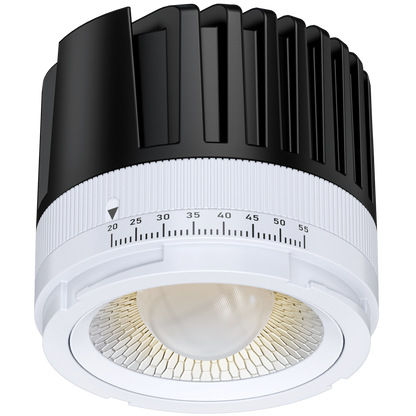

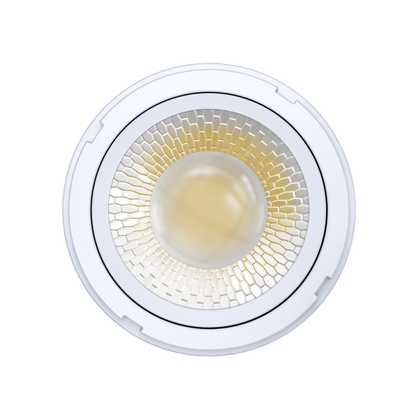

3.5 Inch 12W Beam Adjustable Module

Module:
27,30,35,41,50k
Dimmable
1150 Lumens
12 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-23502
Description

M3.5/12W/ADJ/LED/5CCT

size
3.5 Inch
diffuser
Clear
number of lights
1
mounting
Universal
Packaging Information
master pack
18
Barcode
990379235021
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1150
CRI
>90
beam spread deg
20-55°
Electrical Specs
watt
12W
volts
120-277V
output current
270mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 12 Watt
