G-96013
Aster

3 inch 9w beam adjustable module

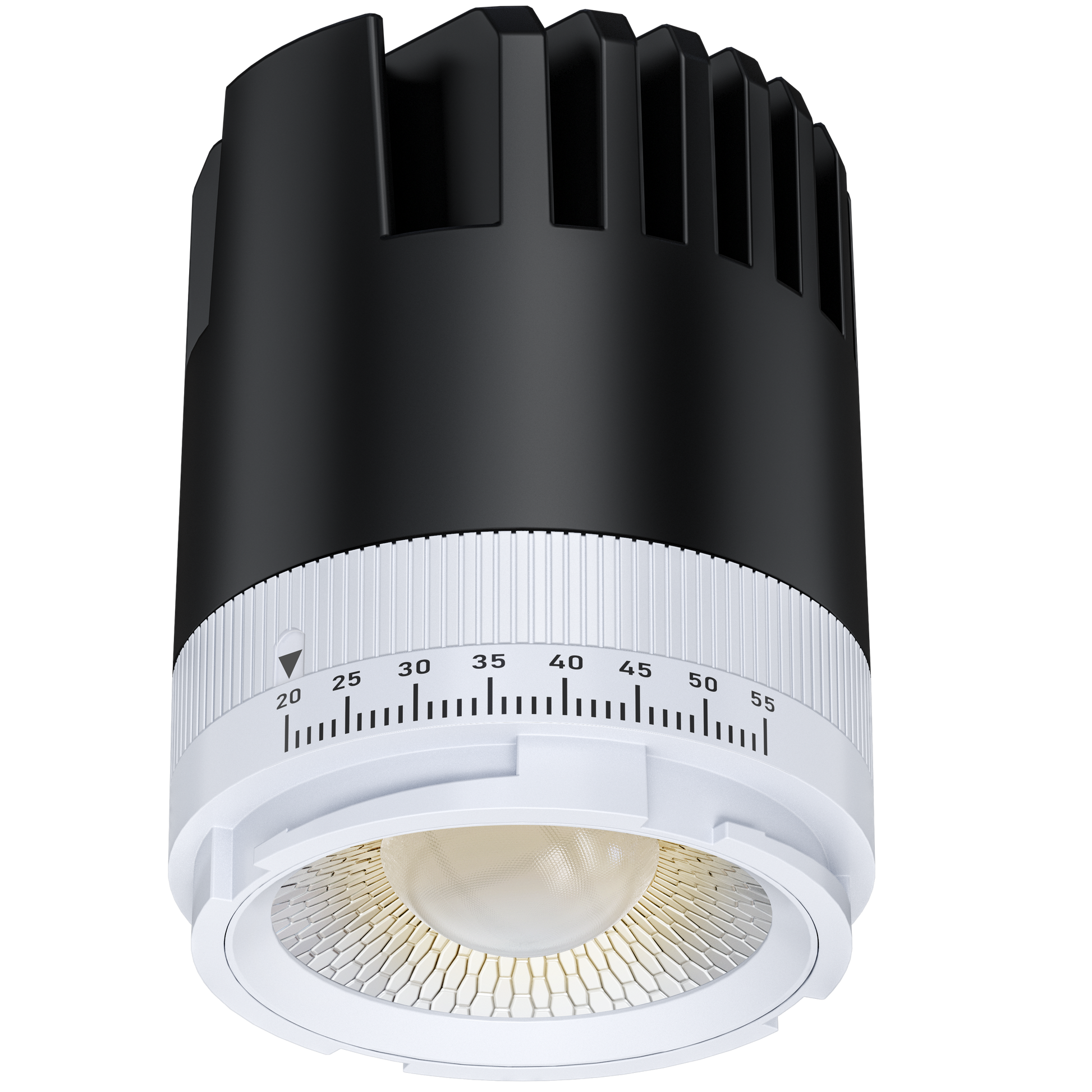

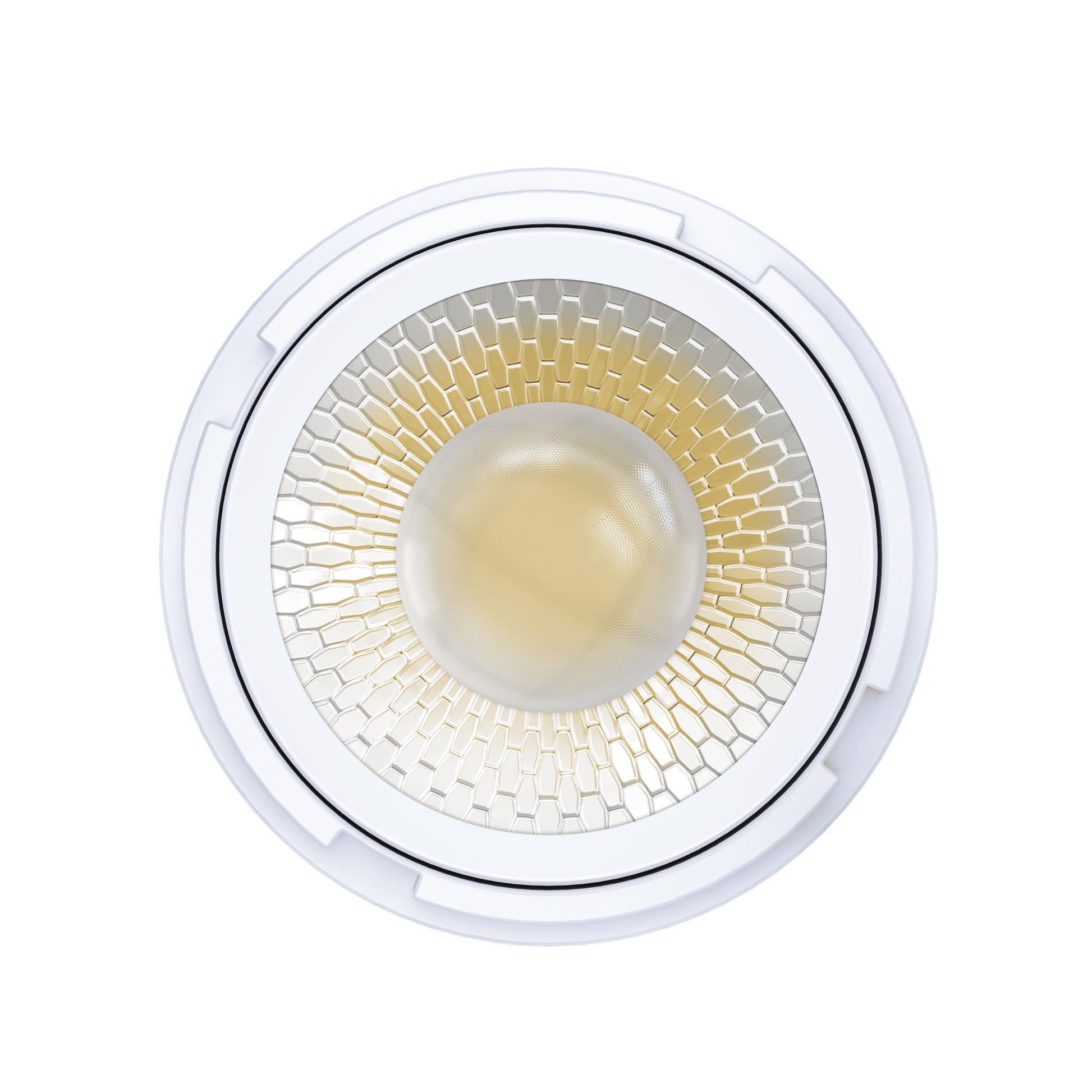

3 Inch 9W Beam Adjustable Module

Module:
27,30,35,41,50k
Dimmable
750-850 Lumens
9 Watts
120/277 V
View full details

Information

General Specs
Product Code
G-96013
Description

M3/9W/ADJ/LED/5CCT

size
3 Inch
diffuser
Clear (Default)
mounting
Universal
Packaging Information
master pack
18
Barcode
990379960138
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
750-850
lumen effeciency
85
CRI
90>
beam spread deg
20-55°
Electrical Specs
watt
9W
volts
120-277V
output current
210mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 9 Watt
