G-30330
Aster

3 inch 15w rgbww interchangeable module

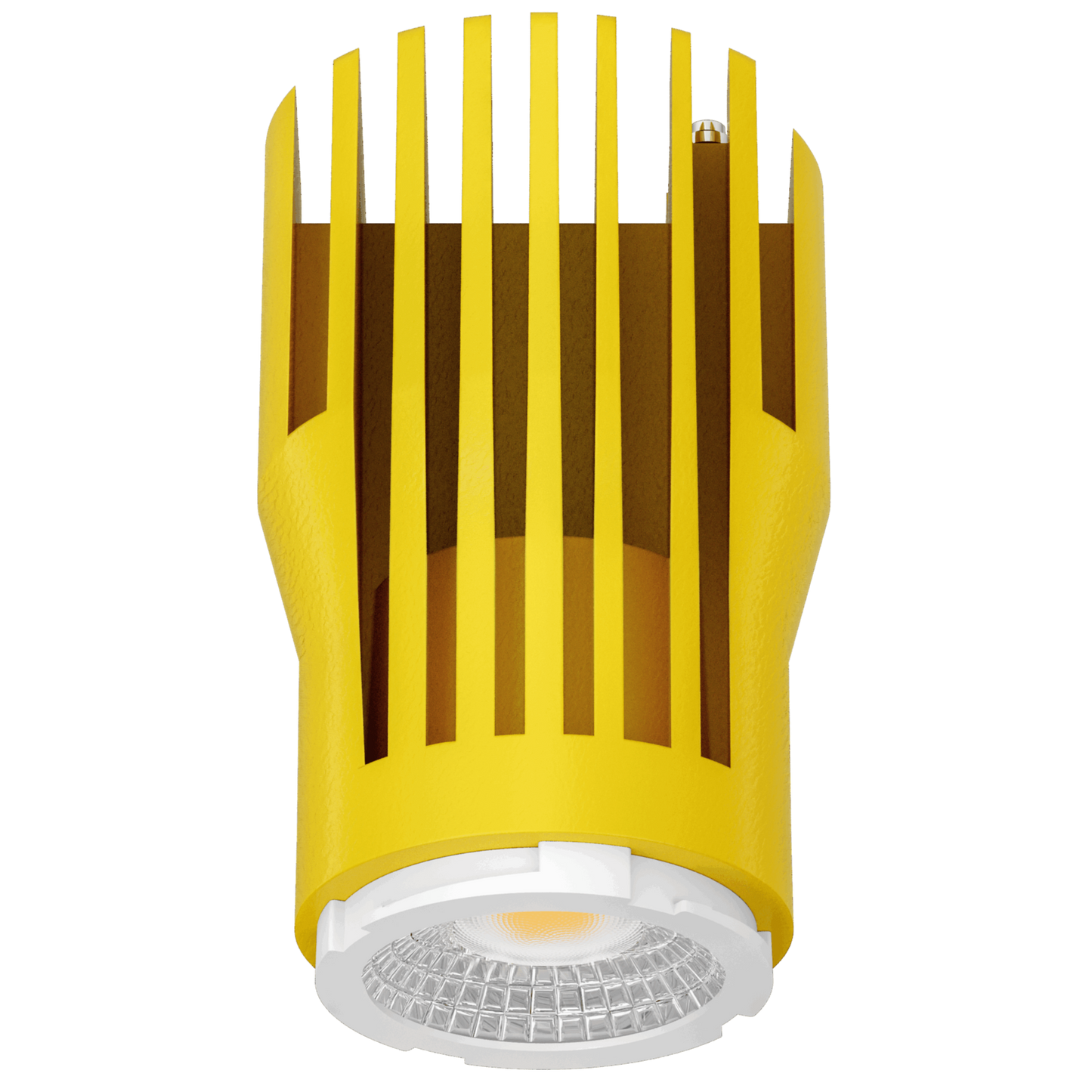

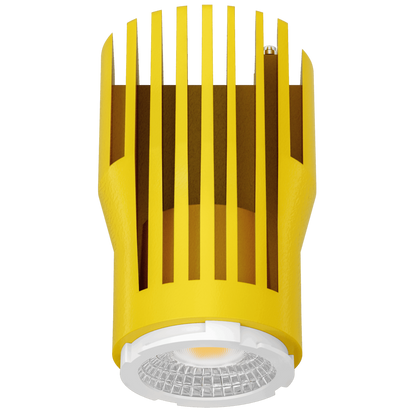

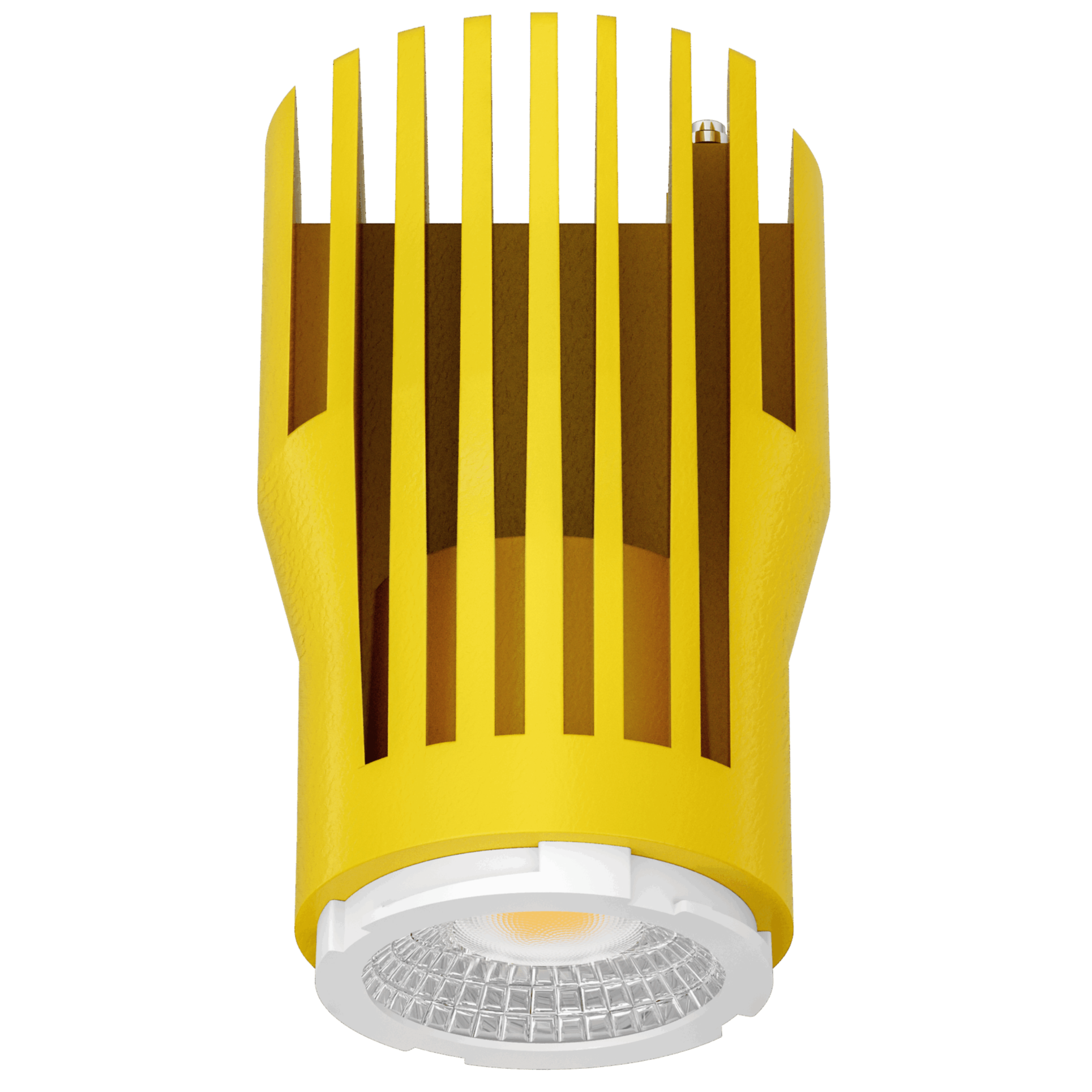

3 Inch 15W RGBWW Interchangeable Module

Module:
RGB + Tunable White
Dimmable
1400
15 Watts
120/277 V
View full details

Information

General Specs
Product Code
G-30330
Description
M3/15W/LED/RGBWW
size
3 Inch
diffuser
Clear (Default)
mounting
Universal
Packaging Information
master pack
18
Barcode
990379303300
Light Specs
temp
Selectable CCT
Color (CCT)
RGBWW, 27,30,35,41,50k
lumens
1400 AT CCT
lumen effeciency
85
CRI
90>
beam spread deg
60° Clear (Default)
Electrical Specs
watt
15W
volts
120-277V
output current
350mA
plenum rated
FT6
dimming type
Triac
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

Clear Lens Options
G-98922 24° Lens G-98923 40° Lens G-98924 60° Lens
Reflector Lens Options
G-98925 30° Lens G-98926 60° Lens
Frosted Lens
G-98920
Lens Covers
G-98927 Solite Cover G-98928 Prismatic Cover G-98929 Beamsplit Cover

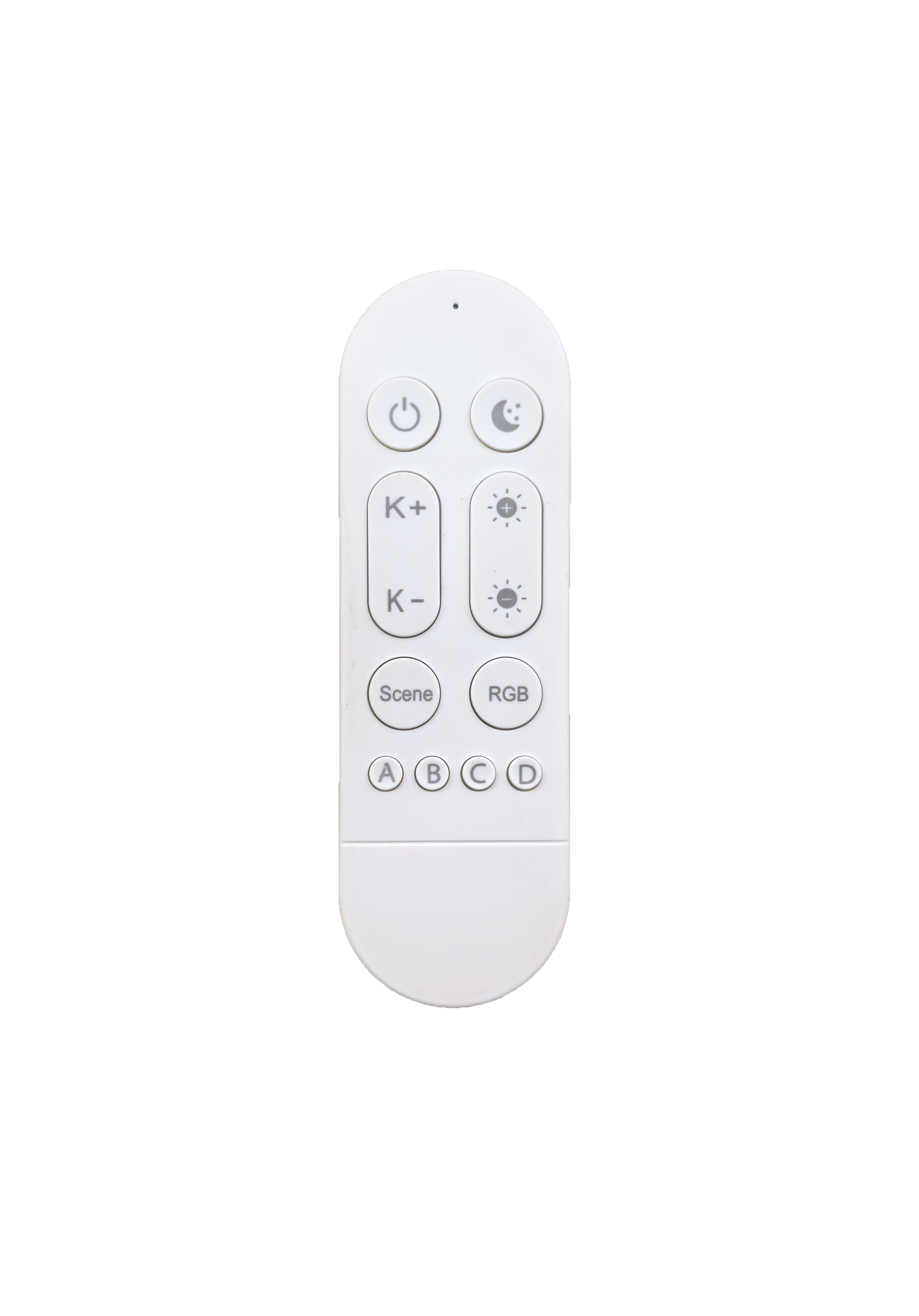

Remote
G-99719
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt
