G-98762
Altair

3.5” trimless double head multiple regress gimbal white

3.5” Trimless Double Head Multiple Regress Gimbal White

27,30,35,41,50k
Dimmable
2600/3600 Lumens
40/27 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98762
Description

AL/3.5/40W/GR/M2/5CCT/WH/TL

shape
Multiple
style
Trimless
size
3.5 Inch
finish
White
diffuser
Clear (Default)
number of lights
2
cutout
3.94” x 7.70”

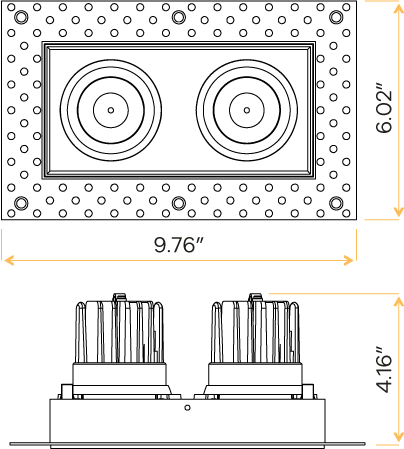

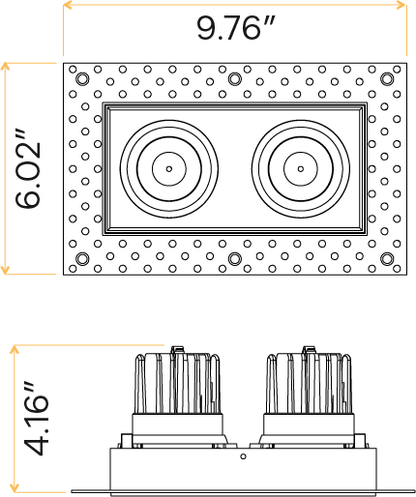

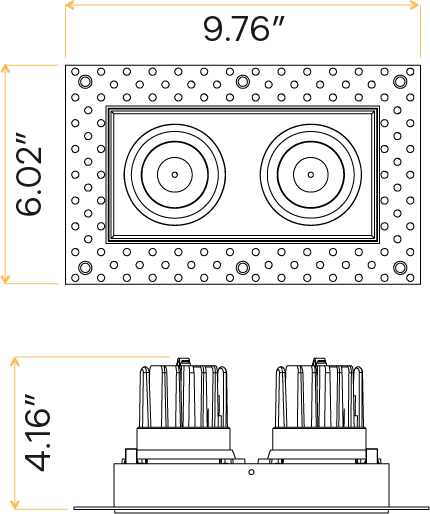

OD (Outside dimensions)
6.02" x 9.76"
height
4.26”
Packaging Information
master pack
6
Barcode
990379987623
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1300/1800
lumens
2600/3600
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
40/27W
volts
120-277V
output current
930/630mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 27W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New construction plate
G-48448 (0 Punchouts)
Clear Lens Options
G-98825 24° Lens G-98826 40° Lens G-98826 60° Lens
Reflector Lens Options
G-98828 30° Lens G-98829 40° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
