G-98761
Altair

3.5” trimless single head multiple regress gimbal white

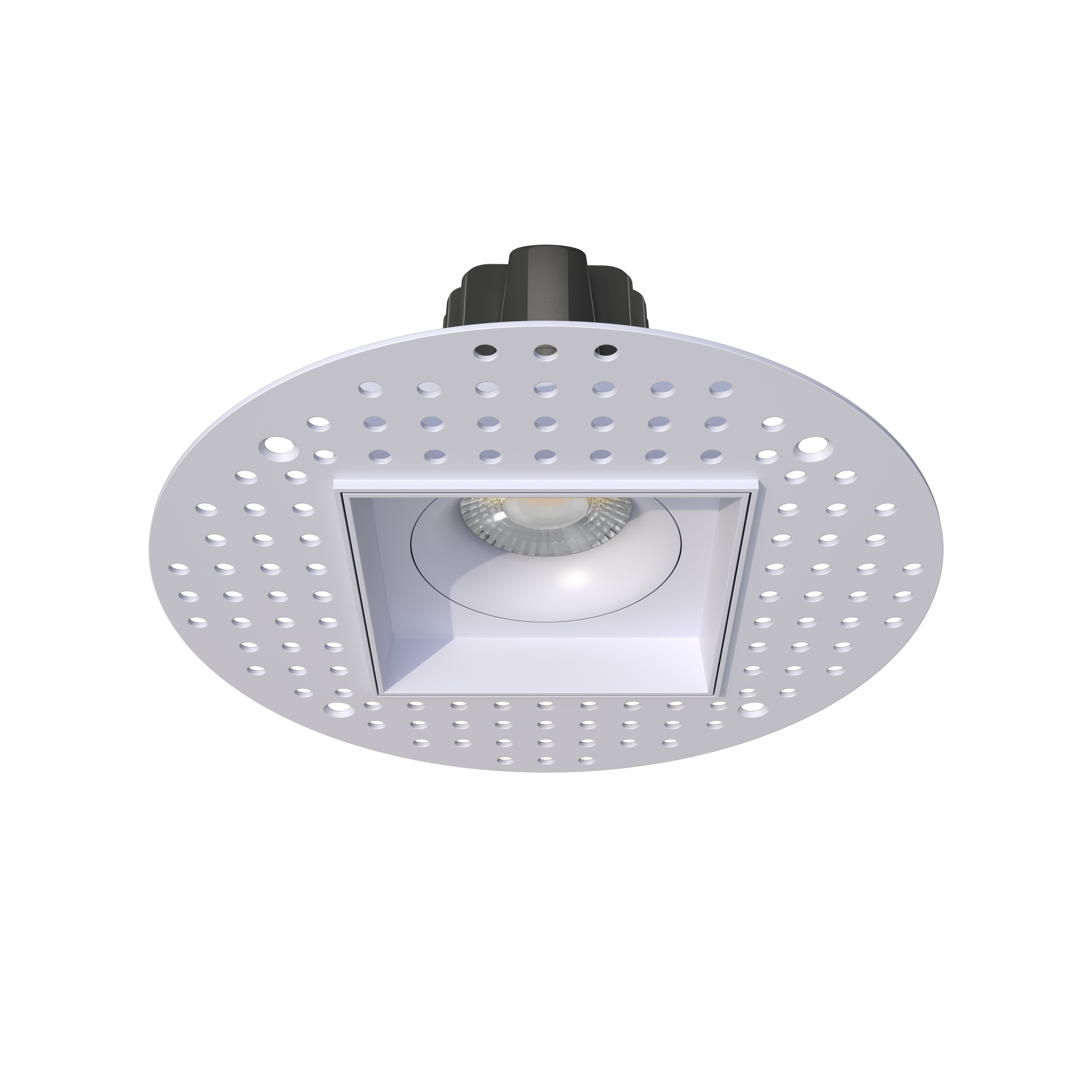

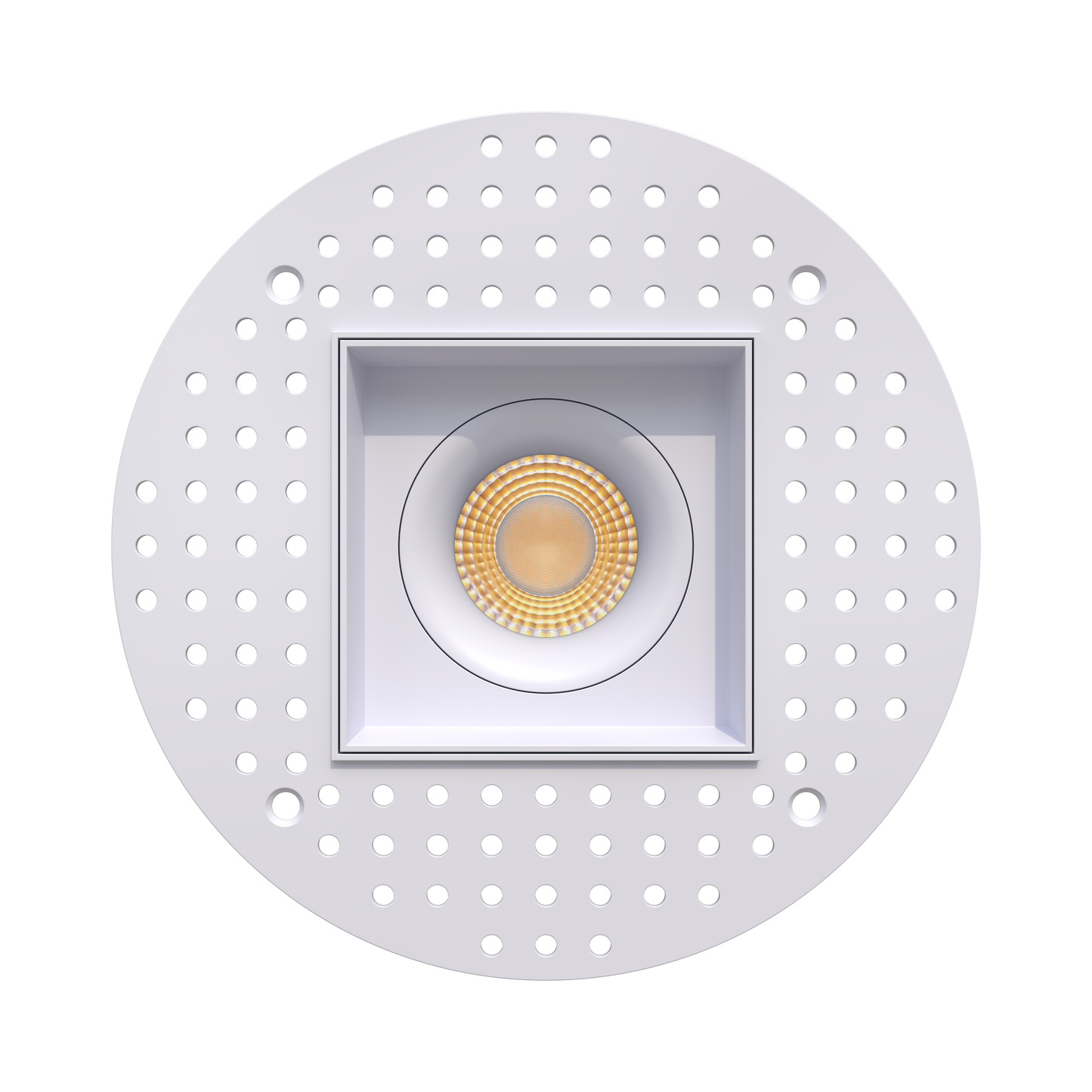

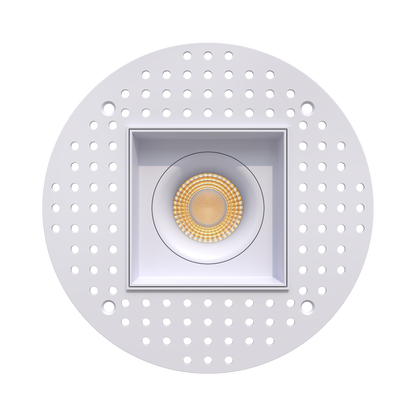

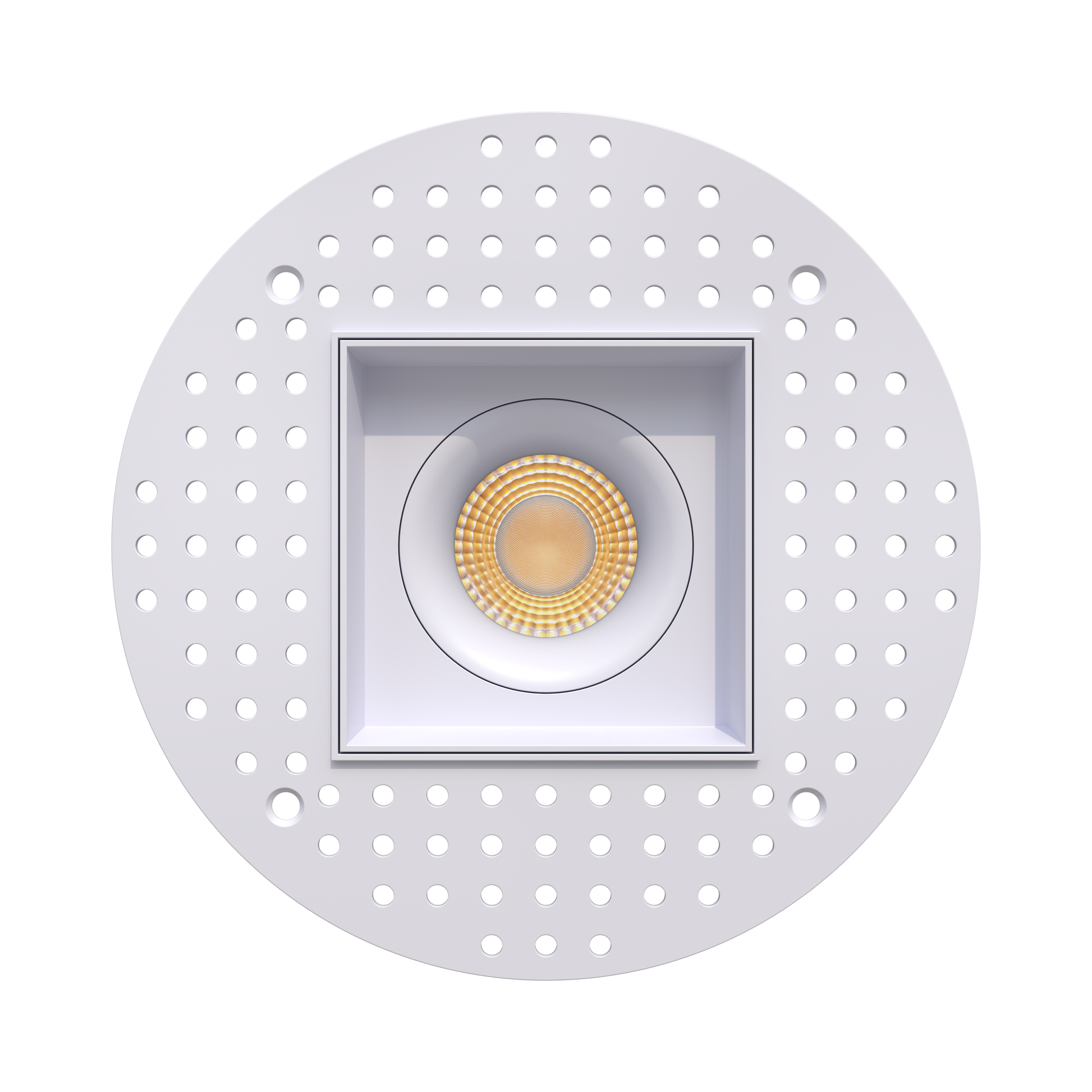

3.5” Trimless Single Head Multiple Regress Gimbal White

27,30,35,41,50k
Dimmable
1400/1850 Lumens
20/14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98761
Description

AL/3.5/20W/GR/M1/5CCT/WH/TL

shape
Square
style
Trimless
size
3.50 Inch
finish
White
diffuser
Clear (Default)
number of lights
1

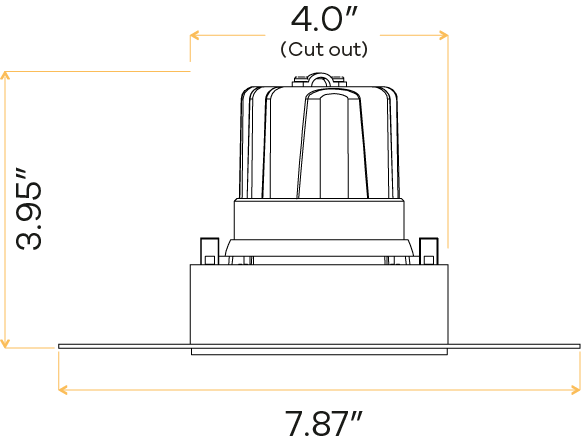

cutout
Sq 4"X4" Rd 5.59"

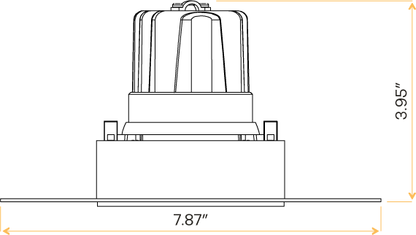

OD (Outside dimensions)
7.87"
height
4.26”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379987616
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400/1850
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
20/14W
volts
120-277V
output current
480/320mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 14W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New construction plate
G-98800 (9 Punchouts) G-98810 (9 Punchouts) G-19969 (2 Punchouts) G-19982 (6 Punchouts)
Clear Lens Options
G-98825 24° Lens G-98826 40° Lens G-98826 60° Lens
Reflector Lens Options
G-98828 30° Lens G-98829 40° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95825 14 Watt G-95826 20 Watt
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
