G-98774
Altair

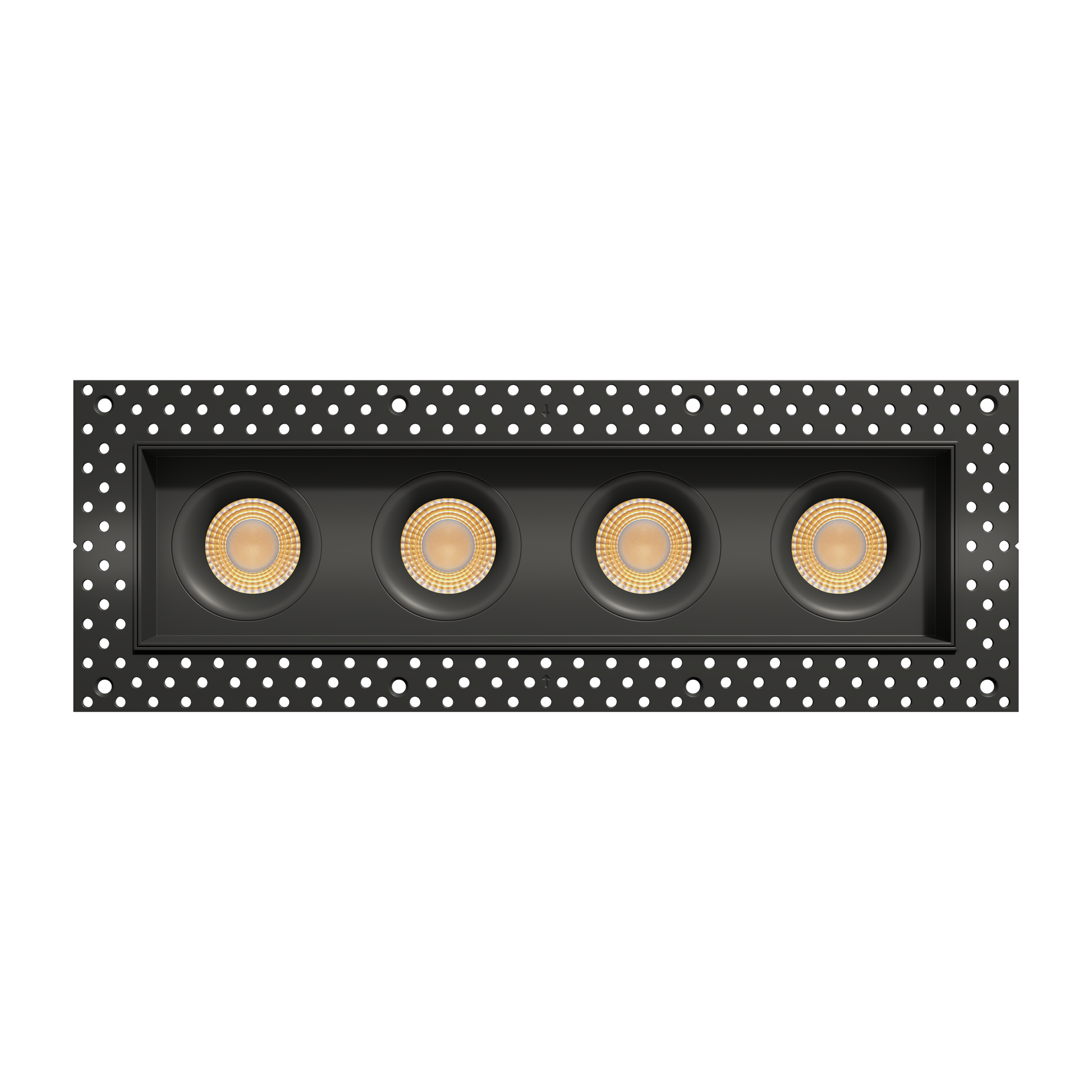

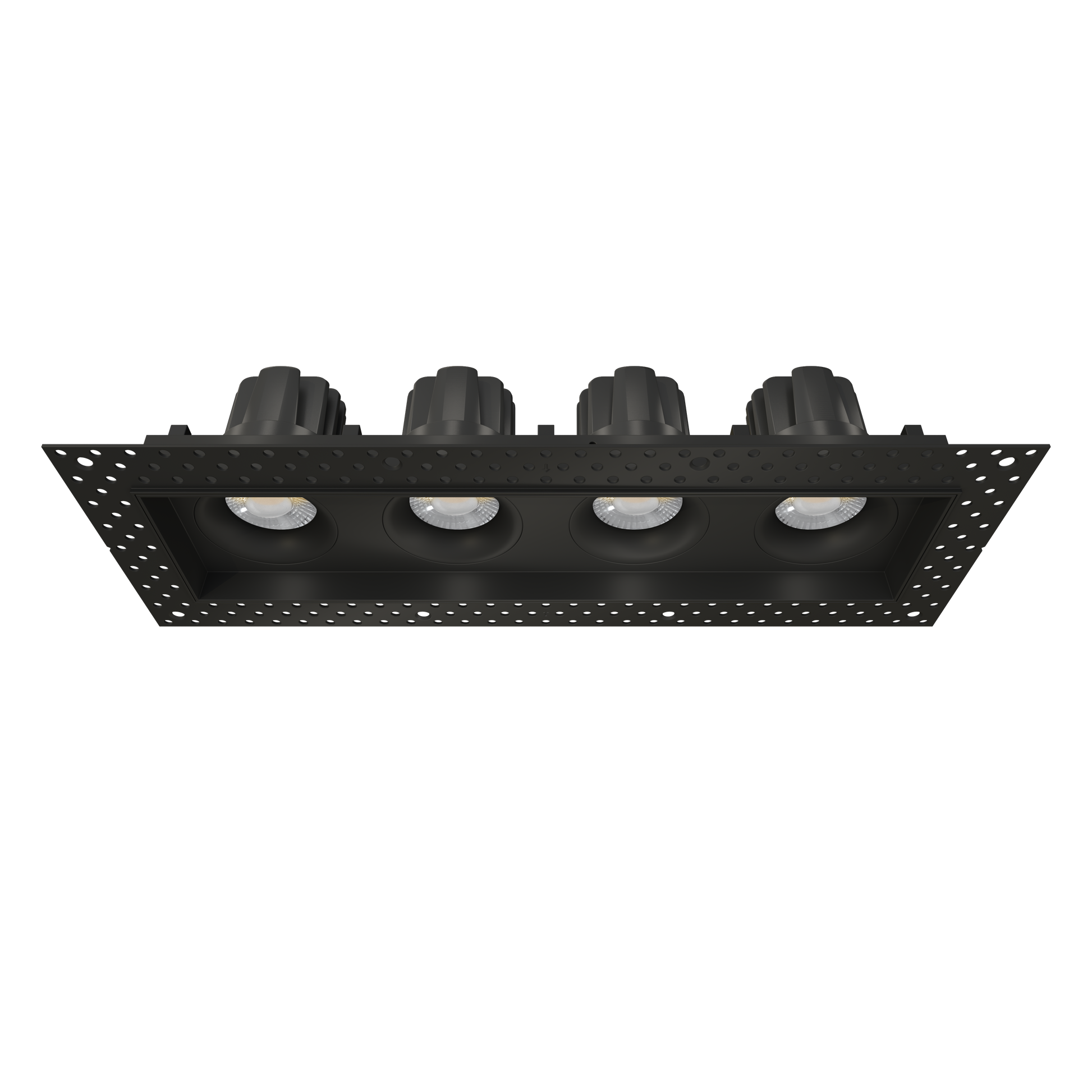

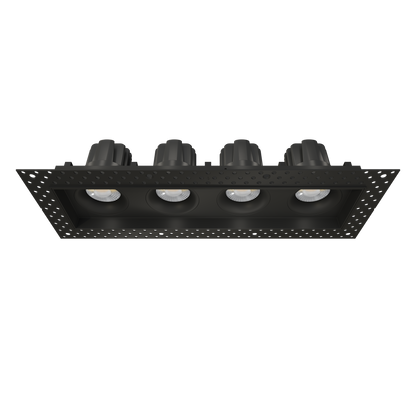

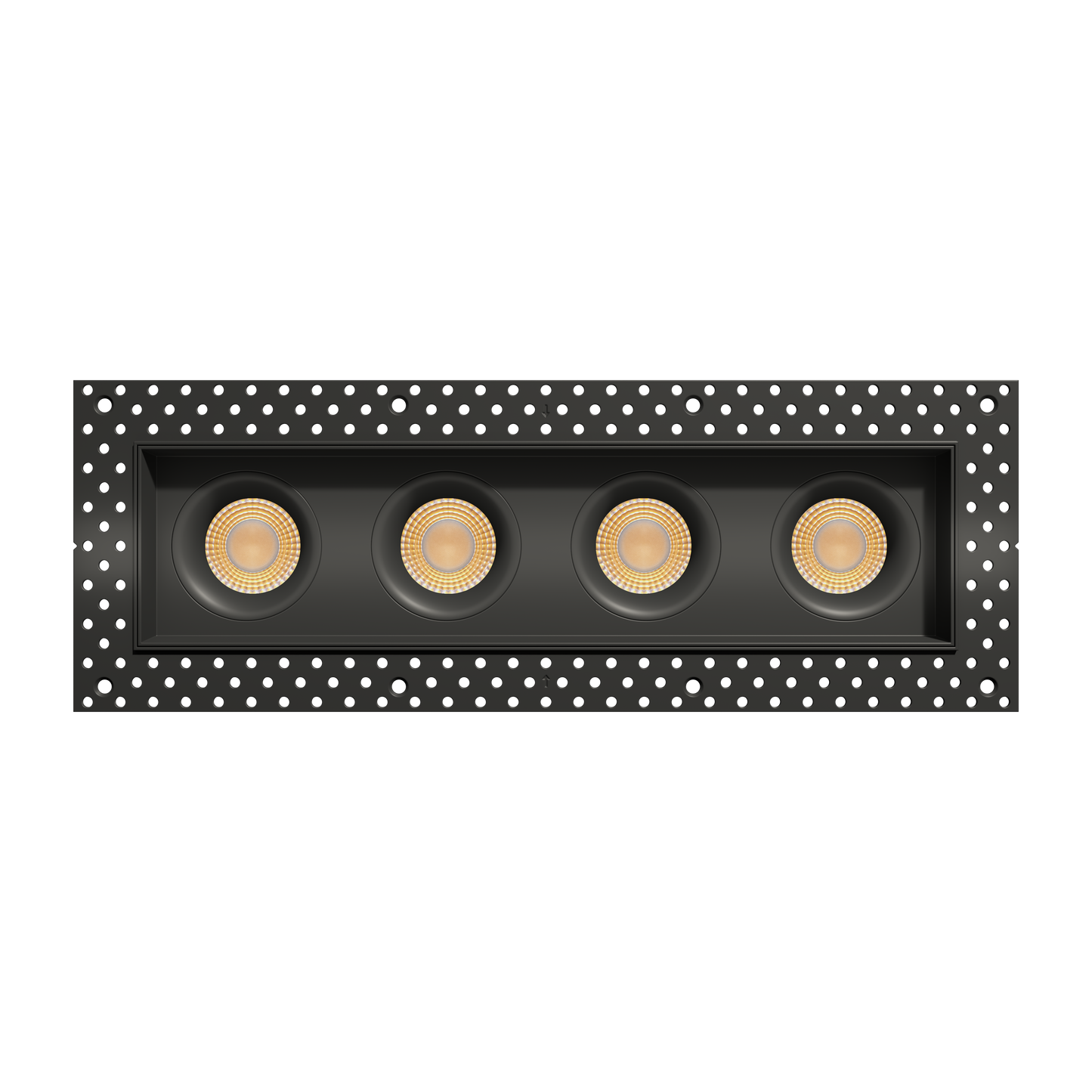

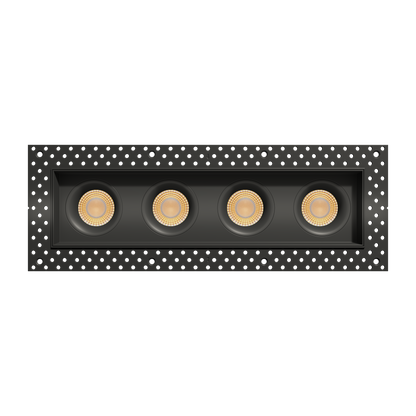

3.5” trimless four head multiple regress gimbal black

3.5” trimless Four Head Multiple Regress Gimbal Black

27,30,35,41,50k
Dimmable
4900/6800 Lumens
80/50 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98774
Description

AL3.5/80W/GR/M4/5CCT/BK/TL

shape
Multiple
style
Trimless
size
3.50 Inch
finish
Black
diffuser
Clear (Default)
number of lights
4

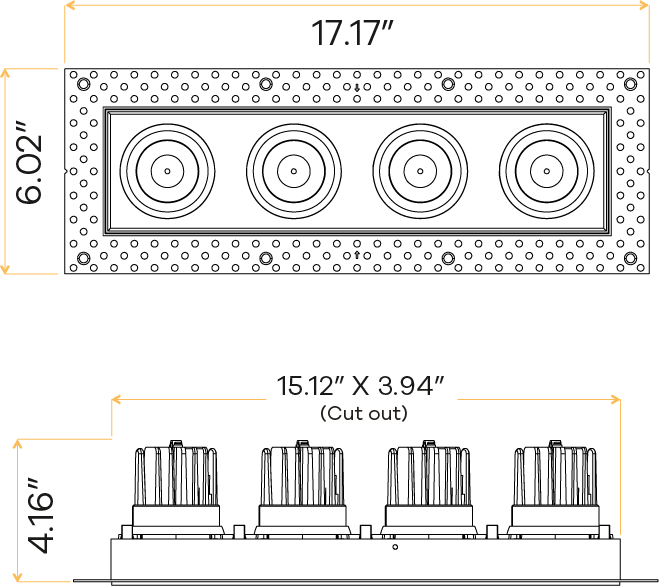

cutout
3.94” x 15.12”
OD (Outside dimensions)
6.02" x 17.24"
height
4.26”
mounting
Clip-in
Packaging Information
master pack
4
Barcode
990379987746
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1225/1700
lumens
4900/6800
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
80/50W
volts
120-277V
output current
1850/1260mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 50W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New construction plate
G-98817 (2 Punchouts)
Clear Lens Options
G-98825 24° Lens G-98826 40° Lens G-98826 60° Lens
Reflector Lens Options
G-98828 30° Lens G-98829 40° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
