G-98773
Altair

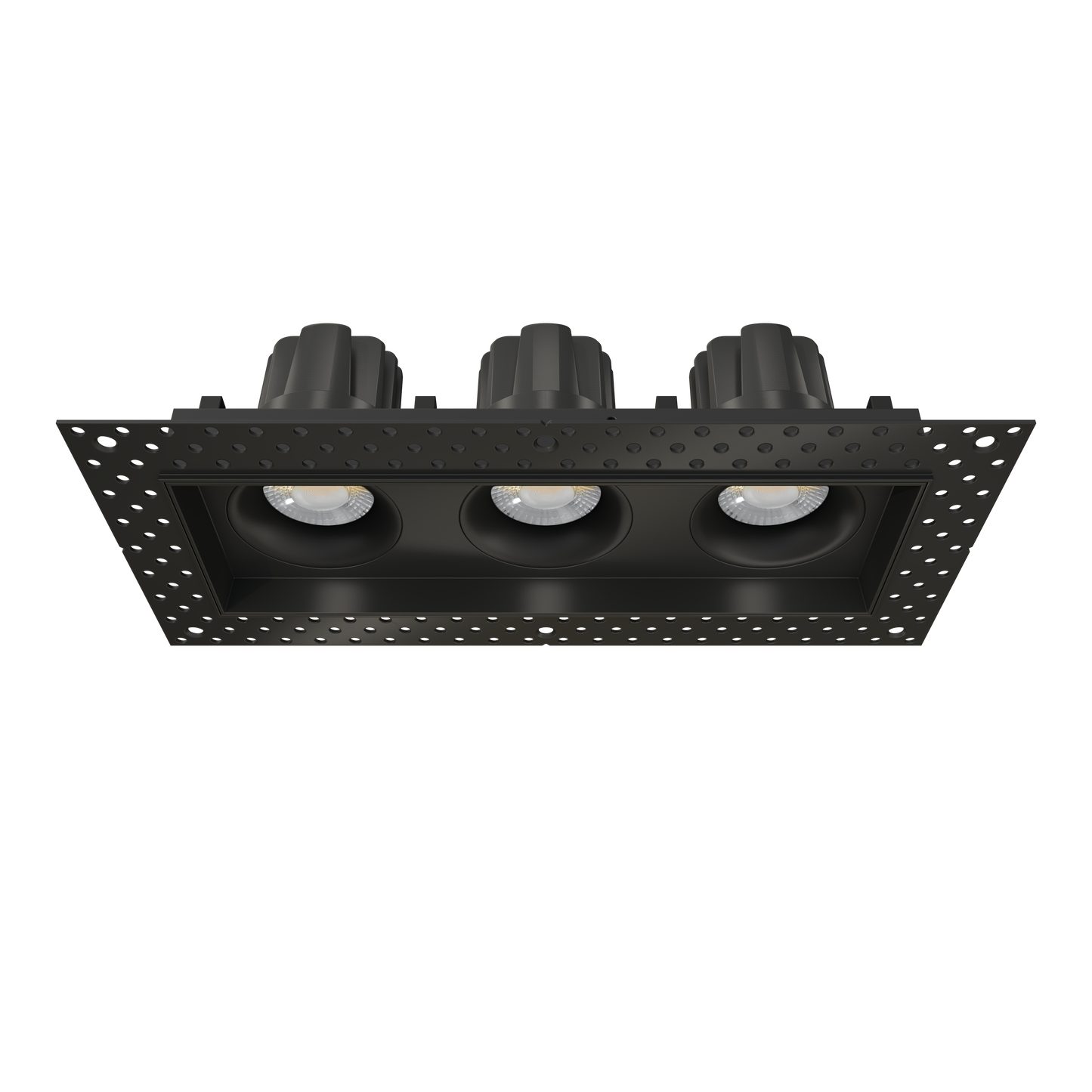

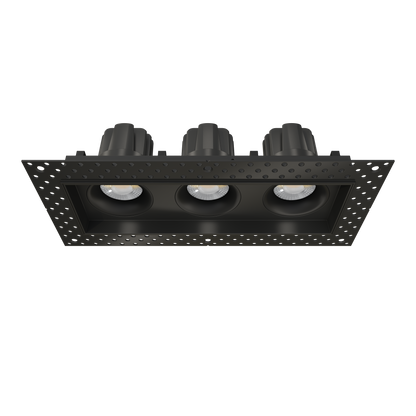

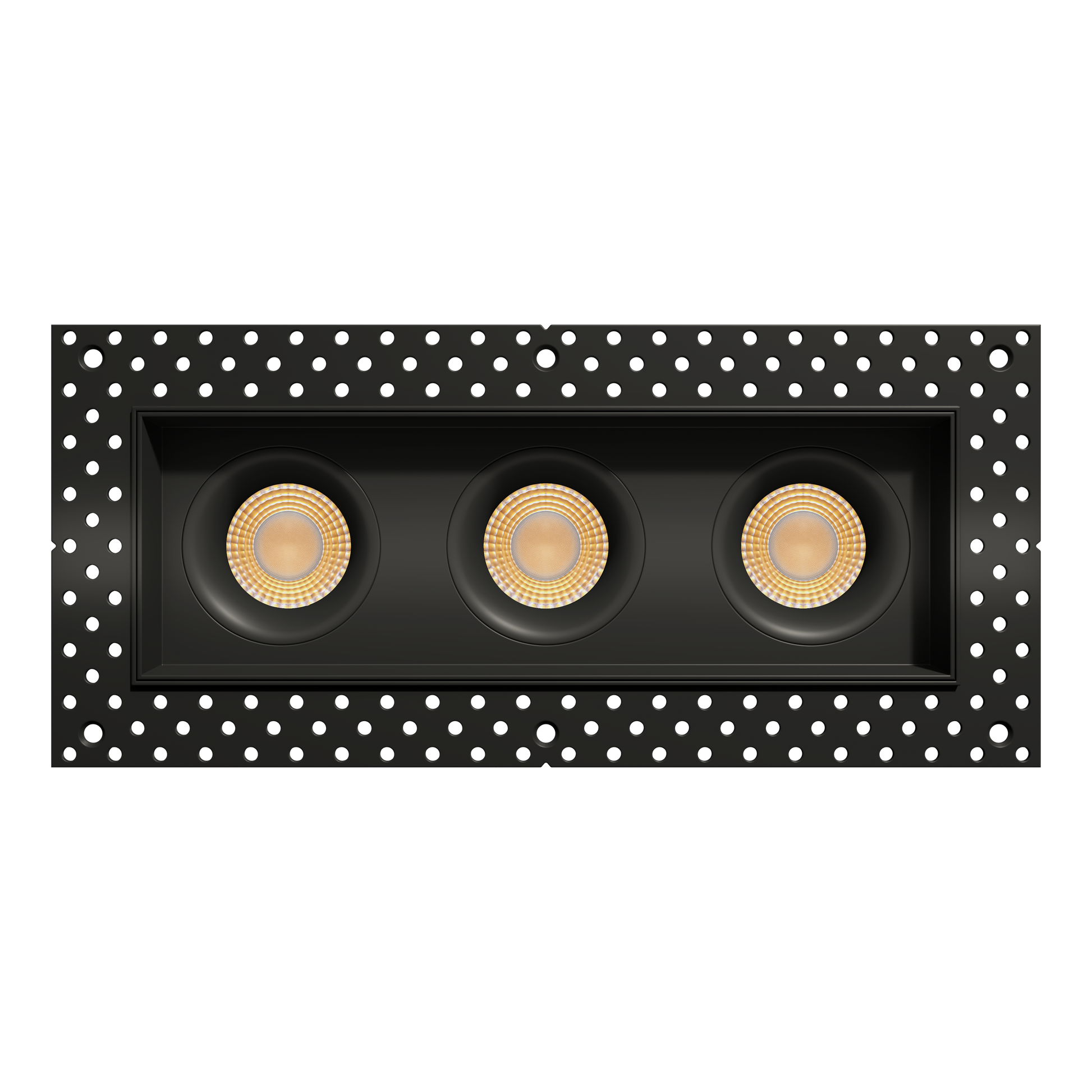

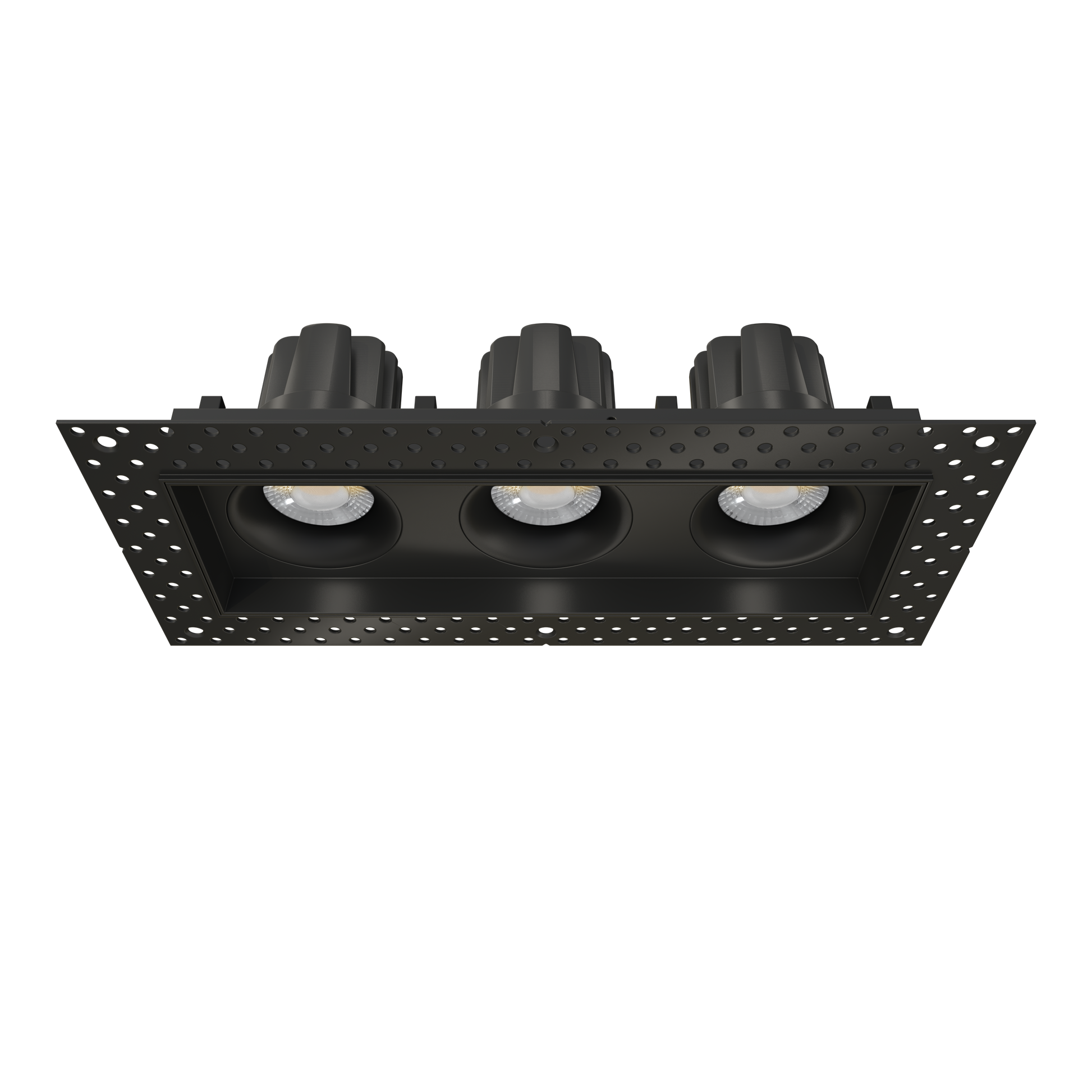

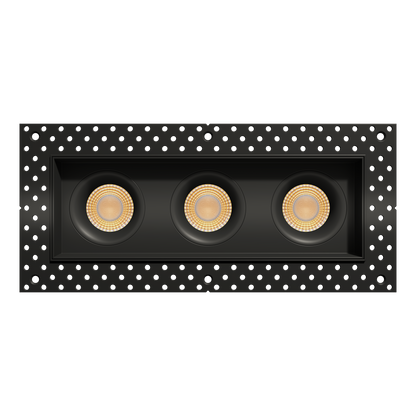

3.5” trimless triple head multiple regress gimbal black

3.5” Trimless Triple Head Multiple Regress Gimbal Black

27,30,35,41,50k
Dimmable
3750/5250 Lumens
60/39 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98773
Description

AL3.5/60W/GR/M3/5CCT/BK/TL

shape
Multiple
style
Trimless
size
3.5 Inch
finish
Black
diffuser
Clear (Default)
number of lights
3
cutout
3.94” x 11.42”
OD (Outside dimensions)
6.02" x 13.50"
height
4.26”
Packaging Information
master pack
6
Barcode
990379987739
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1250/1750
lumens
3750/5250
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
60/39W
volts
120-277V
output current
940/1380mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 39W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New construction plate
G-48448 (1 Punchouts)
Clear Lens Options
G-98825 24° Lens G-98826 40° Lens G-98826 60° Lens
Reflector Lens Options
G-98828 30° Lens G-98829 40° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
