G-32502
Pulsar

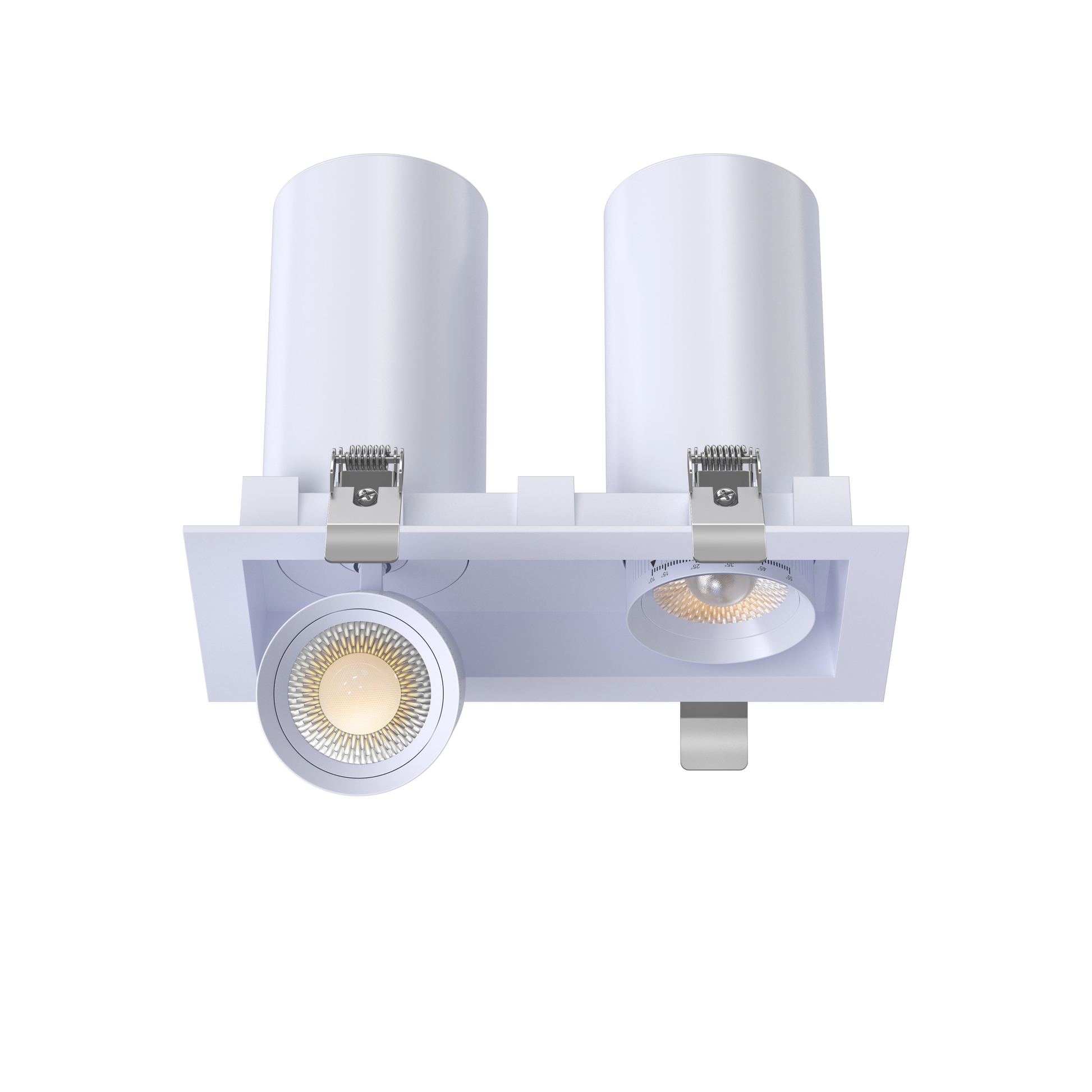

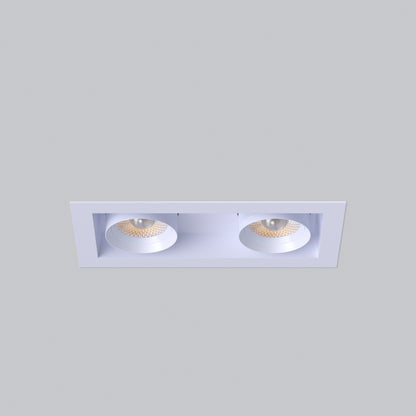

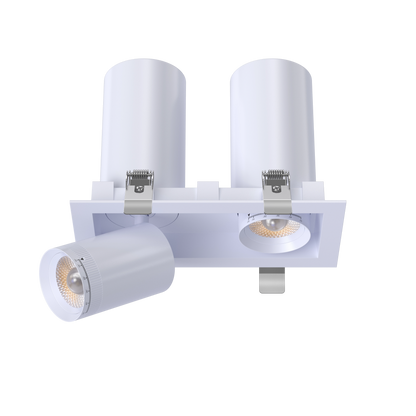

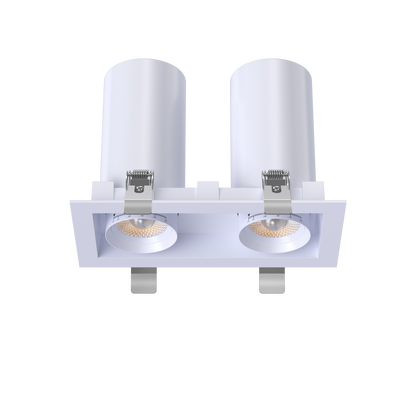

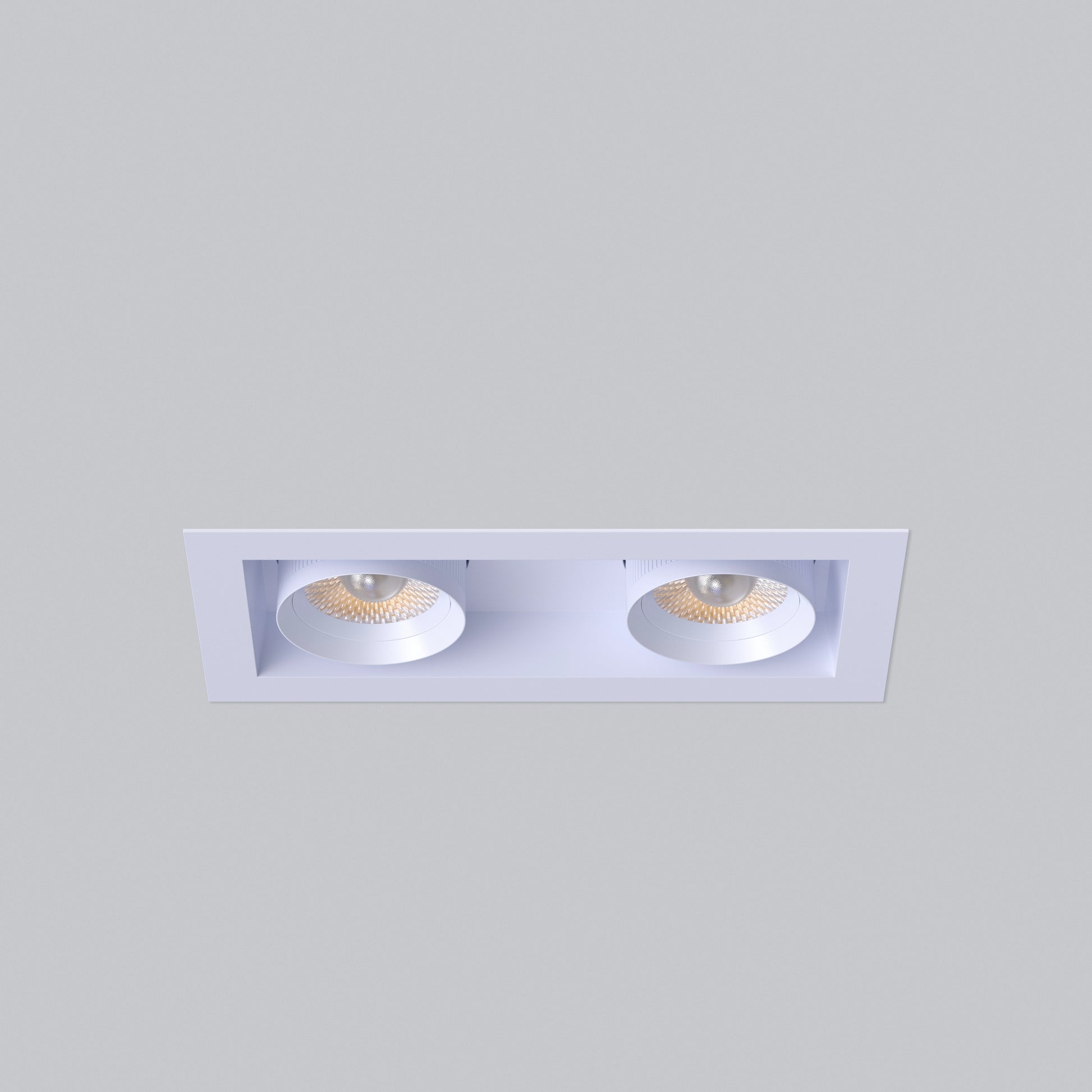

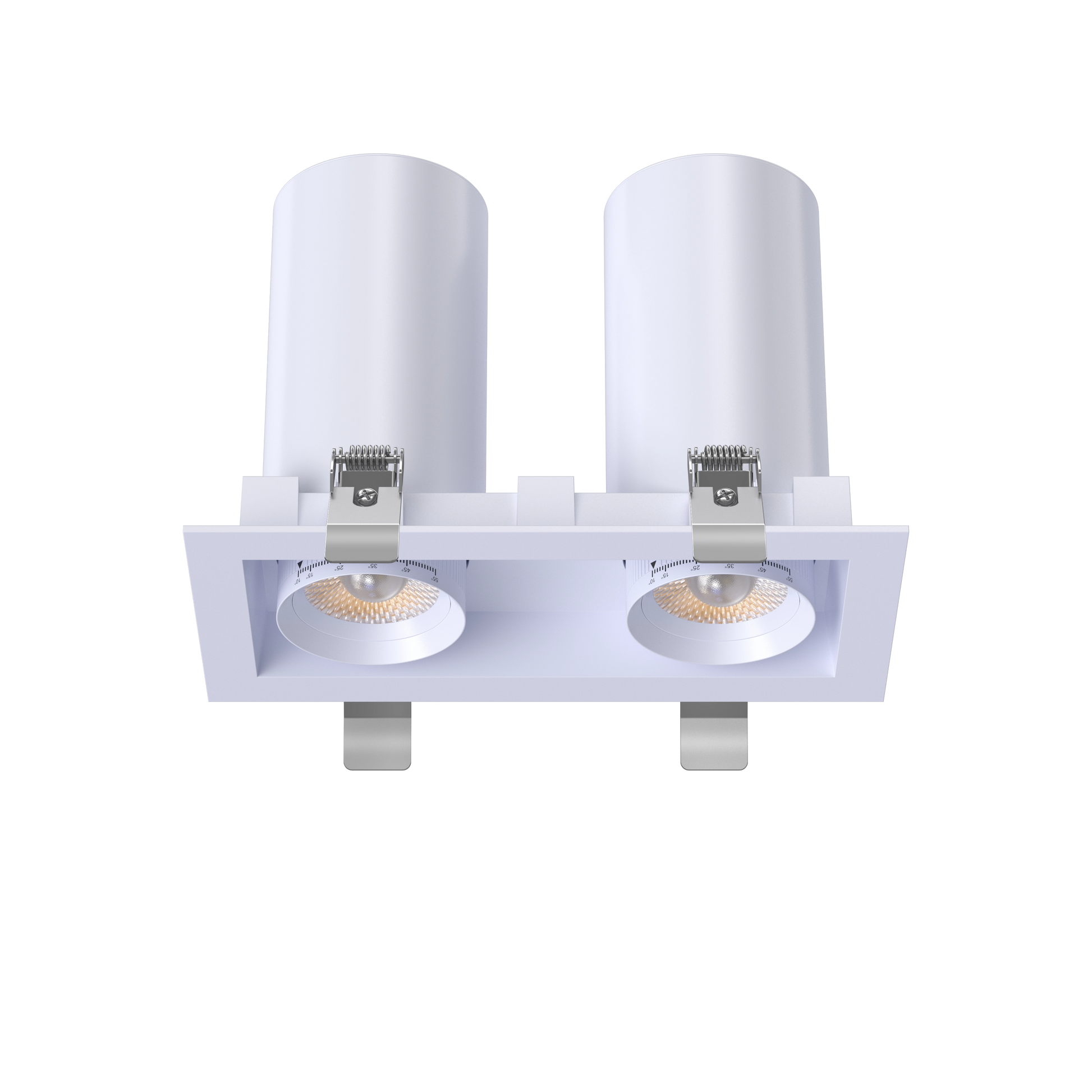

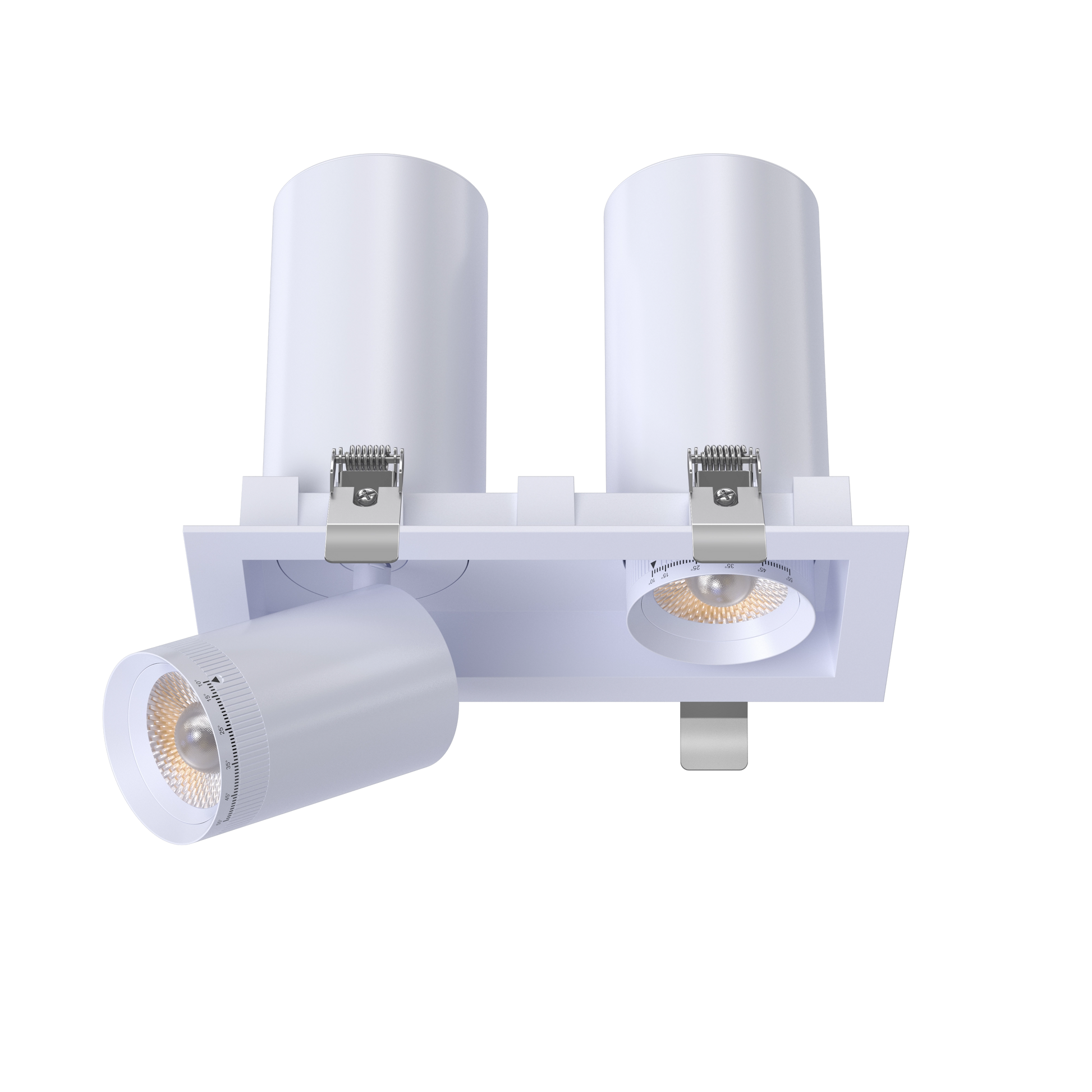

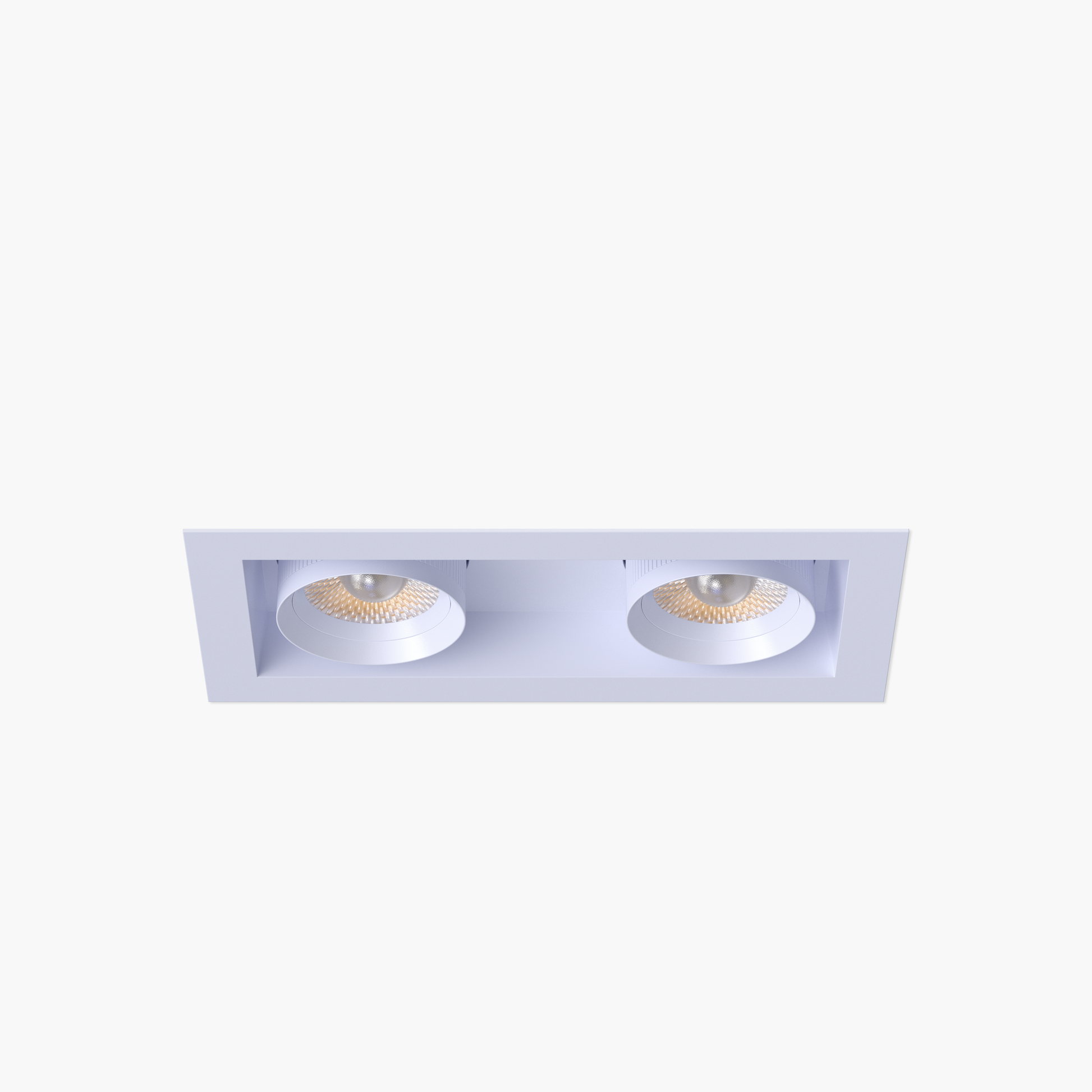

3” double head retractable multiple white

3” Double Head Retractable Multiple White

27,30,35,41,50k
Dimmable
1900 Lumens
24 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-32502
shape
Multiple
style
Trimmed
size
3 Inch
finish
White
diffuser
Clear
number of lights
2

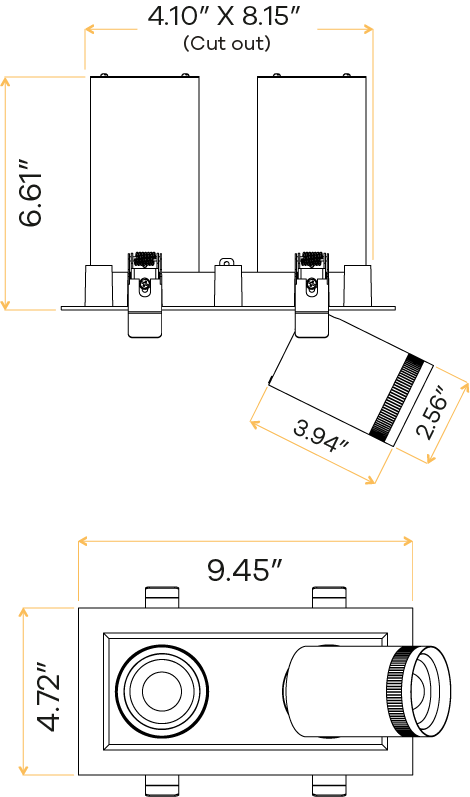

cutout
4.10” X 8.15”

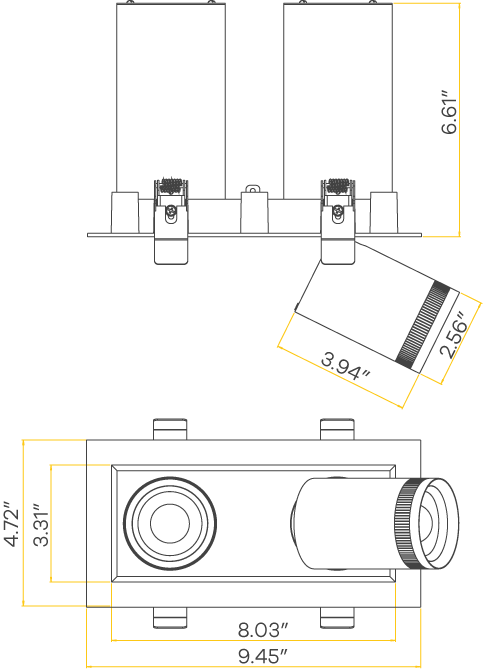

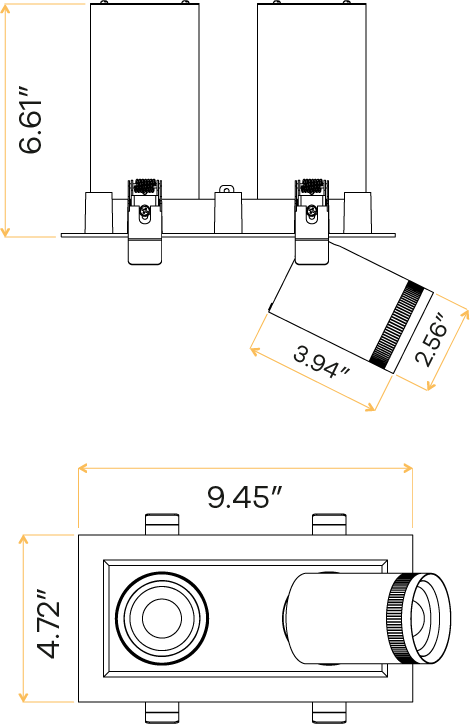

OD (Outside dimensions)
4.72" X 9.45"
height
6.61”
mounting
Clip-in
Packaging Information
master pack
6
Barcode
990379325029
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
950
lumens
1900
CRI
90>
beam spread deg
20°-55°
tilt angle
90°
rotating
360°
Electrical Specs
watt
24W
volts
120-277V
output current
530mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet

Accessories

Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
New construction plate
G-98816
