G-32501
Pulsar

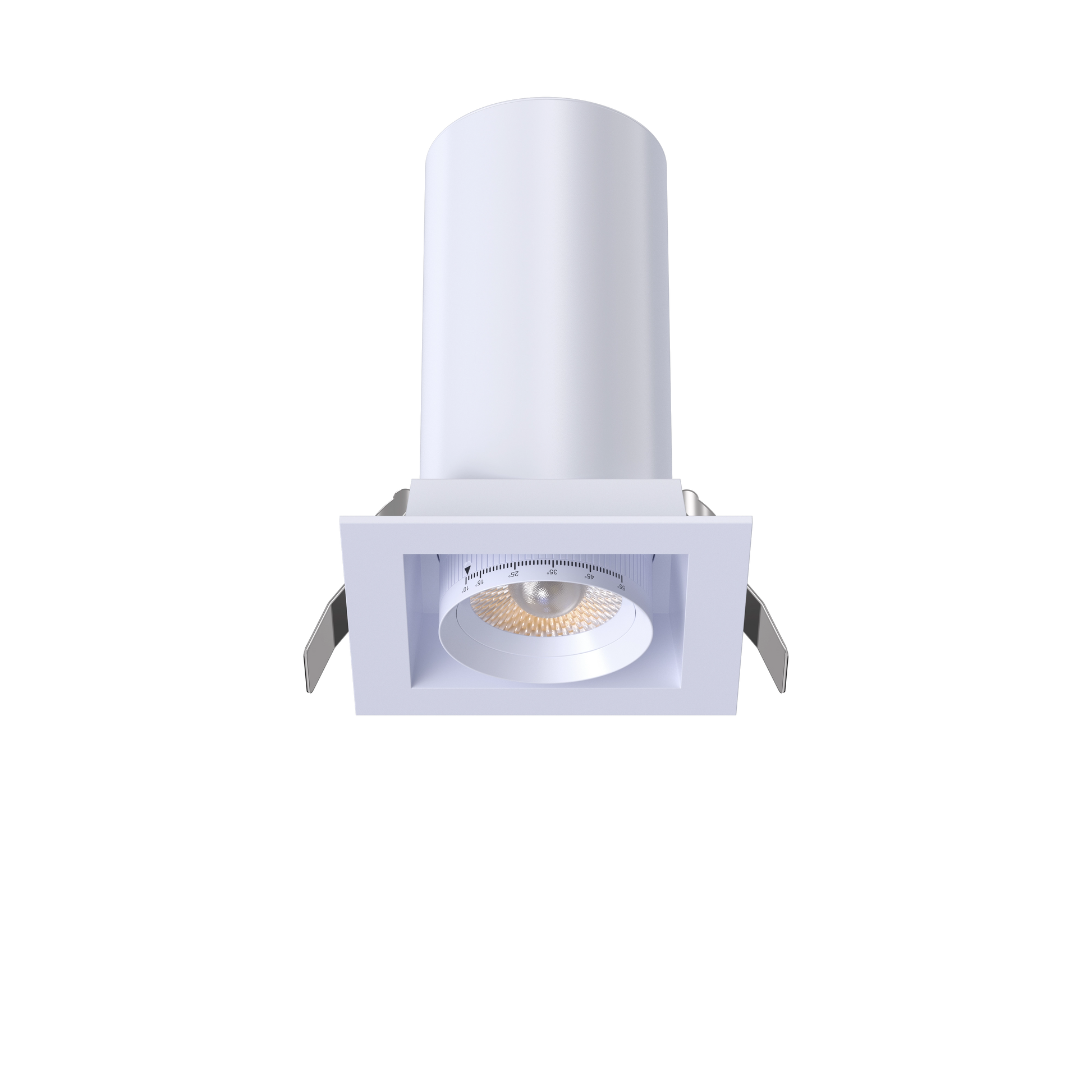

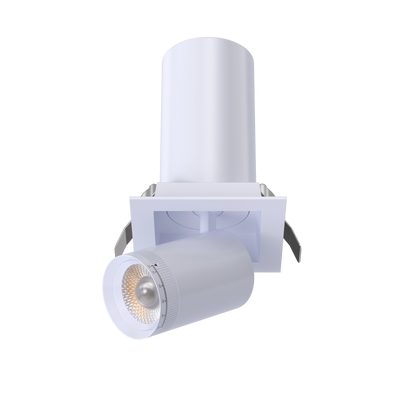

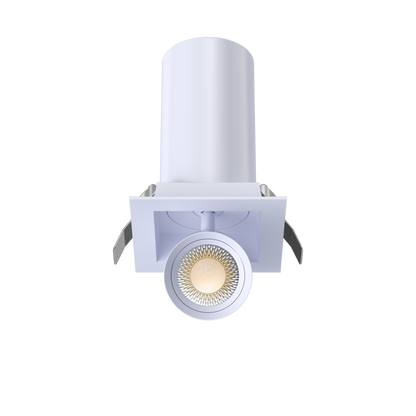

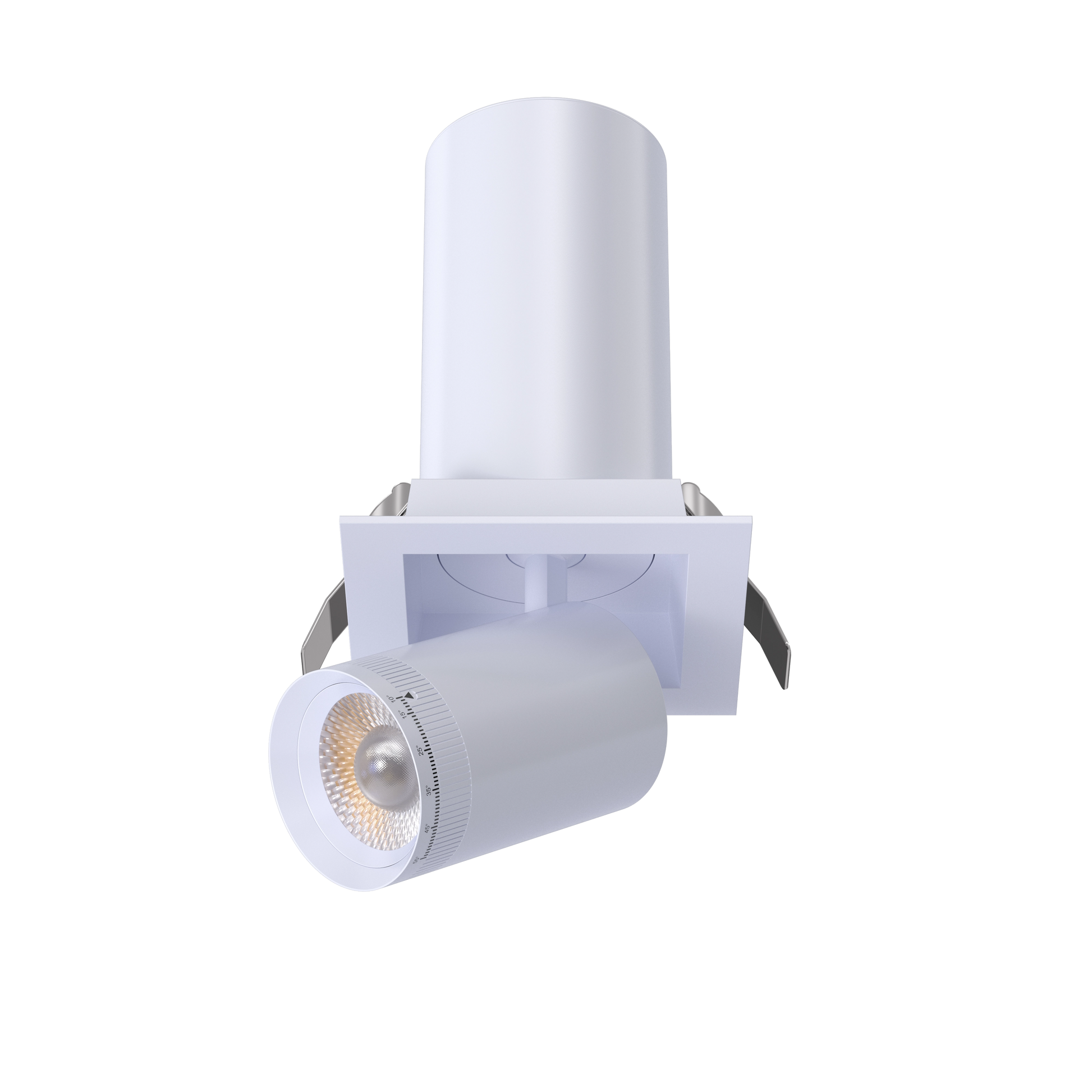

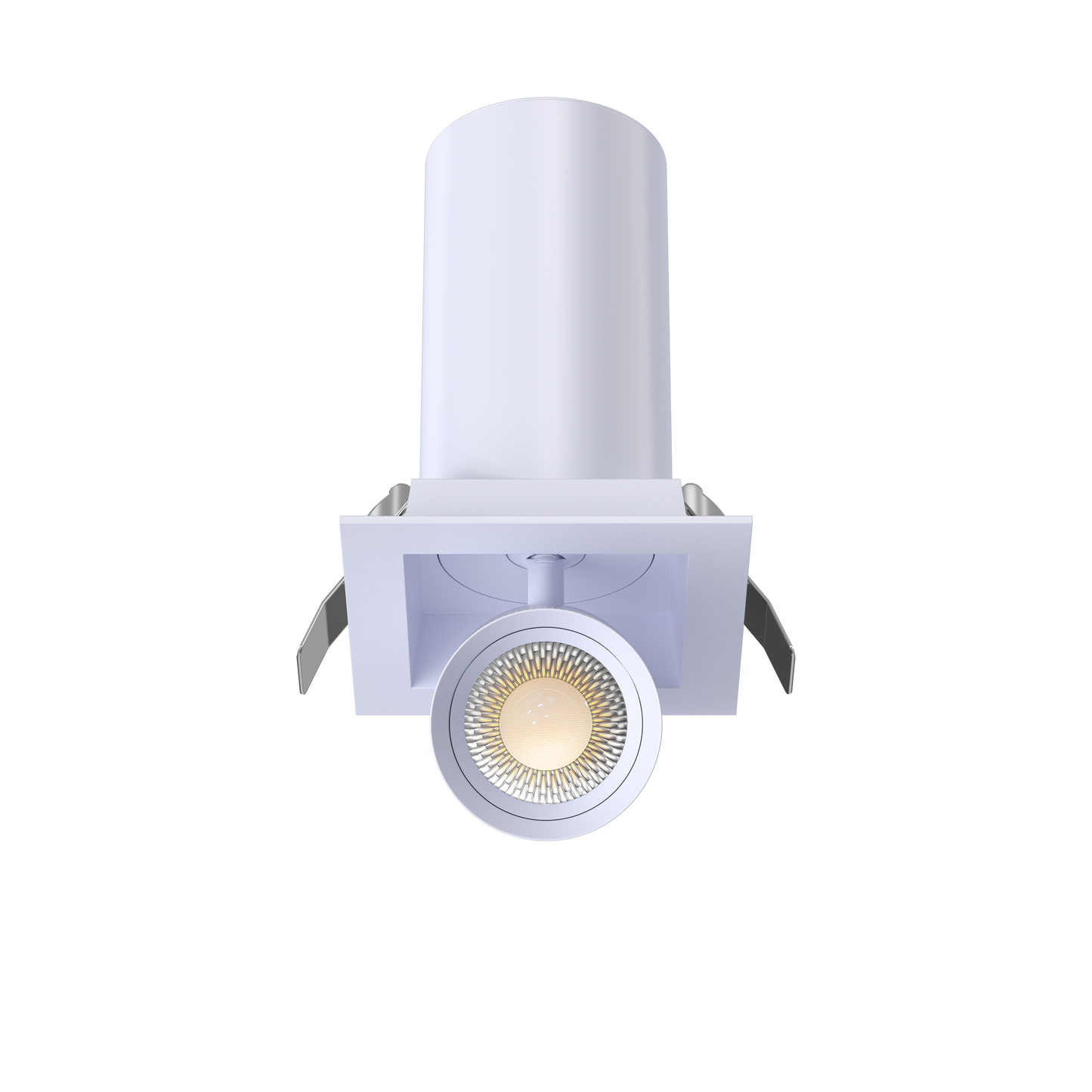

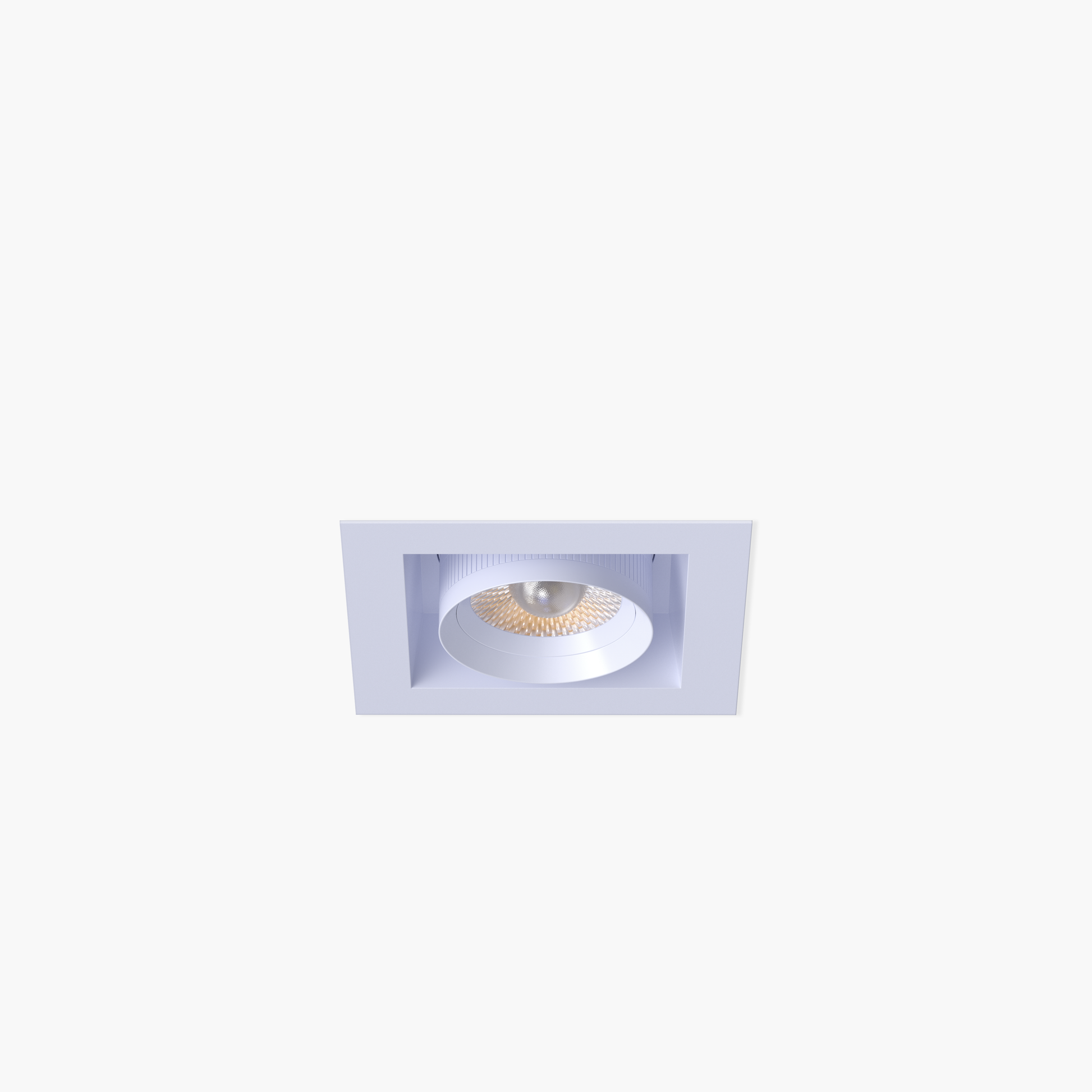

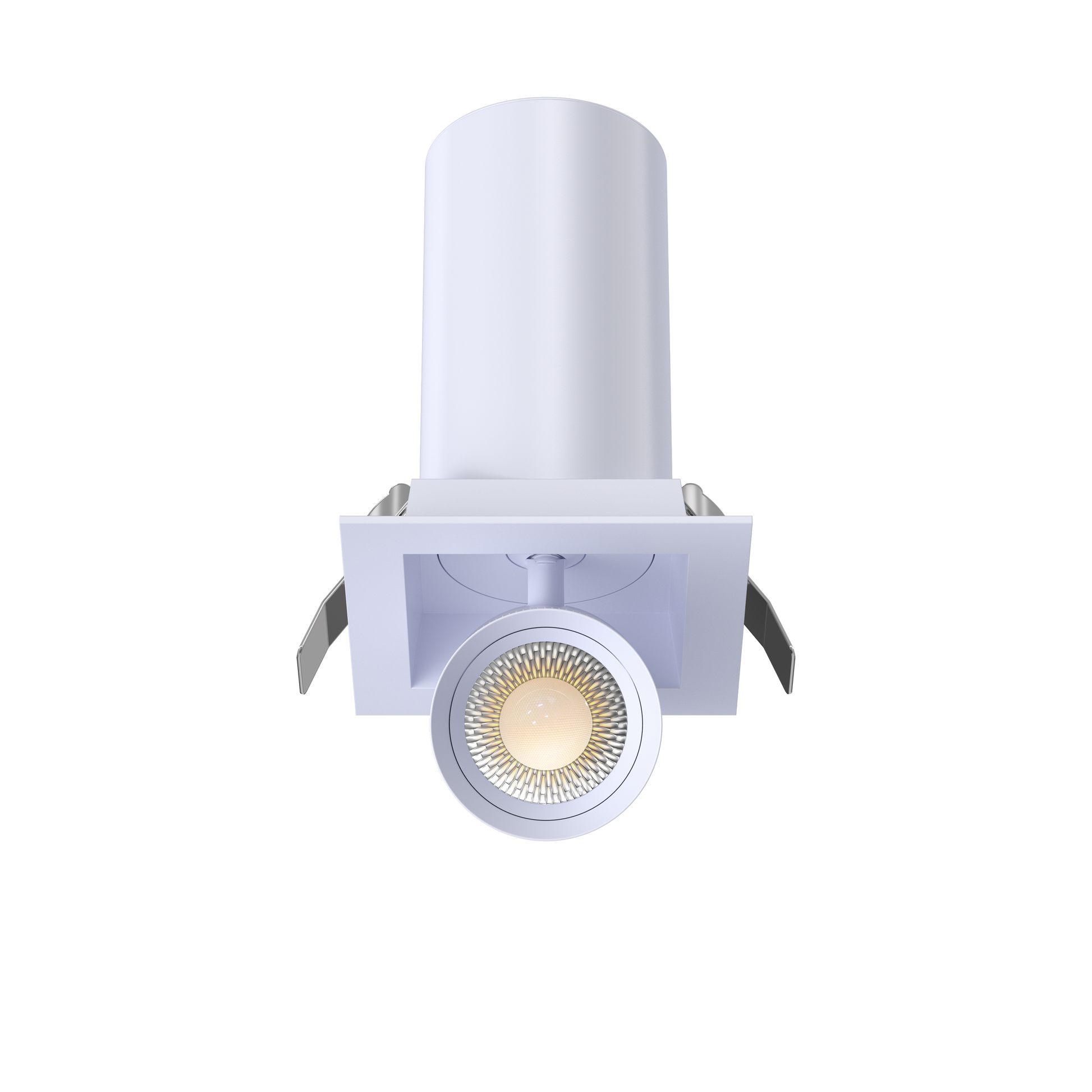

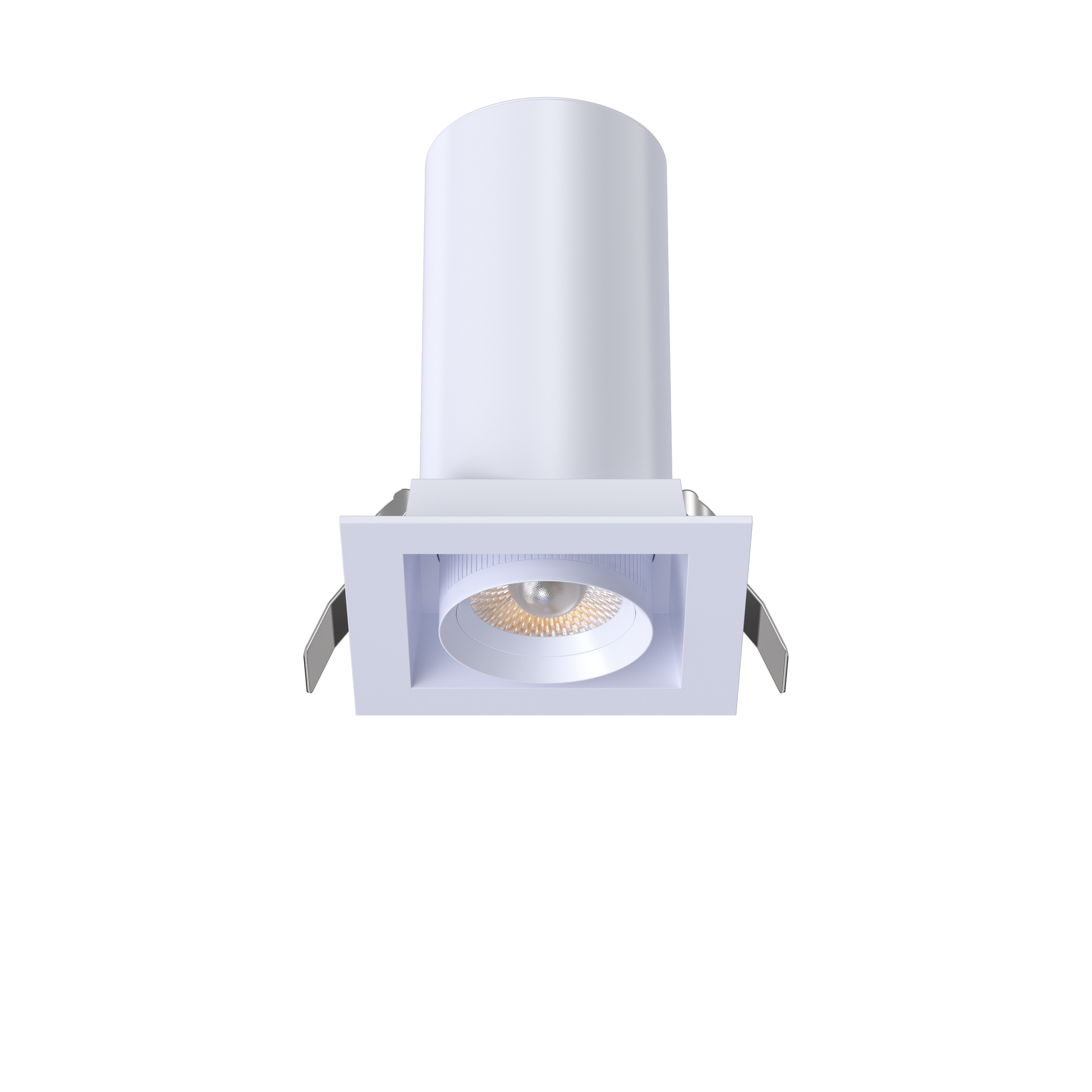

3” square retractable downlight white

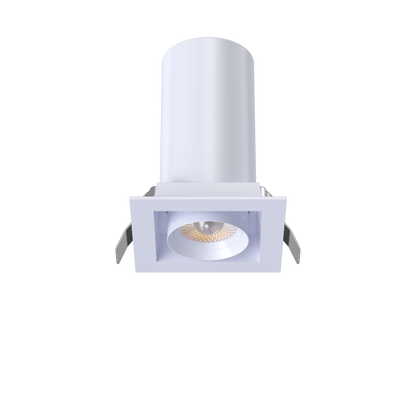

3” Square Retractable Downlight White

27,30,35,41,50k
Dimmable
1000 Lumens
12 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-32501
shape
Square
style
Trimmed
size
3 Inch
finish
White
diffuser
Clear
number of lights
1

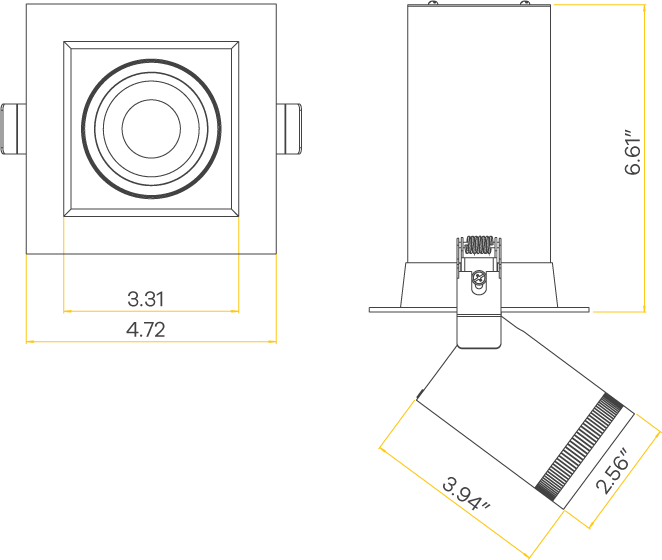

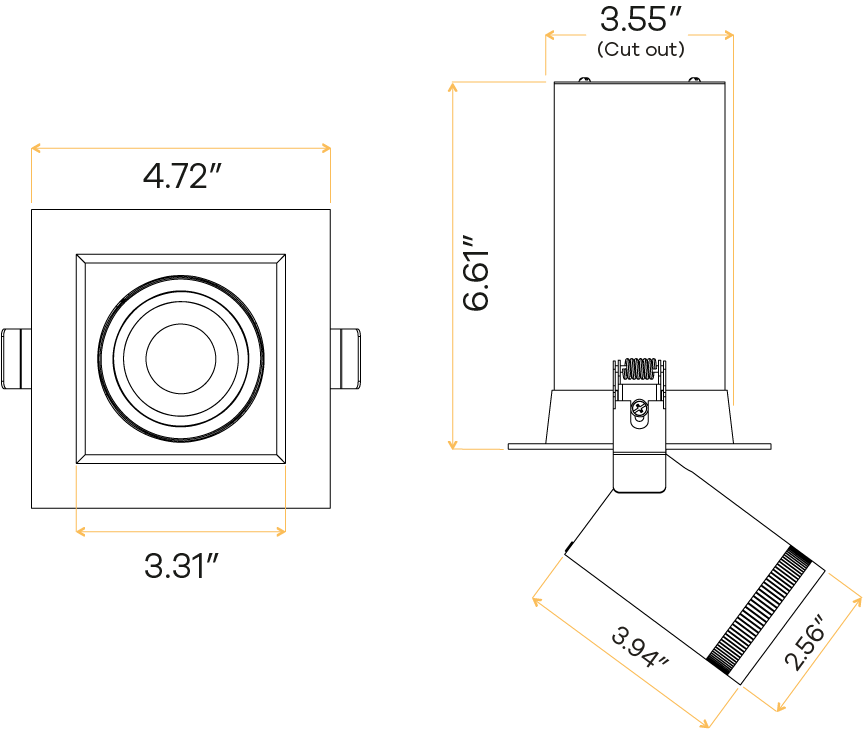

cutout
3.55" X 4.05"
OD (Outside dimensions)
4.72"
height
6.61"
mounting
Clip-in
Packaging Information
master pack
12
Barcode
990379325012
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1000
CRI
90>
beam spread deg
Adjustable 20°-55°
tilt angle
90°
rotating
360°
Electrical Specs
watt
12W
volts
120-277V
output current
270mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet

Accessories

New construction plate
G-98816
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
