G-23323
Ellipse

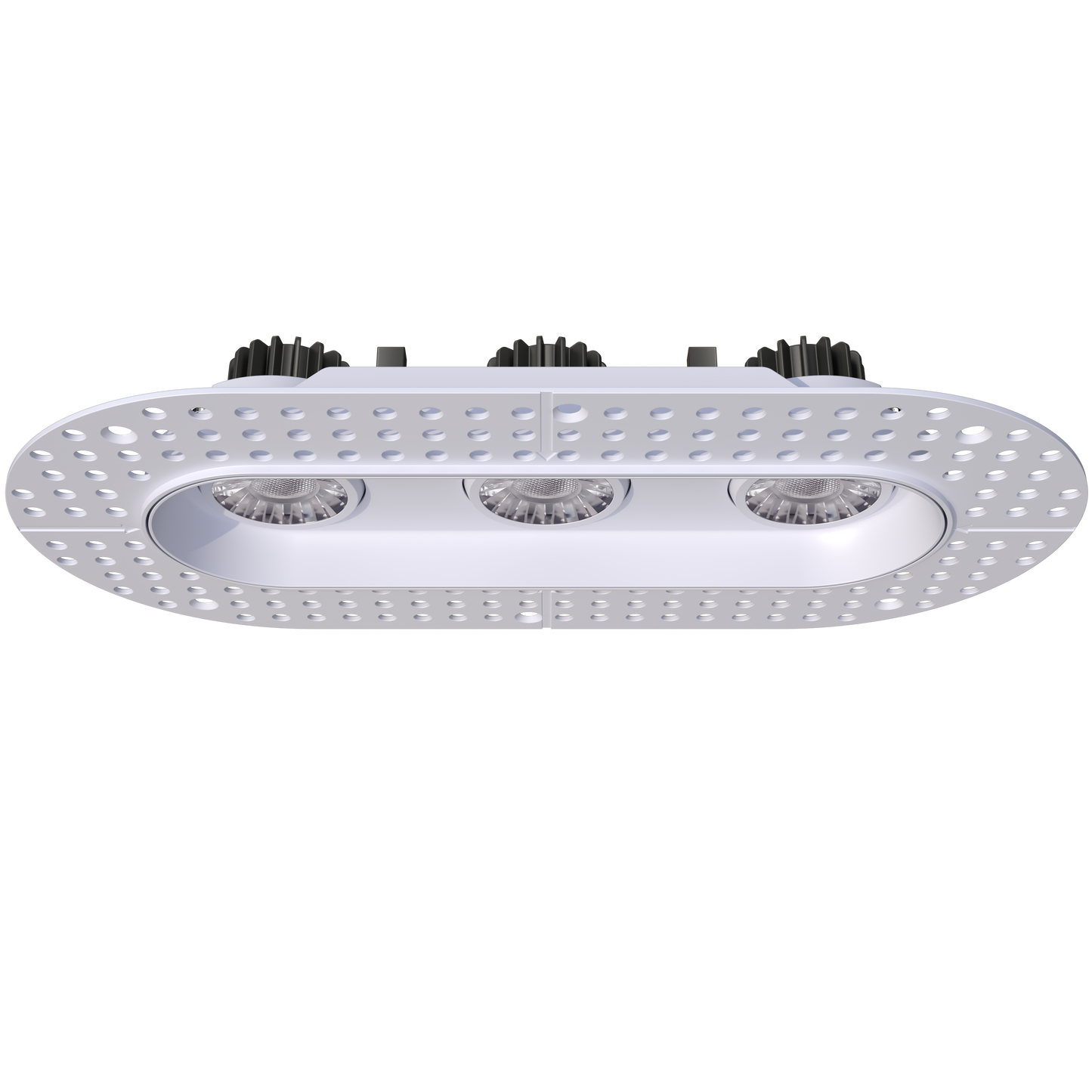

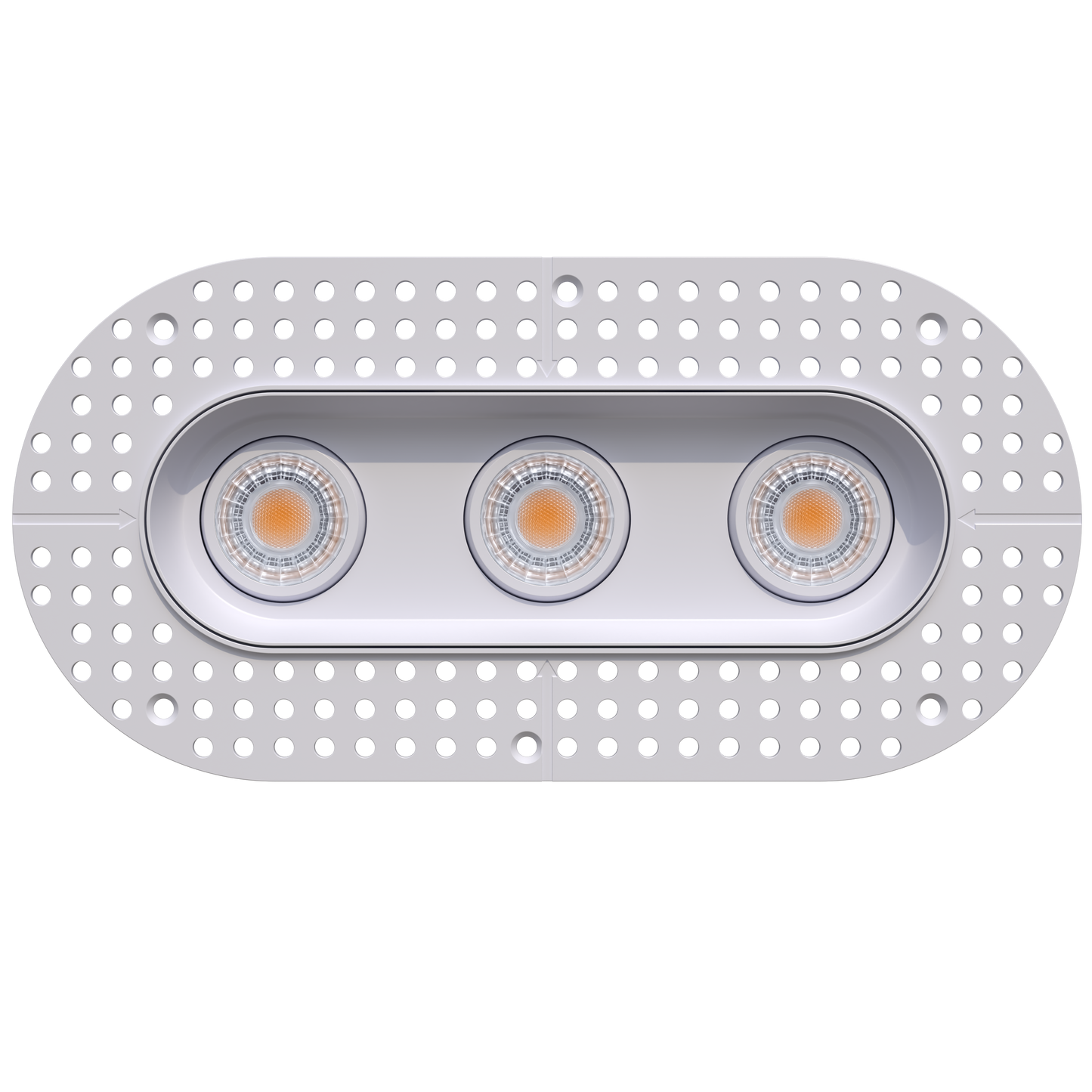

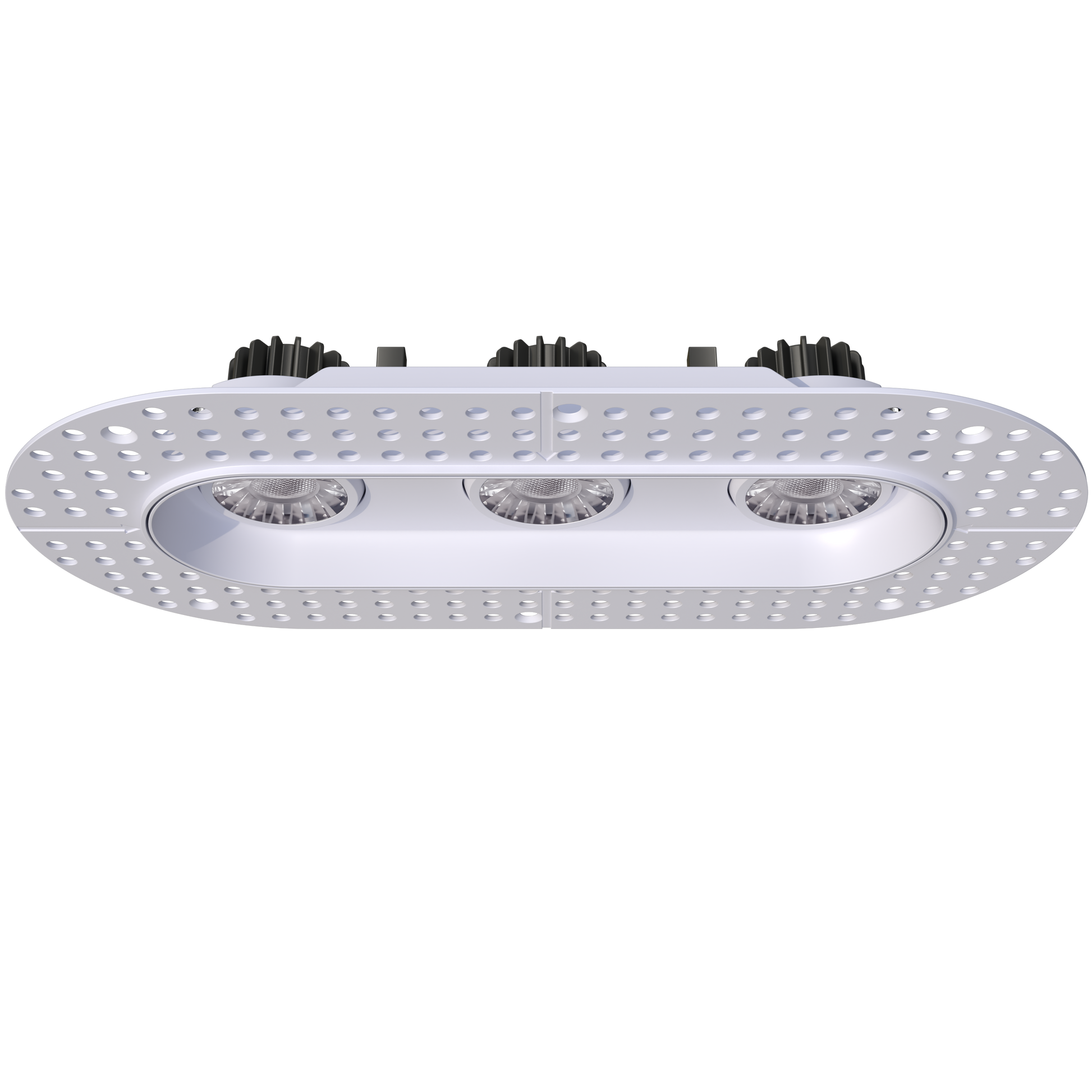

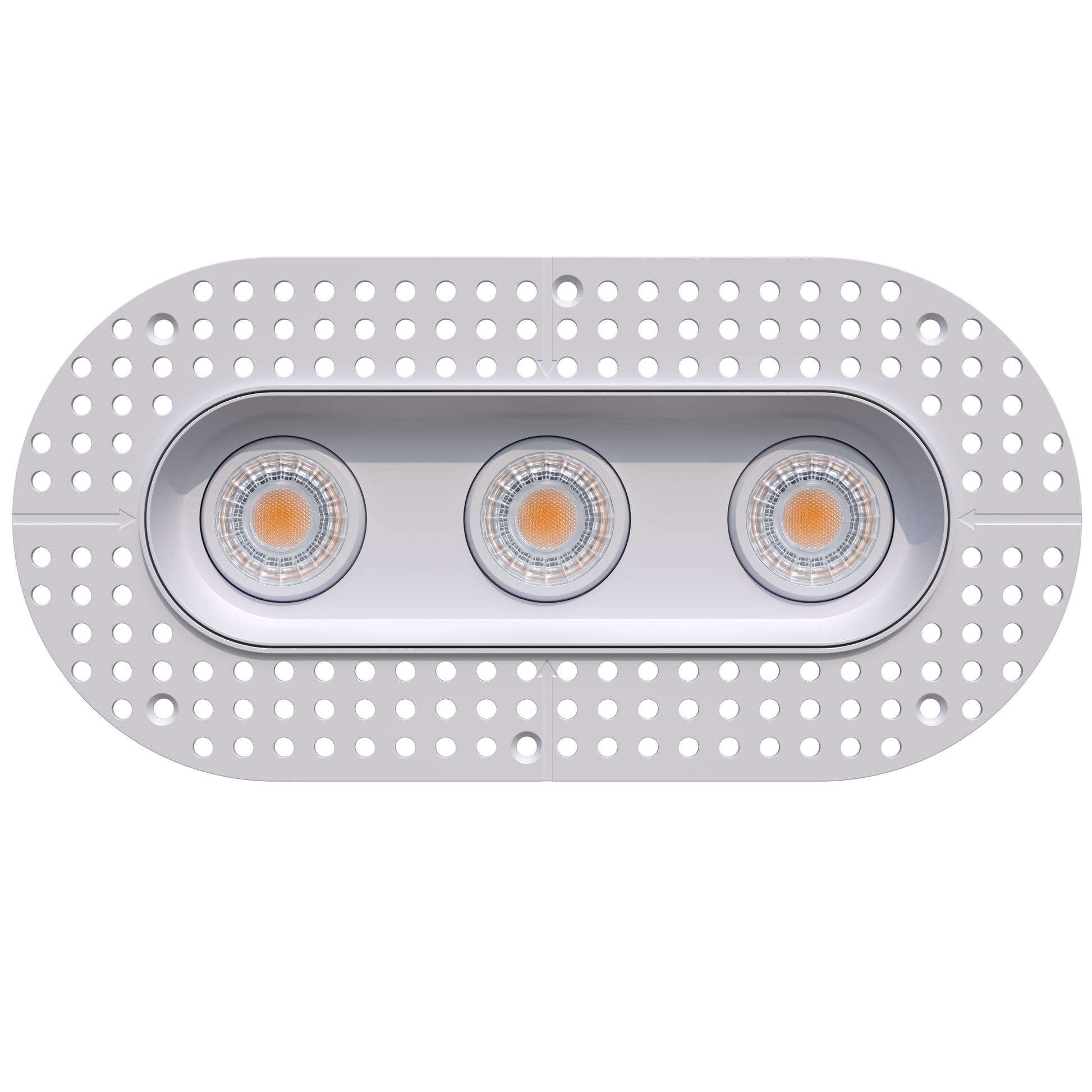

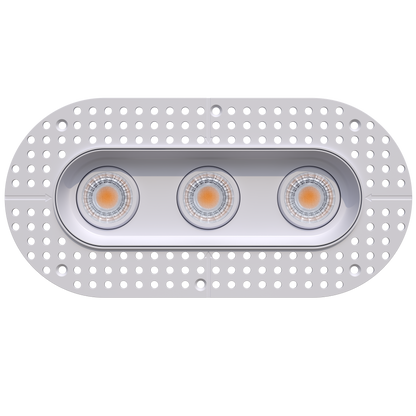

3" oval triple head regress gimbal trimless white

3" Oval Triple Head Regress Gimbal Trimless White

27,30,35,41,50k
Dimmable
2100 Lumens
23 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-23323
Description

R3/23W/GR/OVL/M3/LED/5CCT/TL

shape
Oval Multiple
style
Trimless
size
3 Inch
finish
White
diffuser
Clear
number of lights
3

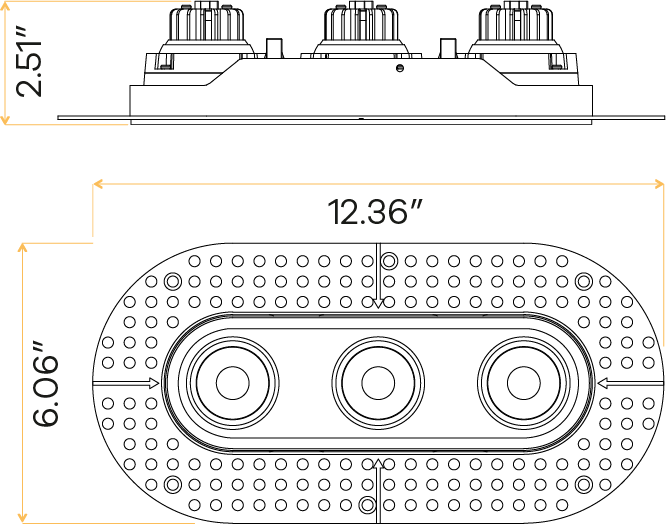

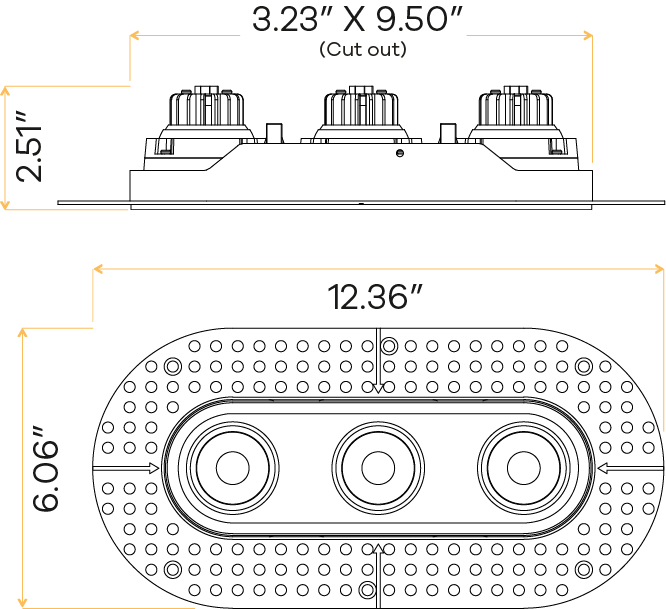

cutout
3.23" X 9.53" Oval
OD (Outside dimensions)
6.06" X 12.36"
height
2.51”
mounting
Clip-in
Packaging Information
master pack
6
Barcode
990379233232
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
700
lumens
2100
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
23W
volts
120-277V
output current
520mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec

Accessories

New construction plate
G-98813 (1 Punchouts)
Clear Lens Options
G-01420 24° Lens G-01421 40° Lens G-01422 60° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
