G-20253
Fire rated

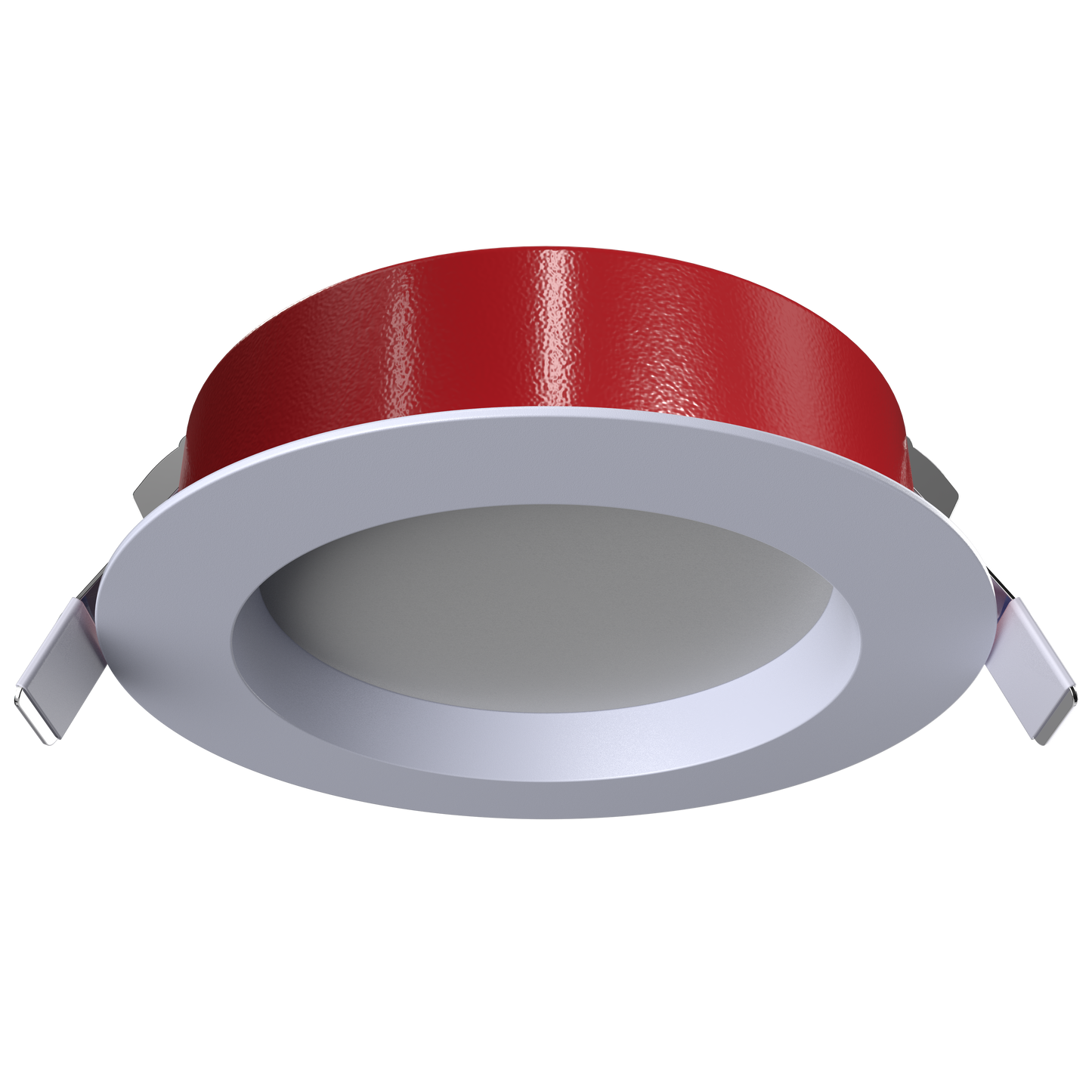

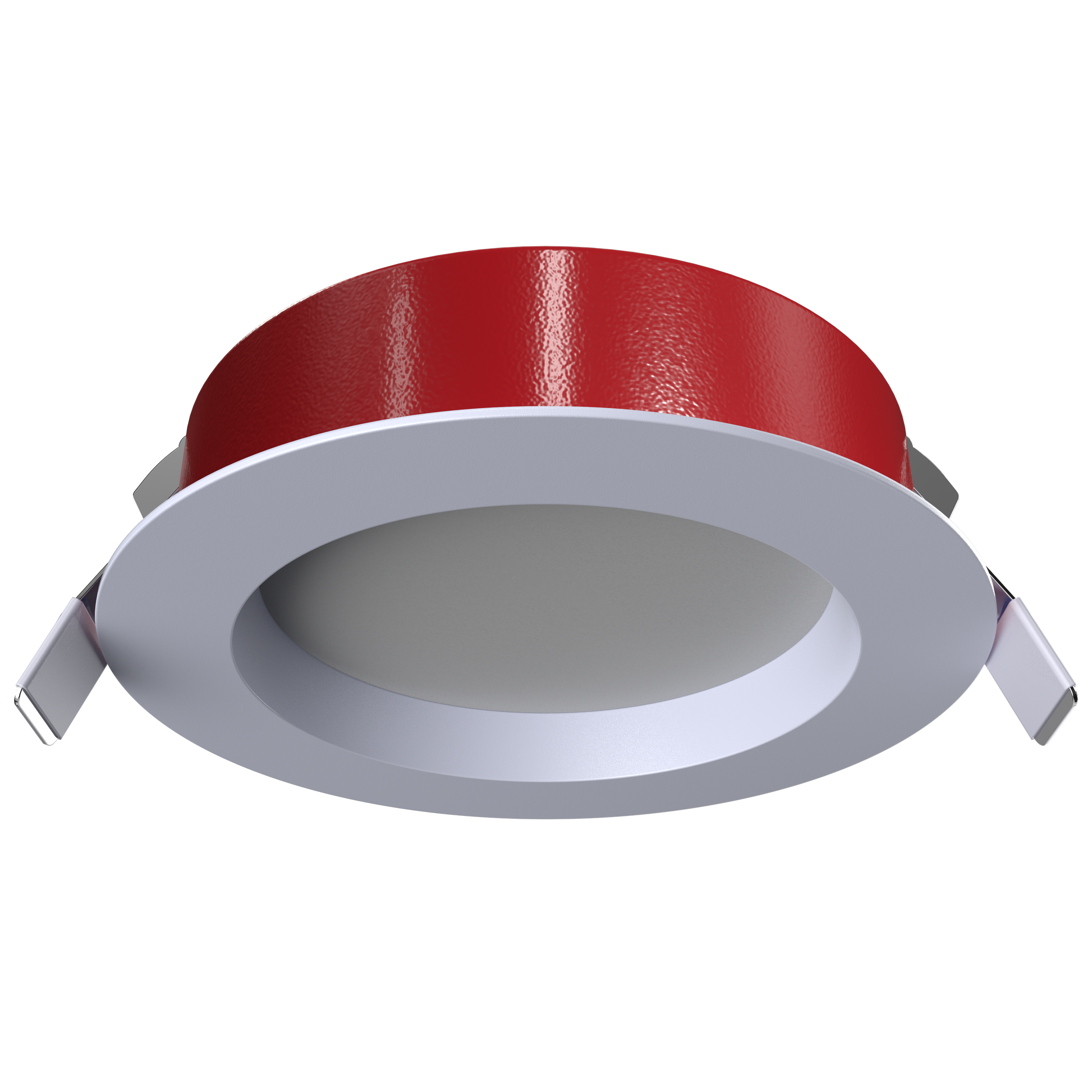

6" fire rated round regress slim

6" Fire Rated Round Regress slim

27,30,35,41,50k
Dimmable
1350 Lumens
18 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20253
Description

S6/18W/R/LED/5CCT FR

shape
Round
style
Trimmed
size
6 Inch
finish
White
diffuser
Frosted
number of lights
1
cutout
6.30”
OD (Outside dimensions)
7.00"
height
2.91”
clips compatible
Double 5/8 Sheetrock
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379202535
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1350
CRI
90>
beam spread deg
100°
Electrical Specs
watt
18W
volts
120-277V
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
fire rated
2 Hours
classification
ETL Listed

Downloads

Product Spec Instruction Sheet

Accessories

New construction plate
G-98800 (9 Punchouts) G-98810 (9 Punchouts) G-19982 (6 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
