G-20243
Regulus

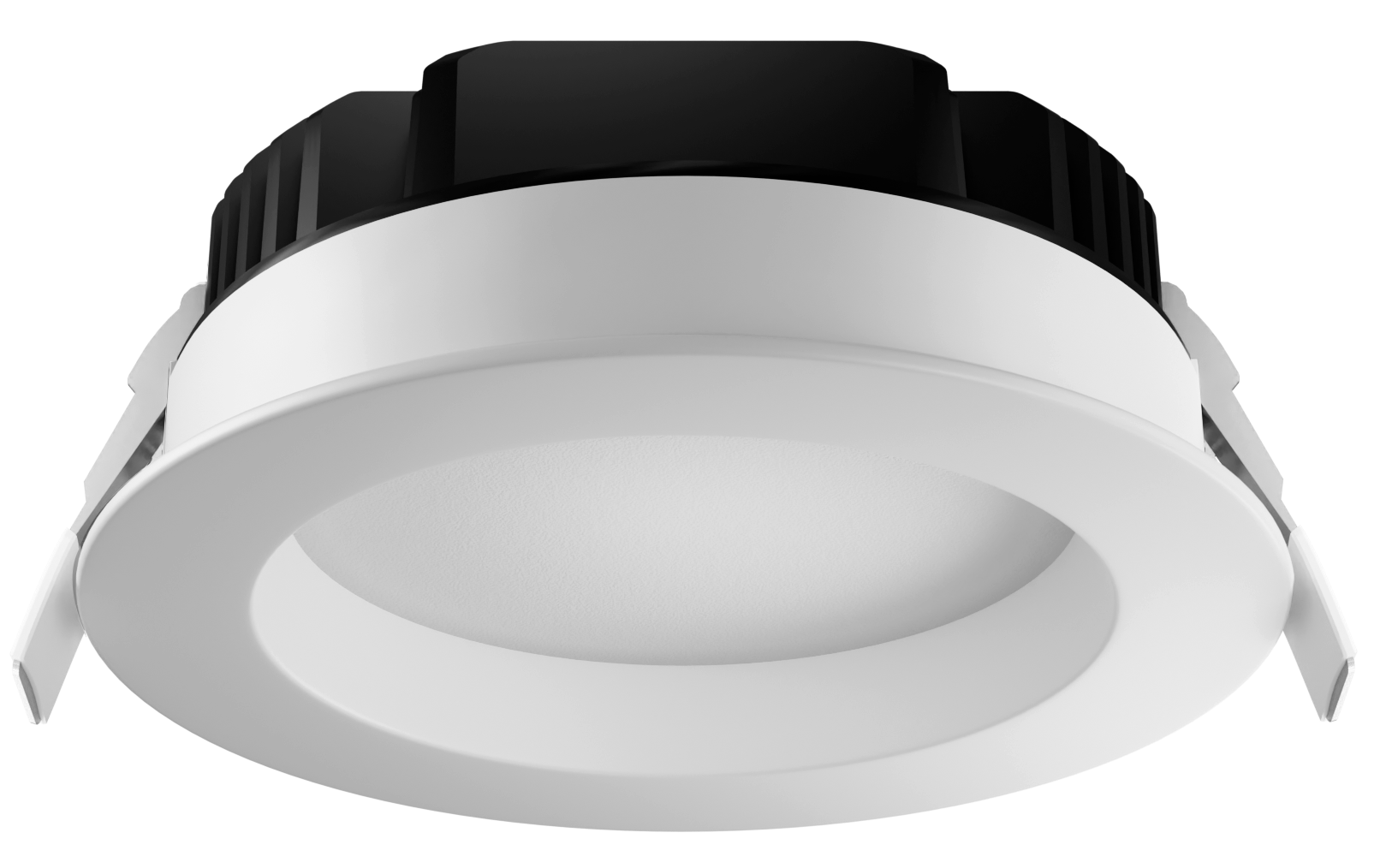

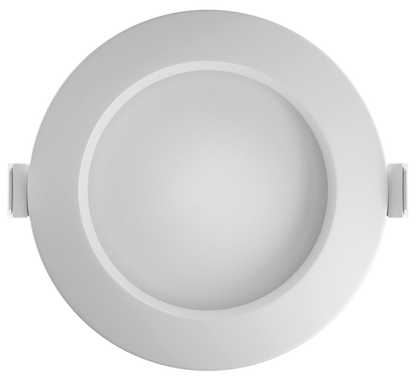

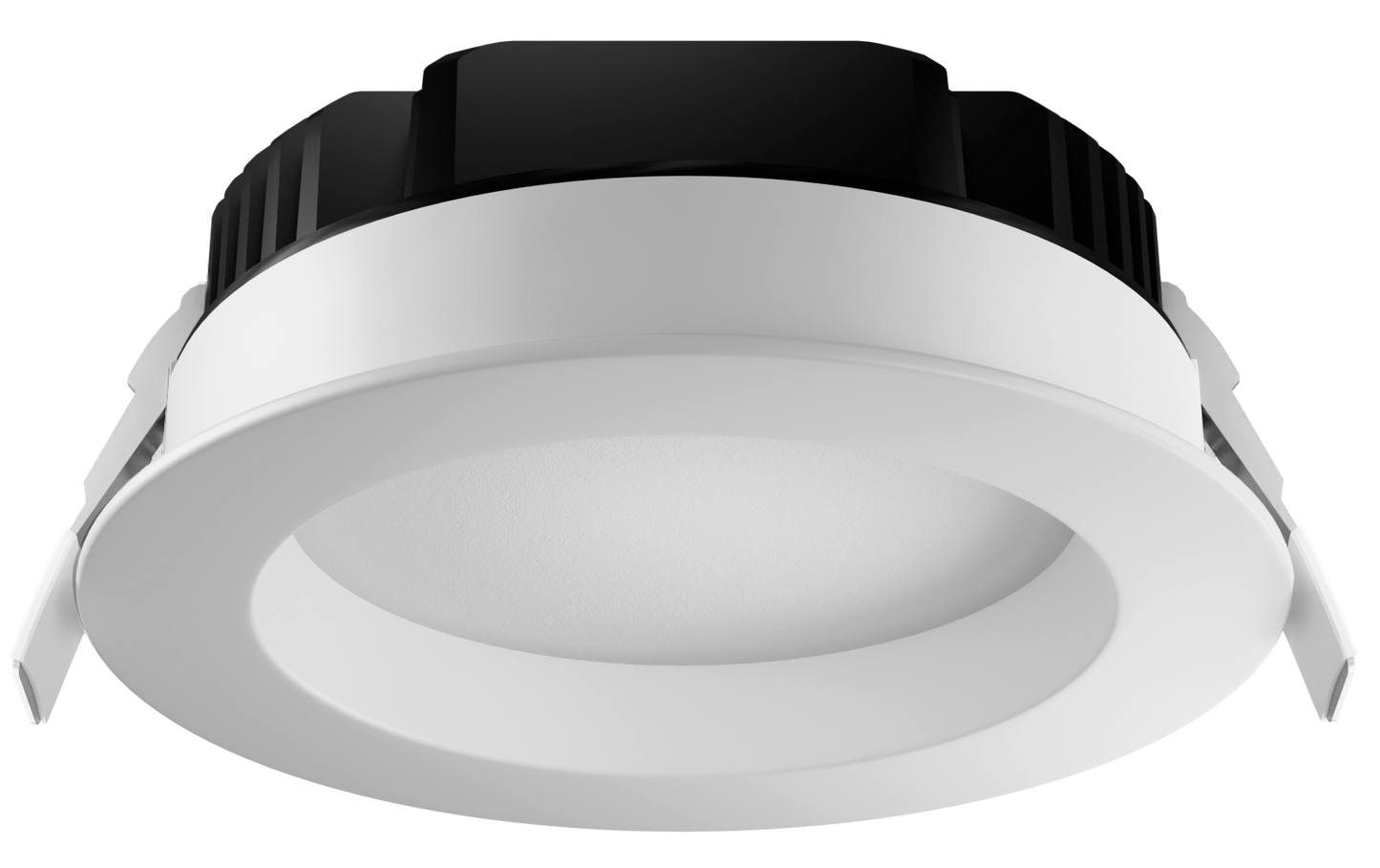

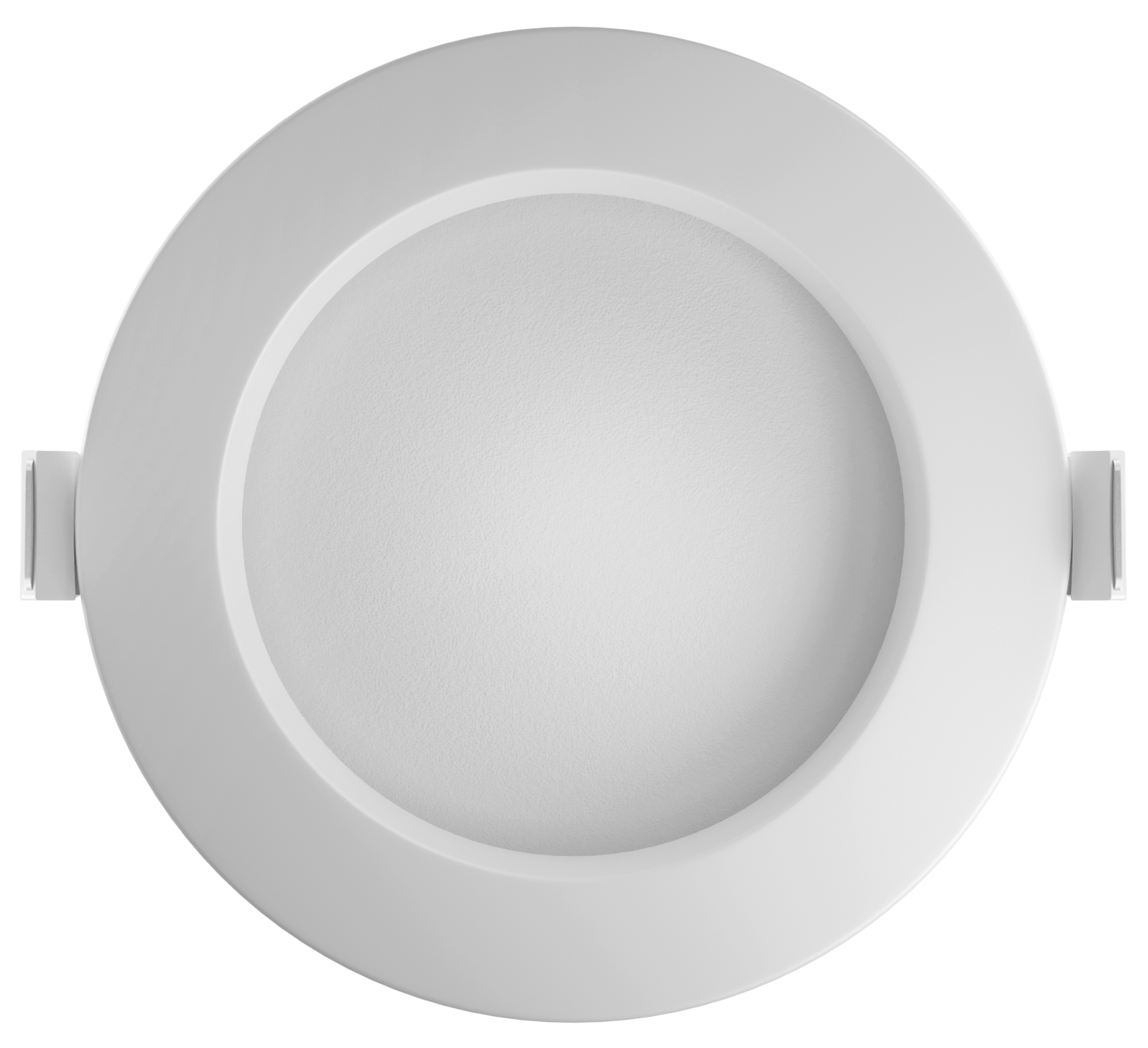

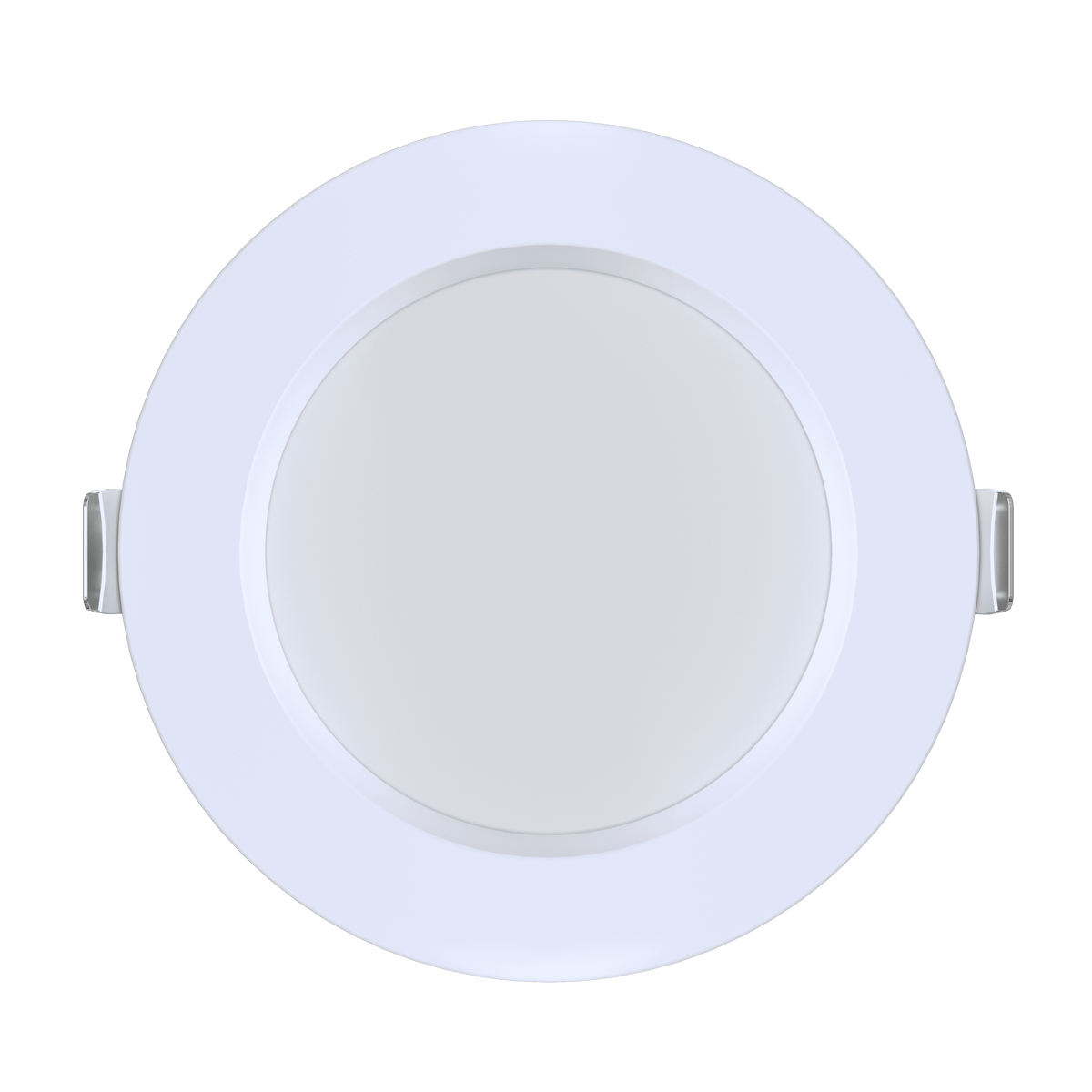

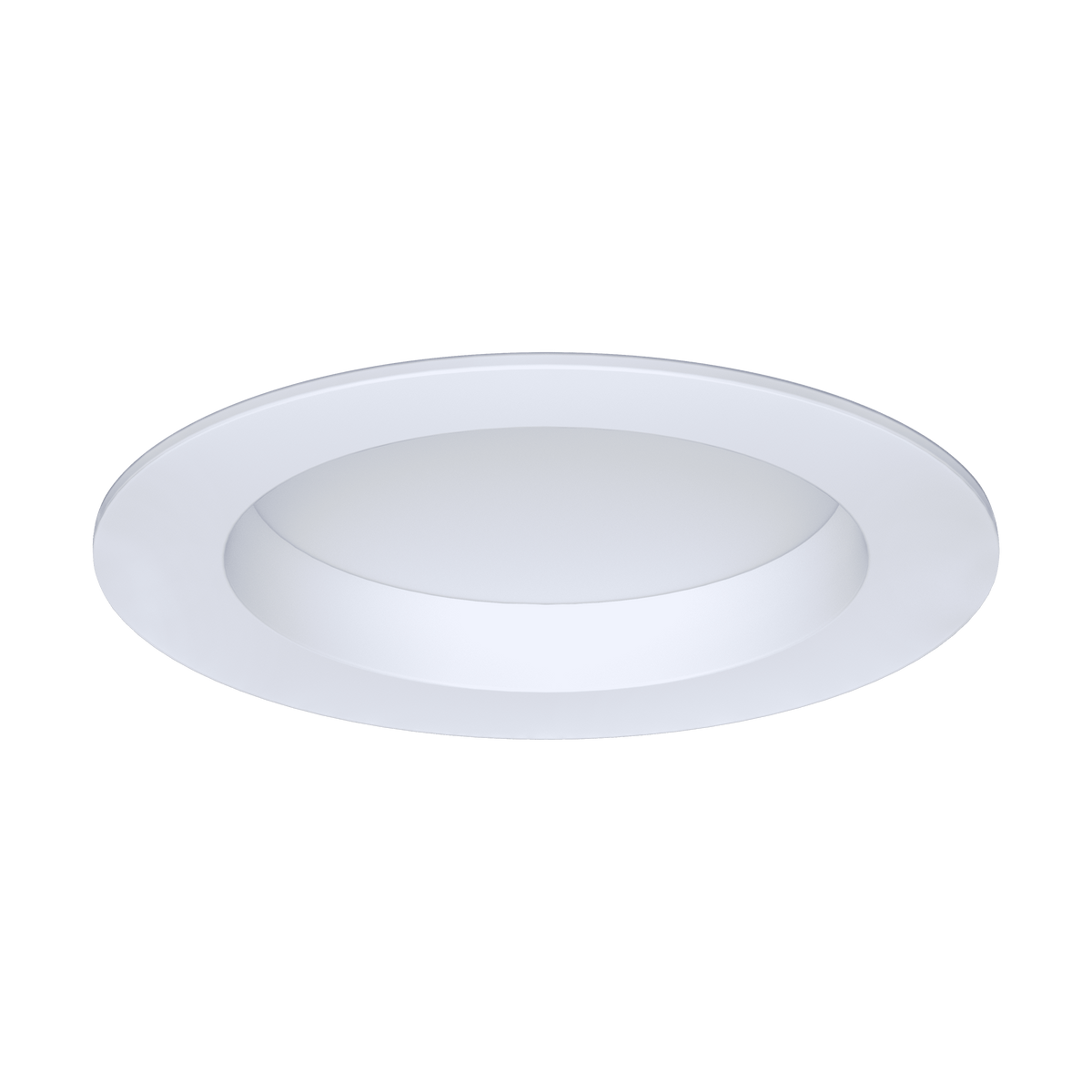

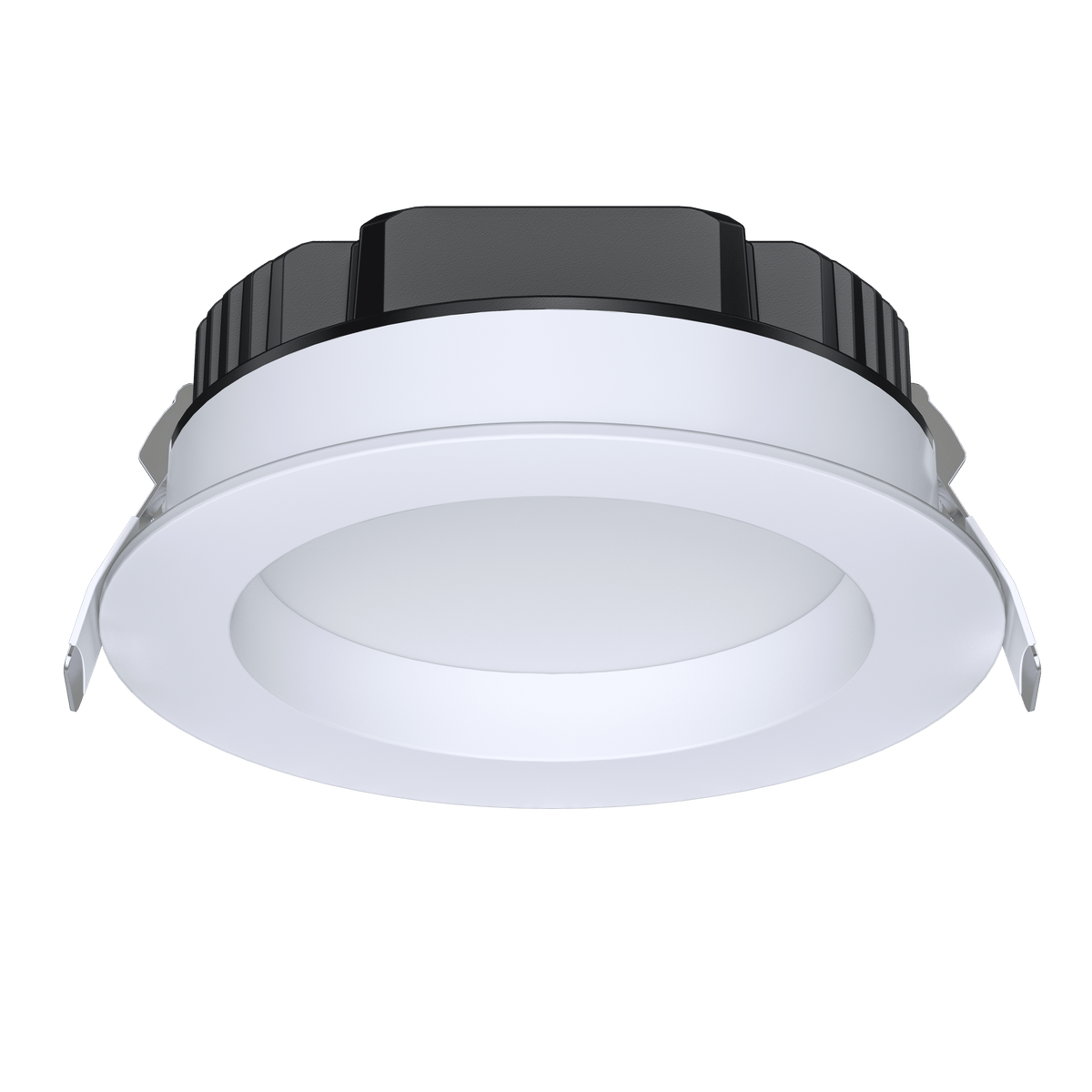

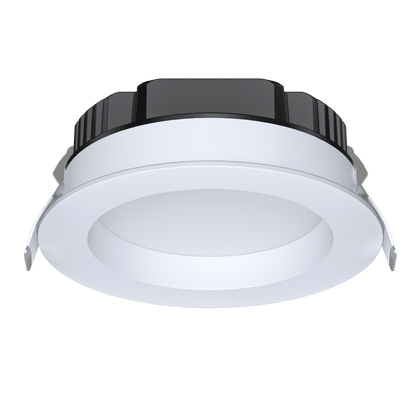

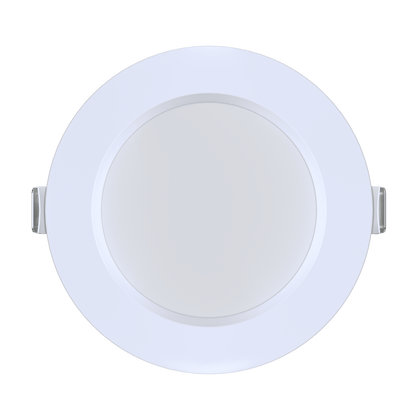

6" round regress slim

6" Round Regress slim

27,30,35,41,50k
Dimmable
950/1750/2700 Lumens
10/18/28 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20243
Description
RS6/28W/R/LED/5CCT
shape
Round
style
Trimmed
size
6 Inch
finish
White
diffuser
Frosted
number of lights
1

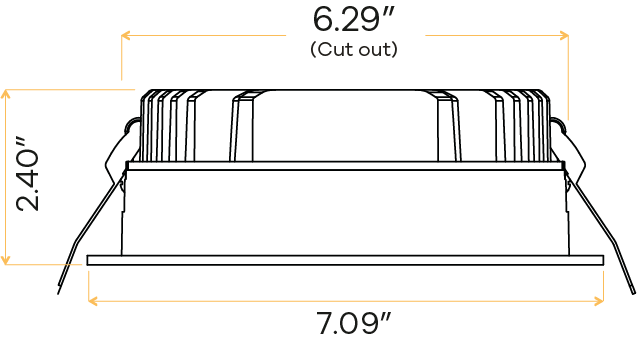

cutout
6.29”

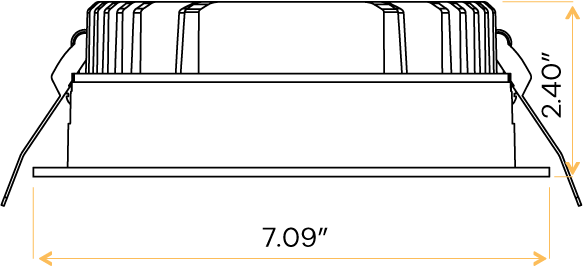

OD (Outside dimensions)
7.09"
height
2.40"
mounting
Clip-in
Packaging Information
master pack
12
Barcode
749354202431
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
950/1750/2700
CRI
>90
beam spread deg
100°
Electrical Specs
watt
10W/18W/28W
volts
120-277V
output current
750mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (9 Punchouts) G-98810 (9 Punchouts) G-19982 (6 Punchouts)
Colored Covers
G-22060 Black G-22061 Bronze G-22062 Nickel G-22063 Brass G-22064 Copper
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 10 Watt G-95825 18 Watt
